NETGEAR CWGE111 Manuel utilisateur

April 2010

202-10634-01

v1.0

350 East Plumeria Drive

San Jose, CA 95134

USA

CWGE111

802.11g WiFi Receiver

User Manual

2 |

CWGE111802.11gWiFiReceiverUserManual

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language in any form or by any means without the written permission of NETGEAR, Inc.

P/N: Part Number TBD v1.0

Technical Support

When you register your product at http://www.netgear.com/register, we can provide you with faster expert technical

support and timely notices of product and software upgrades.

NETGEAR, Inc.

350 East Plumeria Drive

San Jose, CA 95134 USA

E-mail: support@netgear.com

Website: http://www.netgear.com

Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support information card.

Trademarks

NETGEAR, the NETGEAR logo, ProSafe, Smart Wizard, and Auto Uplink are trademarks or registered

trademarks of NETGEAR, Inc. Microsoft, Windows, Windows NT, and Vista are registered trademarks of Microsoft

Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders.

Statement of Conditions

To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes

to the products described in this document without notice. NETGEAR does not assume any liability that may occur

due to the use or application of the product(s) or circuit layout(s) described herein.

Revision History

Publication Part Number Version Publish Date

202-10634-01 v1.0 April 2010

TableofContents |3

Chapter 1 CWGE111 Initial Setup

About the CWGE111 802.11g WiFi Receiver . . . . . . . . . . . . . . . . . . . . . . . 5

Hardware Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

LED Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Preconfiguration Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

First Time Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Associating the Wireless Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Chapter 2 Advanced Configuration

CPE Setup Screen & Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

LAN Interface Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

DHCP Server Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Radio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

WAN Mode Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Roaming Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

AP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

WAI Redirection Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Web Password Protection Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Restore and Reboot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Port Forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

DMZ Host. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Firmware Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Debug and System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Index

Table of Contents

Chapter1: CWGE111InitialSetup |4

CWGE111 Initial Setup

This chapter includes the following topics:

• About the CWGE111 802.11g WiFi Receiver

• Hardware Setup

• LED Descriptions

• Preconfiguration Setup

• Associating the Wireless Access Point

• First Time Setup

Chapter1: CWGE111InitialSetup |5

CWGE111802.11gWiFiReceiverUserManual

About the CWGE111 802.11g WiFi Receiver

Congratulations on purchasing your NETGEAR CWGE111 802.11g WiFi Receiver.

Hardware Setup

Figure 1-1 CWGE111 WiFi Receiver

To connect your modem

1. Attach the provided antenna to the antenna connector.

2. Insert the provided power adapter into the DC socket on the receiver.

3. Plug the power adaptor into an electric wall socket.

4. Connect one end of the provided Ethernet cable to the LAN port on the receiver, and the

other end to the Ethernet port on the computer.

LED Descriptions

Figure 1-2 CWGE111 LED Status Indicators

LED Description

Power - PWR Green: Power is on.

Off: Power is off.

Status - RDY Green: Device is booted.

Off: Device is not booted.

Ethernet - ENET Green: Ethernet is connected.

Blinking: Sending/Receiving data.

Off: Ethernet is not connected.

Signal bars

Green: Associated with an access point.

Back-and-forth: Searching access point.

Blinking: Acquiring IP address.

Off: Not associated with an access point.

The number of lit signal bars depends on the strength of the received signal.

More lit bars indicate a stronger signal.

6| Chapter1: CWGE111InitialSetup

CWGE111802.11gWiFiReceiverUserManual

Preconfiguration Setup

Before you begin, be sure of the following:

1. You have an active ISP account and can access the Internet.

Open a web browser (e.g, Internet Explorer, Mozilla Firefox, etc.) and visit an Internet

web site. If you successfully see the web site, you are connected. If not, you need to

establish an active Internet connection before proceeding with the installation.

2. Preconfigure your computer to automatically obtain an IP address.

If not already done, set up the LAN interface on your computer to obtain an IP address

automatically. If you are already set up for automatic IP, you should encounter no

problems with your set up.

To obtain an automatic IP address

1. Go to the Start menu

2. Open the Control Panel and then Network Connections.

3. Right click on the Local Area Connection icon

a. Choose Properties

b. Double-click on Internet Protocol (TCP/IP) from the list.

c. Check the “Obtain IP address automatically” radial button.

d. Click OK to confirm the change.

Figure 1-3 LAN interface configuration for automatic IP addressing

Chapter1: CWGE111InitialSetup |7

CWGE111802.11gWiFiReceiverUserManual

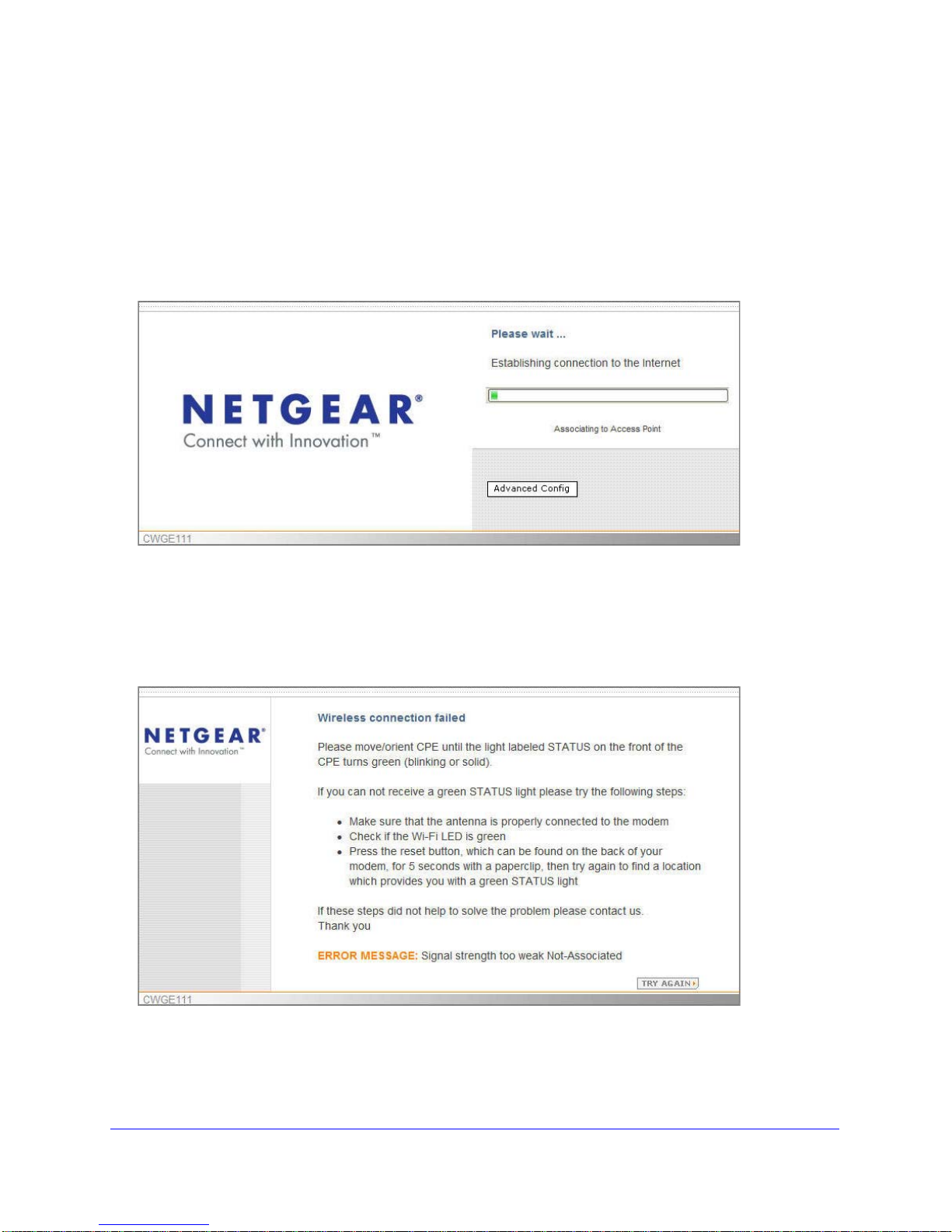

First Time Setup

Once your system is preconfigured, when you plug in your CWGE111 802.11g WiFi Receiver

User Manual, you should be automatically redirected to the connection page.

If this page (Figure 1-4) does not automatically appear, open a browser and enter

http://192.168.20.1/ in the address field.

Figure 1-4 Opening Connection Page

Connection Failed

Initially you may get a Connection Failed message. If this happens, click the Advanced

Configuration button and use the options to set the correct access point parameters.

Figure 1-5 Connection Failed

8| Chapter1: CWGE111InitialSetup

CWGE111802.11gWiFiReceiverUserManual

Associating the Wireless Access Point

When you click the Advanced Options button, you will see the CPE Setup screen:

Figure 1-6 CPE Setup Screen

To Associate the Access Point

1. Click the Advanced Option button.

1. On the CPE Setup screen, locate the Wireless Settings options.

2. In the SSID field, input the access point SSID (also called the network name).

3. Select the Authentication method. According to Access Point settings you are

associating to, you might need to choose a different Authentication setting.

4. Enter the Encryption Key if a Static WEP or WPA/WPA2-Personal is selected for

Authentication.

Additional options include 802.1x with dynamic WEP key and WPA/WPA2-Enterprise.

You do not need to use these settings unless instructed to do so by your ISP.

5. Click the Save button at the bottom of the screen.

Figure 1-7 Associate wireless access points

Chapter1: CWGE111InitialSetup |9

CWGE111802.11gWiFiReceiverUserManual

6. Click the Connect link on the top bar

7. Then click the Connect button to associate with the access point.

Figure 1-8 Establishing Connection to the Internet

Connection Established

At this point, you are associated with the access point. You can now close the web browser

and open a new one to start web browsing.

Figure 1-9 Connection Established

Chapter2: AdvancedConfiguration |10

Advanced Configuration

This chapter discusses the following topics:

• CPE Setup Screen & Options

• LAN Interface Settings

• DHCP Server Settings

• Radio Settings

• WAN Mode Settings

• Wireless Settings

• Roaming Settings

• IP Settings

• AP Settings

• WAI Redirection Settings

• Web Password Protection Settings

• Restore and Reboot

• Port Forwarding

• DMZ Host

• QoS

• Firmware Upgrade

• Debug and System Information
