NETGEAR XAUB2511 Manuel utilisateur

Powerline Music Extender (XAUB2511)

Installation Guide

No part of this publication may be reproduced, transmitted, transcribed, stored in

a retrieval system, or translated into any language in any form or by any means

without the written permission of NETGEAR, Inc. For indoor use only in all EU

countries and Switzerland.

WARNING: Do not stack equipment or place equipment in tight spaces, in

drawers, or on carpets. Make sure your equipment is surrounded by at least 2

inches of air space.

Technical Support

Thank you for choosing NETGEAR. To register your product, get the latest

product updates, or get support online, visit us at http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR

Phone (Other Countries): 

See http://support.netgear.com/app/answers/detail/a_id/984.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks

and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the

United States and/or other countries. Information is subject to change without

notice. Other brand and product names are registered trademarks or trademarks

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability,

NETGEAR reserves the right to make changes to the products described in this

document without notice. NETGEAR does not assume any liability that may occur

due to the use or application of the product(s) or circuit layout(s) described herein.

Package Contents

XAU2511

Powerline

Adapter Products sold in some

locations have a 

Resource CD.

USB to Audio

cable

Ethernet cables (2)

XAV1601

Powerline

Adapter

Note: NETGEAR recommends that you do not plug a Powerline

adapter directly into a power strip. See Advanced Setup on

page 23 for instructions.

Hardware Features

Security

button

Power LED

Ethernet

port and

LED

Factory

Reset

button

On/Off

button

Filtered 

AC Socket

XAU2511

XAV1601

Ethernet

port

Filtered AC Socket

Security button

Factory Reset button

Power LED

Powerline LED

Ethernet LED

USB port

Powerline LED

Powerline Adapter Setup

If you do not have Powerline adapters at home, do the following:

1. Plug the XAV1601 adapter into an AC wall outlet near your Wi-Fi

router/gateway.

2. Plug the XAU2511 adapter into the AC wall outlet where you

want to hear the music or put the printer.

3. Make sure the Powerline LEDs on each adapter are lit.

The lit LEDs indicate that the adapters are associated and

connected to the network.

4. Optional. If you want to change the default security key on your

Powerline network, see Advanced Setup on page 23.

If you have Powerline adapters at home, do the following:

Make sure the new XAU2511 and XAV1601 adapters and your

existing adapters are on the same security key so they can work

together:

1. Plug the XAU2511 into a power outlet.

2. When the Power LED lights, press the Security button for 2

seconds until the Power LED starts to blink.

3. On one of your existing Powerline adapters, press the Security

button for 2 seconds until the Power LED starts to blink.

When the Power LED stops blinking, the two devices are

connected and paired on the same network key.

4. Do the same pairing operations with the XAV1601.

Troubleshooting

If the Powerline LED is not green, plug the Powerline adapter into the

wall power outlet. If there is a power strip, plug the power strip into the

Powerline adapter socket.



After you finish plugging in the adapter and if the Powerline LED is off

or red, place the Powerline adapter into another AC wall outlet.

Note: See LED Descriptions on page 24 for a description of the LEDs

Powerline Music Extender Features

The Powerline Music Extender provides music and networking

features. The Play Music Anywhere features let you play music

wirelessly. The networking features let you connect USB storage

devices and USB printer/scanners to your home network.

Play Music Anywhere Features

The Play Music Anywhere features are ReadySHARE AirMusic and

ReadySHARE Music.

ReadySHARE AirMusic

ReadySHARE AirMusic lets you play music wirelessly from your

iPhone, iPad, iPod touch, or Android devices. The music is played on

audio speakers, such as USB speakers or a Hi-Fi stereo system.

NETGEAR supports all types of stereo speaker because it has a USB

to RCA + 3.5 mm Mini jack cable (included).

ReadySHARE Music

ReadySHARE Music lets you play music from your computer on a

remote audio speaker, such as USB speakers or a Hi-Fi system.

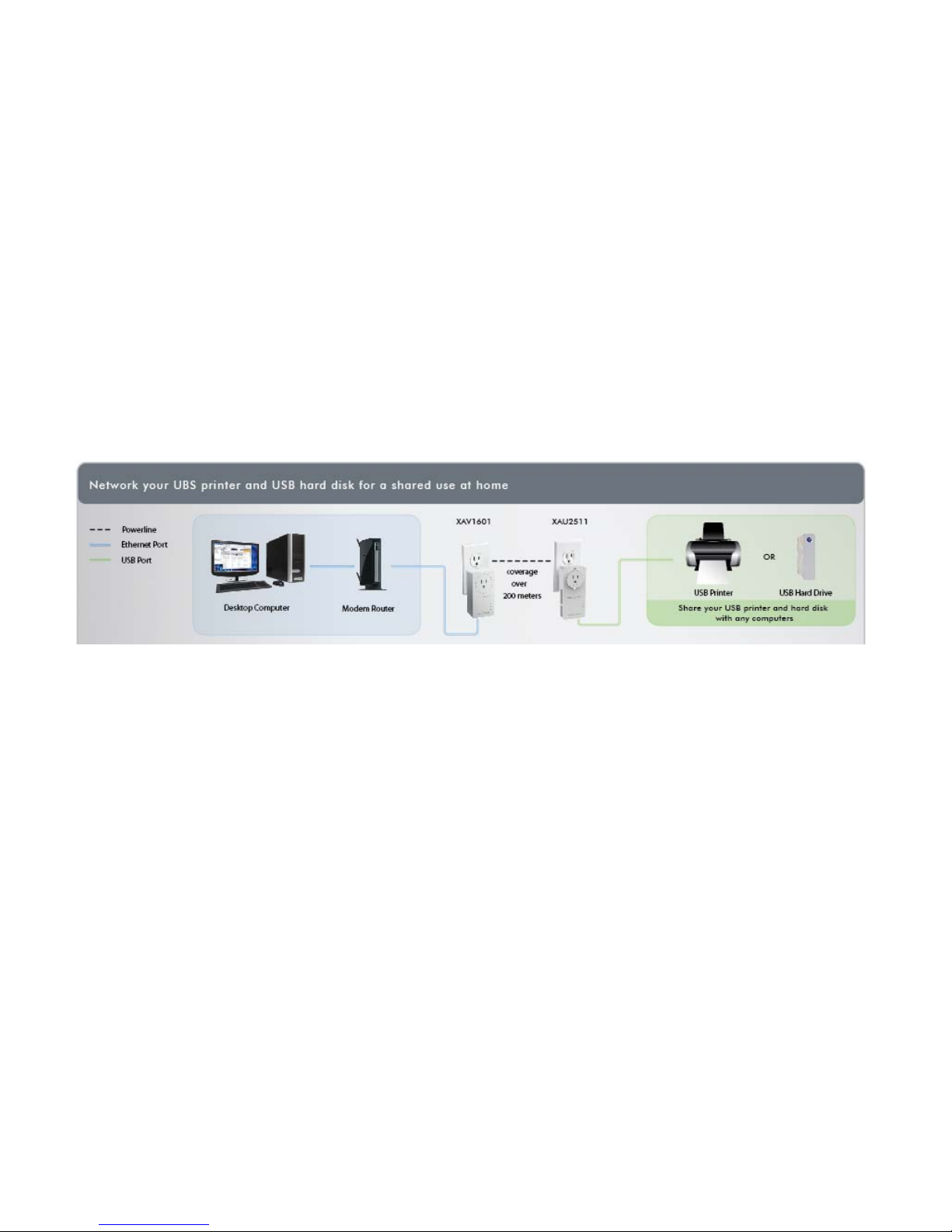

Networking Features

The networking features let you connect any USB printer and USB

hard drive to your home network so they can be accessed through

WiFi. The XAU2511 adapter shares the USB devices for remote

access with other users or computers anywhere in the home. The

networking features are ReadySHARE Printer and ReadySHARE

USB Storage access.

ReadySHARE Printer

ReadySHARE Printer lets you place your USB printer anywhere in

your house. When you connect the USB printer to the XAU2511 USB

port, the printer is shared among all computers on the home network.

ReadySHARE USB Storage

ReadySHARE USB Storage lets you share the content on a hard disk

or memory stick across your home network. All you do is connect the

hard disk or memory stick to the XAU2511 USB port.
