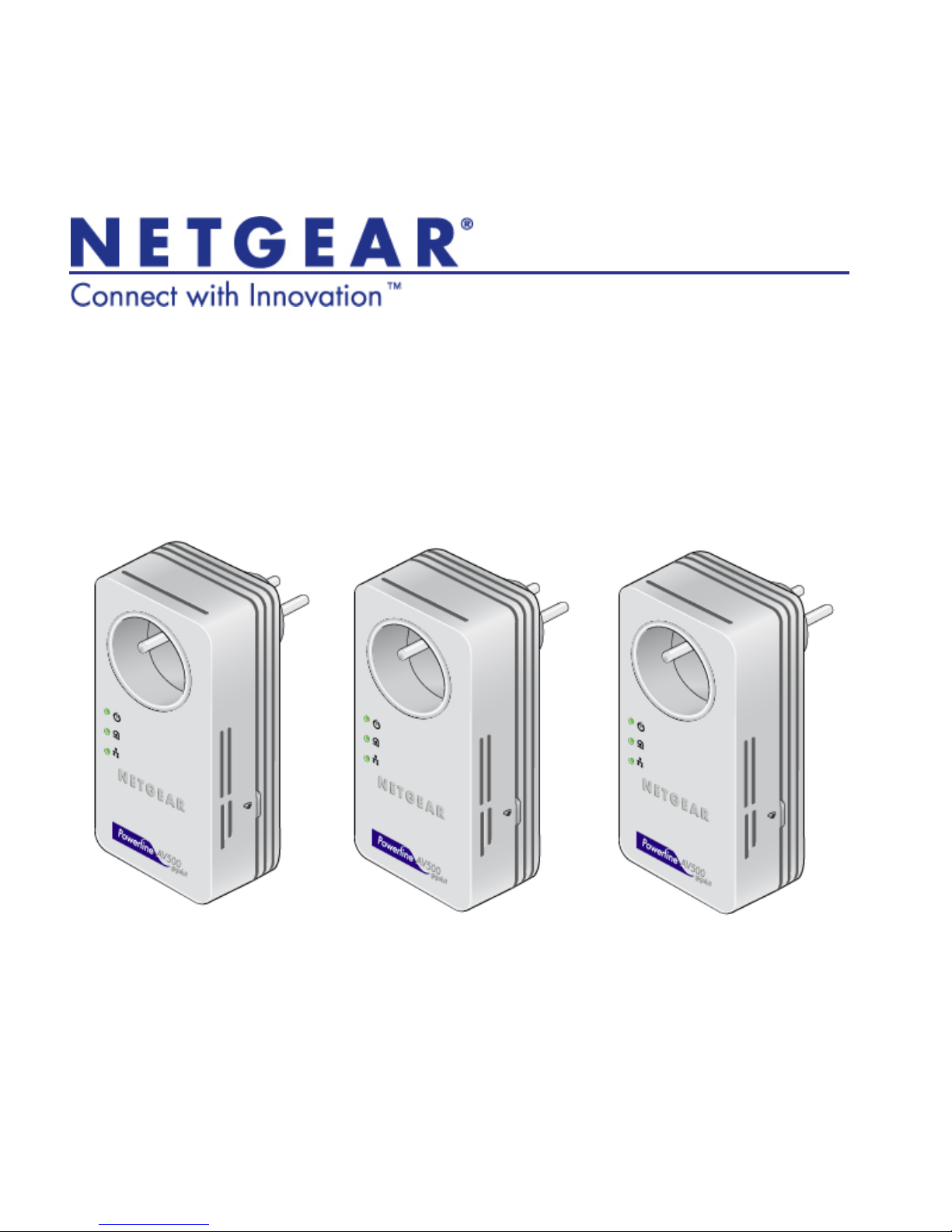

NETGEAR XAVT5601 Manuel utilisateur
Powerline 500 Nano PassThru (3-pack)
(XAVT5601) Installation Guide
© 2012 NETGEAR, Inc. All rights reserved.
For indoor use only in EU countries and Switzerland.
No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language in any form or by
any means without the written permission of NETGEAR, Inc.
DO NOT stack equipment, or place equipment in tight spaces or in drawers.
Be sure your equipment is surrounded by at least 2 in. of air space.
Technical Support
Thank you for choosing NETGEAR. To register your product, get the latest
product updates, or get support online, visit us at http://support.netgear.com.
Phone (US & Canada only): 1-888-NETGEAR
Phone (Other Countries):
See http://support.netgear.com/app/answers/detail/a_id/984.
Trademarks
NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks
and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the
United States and/or other countries. Information is subject to change without
notice. Other brand and product names are registered trademarks or
trademarks of their respective holders. © 2012 NETGEAR, Inc. All rights
reserved.
Statement of Conditions
In the interest of improving internal design, operational function, and/or
reliability, NETGEAR reserves the right to make changes to the products
described in this document without notice. NETGEAR does not assume any
liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
3

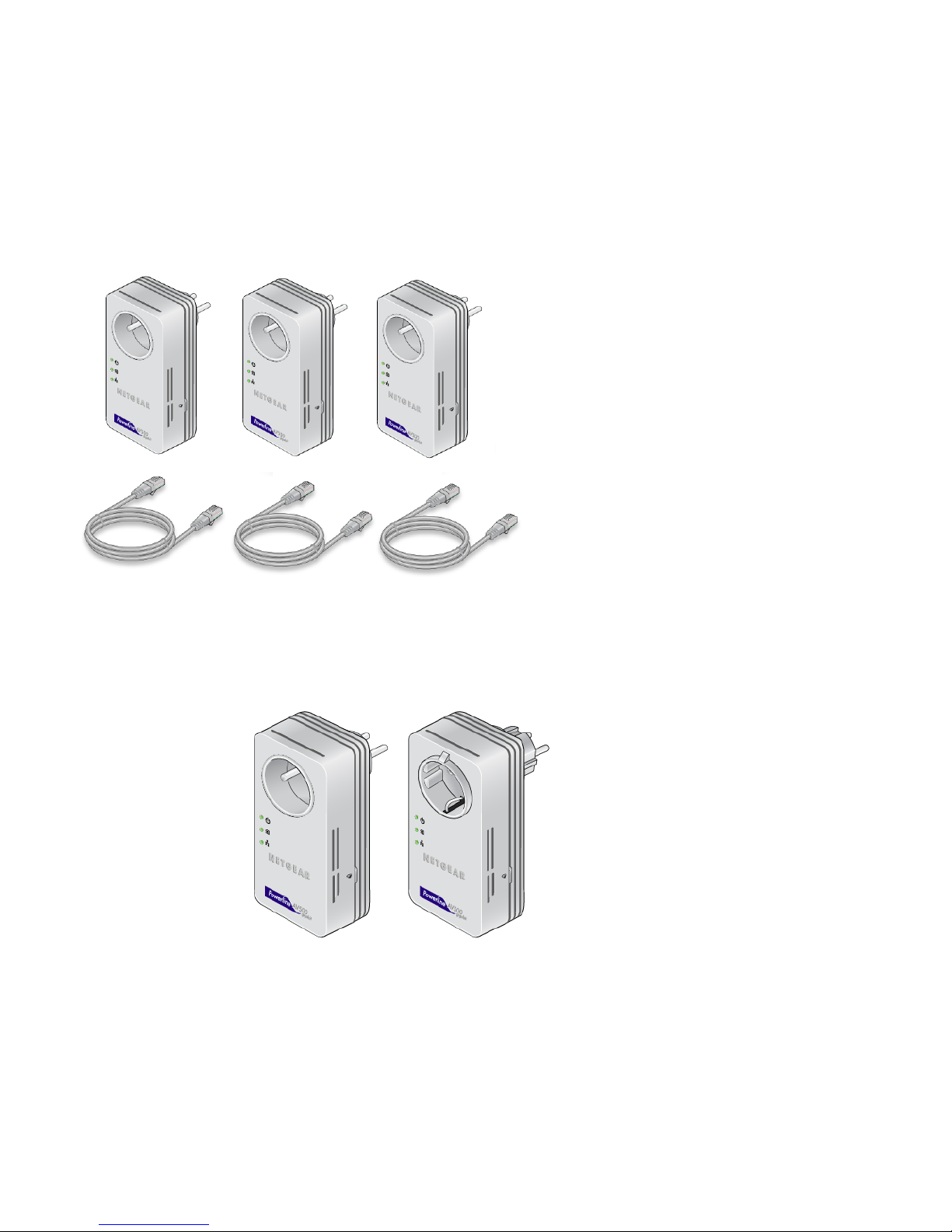

Package Contents
Products sold in some locations include a Resource CD.
Ethernet cables (3)
Powerline adapters (3)
France Germany/Europe
Your Powerline adapter might look like one of these:
4

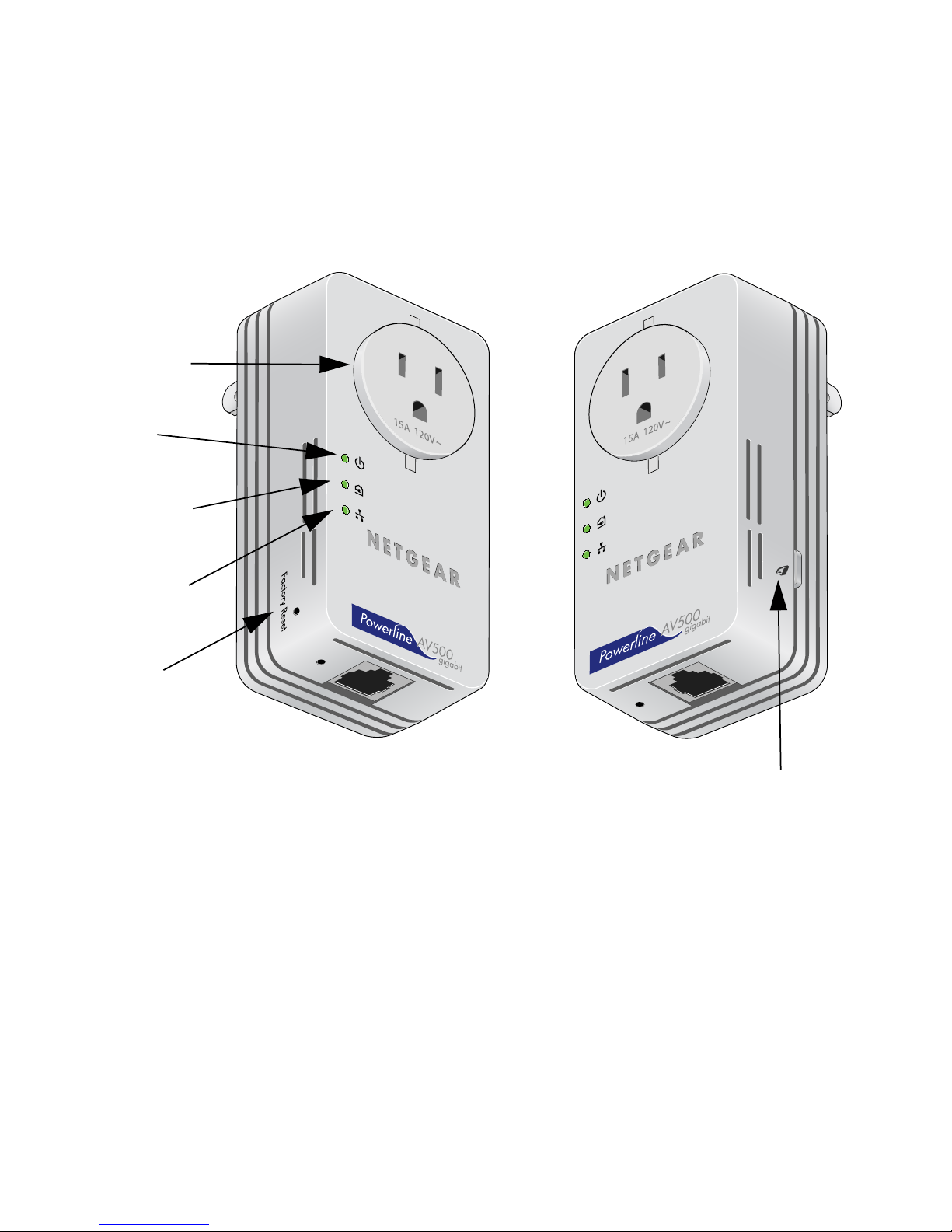

Hardware Features
Filtered
AC socket
Power
LED
Powerline
LED
Ethernet
LED
Security button
Factory
Reset
button
Compatible Powerline and HomePlug AV certified devices include the
NETGEAR XAV101, XAV1501, XAV1004, XAV2001, XAV2501,
XAV2602 XAVN2001, XAV5001, XAV5004, and XAV5501. For a
complete list of HomePlug AV certified devices, go to
www.homeplug.org/certified_products.
5
LEDs
The LEDS indicate the status of your Powerline adapters.
• When you plug in the adapter, the Power LED lights up and
turns green.
• The adapter is not active when no Ethernet link has occurred for
more than 10 minutes. The adapter enters power saving mode,
and the Power LED turns amber.
• The Ethernet LED lights up when you connect a powered-on
Ethernet device to at least one Ethernet port.
• The Powerline LED turns on when the adapter detects at least
one other compatible Powerline device.
The Pick A Plug diagnostic feature lets you pick the electrical
outlet with the strongest throughput, indicated by the color
displayed by the Powerline LED:
- Green: Link rate > 80 Mbps (Best)
- Amber: Link rate > 50 and < 80 Mbps (Better)
- Red: Link rate < 50 Mbps (Good)
6

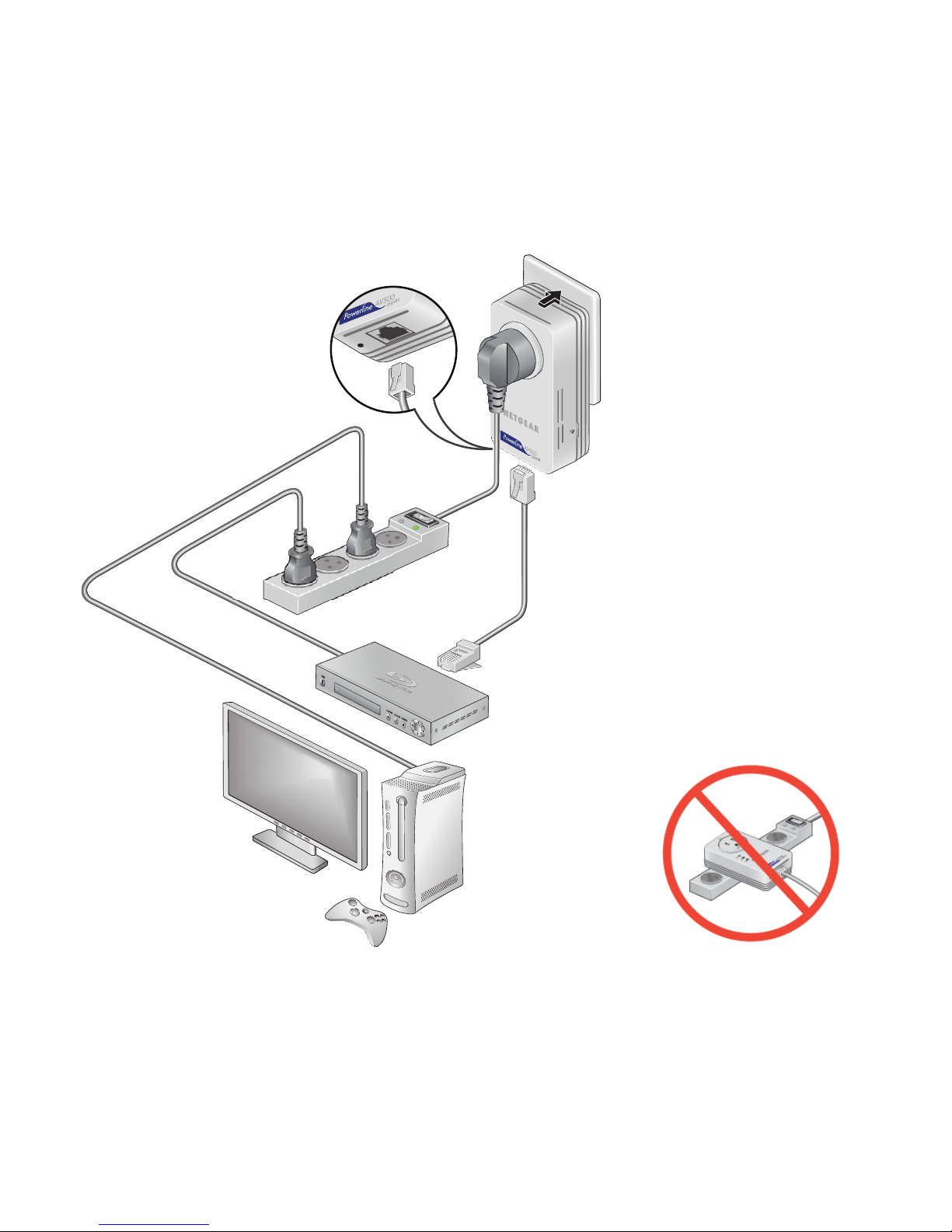

Install Your Powerline Adapters
You can plug a power
strip into the filtered
outlet, but do not plug
your Powerline
adapter into a power
strip.
The filtered AC
socket removes
some electrical
noise. Plugging a
nearby device into
the filtered AC socket
improves
performance.
7
8
Secure Your Powerline Network
A Powerline network forms when at least two compatible Powerline
devices communicate. After the Powerline network is up and running,
you can use the Security buttons on the adapters to add encryption to
your Powerline network.
CAUTION: Do not press the Security button until each adapter has
powered up and its Power LED is solid green. Pressing this
button too soon can temporarily disable Powerline
communication. If this occurs, use the Factory Reset button
to return the Powerline adapter to its factory settings.
To secure your Powerline network:
1. Make sure the Power LED is solid green. If it is amber, connect
a device to one of the Ethernet ports so the adapter exits power
saving mode.
2. On the first Powerline adapter, press its Security button for 2
seconds. The Power LED blinks green while you are setting up
security.
3. Within 2 minutes, go to the next Powerline adapter and press its
Security button for 2 seconds. Do the same for the third
adapter.
After security is set, the Power LED turns solid green. The
adapters can communicate over the network. The Powerline
LEDs are blinking or solid.
9
Technical Support
Thank you for selecting NETGEAR products.
After installing your device, locate the serial number on the label of
your product and use it to register your product at
www.NETGEAR.com/register. Registration is required before you can
use the telephone support service. Registration through the
NETGEAR website is strongly recommended.
Go to http://support.netgear.com for product updates and web
support.
For additional information about setting up, configuring, and using
your Powerline adapter, see the User Manual.
For complete DoC please visit the NETGEAR EU Declarations of
Conformity website at
http://support.netgear.com/app/answers/detail/a_id/11621/.
For GNU General Public License (GPL) related information, visit
http://support.netgear.com/app/answers/detail/a_id/2649.
10
Safety Information
• For national approvals (approval schemes other than CB),
relevant national standards for plug, socket-outlet, and direct
plug-in units (for example, US) shall also be consulted while
testing and approving such products according to national
standards.
• AC input rating (NA): 100–125V, 0.2A (Max); 50–60Hz excluding
socket outlet rating.
• AC input rating (AU, UK, FR, EU): 200–250V, 0.2A (Max),
50–60Hz excluding socket outlet rating.
• XAV5601 ratings (maximum load): EU: 16A 250V~,
UK: 13A 250V~, FR: 16A, 250V~, NA: 15A 125V~,
AU: 10A, 250V~.
• Operating temperature: 0° C~40° C.
•Check the electrical current for any device plugged into the
filtered AC socket. Do not exceed home and product outlet
ratings and electrical requirements.
• The socket-outlet shall be installed near the equipment and be
easily accessible.
• Only power cords are allowed to be inserted into the filtered AC
outlet; no other equipment with a direct plug-in is allowed. Power
