XAVB2602 Installation Guide

No part of this publication may be reproduced, transmitted, transcribed,

stored in a retrieval system, or translated into any language in any form or by

any means without the written permission of NETGEAR, Inc.

DO NOT stack equipment, or place equipment in tight spaces or in drawers.

Be sure your equipment is surrounded by at least 2 in. of air space.

Technical Support

Thank you for choosing NETGEAR. To register your product, get the latest

product updates, or get support online, visit us at http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR

Phone (Other Countries):

See http://support.netgear.com/app/answers/detail/a_id/984.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks

and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the

United States and/or other countries. Information is subject to change without

notice. Other brand and product names are registered trademarks or

reserved.

Statement of Conditions

In the interest of improving internal design, operational function, and/or

reliability, NETGEAR reserves the right to make changes to the products

described in this document without notice. NETGEAR does not assume any

liability that may occur due to the use or application of the product(s) or circuit

layout(s) described herein.

Package Contents

Products sold in some locations include a

Resource CD.

XAV2602 and XAV1601

Powerline 200 Mbps Adapters

Ethernet cables (2)

UK France Germany/Europe Australia Switzerland

Your XAV2602 Powerline adapter might look like one of these:

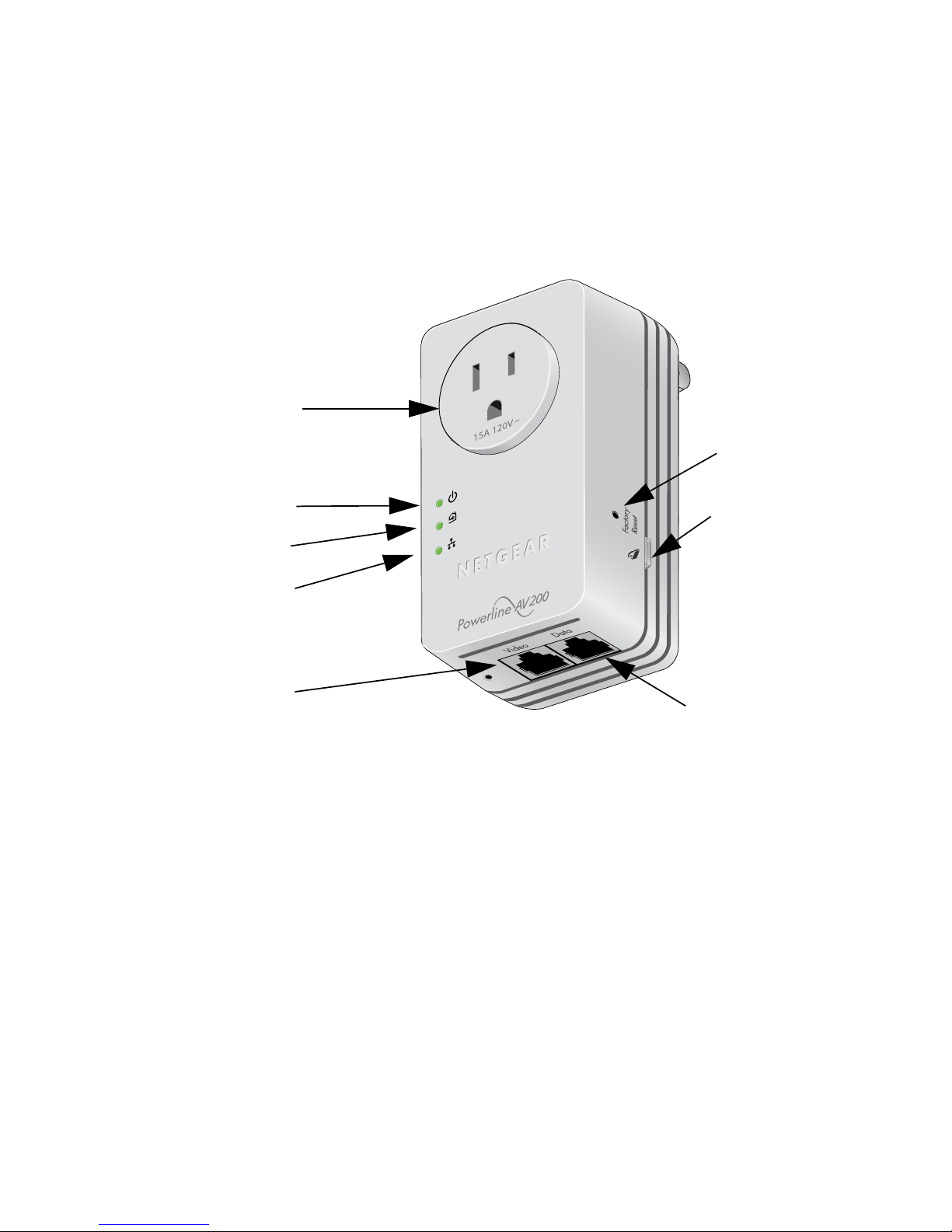

XAV2602 Hardware Features

Filtered AC socket

Power LED

Powerline LED

Ethernet LED

Security button

Factory Reset

button

Ethernet Port 1

for higher

priority traffic

Ethernet Port 2

for lower-

priority data

traffic

XAV1601 Hardware Features

Filtered AC socket

Ethernet port

Security button

Power LED

Ethernet LED

Powerline LED

Factory Reset

button

LEDs

The LEDs indicate the status of your Powerline adapters.

• When you plug in the adapter, the Power LED lights up and

turns green.

• The adapter is not active when no Ethernet link has occured for

more than 10 minutes. The adapter enters power saving mode

and the Power LED turns amber .

• The Ethernet LED lights up when you connect a powered-on

Ethernet device to at least one Ethernet port.

• The Powerline LED turns on when the adapter detects at least

one other compatible Powerline device.

The Pick A Plug feature lets you pick the electrical outlet with the

strongest link rate, indicated by the color displayed by the

Powerline LED:

- Green: Link rate > 80 Mbps (Best)

- Amber: Link rate > 50 and < 80 Mbps (Better)

- Red: Link rate < 50 Mbps (Good)

Install Your Powerline Adapters

This room has an XAV1601

Powerline adapter

connected to a router.

Room 1

The ports use Quality

of Service (QoS) to

prioritize traffic. Port

1 on the left is the

high-priority video

port.

You can plug a

power strip into

the filtered outlet,

but do not plug

your Powerline

adapter into a

power strip.

The filtered AC

socket removes

some electrical

noise. Plugging a

nearby device into

the filtered AC

socket improves

performance.

This room has an XAV2602 Powerline Adapter.

oom

Secure Your Powerline Network

A Powerline network forms when at least two compatible Powerline

devices communicate. After the Powerline network is up and running,

you can use the Security buttons on the adapters to add encryption to

your Powerline network.

NETGEAR recommends that you secure your Powerline network to

protect your personal information and media from unwanted access.

If you do not set up security on your network, anyone nearby with a

Powerline network can potentially use his or her connection to gain

access to your network and information you send over the Internet.

This is especially relevant in settings such as apartment buildings,

office buildings, dorm rooms, and other populated areas.

CAUTION: Do not press the Security button until each adapter has

powered up and its Power LED is solid green. Pressing this

button too soon can temporarily disable Powerline

communication. If this occurs, use the Factory Reset button

to return the Powerline adapter to its factory default settings.
