1. With ATA units it is always best to do a full factory reset before going
through the initial set up. At the back of the V210 there is a hole
called reset, hold on it (User a pin or paper clip) until you see the
“ETH” & “SIP” light turning off.
2. Once that is done plug a straight through cable (CAT 5)(network
cable) from the LAN port to your PC.
3. Plug the WAN into your modem/router and the handset via the
PHONE port.
4. Put in the following IP address into the address bar:
192.168.22.1
5. Log into the modem using the following:
I. Username = admin
II. Password = admin
6. Click on the WAN tab which located on the left hand side and
ensure that an IP has been assigned to the V210. It should
automatically be assigned through your modem without you doing
anything provided you have done a full factory reset.
7. Once the settings have been confirmed click on VoIP on the left
hand side and then click on SIP service provider.
8. Ensure that Active: On
9. SIP Proxy Domain, Proxy Server and out bound
I. Proxy is: sip1.exetel.com.au
10. Display name, Username, Auth ID: Your voip number (sent to you
via email)
11. Auth.Password: Your password (sent to you via email)
12. SIP Expire Time: 360
13. Submit

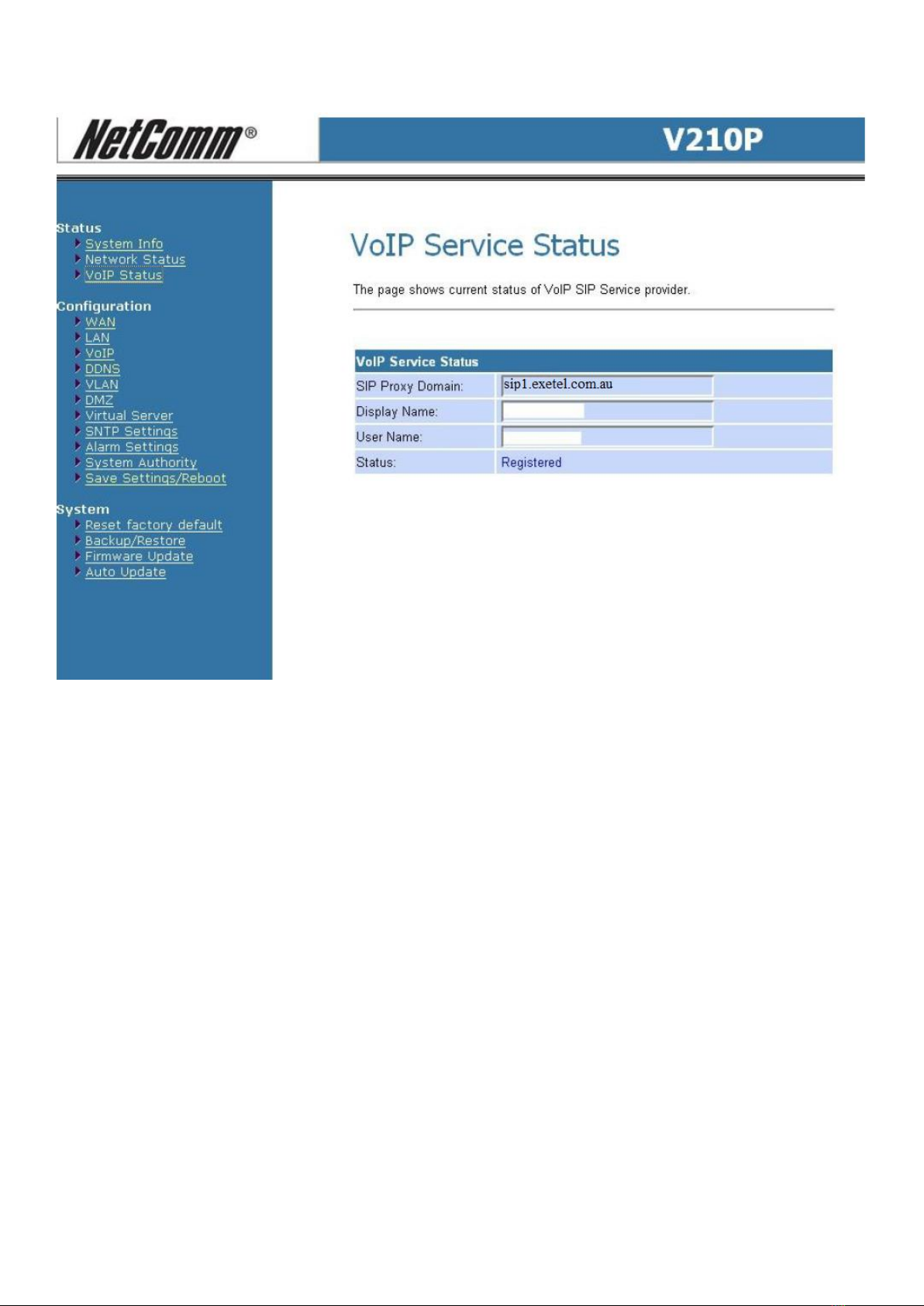

14. The following screen should come up once you have clicked on
the submit button. Click on save settings/reboot on the left hand
side.
15. Once that has been done click on save & reboot.
You should be all ready to go now.
