Neptune NPVS150 –Basic Operation Guide Page 1

Basic Operation Guide

Neptune NPVS150 Pump

INDEX

SECTION

TOPIC

PAGE #

Starting the Pump

Setting the Clock

Selecting Speed

Default Speeds

Adjusting Speeds

Programming Timer Schedules

4 & 5

Priming Settings

5 & 6

Reset Settings

Neptune NPVS150 –Basic Operation Guide Page 2

FUNCTION KEYS

1- Press to start and stop pump, for backwashing, to restore controller and to activate auto recovery.

2- Short press to scroll between Speed, Clock and Power Consumption displays.

3- Long Press when CL: (Clock) is displayed to alter and save clock times.

4- Press or or when in display mode to select default speed.

5- Short press to increase / decrease default speed settings by 10 RPM when in display mode.

Long Press to increase / decrease rapidly. (This will not alter the saved settings, pump will default back to

original setting on next cycle).

6- Long press for 3 seconds to enter controller settings. (You cannot enter controller settings whilst CL:

Clock is displayed).

7- Press scroll through controller settings.

8- Press or or when in controller settings to shortcut access the default speed settings.

9- Short press to alter and save any changes made to controller settings.

10-Press to scroll right and to scroll left between digits.

11-Press to increase / decrease settings.

Neptune NPVS150 –Basic Operation Guide Page 3

1. STARTING THE PUMP

1.01 Press . The Power light will illuminate.

1.02 The pump will start after controller goes through its diagnostics.

1.03 If priming function has been enabled, the pump will start on prime for the desired

timeframe set.

1.04 External and/or internal timers can now be used.

2. SETTING THE CLOCK

2.01 Whilst in display mode, short press to cycle between displays until CL: (CLOCK) is

displayed.

2.02 Press and hold down for 3 seconds until digits flash.

2.03 Press to scroll right and to scroll left between digits.

2.04 Press or to change time.

2.05 Short press to save setting.

3. SELECTING SPEED

3.01 Press or or . Light will illuminate above selected speed, this will now be

the default speed.

4. DEFAULT SPEEDS

4.01 Default Speed 1500 RPM -This speed should be used for economy mode on filtration.

4.02 Default Speed 2400 RPM - This speed should be used for a majority of suction cleaners

connected to skimmer box.

4.03 Default Speed 3400 RPM - This speed should be used for backwashing sand filters and

manual vacuuming.

Neptune NPVS150 –Basic Operation Guide Page 4

5. ADJUSTING DEFAULT SPEEDS

5.01 Short press until screen displays S1:, S2:, S3: or P: (You cannot enter controller settings

whilst CL: Clock is displayed)

5.02 Press and hold down for 3 seconds, this will now enter controller settings.

5.03 Select which speed setting you wish to adjust by pressing or or .

5.04 Short press , press to scroll right and to scroll left between digits.

5.05 Short press or to increase or decrease the speed setting by 10 RPM. Long Press to increase /

decrease rapidly. (This will not alter the saved settings)

5.06 Short press to save setting.

5.07 Press and hold down for 3 seconds, this will now exit the controller settings.

6. PROGRAMMING TIMER SCHEDULES

The NPVS150 has programmable timer schedules for speed settings 1 and 2. These schedules can be used as a

timer or to schedule speed run times coinciding with external time clock run times.

6.01 Short press until screen displays S1:, S2:, S3: or P: (You cannot enter controller settings

whilst CL: Clock is displayed)

6.02 Press and hold down for 3 seconds, this will now enter the controller settings.

6.03 Press to scroll through menu until 1 o: is displayed to set start time for Speed 1 or 2 o:

displayed to set start time for Speed 2.

6.04 Short press until digits flash.

6.05 Press to scroll right and to scroll left between digits.

6.06 Press or to change time.

6.07 Short press to save setting.

6.08 Press to scroll through menu until is 1 F: is displayed on screen to set finish time for Speed 1

or 2 F: displayed to set finish time for Speed 2.

Neptune NPVS150 –Basic Operation Guide Page 5

6.09 Short press until digits flash.

6.10 Press to scroll right and to scroll left between digits.

6.11 Press or to change time.

6.12 Short press to save setting.

6.13 Press to scroll through menu until 1 E: is displayed for Speed 1 or 2 E: for Speed 2. “

This setting is used to enable or disable to timer.

6.14 Short press until digits flash.

6.15 Press or to enable timer (on) or disable timer (off)

6.16 Short press to save setting.

6.17 Press and hold down for 3 seconds, this will now exit the controller settings.

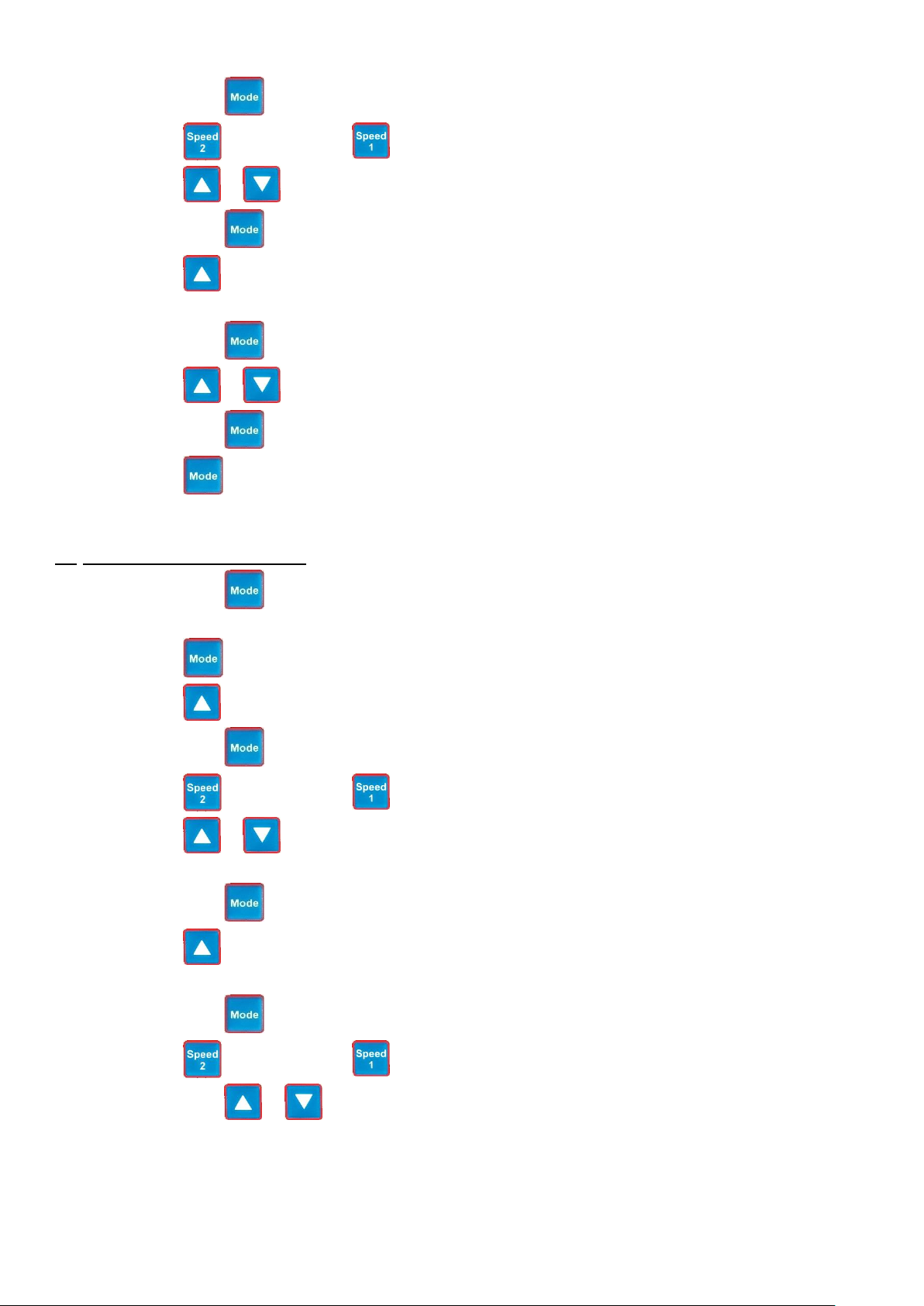

7. PRIMING SETTINGS

7.01 Short press until screen displays S1:, S2:, S3: or P: (You cannot enter controller settings

whilst CL: Clock is displayed)

7.02 Press and hold down for 3 seconds, this will now enter the controller settings.

7.03 Press to scroll through menu until PL: is displayed, this setting is for the priming time.

7.04 Short press until digits flash.

7.05 Press to scroll right and to scroll left between digits.

7.06 Press or to change priming time, maximum priming time is 20 minutes,

minimum is 1 minute.

7.07 Short press to save setting.

7.08 Press to scroll through menu until PS: is displayed, this setting is for the priming speed

in RPM.

7.09 Short press until digits flash.

7.10 Press to scroll right and to scroll left between digits.

7.11 Short press or to increase or decrease the speed setting by 10 RPM. (minimum priming

speed is 2900 RPM) Long Press to increase / decrease rapidly. (This will not alter the saved settings)

Neptune NPVS150 –Basic Operation Guide Page 6

7.12 Short press to save setting.

7.13 Press to scroll through menu until PE: is displayed, this setting is to enable or disable

priming function.

7.14 Short press until digits flash.

7.15 Press or to enable priming (on) or disable priming (off).

7.16 Short press to save setting.

7.17 Press and hold down for 3 seconds, this will now exit the controller settings.

8. RESET SETTINGS

8.01 Whilst in Controller Settings, Press to scroll through menu until RESET: is displayed.

8.02 Short press until digits flash.

8.03 Short press to reset settings.

This information is supplied as a guide only. Refer to the NPVS150 Pump

Installation & Operating instructions supplied with the pump for further

information and more detailed instructions.
