Neptronic SK300 series Manuel

SK300-ENG/131024

Steam Humidifier

SK300 series

Installation instruction & user

manual

READ AND SAVE THESE INSTRUCTIONS

SK300 Humidifie

User Manual

13. Exploded view & Bill of Material

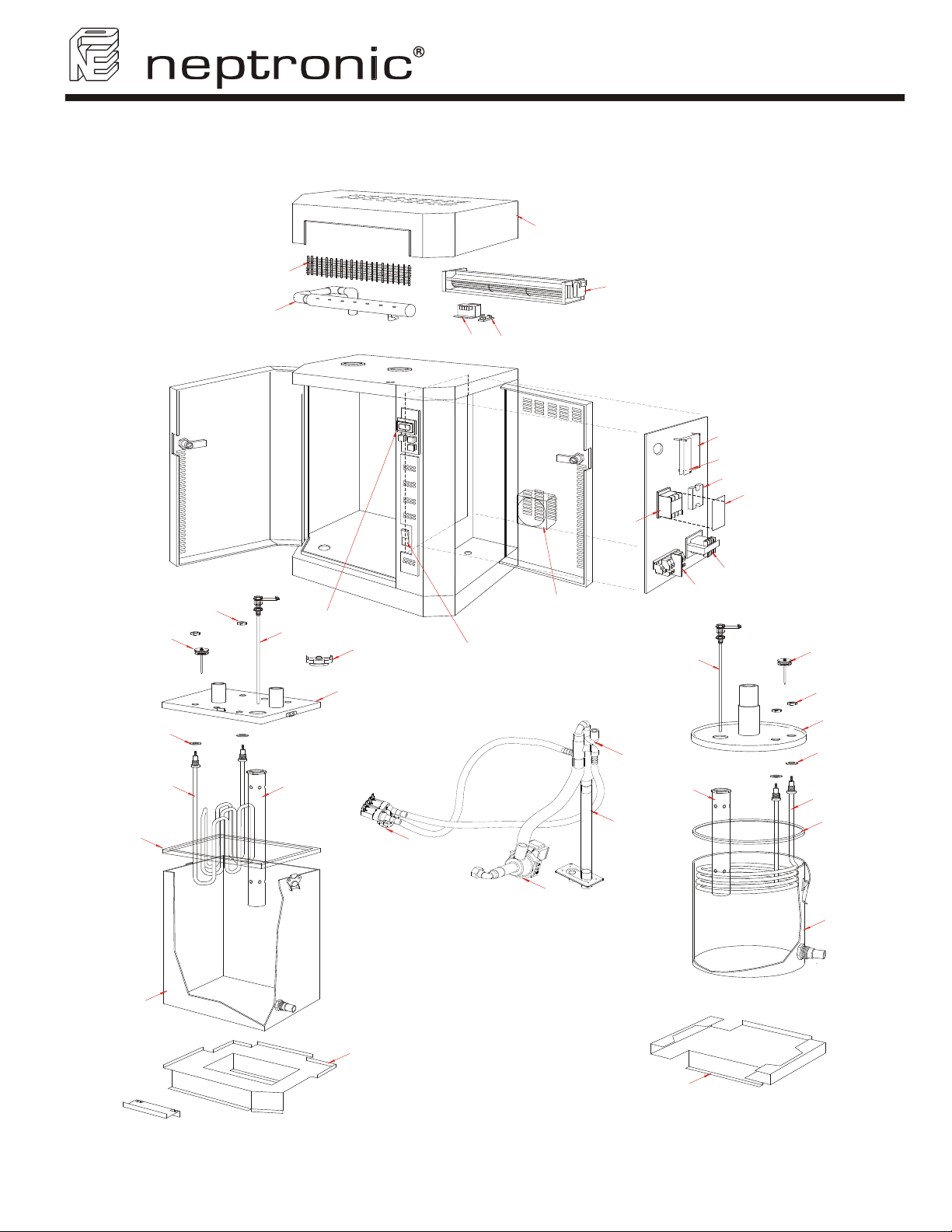

13.1. Exploded view

DE E

Steam Trap Assembly

Plastic

gril

SDU Cabinet

Evaporation chamber base

SK310 to SK360

Evaporation chamber base

SK302 to SK306

(Illus. 55)

SK300 Humidifie

User Manual

13.2. Bill of material

Item Description Model Part number

SK302 to 306 SW CONTSMA-ASSY

SK310 to SK330 SW CONTMED-ASSY

A Container of evaporation chamber

SK340 & SK360 SW CONTLAR-ASSY

SK302 to 306 (1 phase) SP 4018-M

SK304 to 306 (3 phases) SP 4019-M

SK310 & SK314 SP 4183A

SK320 & SK330 SP 4183B

SK340 SP 4186

B Cover of evaporation chamber

SK360 SP 4185A

SK302 to 306 SP 1008

SK310 to SK330 SP 1021

C Evaporation chamber gasket

SK340 & SK360 SP 1022

D Heater element See table below

SK302 to 306 SP 4196-M

SK310/314/320/340 SP 4197-M

E Level sensor chamber

SK330 & SK360 SP 4198-M

F Washer (elements) SK302 to SK360 SP 1005

G S/S hex. Jam nut (elements) SK302 to SK360 SP 2330

H High temperature switch (klixon) SK302 to SK360 SP 3035

SK302 to 306 SW FOAMSM-ASSY

SK310/314/320/340 SW FOAMMED-ASSY

I Foam sensor

SK330 to SK360 SW FOAMLG-ASSY

SK302 to 306 SW PROBSM-ASSY

SK310/314/320/340 SW PROBMD-ASSY

J Water level sensor

SK330 & SK360 SW PROBLAR-ASSY

K Water supply valve SK302 to SK360 SP 6007

SK302 to 306 SW TRAPSMA-P

SK310 to SK330 SW TRAPMED-P

L Fill and drain trap assembly

SK340 & SK360 SW TRAPLAR-P

Silicone tubing ½” SP 1023A

Silicone tubing ¾” SP 1023B

M PCV tubing ½”

SK302 to SK360

SP 1027

N Alphanumeric display SK302 to SK360 SW SK300DISPL-ASSY

O ''AUTO/OFF/DRAIN'' rocker switch SK302 to SK360 SW SKSWITCH-ASSY

P Terminal block and high voltage connectors SK302 to SK360 /

Q Cooling fan SK302 to SK360 SP 3007

R Transformer See table below

S Contactor See table below

50 A SP 3102

90 A SP 3103

T Solid State Relay

125 A SP 3105

U Main printed circuit board SK302 to SK360 NW SK300MAIN-TEST

V Modulating printed circuit board SK302 to SK360 NW SK300MODULSS

SDU I SW FANSDU1-RET

SDU II SW FANSDU2-RET

W SDU fan

SDU III SP 3010

X Transformer See table below

SDU I and SDU 2 SP 5105

Y Fuse inside SDU SDU 3 SP 5106

Z Drain pump SK302 to SK360 SP G4101

SK300 Humidifie

User Manual

Model Voltage D

Heater element R

Transformer S

Contactor X

SDU Transformer

240V/1SW 5932 SP 3310 SP 3029 SP 3312

208V/1SW 5933 SP 3308 SP 3029 SP 3305

480V/1SW 5934 SP 3321 SP 3029 SP 3329

SK302

600V/1SW 5935 SP 3341 SP 3029 SP 3349

240V/1SW 5937 SP 3310 SP 3029 SP 3312

208V/1SW 5940 SP3308 SP 3029 SP 3305

208V/3SW 5924 SP3308 SP 3080 SP 3305

480V/1SW 5941 SP 3321 SP 3029 SP 3329

480V/3SW 5923 SP 3321 SP 3080 SP 3329

600V/1SW 5942 SP 3341 SP 3029 SP 3349

SK304

600V/3SW 5925 SP 3341 SP 3080 SP 3349

240V/1SW 5938 SP 3310 SP 3100 SP 3312

208V/1SW 5943 SP3308 SP 3220 SP 3305

208V/3SW 5933 SP3308 SP 3080 SP 3305

480V/1SW 5944 SP 3321 SP 3029 SP 3329

480V/3SW 5934 SP 3321 SP 3080 SP 3329

600V/1SW 5945 SP 3341 SP 3029 SP 3349

SK306

600V/3SW 5935 SP 3341 SP 3080 SP 3349

208V/3SW 5959 SP 3308 SP 3220 SP 3305

480V/3SW 5958 SP 3321 SP 3080 SP 3329

SK310

600V/3SW 5957 SP 3341 SP 3080 SP 3349

208V/3SW 5946 SP 3308 SP 3027 SP 3305

480V/3SW 5947 SP 3321 SP 3080 SP 3329

SK314

600V/3SW 5948 SP 3341 SP 3080 SP 3349

208V/3***-

480V/3SW 5950 SP 3321 SP 3100 SP 3352

SK320

600V/3SW 5951 SP 3341 SP 3080 SP 3353

480V/3SW 5952 SP 3321 SP 3027 SP 3352

SK330 600V/3SW 5939 SP 3341 SP 3220 SP 3353

208V/3***-

480V/3SW 5950 SP 3321 SP 3220 (2x) -

SK340

600V/3SW 5951 SP 3341 SP 3027 -

480V/3SW 5952 SP 3321 SP 3027 (2x) -

SK360 600V/3SW 5939 SP 3341 SP 3220 (2x) -

*Available, please consult factory.
