Neptronic LT060X11 Manuel utilisateur

LT-X11/060303 1

ctuator for smoke damper

ecification & Installation instruction

Technical Data LT060X11 LT080X11 LT160X11 LT180X11 LT260X11 LT280X11

Auxiliary switches No Yes No Yes No Yes

Power supply 22 to 26VAC 50/60Hz or 22 to 26VDC 110 to 130 VAC 50/60Hz 220 to 240 VAC 50/ 60Hz

Weight 4.5 lbs. [2 kg] 4.8 lbs. [2.2 kg]

Fail safe - Enerdrive Yes

Power consumption Running 24VA, Holding 5VA

Control signal 2 wire / 2 position

Running time through 90º 20 to 30 sec Torque dependant

Fail safe: 15 sec. max at rated torque.

Torque 90 in.lb. [11 Nm] at rated voltage

Electrical connection 18 AWG [0.8 mm2] minimum

Inlet bushing 2 inlet bushing of 7/8 in [22.2 mm]

Angle of rotation 0 to 90 degrees, mechanically adjustable with SLD (optional), (factory set with 90º stroke)

Direction of rotation Reversible, Clockwise (CW) or Counterclockwise (CCW) (factory set with CW direction)

Ambient temperature

Operation 0ºF to +122ºF [-18º C to +50º C]

3 cycles at +250˚F [+121º C]

Storage temperature -22ºF to +122ºF [-30º C to +50º C]

Relative Humidity 5 to 95 % non condensing.

Enclosure type NEMA type 2 / IP42

Warning: Do not press the clutch when actuator is powered

Warning for LT160/180/260/280X11: High Voltage. Risk of electric chock.

Dimensions

Dimension Inches Metric (mm)

A 5.20 132.1

B 1.33 33.8

C 9.13 231.9

D 3.52 89.4

Caution

We strongly recommend that all neptronic® products be wired to a separate transformer and that transformer shall service only neptronic® products. This precaution will

prevent interference with, and/or possible damage to incompatible equipment.

When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.

1Enerdrive System U.S.A. Patent #5,278,454

LT060X11

LT080X11

LT160X11

LT180X11

LT260X11

LT280X11

Feature:

•Designed to operate reliably in smoke control systems requiring

Underwriter’s Laboratories UL555S (rated at 250˚F).

•Mounts easy on round shaft.

•Maintenance free.

•Position indicator.

•Fail safe by Enerdrive System1

Actuator for smoke damper

LT060X11/080X11/160X11/180X11/260X11/280X11 Specification & Installation instruction

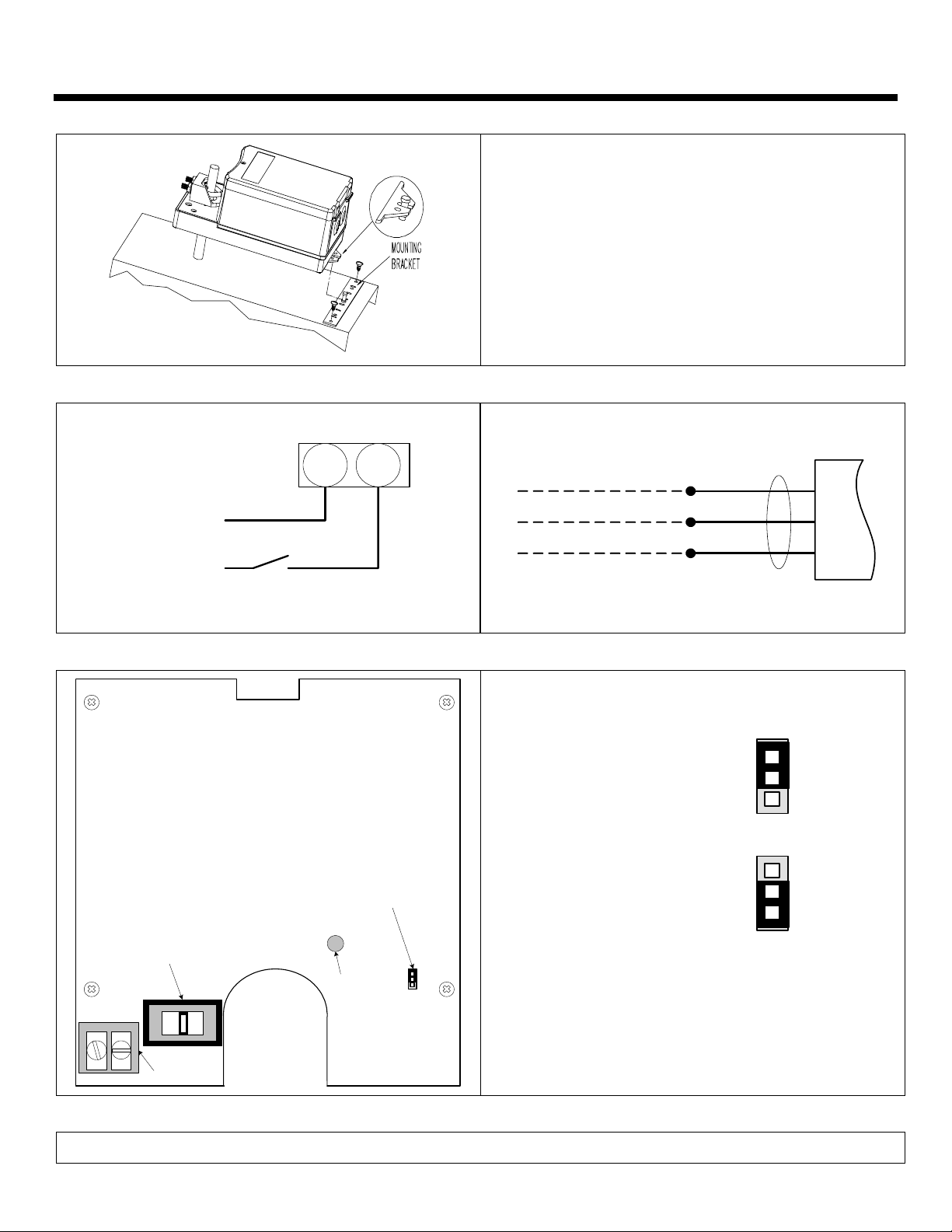

Mechanical installation

1. Manually close the damper blades and positioned the

actuator at 0º or 90º.

2. Slide the actuator onto the shaft.

3. Tighten the nuts on the “U” bolt to the shaft with a 10mm

wrench to a torque of 150 in.lb. [17 Nm].

4. Slide the mounting bracket under the actuator. Ensure free

movement of the slot at the base of the actuator. The

bracket pin must be placed in the mid distance of the slot.

5. Fix the bracket to the ductwork with #8 self-tapping screws

Wiring Diagrams

Power supply - 2 wire / 2 position (ON-OFF)

NEUTRAL (-)

DRIVE CW

1 2

SUPPLY (+)

Warning for LT160/180/260/280X11:

High Voltage. Risk of electric chock.

Auxiliary switches (3 wires)

Red

White

Black

Common

Contact closed at 5° +/-5°

Contact closed at 85° +/-5°

Actuator

PC Board

TB/RB SERIES

Rotation direction

jumpers

Terminal

Clutch

TB11 2

JP1

High voltage

selector

115V

230V

DIR

REV

Rotation direction Jumper

Rotation direction

direct CW (0 to 90°)

Rotation direction

reverse CCW (90 to 0°)

Stroke adjustment

To adjust the stroke, move the adjustment screws at the desired position.
