Nembrini Audio MP1 PRO Manuel utilisateur
MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
Congratulations on choosing our MP1 Pro Programmable Tube Amplier.
The Nembrini Audio MP1 Pro features a Tri-State Voicing selection that allows you to choose between Distortion
Tube, Clean Tube, or Solid State virtual circuits. The EQ points were designed to replicate the sound of Fender* and
Marshall*, but the Presence control surpasses the range offered by either.
• Unique Tri-State Voicing option for choice of Clean Tube, Distortion Tube, or Solid State circuit.
• Two 12AX7 virtual tubes.
• Three programmable gain controls
• Four band programmable EQ including 16dB boost/cut for bass and treble.
Nembrini Audio have extended the possibility of the original hardware to customize your tone:
• Power amplier section
• 6 guitar effects, delay, modulation, reverb, cleaner, noise gate and compressor.
• 6 carefully selected cabinet emulations
• 4 of the best mic emulations used in real recording sessions - selectable mic positions with volume and pan con-
trols
• Powerful impulses loader to load your favorite IRs
MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
PRE - AMPLIFIER
11
1 - Display : Shows selected parameter value.
2 - Arrows : Up/Down arrow changes the selected pararameters value.
3 - Overdrive 1 : Attenuates pre-tube input signal. Higher gain levels of Overdrive 1 result in higher frequency
harmonic saturation
4 - Overdrive 2 : Attenuates inter-tube signal. Higher levels of Overdrive 2 result in fuller harmonic saturation.
In the Solid State mode, Overdrive 2 sets the level of compression.
5 - Master Gain : Post-tube, pre-EQ gain.
33224455
MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
PRE - AMPLIFIER
11
1 - Bass : Narrow band low frequency EQ control adjustable in 2 dB steps ± 16 dB.
2 - Mid : Wide band mid frequency EQ control adjustable in 2 dB steps ± 12 dB.
3 - Treble : Narrow band high frequency EQ control adjustable in 2 dB steps ± 16 dB.
4 - Presence : Wide band high frequency EQ control adjustable in 2 dB steps ± 12 dB.
5 - Voicing : Allows choice of Clean Tube, Distortion Tube, or Solid State circuits (S.S.).
6 - Effect : This button when on engages all effects section.
3322445566
MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
FX - DELAY
1 - SYNC : Activates/deactivates the delay synchronization with the host DAW tempo.
2 - TIME : Provides adjustment of delay time, when the host SYNC is on, it will be with time division.
3 - FEEDBACK : This is the amount of the signal that you’d like to feed back into the input of your delay to create
echoes.
4 - FILTER : This parameter make the delay Lo-Fi.
5 - OFFSET : Create a time offset in left/right delay sections.
6 - MIX : Adjusts the mix of dry input to wet delay signal.
7 - POWER : When on engages the delay section.
11223344556677
MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
FX - MODULATION
1 - SYNC : Activates/deactivates the modulation synchronization with the host DAW tempo.
2 - RATE : This sets the rate of the chorus/tremolo effect. Clockwise rotation quickens the rate and counterclockwise
rotation slows down.
3 - DEPTH : This sets the depth of the chorus/tremolo effect. Clockwise rotation deepens the effect and counter-
clockwise rotation creates the opposite effect
4 - MODE : Select chorus or tremolo mode.
5 - POWER : When on engages the modulation section.
1122334455
MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
FX - REVERB
1 - DECAY : Controls the time for the reections to die away.
2 - LOW CUT : Remove the low frequencies from the reverb.
3 - HIGH CUT : Remove the high frequencies from the reverb.
4 - MIX : Adjusts the mix of dry input to wet reverb signal.
5 - POWER : When on engages the reverb section.
1122334455
MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
FX - FILTERS
PRE : Cleaner in the beginning of the signal chain.
1 - TIGHT : Clockwise rotation reduces low frequency content tightening the low range, suitable for 7/8 strings guitars.
2 - HARSH : Clockwise rotation reduces high frequency content.
POST : Cleaner in the end of the signal chain.
3 - RUMBLING : Clockwise rotation reduces low frequency content.
4 - HARSH : Clockwise rotation reduces high frequency content.
11223344
MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
FX - NOISE GATE
1 - THRESHOLD : This sets the threshold level where the noise suppression starts working. Adjust it depending on
the signal level and noise level, and when too low, counterclockwise.
2 - RANGE : The gate range is the amount of gain reduction that the gate produces. Therefore, if the range is set at
0 dB, there will be no change in the signal as it crosses the threshold. If the range is set to -60 dB, the signal will be
gated (reduced) by 60 dB.
3 - GATE : Adjust the gate speed.
4 - POWER : When on engages the noise gate section.
11223344
MP1 PRO PROGRAMMABLE TUBE AMPLIFIER

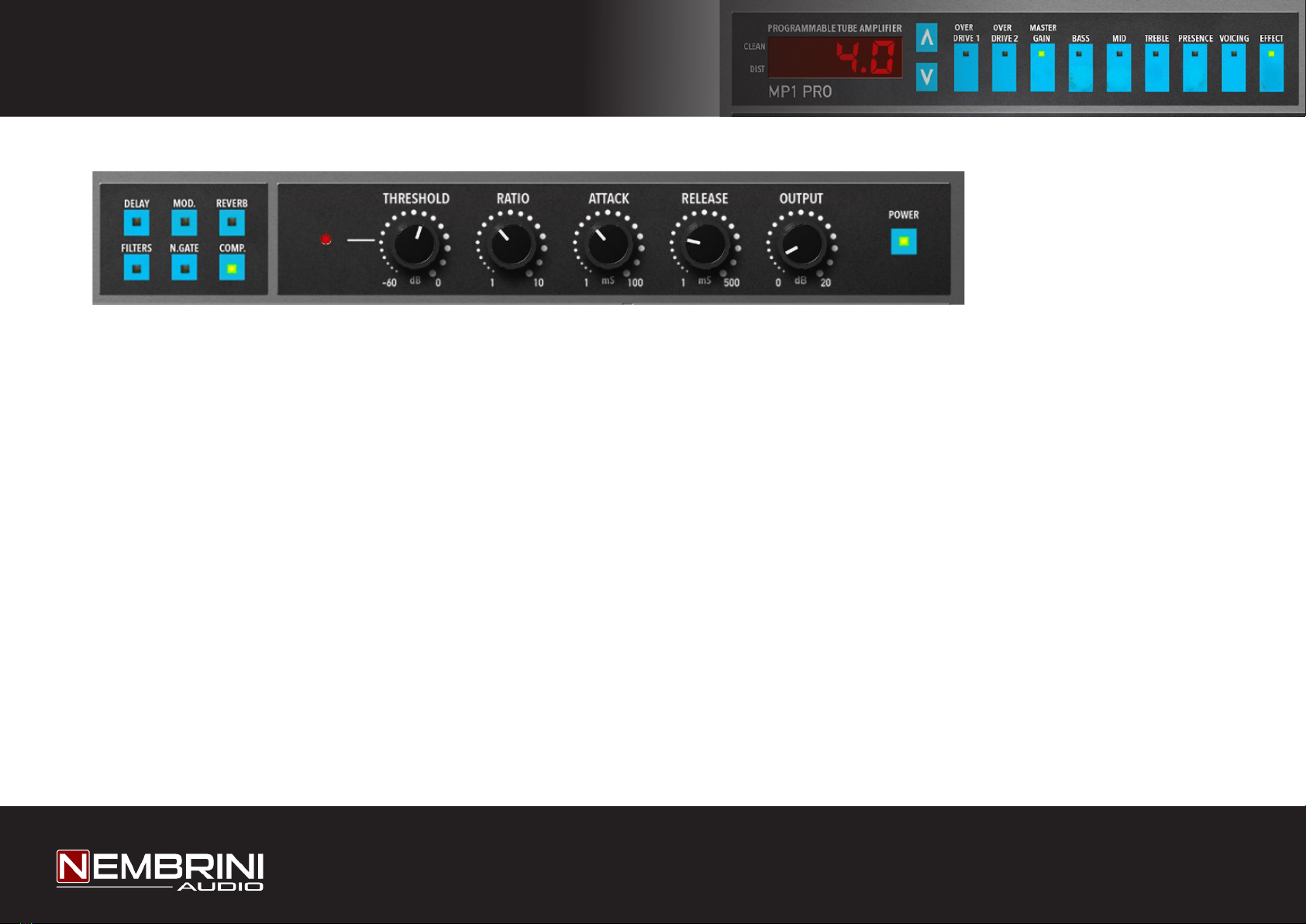

FX - COMPRESSOR
1 - THRESHOLD : Controls the compressor’s threshold, left led indicates the amount of gain reduction.
2 - RATIO : Controls the compressor’s ratio.
3 - ATTACK : Controls the compressor’s attack time.
4 - RELEASE : Controls the compressor’s release time.
5 - OUTPUT : Controls the compressor’s output volume.
6 - POWER : When on engages the compressor section.
112233445566
