Nel-Tech Labs ILink Mode d’emploi

iLink LCD

Nel-Tech Labs, Inc.

Installation & User Manual

Index:

Introduction ........................................................................................................................

iLink Layout Summary.....................................................................................................

LCD Layout Summary ......................................................................................................

Web Browser .....................................................................................................................

Installation .......................................................................................................................

Connectivity Test/Volume Adjustments................................................................................

Troubleshooting ................................................................................................................

Warranty & FCC ....................................................................................................................

4 - 5

9 - 11

Introduction:

The iLink LCD is an Internet downloadable messaging system utilizing state-of-the-art MPEG compression to achieve

truly stunning near-CD quality audio storage and playback. All unit management and audio downloads are accomplished by

your dealer using a special controller software suite. When an update is needed your dealer connects to the iLink via your

high-speed Internet connection and digitally transfers the MP3 audio les and conguration settings you need. Changes can

be initiated on demand, scheduled from minutes to weeks, or the iLink can be instructed to connect automatically and load

new audio.

Unpacking and Inspection:

Before you begin installation, unpack and verify you have all the correct parts.

(1) iLink LCD

(1) 12VDC @ 500mA power supply

(1) Ethernet cable

(1) RCA to RCA cable

(1) RCA to 3.5mm adapter

(2) Wall mount screws

(1) Instruction manual

If you are missing any of these parts STOP and call your dealer.

iLink Layout Summary:

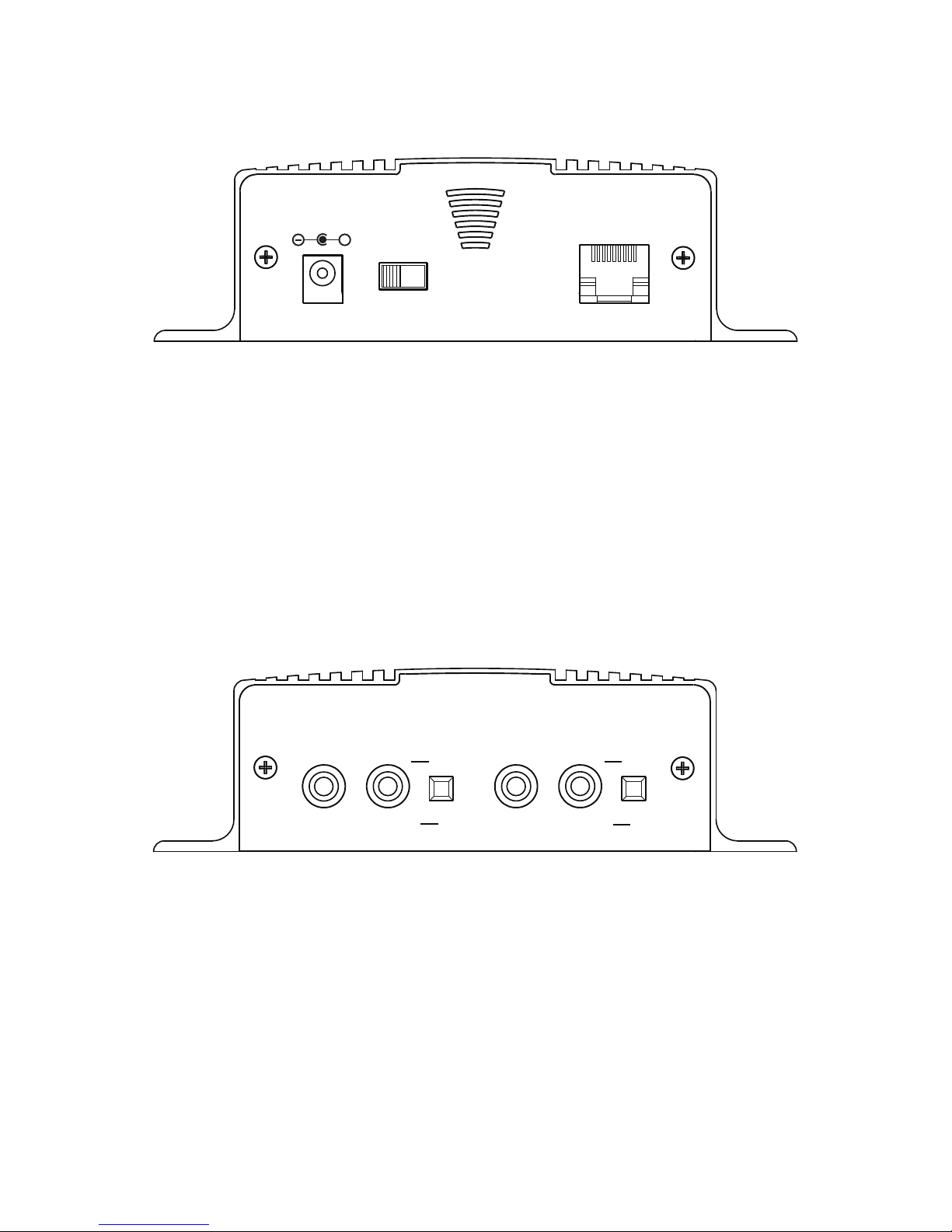

Front of Unit

12VDC - This is where the supplied 12VDC @ 500mA power pack is connected.

POWER - Use this switch to turn the unit ON and OFF.

LAN - This jack connects to the local Ethernet that allows the iLink connectivity to the Internet. The jack also has

two built in LEDs that report back network activity and speed status.

Rear of Unit

CHANNEL A or B (IN) - This signal level jack allows an external BGM (Background Music) source to be fed

through the iLink unit.

CHANNEL A or B (OUT) - This jack connects to a phone systems MOH input or a PA amplier.

8Ω or 600Ω - This switch changes the output impedance of the CHANNEL A or B (OUT) jack.

CHANNEL A CHANNEL B

IN OUT IN OUT

600Ω

▄

█

MADE IN USA

8Ω ▄8Ω

600Ω

█

12VDC

500mA

POWER

(1)

OFF

(0)

LAN

Top of Unit

MENU BUTTON - Keypad button used to cycle through menu items.

SELECT BUTTON - Keypad button used to select menu item to be changed.

UP and DOWN BUTTONS - Keypad buttons used to make changes to selected items.

2 x 16 LCD - White lettering on blue backlighting LCD used to display unit information.

iLink v07.00.a

10.1.1.206

LCD Menu

iLink v07.00.a

10.1.1.206

Output A

Volume = XX

Output B

Volume = XX

Input A BGM

Volume = XX

Input B BGM

Volume = XX

Monitor Speaker

Source = XX

IP Mode

DHCP or Static

XXX.XXX.XXX.XXX

Subnet

XXX.XXX.XXX.XXX

Gateway

XXX.XXX.XXX.XXX

Connect-Back IP1

XXX.XXX.XXX.XXX

Connect-Back IP2

XXX.XXX.XXX.XXX

Connect-Back Prt

XXXX

PRESS UP ARROW

TO CONNECT-BACK

Format

& Reboot

Firmware Version

vXX.XX.X

MAC ADDRESSS

000000000000

qp Changes Volume

qp Cycles Internal Speaker to OFF, A or B

= Menu Button Push

= Select Button Push

qp Changes Mode

“Select” ashes rst octet

qp Changes digit

“Select” conrms and moves to next octet

“Up to Conrm”

“Down to Cancel”

“Up to Conrm”

“Down to Cancel”

“Select” ashes rst octet

qp Changes digit

“Select” conrms and moves to next octet

“Up to Conrm”

“Down to Cancel”

“Select” ashes rst octet

qp Changes digit

“Select” conrms and moves to next octet

“Up to Conrm”

“Down to Cancel”

Note:

Changes to IP Settings only available in STATIC

MODE

If MAIN MENU is idle for more than 30 seconds the

LCD reverts back to MAIN SCREEN

If SUB MENU is idle for more than 300 seconds the

LCD reverts back to MAIN SCREEN and CANCELS

any current changes.

}Locked if local volume

control is disabled

“Up to Conrm”

“Select” ashes rst octet

qp Changes digit

“Select” conrms and moves to next octet

“Up to Conrm”

“Down to Cancel”

“Select” ashes rst octet

qp Changes digit

“Select” conrms and moves to next octet

“Up to Conrm”

“Down to Cancel”

qp Changes Port “Up to Conrm”

“Down to Cancel”

“Up to Conrm”

“Down to Cancel”

Web Browser (Feature on rmware version 07.09X or higher)

The iLink LCD has a built-in password protected web browser that will display the units serial number, rmware

version and MAC address. This browser will also allow the units communication mode, connect-back address

and port to be changed.

When changing Mode either DHCP or STATIC must be typed in the “New Settings” column. When

changing to STATIC mode the IP, Subnet and Gateway must all be entered or the settings will not take

when submitted. The Status will indicate if the settings have been updated to the unit.

Installation :

Step 1: Wall or shelf mount the unit. Rubber feet and screws are supplied in the accessory kit.

Step 2: Verify the power switch on the right side of the unit is set to OFF. Attach the included power pack to a

wall or power strip receptacle, then attach the other end to the jack on the right side of the unit labeled 12VDC.

Step 3: If connecting unit to an amplier make sure it is turned OFF for this part of the installation.

Step 4: Connect a RCA cable (supplied in the accessory kit) to the CHANNEL A (OUT) jack on the left side of

the unit. Connect the other end of the RCA cable to a phones MOH port, PA amplier or speaker. For dual output

applications follow the same procedure for the CHANNEL B (OUT).

Step 5: (Optional) For messaging only applications the existing BGM (Background Music) can be fed through

the iLink. Connect the audio source to the CHANNEL A or B (IN) jack(s) on the left side of the unit. This jack

must only be fed signal level audio - ANY AMPLIFIED AUDIO WILL DAMAGE THE UNIT.

Step 6: Connect an Ethernet cable (supplied in the accessory kit) to the LAN jack on the right side of the unit.

Connect the other end to a 10/100 speed switch or hub.

Wiring Diagram

Left Side Right Side

To Switch or Hub

To MOH or PA

From BGM Source

(Optional)

To MOH or PA

(Optional)

CHANNEL A CHANNEL B

IN OUT IN OUT

600Ω

▄

█

MADE IN USA

8Ω ▄8Ω

600Ω

█

12VDC

500mA

POWER

(1)

OFF

(0)

LAN

From BGM Source

(Optional)

Connectivity Test:

Step 1: Verify the power switch on the right side of the unit is set to ON.

Step 2: On the LCD menu verify unit has a valid IP, subnet and gateway.

010.001.001.206

Subnet

255.255.255.128

Gateway

010.001.001.120

Step 3: On the LCD menu go to the “PRESS UP ARROW TO CONNECT-BACK” and press the UP ARROW.

PRESS UP ARROW

TO CONNECT-BACK

Step 4: The LCD will display the “FORCING CONNECT PLEASE WAIT”

FORCING CONNECT

PLEASE WAIT

Step 5: If there is a Connect-Back record waiting for the unit then the LCD will display “ACTIVE CONNECT

XXX.XXX.XXX.XXX”.

ACTIVE CONNECT

10.1.1.171

If there is no record waiting then it will display “CONNECT TO XXX.XXX.XXX.XXX” for one second on the

LCD to conrm a successful connectivity.

CONNECT TO

10.1.1.171

Example:

and/or

CHANNEL A CHANNEL B

IN OUT IN OUT

600Ω

▄

█

MADE IN USA

8Ω ▄8Ω

600Ω

█

Channel A & B Output Level Adjustments:

Step 1: Verify CHANNEL A or B (OUT) is connected to either a phone’s MOH port, PA amplier or speaker.

Step 2: Verify the unit is playing audio by listening to the internal monitor speaker.

Monitor Speaker

Source = XX

qp Cycles Internal Speaker to OFF, A or B

CHANNEL A CHANNEL B

IN OUT IN OUT

600Ω

▄

█

MADE IN USA

8Ω ▄8Ω

600Ω

█

Step 4: Adjustment of the stored audio output level can be done through the LCD and Menu. Depending upon

the application either call into the phone system and be placed on hold OR listen to the PA systems speakers to

ne tune volume.

Output A

Volume = XX

Output B

Volume = XX

qp Changes Volume

If you see a “LOCKED VOLUME SETTINGS” message then the dealer has locked this setting.

Note: This setting only adjusts the units audio outputs and does not adjust the volume of the internal speaker!

Step 3: Depending upon the device the 8Ω/600Ω switch may need to be pushed to better match the impedance of

the device the iLink is driving.

Step 5: All audio adjustments are applied live so changes are saved to the unit instantly.
