NEC MultiSync E705 SST Manuel utilisateur

“MultiSync® E705 SST”

“MultiSync® E805 SST”

“MultiSync® P403 SST”

“MultiSync® P463 SST”

“MultiSync® P553 SST”

“MultiSync® P705 SST”

“MultiSync® P801 SST”

“MultiSync® X841UHD SST”

“MultiSync® X981UHD SST”

User’s Manual

For using Touch Panel

1. Turn off the monitor.

2. Install the equipment.*1

- Using slot 2 type PC:

Connect the slot 2 type PC into the option board slot. Connect the B

type connector to the USB upstream port on the left

back side of the monitor and the A type connector to the downstream

port on the slot 2 type PC.

NOTE: Please refer to the slot 2 type PC’s manual for connection.

NOTE: When you set option board accessory other then slot 2 type

PC, touch function may not work.

- Using external computer:

Connect the B type connector to the USB upstream port on the left

back side of the monitor and the A type connector to the downstream

port on the external computer (Figure 1).

3. Turn on the monitor.

*1: Please contact your NEC customer support for more detailed information.

Figure 1

User’s Manual

Operating System Support Summary

Monitor Setting

Select the input signal.

- Using slot 2 type PC. Select [OPTION]- Using external computer:

Select the input signal which is supplied by the PC connected to USB

connector.

NOTE: Touch function does not work in PIP mode.

NOTE: Intelligent Wireless Data (NFC) communication is not supported with

NEC ShadowSense touch screens.

NOTE: Calibration under Windows is an option which can only make the touch

screen work more accurate but it is not required.

  

  

  

  

   



  





 

















   



   











 











   





i 

 



   









   

   















 











‐





www.shadowsense.eu



User’s Manual

NEC Dashboard Configuration Tool

ShadowSense algorithms offer a variety of parameters that can be used to

customize the touch screen’s performance. The Dashboard software tool

provides customers with the ability to easily modify the behavior of the

touchscreen based on various use cases. It allows the user to adjust the

performance and touch characteristics of the touchscreen such as to provide

spurious touch and palm rejection, debris and static object recognition, rain

and fluid cancellation and to enable/disable various features, like automatic

pen & eraser detection.

NOTE: The NEC Dashboard configuration tool is available for download on

www.nec-display-solutions.com.

User’s Manual

1. Open start menu in Windows and select Control Panel.

2. Open Hardware and Sound settings.

Re-Calibrated

If the cursor fails to follow exact nger position, the screen can be

re-calibrated in the following way:

User’s Manual

3. Open Tablet PC Settings.

4. Press Calibrate button.

User’s Manual

5. If User Account Control window pops up, click yes.

6. When the calibration process begins, touch the middle of each cross that

appears in bold on the screen; crosses shall appear several times in each

corner of the screen. After touching the last cross, the calibration process

ends.

NOTE: If the touch is still not precise enough, the whole action can be

repeated.

User’s Manual

WEEE Mark (European Directive

2002/96/EC)

Within the European Union

EU-wide legislation, as implemented in each

Member State, requires that waste electrical

and electronic products carrying the mark (left)

must be disposed of separately from normal

household waste.

Disposal Instruction

NEC products are meeting all EU norms regarding safety, health and

environmental requirements.

This includes monitors and electrical accessories, such as signal

cables or power cords. When you need to dispose of your NEC display

products, please follow the guidance of your local authority, or ask the

shop where you purchased the product, or if applicable, follow any

agreements made between yourself and NEC.

The mark on electrical and electronic products only applies to the

current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside

the European Union, please contact your local authority

so as to comply with the correct disposal method.

NEC Display Solutions Europe GmbH

Landshuter Allee 12-14

D – 80637 München

Phone: +49 (0)89 99 699-0

Fax: +49 (0) 89 99 699-500

[email protected]

www.nec-display-solutions.com

Autres manuels pour MultiSync E705 SST

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NEC Écran tactile

NEC

NEC OL-V463 Manuel utilisateur

NEC

NEC OL-V552 Manuel utilisateur

NEC

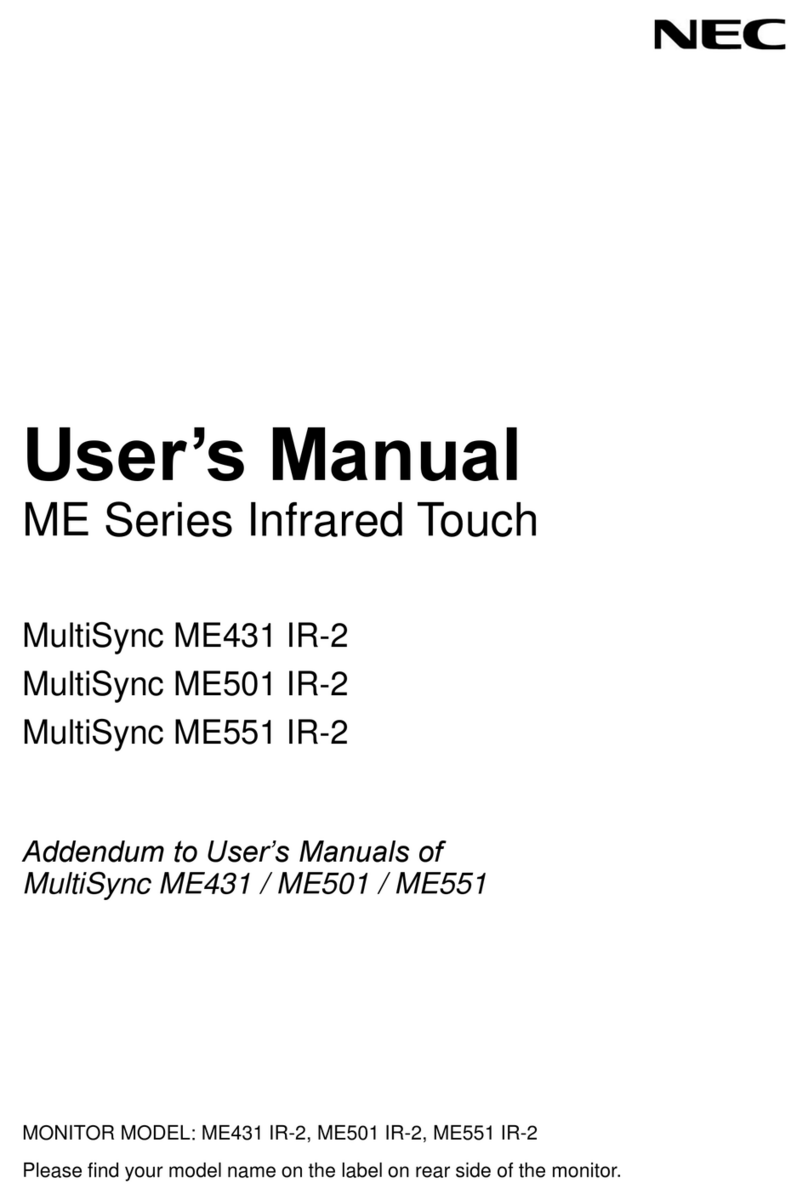

NEC MultiSync ME431 IR-2 Manuel utilisateur
