NEC NEC Express5800 Series Guide de référence

()

■■■■■■■

Installation Procedures

EXPRESS5800/1080Xd

Proprietary Notice and Liability Disclaimer

The information disclosed in this document, including all designs and related materials, is

the valuable property of NEC Solutions (America), Inc. and/or its licensors. NEC Solutions

(America), Inc. and/or its licensors, as appropriate, reserve all patent, copyright and other

proprietary rights to this document, including all design, manufacturing, reproduction, use,

and sales rights thereto, except to the extent said rights are expressly granted to others.

The NEC Solutions (America), Inc. product(s) discussed in this document are warranted in

accordance with the terms of the Warranty Statement accompanying each product.

However, actual performance of each product is dependent upon factors such as system

configuration, customer data, and operator control. Since implementation by customers of

each product may vary, the suitability of specific product configurations and applications

must be determined by the customer and is not warranted by NEC Solutions (America), Inc.

To allow for design and specification improvements, the information in this document is

subject to change at any time, without notice. Reproduction of this document or portions

thereof without prior written approval of NEC Solutions (America), Inc. is prohibited.

Trademarks

All product, brand, or trade names used in this publication are the trademarks or registered

trademarks of their respective trademark owners.

PN: 455-01691-000 September 2003

NEC Solutions (America), Inc

10850 Gold Center Drive, Suite 200,

Rancho Cordova, CA 95670

Contents iii

Contents

Introduction........................................................................................................................... 1

Symbols and Conventions..................................................................................................... 1

Safety Notices ....................................................................................................................... 2

Safety Notices for Users Outside of the U.S.A. and Canada........................................ 3

If You Need Help.................................................................................................................. 3

Selecting a Site...................................................................................................................... 3

Unpacking the Server............................................................................................................4

Unpacking Procedure ................................................................................................... 5

Installing the Side Stabilizer Kit................................................................................. 12

Attaching the LAN Cable and Power Cord................................................................ 12

Express5800/1080Xd Installation Procedures 1

Introduction

These installation procedures provide information for unpacking and installing

the Express5800/1080Xd Server. Read these procedures in their entirety before

performing the installation to become familiar with the components and the

sequence of steps you will perform.

Symbols and Conventions

This guide uses the following text conventions and graphics symbols.

Warnings, cautions, and notes have the following meanings:

WARNING

Warnings alert you to situations that could result in serious

personal injury or loss of life.

CAUTION

Cautions indicate situations that can damage the system

hardware or software.

Note: Notes give important information about the material

being described.

2Express5800/1080Xd Installation Procedures

Safety Notices

WARNING

To avoid a risk of injuries, installation should be performed by trained

technical personnel.

It takes at least two people to unpack your server and two people to

maneuver the server, after unpacking.

Your server is equipped with a front stabilizer. Engage the front stabilizer

during installation. For stability and to distribute the weight, also attach

side stabilizers. Otherwise, the rack may topple over and cause injuries.

If you extend two or more devices from the rack at the same time, the

rack may topple over on you. Extend only one device from the rack at a

time.

Exercise great care not to hurt your fingers on the rail when you

mount/dismount the equipment into/from the rack.

!Elevated Operating Ambient Temperature – If installed in a closed or

multi-unit rack assembly, the operating ambient temperature of the rack

environment may be greater than the room ambient environment.

Therefore, consideration should be given to installing the equipment in

an environment compatible with the a maximum rated ambient

temperature of 35°C.

!Reduced air Flow – Installation of the equipment in a rack should be

such that the amount of air flow required for safe operation of the

equipment is not compromised.

!To prevent fires, and damage to rack equipment and supply wiring,

make sure that the rated load of the power branch circuit is not exceeded.

Equipment nameplate ratings should be used when addressing this

concern. For more information on installation and wiring of power-

related facilities, contact your electrician or local power company.

!To prevent electrical shock, connect all rack and rack support equipment

to the same electrical circuit of the building wiring. If you are unsure,

check the building wiring to avoid remote earth conditions.

!For safe operation, only connect the equipment to a building supply that

is in accordance with current wiring regulations in your country. In the

USA those wiring standards are regulated by Underwriter Laboratories

(UL); in the U.K. by the Institution of Electrical Engineers, (IEE) and in

Canada by the Canadian Standards Association (CSA).

Express5800/1080Xd Installation Procedures 3

Safety Notices for Users Outside of the U.S.A. and Canada

!PELV (Protected Extra-Low Voltage) Integrity: To ensure the extra-

low voltage integrity of the equipment, connect only equipment with

mains-protected electrically-compatible circuits to the external ports.

!Remote Earths: To prevent electrical shock, connect all local

(individual office) computers and computer support equipment to the

same electrical circuit of the building wiring. If you are unsure, check

the building wiring to avoid remote earth conditions.

!Earth Bonding: For safe operation, only connect the equipment to a

building supply that is in accordance with current wiring regulations in

your country. In the USA those wiring standards are regulated by

Underwriter Laboratories (UL); in the U.K., by the Institution of

Electrical Engineers, (IEE) and in Canada by the Canadian Standards

Association (CSA).

If You Need Help

Contact NEC Technical Support at 1-866-269-1239.

Selecting a Site

The server operates reliably in a computer room environment.

Choose a site that is:

!Near grounded, three-pronged power outlets.

Note: For the United States and Canada, this means

NEMA 5-15R outlets for 100-120 VAC or NEMA 6-30R

outlets for 200-240 VAC. For other international sites, this

means three-pronged power outlets applicable for the

electrical code of the region.

WARNING

Be sure the power service connection is through a properly

grounded outlet.

WARNING

All AC connections to the server must be plugged into the

same common ground power outlets.

4Express5800/1080Xd Installation Procedures

!Clean, dust-free, and well ventilated. Front and rear and top ventilating

openings kept free of obstructions. Away from sources of heat, vibration

or physical shock.

!Isolated from strong electromagnetic fields and electrical noise produced

by electrical devices (such as air conditioners, large fans, large electric

motors, radio and TV transmitters, and high-frequency security devices).

!Spacious enough to provide at least 2 feet (0.6 meters) behind the server,

3 feet (1.0 meters) in front of the server and 19.0 inches (0.5 meters) on

each side of the server for proper cooling, airflow, cable clearance and

maintenance.

!Easily accessible for server maintenance and installation of server

upgrades.

Unpacking the Server

CAUTION

If the packaged server has come from an environment which

is significantly warmer or colder than the environment in

which it is to be installed, leave the server in it’s shipping

container for at least 24 hours at room temperature before

removing any packaging. This will prevent damaging

condensation from occurring.

WARNING

The server weighs approximately 440.0 pounds (199.6kg). If

the server contains numerous components, it will weigh

more. To avoid personal injury, make sure you have

someone help you unpack and move the server.

When you receive the server, check to see if the shipping boxes are damaged,

note the damage, and if possible, photograph it for reference. After removing the

contents of the containers, keep the cartons and the packing materials. If the

contents appear damaged when you unpack the boxes, file a damage claim with

the carrier immediately.

The server cabinet is covered with a vinyl shroud for anti-dew-condensation

protection. The packaged cabinet is loaded onto the pallet, outer shipping covers

are attached, and the covers are fastened with plastic straps. The server is

loaded into the shipping container with the front of the server facing the rear of

the container. A ramp for loading and unloading the cabinet is also included in

the shipping container.

Express5800/1080Xd Installation Procedures 5

Figure 1 shows the Model 1080Xd shipping containers. The server is contained

in the larger of the two containers. The smaller container includes the following

contents:

!Server Stabilizer Kit

!Accessory Box

Figure 1. Shipping Containers

Unpacking Procedure

Note: It is recommended that you save the shipping

container, should the server require transport to another

location at a later date.

WARNINGS

Plastic straps securing the packaging may cause injury if the

belts snap loose when cut. Use caution when performing the

first step of this procedure, protecting the hands and face.

Handling the wooden unloading ramp and the pallet can

cause splinters. The use of gloves is recommended.

1. Move the server as close as possible to the computer room where the server

is to be installed.

6Express5800/1080Xd Installation Procedures

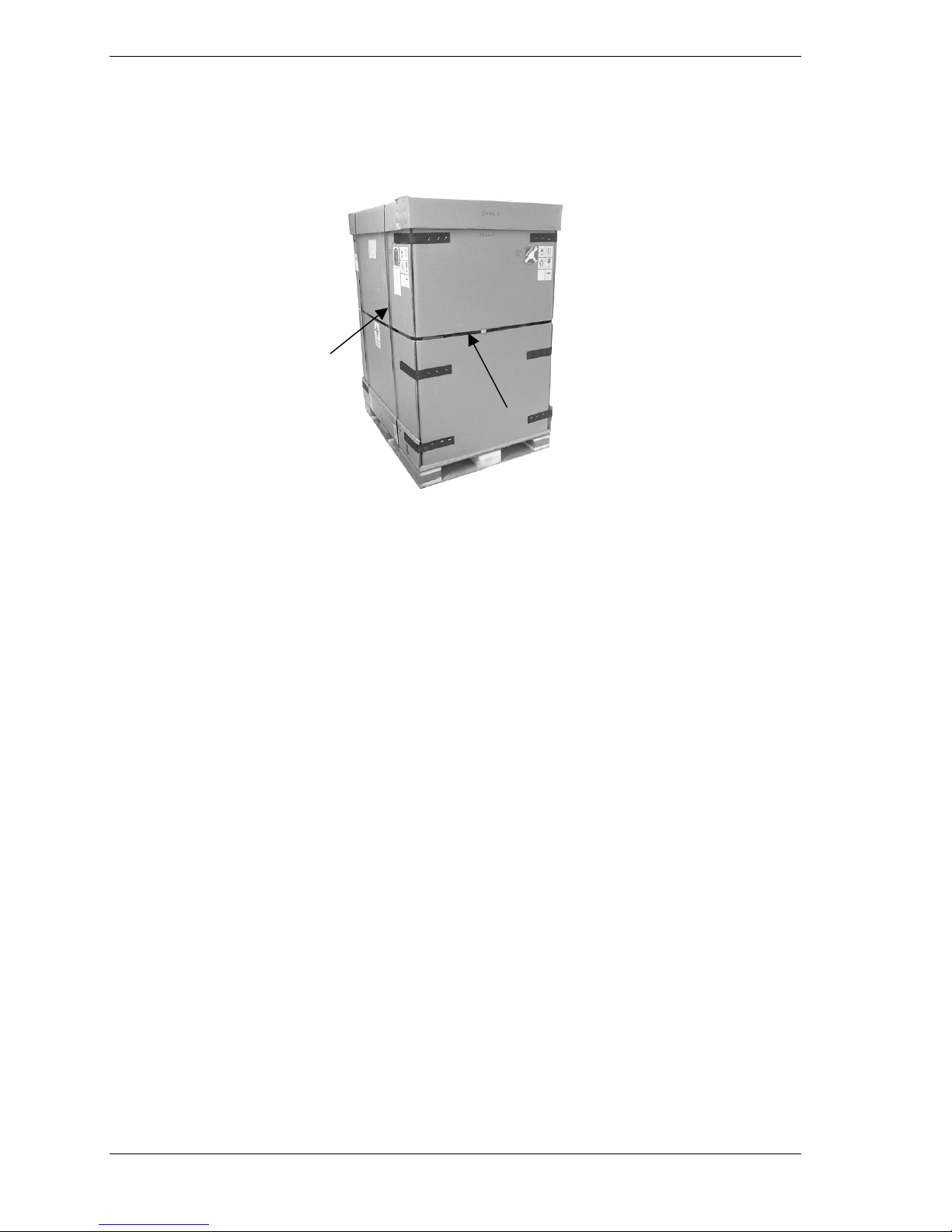

2. Plastic straps secure the shipping box around the server. Carefully cut and

remove the plastic straps securing the sides and top of the shipping

container. See Figure 2A. It is recommended that you wear gloves and

protective eye wear when cutting the plastic straps.

A Plastic Straps

Figure 2. Shipping Container Plastic Straps

3. Lifting upwards, remove top shipping cover. See Figure 3A.

4. Release the Velcro tapes that secure the front, rear, and side covers of the

shipping box. See Figure 3B.

5. Remove the shipping container surrounding the server and set it aside. See

Figure 3C.
