NEC X551UN-TMX4P Manuel utilisateur
NEC Display Solutions of America, Inc.
QIG-TMXP-55UN
X551UN-TMX4P Rev 1.0
Parts List
o(4) X551UN Displays
o(4) Overnight Onsite Service Warranties (ONSITE-55-17)
o(4) Peerless Pullout Wall Mounts (DS-VW765-LAND)
o(2) Custom Peerless Spacers (DS-VWS040)
o(4) 3m DVI-D to DVI-D M/M cables
o(1) 5m DVI-D to DVI-D M/M cable
o(3) 10m Null Modem to Null Modem F/F cables
o(1) IR/Remote Control Kit (KT-RC)
o(2) Overframe Bezel Kits (KT-55UN-OF)
o(2) Tripp Lite 6 Outlet Strip (ISOBar6)
NOTES:
oAny walls that this video wall solution is anchored to must be strong enough to support the displays and the
installation must be in accordance with any local building codes. All mounting apparatuses must make secure
contact to wooden studs.
oPlease read entire document before starting installation
NEC Display Solutions of America, Inc.
QIG-TMX-55UN
X551UN-TMX4P Rev 1.0
2
1. For mounting information, please refer to the Installation Instructions provided by Peerless
Manufacturing inside of the box of the DS-VW765-LAND mount units.
2. Connect the NEC displays using the included DVI cables and the integrated DVI
loopthrough connections on the bottom of each monitor. Note that the DVI connection
closest to the front of the display is the ‘in’ connection while the connection closest to the
wall is the ‘out’ connection.

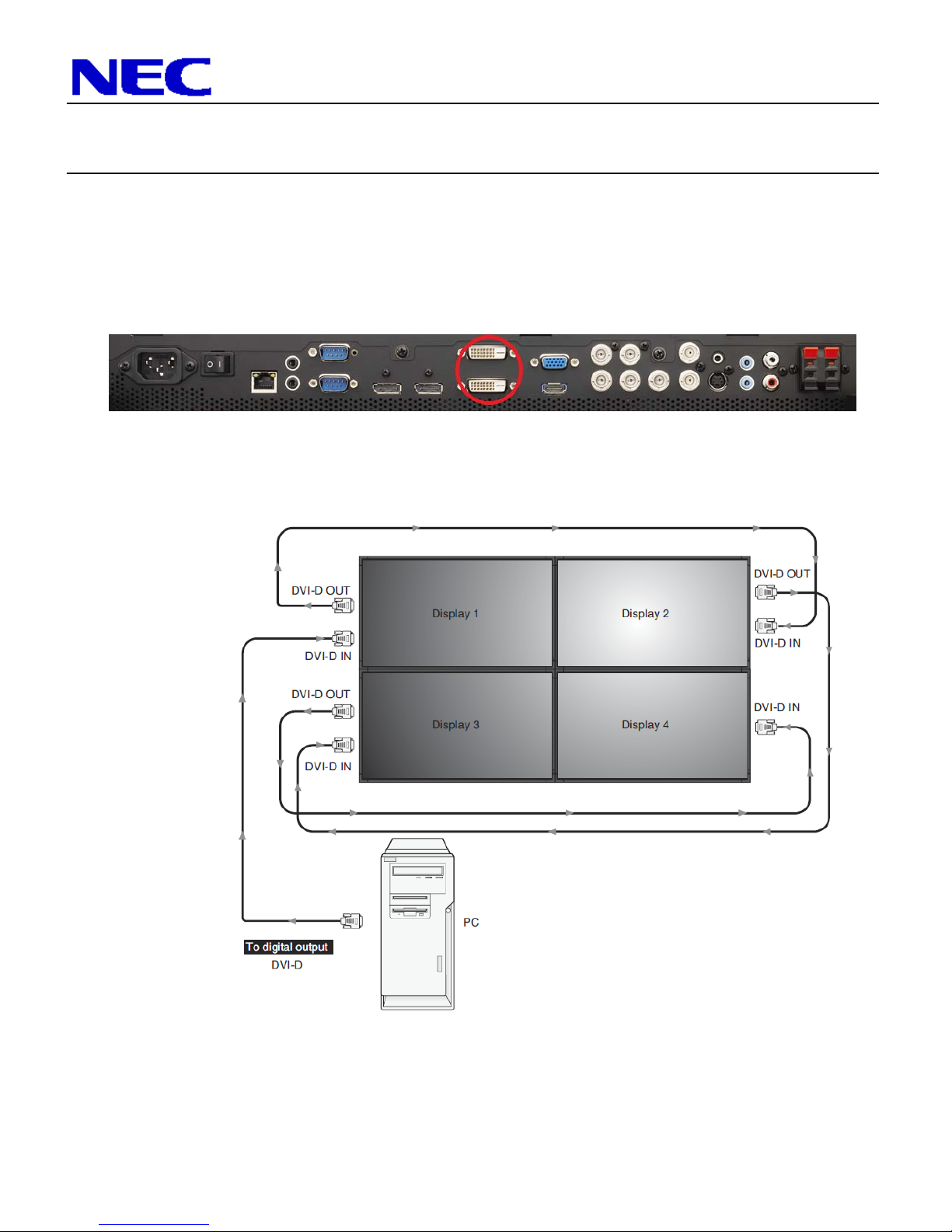

The ideal cabling set up is shown below to match the ideal monitor ID configuration.
However, DVI daisy chaining can be done different ways and still yield the same results.
Note that the connections for each X551UN monitor are on the bottom of each display, not
the side as shown in the image below. It may be helpful to start wiring before mounting.
3. Connect the null modem cabling to each display. It is recommended to connect from
Display 1 to Display 2, from Display 2 to Display 3, and from Display 3 to Display 4. Note
that the null modem cable needed to run from the source computer to Display 1 is not
included in this bundle. This will need to be purchased separately to control the display
remotely over RS232. Also loop through the provided IR Remote control cables.
NEC Display Solutions of America, Inc.
QIG-TMX-55UN
X551UN-TMX4P Rev 1.0
3
4. Apply the OverFrame bezel kit to the video wall. Please follow instructions provided with kit
(KT-55UN-OF).
5. Screw the IR Receiver (KT-RC) directly to the outside of the video wall and plug it directly
into the IR In terminal of Display 1.
6. Set each monitor ID up individually through the ‘MULTI-DSP’ menu within the OSD. It’s
recommended that the ID’s go from left to right, with the ID No. 1 being in the top left corner.
Overframe Kit
IR In
RS232 In
RS232 Out
IR Out
NEC Display Solutions of America, Inc.
QIG-TMX-55UN
X551UN-TMX4P Rev 1.0
4

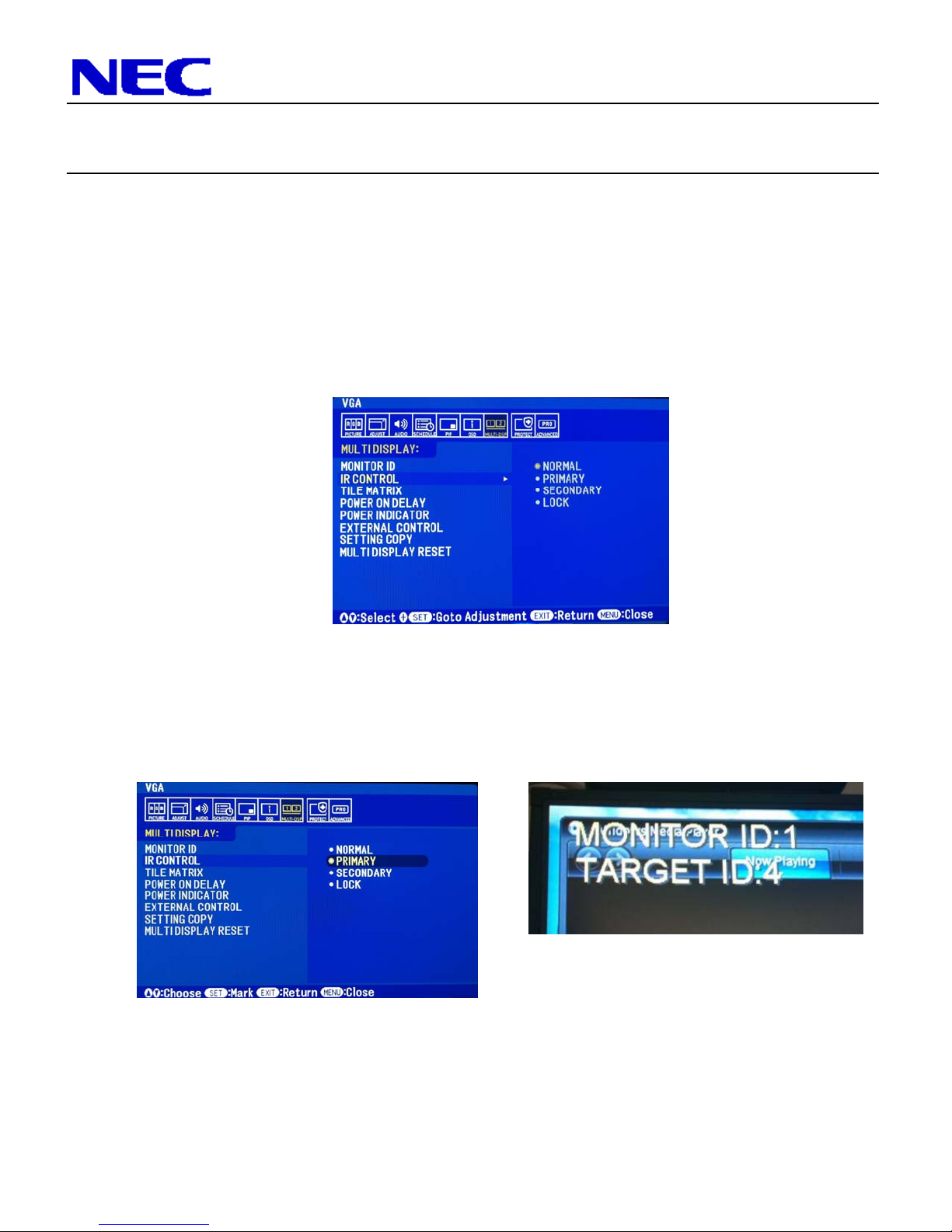

Note that after the ID’s are set, there are two different ways to communicate to each screen
via the IR Remote. If the setting for the ‘IR Control’ within the ‘MULTI-DSP’ menu is set to
‘Normal’, then the IR remote control cabling is being utilized for communication. In order to
communicate to each screen individually, hold down the ‘Remote ID Set’ button on the
remote control, tap the number of the ID that you want to communicate with, then release
the Remote ID Set button. To test if this was done correctly, press the MENU button and
the OSD should now only appear on the display in which the remote control is
corresponding to. Also, more information on this is located within the User’s Manual.
To communicate to each display over the RS232 connection, make sure that the first display
(monitor ID 1) has its IR control set to ‘Primary’, while all others are set to ‘Secondary’.
When this is set, press the ‘Display’ button and the Monitor ID and Target ID should come
up in the left corner of each screen. Use the [+] and [-] buttons on the remote to change the
Target ID to the desired display you wish to communicate with then press ‘Display’ again. If
the menu is then pressed, the OSD menu should appear on the screen of the desired ID.

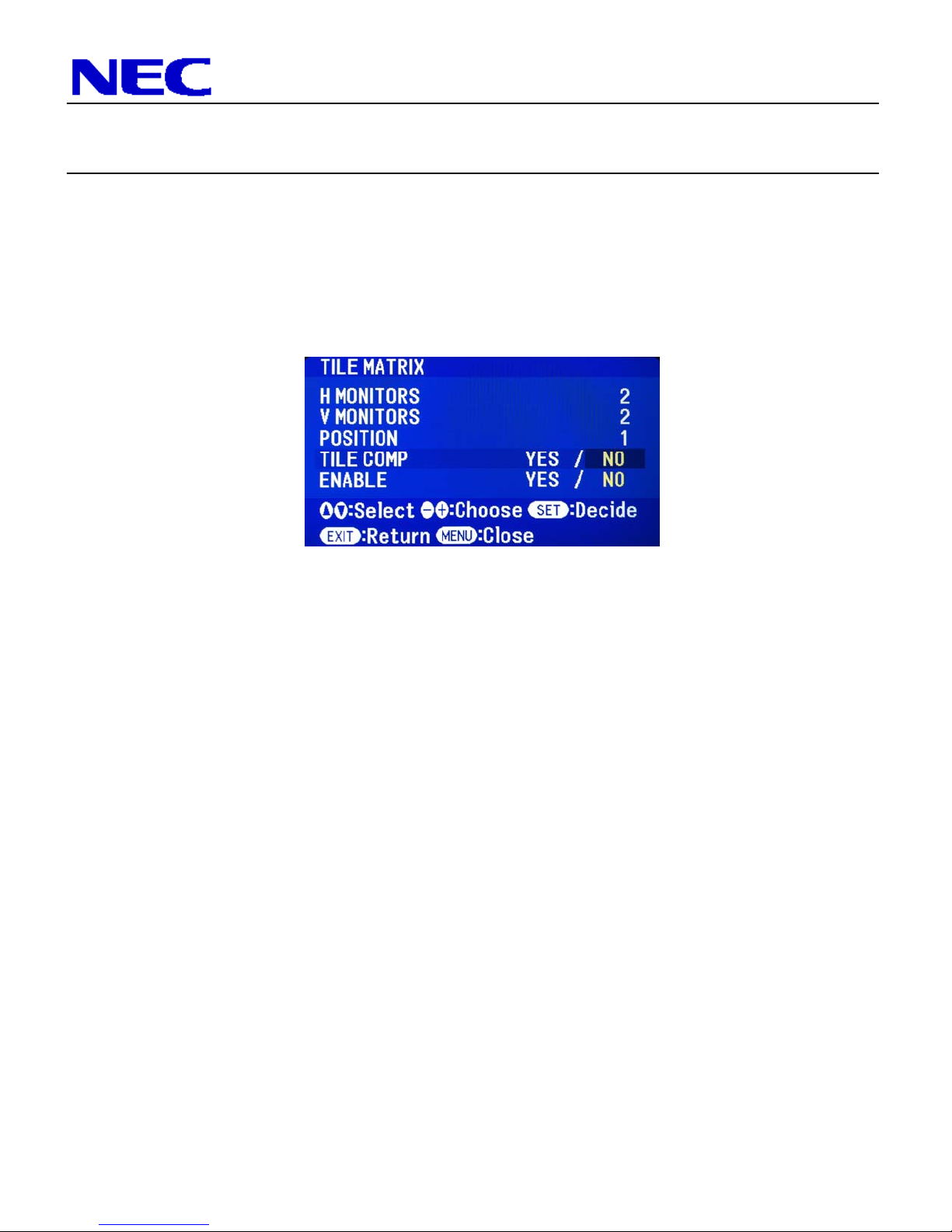

7. Use the TileMatrix feature to setup the 2x2 Video Wall. The Tilematrix feature of the NEC
Display allows for one image to be expanded and displayed over a 2x2 Video Wall Setup.*
This is accessed through the OSD (On-Screen Display) Controls under the “MULTI-DSP”
main menu icon. Under the TileMatrix sub-menu, enable the feature and set the necessary
NEC Display Solutions of America, Inc.
QIG-TMX-55UN
X551UN-TMX4P Rev 1.0
5
parameters that match the 2x2 Video Wall setup. Note that this step will need to be
completed for each screen.
8. Select if TileComp is necessary for this application or not. TileComp works in tandem with
TileMatrix to compensate for the width of the tiled bezels in order to accurately display the
image. Click ‘YES’ on enable to display video wall. Note that this step will need to be
completed for each screen.
If you are experiencing issues with this setup, please call our Technical Support number at
(800) 632-4622
