50XM6 Installation Guide

50” Plasma Display Rev 1.0

PX-50XM6 Page 1 of 11

Contents:

Product Description and Notes Page 1

Ventilation Requirements Page 2

Display Dimensions

Front, Top, Bottom & Right Side Page 3

Rear Page 4

Display Dimensions w/Optional Speakers and Stand Page 5

Optional Speakers and Stand Dimensions__ Page 6

Dimensions w/Optional Wall Mount Page 7

Dimensions w/Optional Portrait Wall Mount Page 8

Dimensions w/Optional Ceiling Mount Page 9

Connections Page 10

Control Codes Page 11

Product Description

Type: Plasma Display Screen Surface: Anti-Reflective

Resolution: 1365x768 Dimensions: 48.11” (W) x 28.98” (H) x 3.90” (D)

Aspect Ratio: 16:9 Weight: 91.5 lbs

Color Correction: NEC AccuCrimson (in front filter) FCC: Class B

Notes

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to

be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the display and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to

fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary ±5%.

Maximum Tilt Angles

Below are the maximum angles that the display can be tilted in both landscape and portrait mode

Landscape 30°

Max Tilt

Portrait 10°

www.necvisualsystems.com

NEC Corporation of America

Visual Systems Division

50XM6 Installation Guide

50” Plasma Display Rev 1.0

Ventilation Requirements (all models)

Dimensions below are minimum required for proper ventilation.

NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the

opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for

design review and recommendations.

www.necvisualsystems.com PX-50XM6 Page 2 of 11

NEC Corporation of America

Visual Systems Division

50XM6 Installation Guide

50” Plasma Display Rev 1.0

Display dimensions

48.11

20.55

28.98

25.43

44.33 3.90

1.50

2.09

10.4214.30

18.5015.200.79

0.79



LED •IR

ControlL Buttons

AC Inlet Speaker Terminal

Power Button

0.22

Filter Surface

2.56

49.80

2.00

43.50 (Screen Area)

2.30

24.40(ScreenArea2.15

1.61

11.00

13.21

1.61

0.39

14.49

www.necvisualsystems.com PX-50XM6 Page 3 of 11

NEC Corporation of America

Visual Systems Division

50XM6 Installation Guide

50” Plasma Display Rev 1.0

Display dimensions (cont.)

F FFF F

NAME LABEL

(ForSpeakerM8x4)

5.91

45.43

20.87

4.96

5.12

4.9619.09

11.73

1.97

20.87

19.69

4.02

0.12

19.53

17.52

for PC

4-M4 DEPTH 10

for mount unit

6-M8.DEPTH18

for mount unit

4-M8.DEPTH18

For Speaker (M8.DEPTH12)

for mount unit

8-M4.DEPTH16

4.84

10.44

13.66

www.necvisualsystems.com PX-50XM6 Page 4 of 11

NEC Corporation of America

Visual Systems Division

50XM6 Installation Guide

50” Plasma Display Rev 1.0

Dimensions with optional speakers and stand

(0.02) 3.50(0.02)3.50 55.20

6.80

15.70

29.00

3.00

1.50

3.80

3.9"

27.20

31.60

22.90

17.20

4.40

Optional Speakers

www.necvisualsystems.com PX-50XM6 Page 5 of 11

NEC Corporation of America

Visual Systems Division

50XM6 Installation Guide

50” Plasma Display Rev 1.0

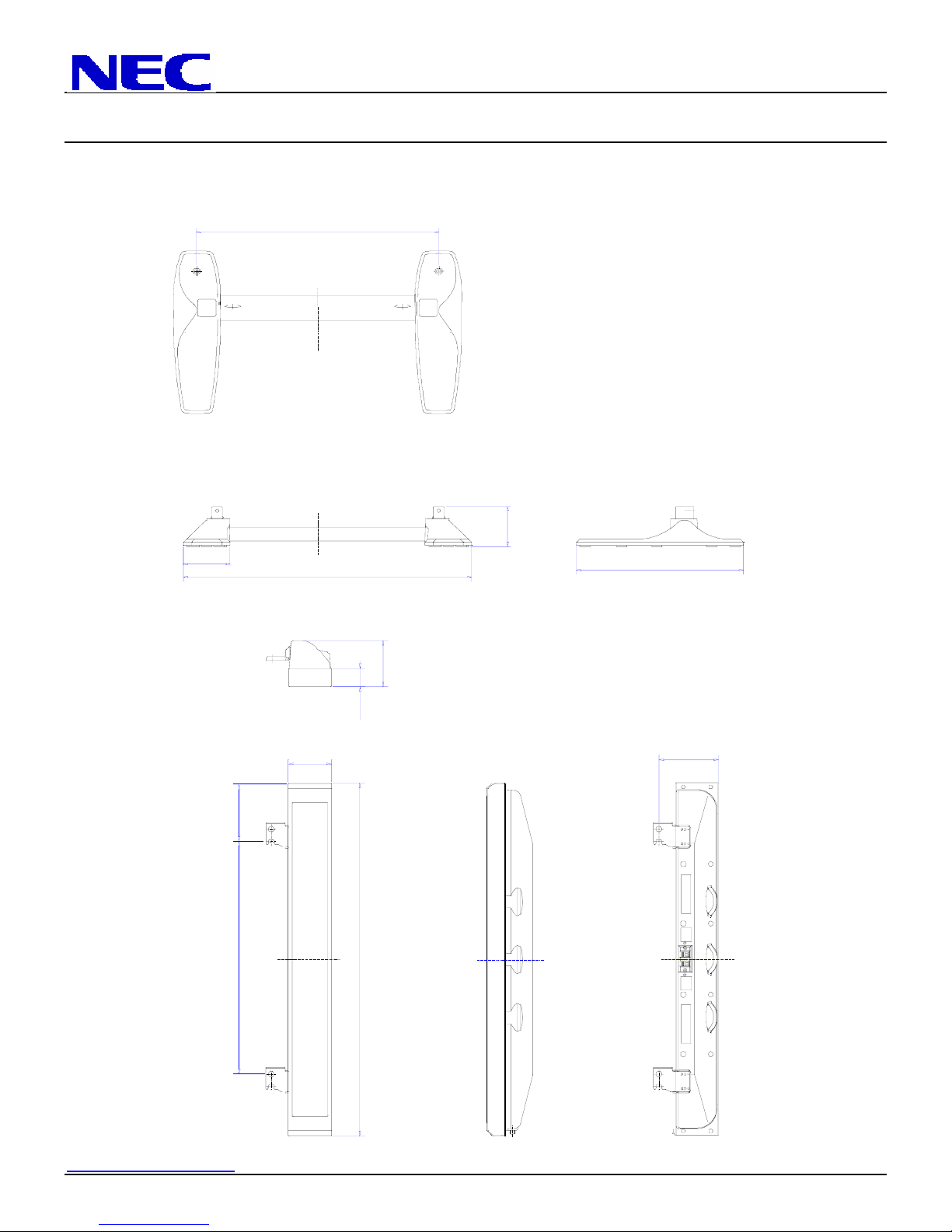

Optional Speakers and Stand Dimensions

15.70

27.20

22.90

4.40

3.87

Table Top Stand (Part# PX-ST3U)

29.00 1.50

3.80

3.52 4.90

4.8019.10

Optional Speaker (Part# PX-50SP3U)

www.necvisualsystems.com PX-50XM6 Page 6 of 11

NEC Corporation of America

Visual Systems Division

50XM6 Installation Guide

50” Plasma Display Rev 1.0

Dimensions with optional Wall Mount Kit (4250WMK)

F FFF F

NAME LABEL

20.87

12.475.05

2.98

6.71

4.46

9.10

www.necvisualsystems.com PX-50XM6 Page 7 of 11

NEC Corporation of America

Visual Systems Division

50XM6 Installation Guide

50” Plasma Display Rev 1.0

Dimensions with optional Portrait Wall Mount Kit (4250PMK)

23.02

18.02

20.87

4.16

7.98

F FFF F

NAME LABEL

www.necvisualsystems.com PX-50XM6 Page 8 of 11

NEC Corporation of America

Visual Systems Division

50XM6 Installation Guide

50” Plasma Display Rev 1.0

Dimensions with optional Ceiling Mount Kit (CMK)

F FFF F

NAME LABEL

Note: Optional Accessories

not included with CMK

4.57

8.30

www.necvisualsystems.com PX-50XM6 Page 9 of 11

NEC Corporation of America

Visual Systems Division

50XM6 Installation Guide

50” Plasma Display Rev 1.0

Connections

ControlL Buttons

AC Inlet

Ext. Speaker Terminal

Power Button

Located at bottom of display

www.necvisualsystems.com PX-50XM6 Page 10 of 11
