MultiSync LCD1550V

User’s Manual

English-1

English

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE. ALSO, DO NOT USETHIS UNIT’S POLARIZED PLUG WITH AN

EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS

CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE

COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER

(OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have

sufficient magnitude to cause electric shock.Therefore, it is dangerous to make

any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation

and maintenance of this unit has been included.Therefore, it should be read

carefully in order to avoid any problems.

CAUTION

WARNING

RISK OF ELECTRIC SHOCK •DO NOT OPEN

Caution:

When operating the MultiSync LCD1550V (LA-15R02) with a 220-240V AC power

source in Europe, use the power cord provided with the monitor.

In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse

installed for use with this equipment. If a power cord is not supplied with this equipment

please contact your supplier.

When operating the MultiSync LCD1550V with a 220-240V AC power source in

Australia, use the power cord provided with the monitor.

For all other cases, use a power cord that matches the AC voltage of the power outlet

and has been approved by and complies with the safety standard of your particular

country.

ENERGYSTAR is a U.S.trademark.

As an ENERGYSTAR®Partner, NEC-Mitsubishi Electronics Display of America, Inc. has

determined that this product meets the ENERGYSTAR guidelines for energy efficiency.

The ENERGYSTAR emblem does not represent EPA endorsement of any product or service.

IBM PC/XT/AT, PS/2, MCGA, VGA, 8514/A and XGA are registered trademarks of

International Business Machines Corporation.

Apple and Macintosh are registered trademarks of Apple Computer Inc.

Microsoft and Windows are registered trademarks of the Microsoft Corporation.

NEC is a registered trademark of NEC Corporation.

All other trademarks or registered trademarks are property of their respective owners.

English-2

Declaration

Declaration of the Manufacturer

We hereby certify that the colour monitor

MultiSync LCD1550V (LA-15R02)

is in compliance with

Council Directive 73/23/EEC:

–EN 60950

Council Directive 89/336/EEC:

–EN 55022

–EN 61000-3-2

–EN 61000-3-3

–EN 55024

and marked with

NEC-Mitsubishi Electric Visual Systems, Corp.

MS Shibaura Bldg., 13-23,

Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, Japan

Power consumption of the monitor is less

than 3W when in power-saving mode.

English-3

English

For the Customer to use in

U.S.A. or Canada

Canadian Department of Communications

Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du

Règlement sur le matériel brouiller du Canada.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety

Regulations according to CSA C22.2 #950.

Ce produit porte la marque ‘C-UL’et se conforme aux règlements de

sûrele Canadiens selon CAN/CSA C22.2 No. 950.

FCC Information

1. Use the attached specified cables with the MultiSync LCD1550V

colour monitor so as not to interfere with radio and television

reception.

(1)The power supply cord you use must have been approved by and

comply with the safety standards of U.S.A., and meet the following

condition.

Power supply cord Non shield type, 3-conductor

Length 1.8 m

Plug shape

(2)Shielded video signal cable. Use of other cables and adapters

may cause interference with radio and television reception.

English-4

2. This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation.This equipment

generates, uses, and can radiate radio frequency energy, and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications.However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

•Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced

radio/television technician for additional suggestions.The user may

find the following booklet, prepared by the Federal Communications

Commission, helpful:“How to Identify and Resolve Radio-TV

Interference Problems.”This booklet is available from the U.S.

Government Printing Office, Washington, D.C., 20402,

Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two

conditions. (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

U.S. Responsible party: NEC-Mitsubishi Electronics

Display of America, Inc.

Address: 1250 N. Arlington Heights Road

Itasca, Illinois 60143-1248

Tel. No.: (630)467-3000

Type of Product: Computer Monitor

Equipment Classification: Class B Peripheral

Models: MultiSync LCD1550V

We hereby declare that the equipment specified above conforms

to the technical standards as specified in the FCC Rules.

English-5

English

Contents

Your new NEC MultiSync LCD monitor box* should contain the following:

•MultiSync LCD1550Vmonitor with tilt base

•Power Cord(s)

•Video Signal Cable

•User’s Manual

•CD ROM (includes complete User’s Manual in PDF format).To see

the User’s Manual, Acrobat Reader 4.0 must be installed on your PC.

* Remember to save your original box and packing material to transport

or ship the monitor.

1550V

English-6

Quick Start

To attach the MultiSync LCD monitor to your system, follow these

instructions:

1. Turn off the power to your computer.

2. Remove connector cover and cable cover.

3. For PC: Connect the 15-pin mini D-SUB of the appropriate

signal cable to the connector for the display card in your system

(Figure A.1).Tighten all screws.

For Mac: Connect the MultiSync LCD1550V Macintosh cable

adapter to the computer (Figure B.1). Attach the 15-pin mini D-SUB

end of the appropriate signal cable to the MultiSync LCD1550V

Macintosh cable adapter (Figure B.1).Tighten all screws.

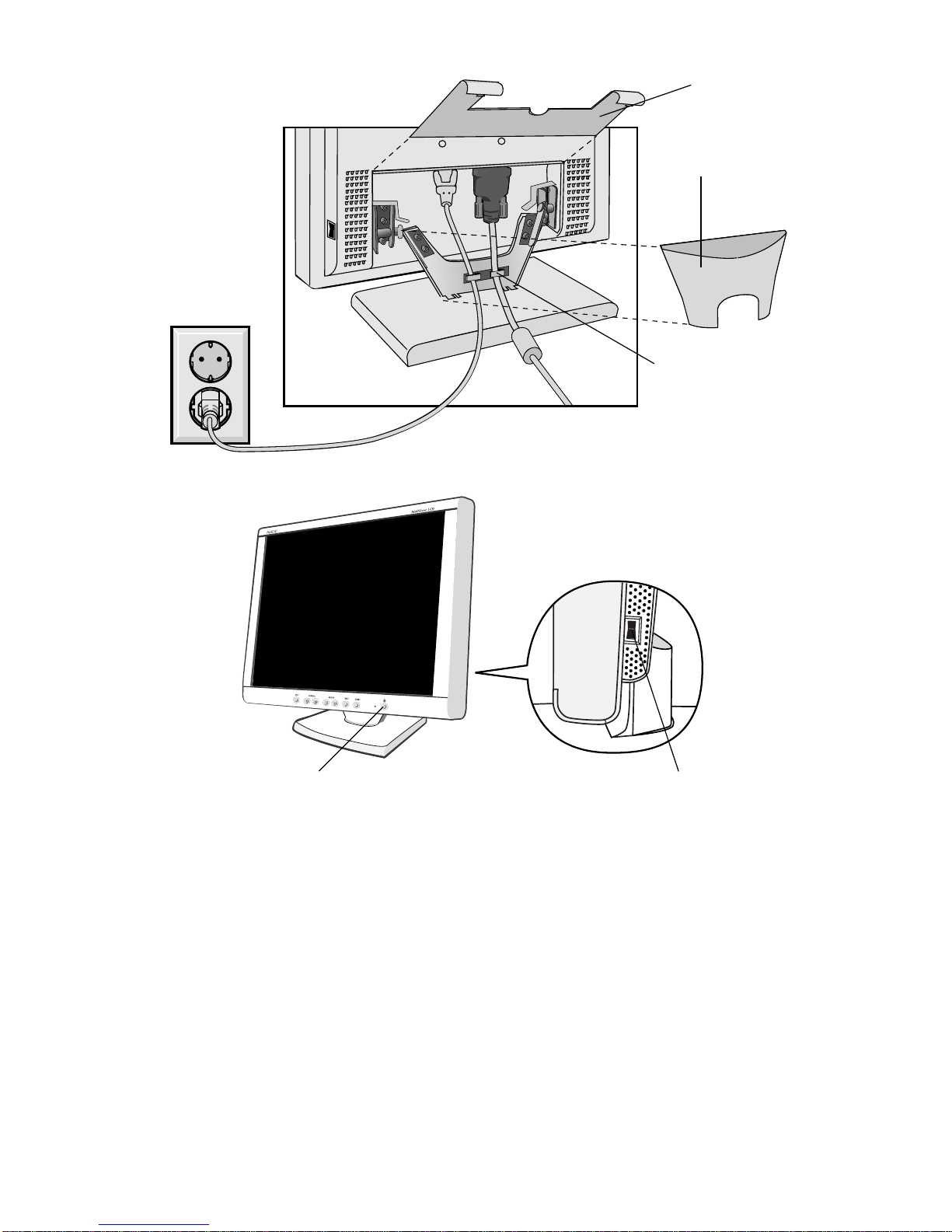

4. Connect the 15-pin mini D-SUB of the video signal cable to the

appropriate connector on the back of the monitor (Figure C.1). Place

the Video Signal Cable under Clip B.

5. Connect one end of the power cord to the MultiSync LCD Series

monitor and the other end to the power outlet. Place the video signal

cable and AC power cord under the clips (Figure C.1). Replace

connector cover and cable cover.

NOTE: Adjust the position of the cable under the clips to avoid damage

for cable or monitor.

NOTE: Please refer to Caution section of this manual for proper

selection of AC power cord.

6. The Vacation Switch on the right side of the monitor must be turned

on (Figure D.1).Turn on the monitor with the Power Button and the

computer.

NOTE: The Vacation Switch is a true on/off switch. If this switch is on

the OFF position, the monitor cannot be turned on using the

front button DO NOT switch on/off repeatedly.

7. No-touch auto adjust automatically adjusts the monitor to optimal

settings upon initial setup for most timings.For further adjustments,

use the following OSM controls:

•Auto Adjust Contrast

•Auto Adjust

English-7

English

Refer to the Controls section of this User’s Manual for a full description

of these OSM controls.

NOTE: If you have any problems, please refer to the Troubleshooting

section of this User’s Manual.

Figure B.1

Macintosh

Cable

Adapter

(not included)

Macintosh G3

and G4 do not

need a

Macintosh cable

adapter

Figure A.1

English-8

Tilt

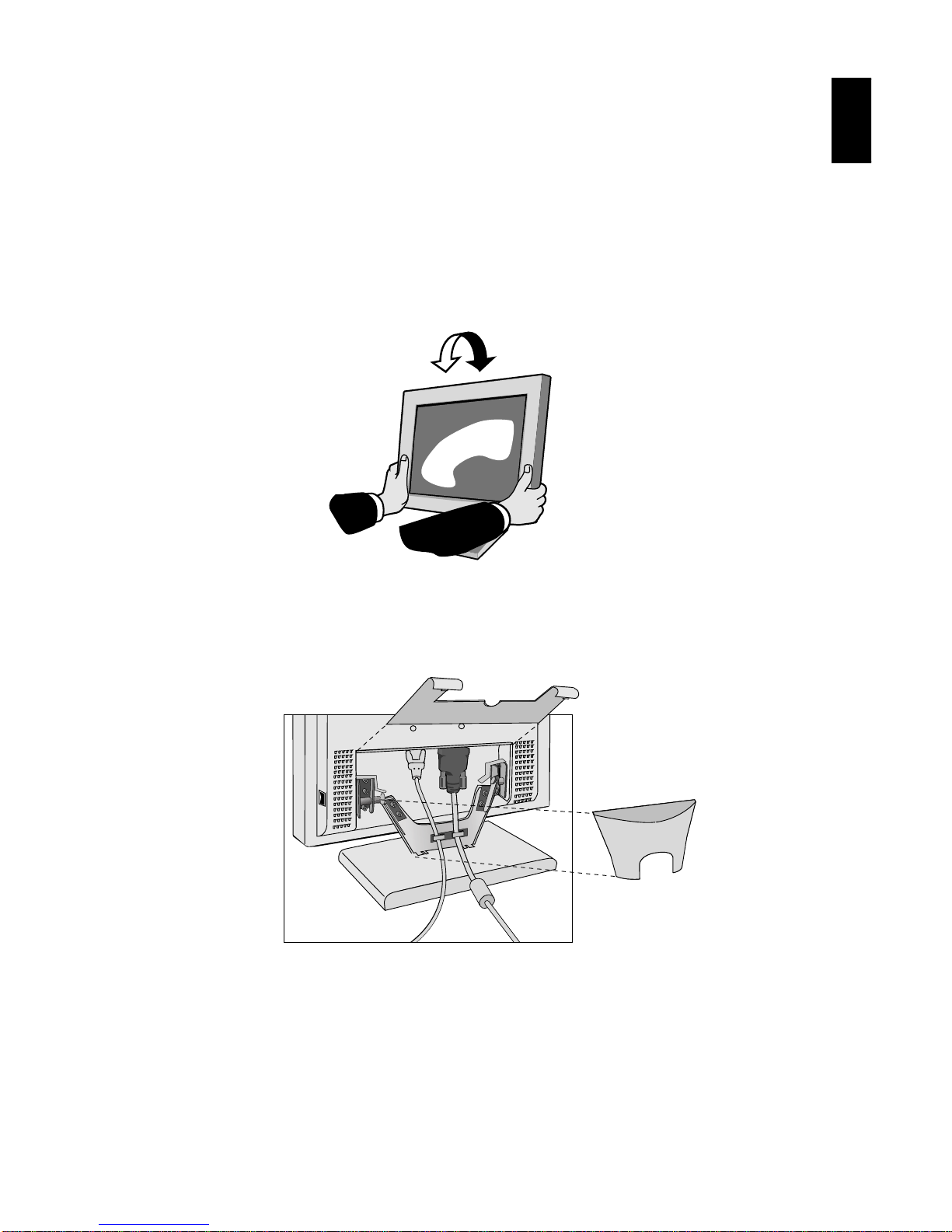

Grasp both sides of the monitor screen with your hands and adjust the

tilt as desired (FigureTS.1).

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Remove the connector cover and cable cover (Figure R.1).

2. Disconnect all cables.

3. Place monitor face down on a non-abrasive surface (Figure R.2).

Vacation Switch

Power Button

Figure C.1

1550V

Figure D.1

Connector cover

Cable cover

Clip B

English-9

English

FigureTS.1

Figure R.1

4. Remove the 4 screws connecting the monitor to the stand and lift off

the stand assembly (Figure R.2) the monitor is now ready for

mounting in an alternate manner.

5. Connect the AC cord and signal cable to the back of the monitor

(Figure R.3).

6. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method.
