Video processing evolved.
SUPERIOR VIDEO PROCESSING
PIXEL BASED MOTION ADAPTIVE
DE-INTERLACING
MULTIPLE VIDEO CADENCE AND
VIDEO/FILM DETECTION
TEMPORAL AND CODEC NOISE
REDUCTION
DETAIL ENHANCEMENT
1024-TAP SCALING
10-BIT PROCESSING, SCALING &
WARPING
THEATERSYNC BRINGS THE POWER of Silicon Optix HQVTM (Hollywood Quality
Video) technology to NEC's full line of projectors and plasma displays. TheaterSync is a
high-performance video processor that accepts standard and high definition video signals
from almost any consumer or professional device (e.g. DVD, VCR, cable or satellite set-top
box, off-air tuner, etc...). With seven inputs, including component, DVI, HDMI and SD/HD
SDI, TheaterSync also acts as a switcher between all inputs. Sources connected to the
TheaterSync are processed and then output to the connected display with the correct aspect
ratio and native resolution. TheaterSync optimizes the signal output to the display by utilizing:
°State of the art, motion adaptive de-interlacing for both SDTV and HDTV which results in
video with no interpolation errors causing unwanted horizontal lines during motion.
°Temporal Recursive noise reduction reduces random noise in static areas of the image by
analyzing multiple fields using a motion adaptive, noise adaptive approach.
°Codec noise reduction (includes mosquito noise reduction and block artifact removal)
eliminates edge and block noise caused by mpeg compression.
°Detail enhancement improves edge contrast and depth without causing ringing or haloing.
°Fully automatic detection and correction for multiple film/video cadences (e.g. – 3:2,
2:2, vari-speed, 5:5, 6:4, 8:7, etc.) results in video that has no detail loss due to missing
field information.
°Adaptivebrightness-contrast enhancement for crystal, clear images.
°Colorspace conversion and color temperature adjustment at 10 bits per component
enables processing of over 1 billion colors providing finer detail and greater dynamic color
range matching the inputvideo source.
°Audio delay (lip-sync) correction enables the audio to be in sync with the video.
°Geometric correction capability for extreme off-axis keystone correction provides +/-
40˚ of horizontal and 30˚ vertical keystone correction with minimal image loss allowing
flexible projector display placement.
TheaterSync utilizes HQVTM image
processing from Silicon Optix..
NEC 080532
For more information, call 1.800.NEC.INFO
or visit www.necvisualsystems.com
NEC is a registered trademark of NEC Corporation.
All other trademarks arethe property of their respective owners.
All specifications subject to change without notice.
NEC Solutions (America), Inc.
Visual Systems Division
1250 Arlington Heights Rd., Suite 400
Itasca, IL 60143-1248
INPUT VIDEO CONNECTIONS
Composite Video, RCA Connector (NTSC, PAL and SECAM compatible)
S-Video, 4-pin DIN (NTSC and PAL compatible)
Component YPbPr, BNC (SDTV and HDTV compatible)
Analog RGB, 15-pin DSUB (VGA to UXGA compatible)
DVI w/HDCP (VGA to QXGA)
HDMI w/HDCP
SDI, BNC (includes SD and HD-SDI and audio)
OUTPUT VIDEO CONNECTIONS
Analog RGB (VGA to UXGA including WXGA, HD)
DVI w/HDCP (VGA to QXGA including WXGA and NEC 1365x768, HD)
HDMI w/HDCP
INPUT AUDIO CONNECTIONS
S/PDIF
TOSLINK
HDMI
OUTPUT AUDIO CONNECTIONS
S/PDIF
TOSLINK
HDMI
CONTROL CONNECTIONS
IRRemote Control
RS-232, 9-pin DSUB
USB
Ethernet
PHYSICAL CHARACTERISTICS
Dimensions: 17.0” x 9.7” x 1.75” (432 x 246 x 44 mm)
Weight: 7.0 lbs. (3.2 kg)
Power: 100-240V, 47-63Hz, 72W
MENU STRUCTURE
Input Select
PictureControl (Brightness, Contrast, Sharpness, Gamma Correction, Black Level, Color Temperature, Color, Hue/Tint)
Setup (Video System, Background Color, Reset, Menu Position)
Language
Info (Input Resolution, H and V Frequency, Output Resolution, Serial Number and IP Address)
Advanced (Horizontal and Vertical Keystone Correction, Projection Mounting, Video Processing Mode, HQV Film Mode,
Adaptive Brightness/Contrast and HQV Noise Reduction)
Video processing evolved.

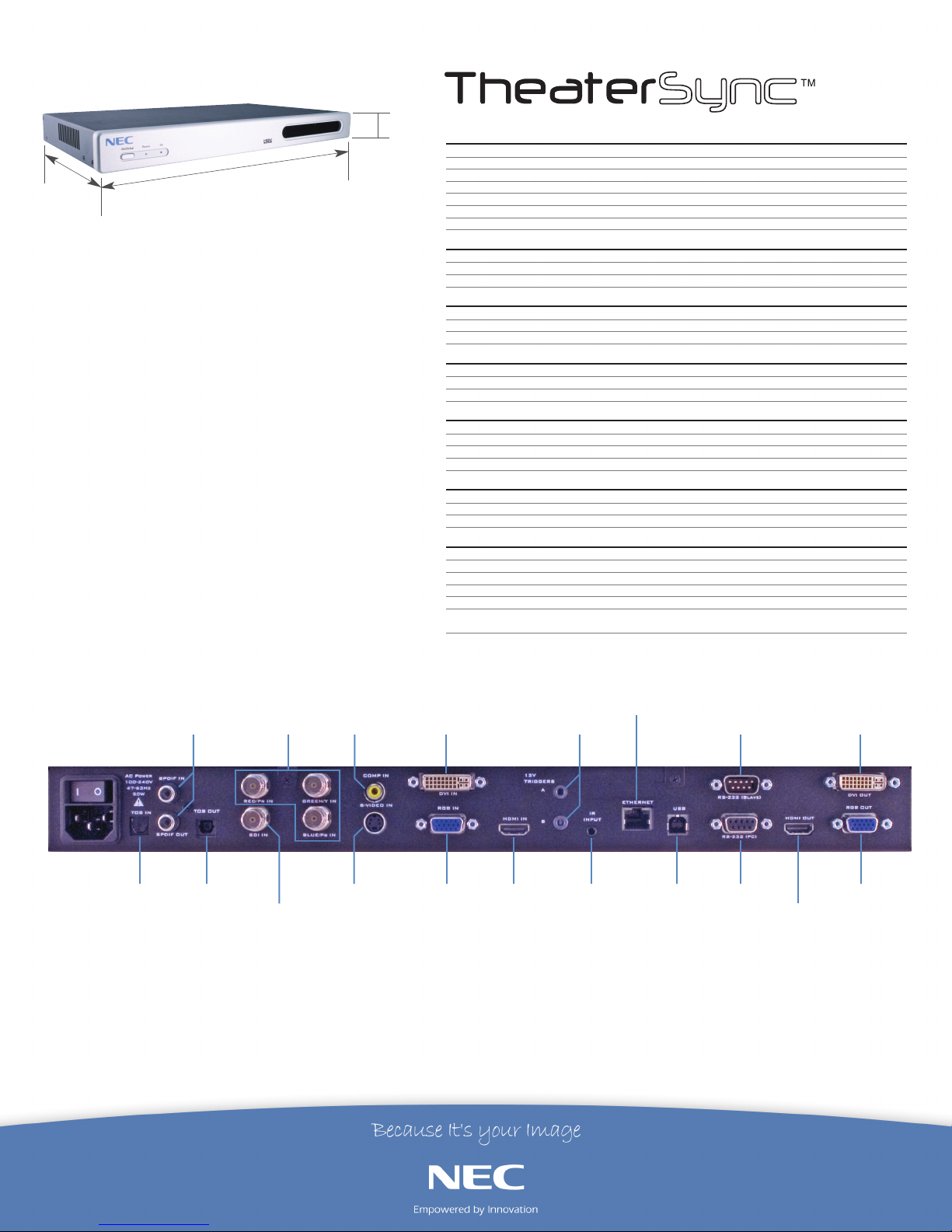

1.75”
(44 mm)
17.0”
(432 mm)
9.7”
(246 mm)
TOS IN
SPDIF IN/OUT
TOS OUT
COMPONENT COMP IN
S-VIDEO IN RGB IN
DVI IN
HDMI IN
12V TRIGGERS
ETHERNET
RS-232 (SLAVE)
RS-232 (PC)USBIR INPUT
HDMI OUT
RGB OUT
DVI OUT
SDI IN
