Computing Innovations.
Cirrus LT
User Guide
TZ-241G v1.1b September 8, 2014
Contents
Safety Instructions...................................................................................................................................4
Battery Safety and Tips..................................................................................................................................4
Introduction ..............................................................................................................................................5
Chapter 1: Before You Start ....................................................................................................................6
Package Contents............................................................................................................................................6
Components ..............................................................................................................................................7
Front View ........................................................................................................................................8
Right View ........................................................................................................................................8
Left View...........................................................................................................................................8
Bottom View.....................................................................................................................................9
Notebook LEDs................................................................................................................................9
Docking Station ..............................................................................................................................10
Docking Station LED Lights........................................................................................................10
Laptop and Docking Station LED Status Light Indicators...................................................11
Chapter 2: Getting Started..................................................................................................................... 12
Powering Up Your Notebook ......................................................................................................................12
Connecting the AC Adapter...................................................................................................................12
Installing the Battery .............................................................................................................................13
Using Battery Power ..............................................................................................................................14
Charging the Battery..............................................................................................................................14
Starting Your Notebook................................................................................................................................15
Opening the Display Panel ....................................................................................................................15
Turning On Your Notebook...................................................................................................................16
Using the Keyboard.......................................................................................................................................16
Function Keys ..........................................................................................................................................16
Touchpad.........................................................................................................................................................17
Point ..........................................................................................................................................................17
Click...........................................................................................................................................................17
Double-click .............................................................................................................................................17
Drag...........................................................................................................................................................17
Using the Fingerprint Reader .....................................................................................................................18
Chapter 3: Making Connections ...........................................................................................................19
Connecting External Display Devices.......................................................................................................19
Connecting a Projector or Display Monitor.......................................................................................19
Connecting USB Devices ............................................................................................................................ 20
Connecting to a Mouse and Keyboard......................................................................................................21
Connecting Headphones..............................................................................................................................21
Connecting an External Microphone........................................................................................................21
Connecting the Docking Station ................................................................................................................22
Installing a SFP Module...............................................................................................................................27
Chapter 4: Navigating the On Screen Menu.......................................................................................29
On Screen Menu (OSM) Structure ........................................................................................................... 29
Main Menu..................................................................................................................................................... 30
Network ....................................................................................................................................................31
Ethernet ....................................................................................................................................................31
WiFi...........................................................................................................................................................32
Available Networks.................................................................................................................................33
Preferred Networks.................................................................................................................................37
Auto Connect ...........................................................................................................................................37
Captive Portal..........................................................................................................................................38
Display Settings..............................................................................................................................................39
On Lid Close............................................................................................................................................ 40
Native Display O...................................................................................................................................41
Brightness................................................................................................................................................ 42
Display Options.......................................................................................................................................43
Status Bar................................................................................................................................................ 44
Speakers....................................................................................................................................................45
Touchpad ..................................................................................................................................................45
Webcam ................................................................................................................................................... 46
Administrator ................................................................................................................................................ 46
Admin Login ............................................................................................................................................47
Administrator Settings.......................................................................................................................... 48
Allow Saving Wifi Password ................................................................................................................ 49
Allow Captive Portal ............................................................................................................................. 49
Change Admin Credentials .................................................................................................................. 49
Change User Credentials .......................................................................................................................50
System Info...............................................................................................................................................51
Restore Factory Defaults .......................................................................................................................51
Admin Log O .........................................................................................................................................52
Chapter 5: Opening and Configuring the Teradici Firmware Menu.............................................53
Chapter 6: Making Remote Connections...........................................................................................55
Connecting to Remote Machines with Teradici Host Cards ...............................................................55
Important Teradici Host Software Settings.......................................................................................55
Chapter 7: Upgrading the Firmware....................................................................................................56
Chapter 8: Management Console .........................................................................................................60
Chapter 9: Advanced Networking........................................................................................................61
Assigning a Static IP Address......................................................................................................................61
Chapter 10: Troubleshooting.................................................................................................................62
General Troubleshooting Tips................................................................................................................... 62
Conflicts Between Teradici and NCS Firmware.................................................................................... 64
NCS Help....................................................................................................................................................66
Appendix: Specifications........................................................................................................................67
Appendix: Regulatory and Legal Information...................................................................................69
FCC Compliance Information ................................................................................................................... 69
Notice .............................................................................................................................................................. 69
Warranty Provisions..................................................................................................................................... 70
Warning Statement....................................................................................................................................... 70
FCC Test Report.............................................................................................................................................71
4Cirrus LT Manual-1.1b-090814
Safety Instructions
DO NOT block the opening vents provided for ventilation. Blocking these vents may cause
the computer processor to overheat.
• DO NOT place your notebook on an unstable or uneven surface.
• DO NOT place or drop heavy objects on your notebook.
• DO NOT apply heavy pressure on your notebook.
• DO NOT press or touch the display panel.
• DO NOT use your notebook under harsh conditions.
• DO NOT subject your notebook to magnetic fields.
• DO NOT use or store your notebook in extreme temperatures.
• DO NOT place your notebook near fire or other sources of heat.
• DO NOT expose to dust or corrosive materials.
• DO NOT spray water or any other cleaning fluids directly on the display panel.
• DO NOT expose your notebook to rain or moisture.
• DO NOT tamper with the battery. Keep this away from children.
• DO NOT slam your notebook shut and never pick up or hold your notebook by the
display.
• DO NOT expose your notebook to sudden changes in temperature or hu-
midity. Keep your notebook away from air conditioners or heating vents.
• DO NOT check your notebook in as baggage. If you are traveling, carry it on in
stead.
Battery Safety and Tips
Risk of explosion if battery is replaced by an incorrect type. Dispose of used battery ac-
cording to the instructions.
• Do not disassemble, heat, or incinerate.
• Dispose of used battery according to the manufacturer’s instructions.
• Do not dispose of battery in a fire. It may explode. Check with local authorities for
disposal instructions.
• Keep away from children.
• Store unused battery in a normal room temperature range.
• To optimize battery life, make sure to let the battery drain before plugging it in to
charge.
• Leaving the notebook constantly plugged in will result in a deteriorating battery
life.
5
Cirrus LT Manual-1.1b-090814
Introduction
The Cirrus LT is a zero client notebook that allows you to securely connect to any kind of
network, remote host, or virtual machine. The Cirrus LT has no local storage, so there is no
vulnerability to viruses or malware, and no files or information will be compromised if the
notebook is lost or stolen.
The Cirrus LT is based on Teradici’s high performance TERA2321 processor, which uses
the PCoIP protocol. PCoIP compresses, encrypts, and encodes the entire computing expe-
rience at the data center and transmits it as pixels across the IP network to a zero client.
Remote users have eortless access to a fully functional, even HD, computing experience.
now secure computing functionality is available for the first time on a zero client laptop.
Compact, lightweight, and engineered for high performance, Cirrus LT using PCoIP tech-
nology is optimized for VMWare Horizon View for a highly ecient IT administrative
experience and low cost of ownership. Cirrus LT supports both copper and fiber and WiFi
and delivers state-of-the-art security, AES 128/256 bit encryption/decryption and Suite B
ciphers.
The Cirrus LT breaks the last security barrier and sets a new performance standard for
computing practicality.
Note: Since the firmware may be updated at a later date, screenshots contained in this
document of the NCS GUI may be subject to changes without notice.
6Cirrus LT Manual-1.1b-090814
Chapter 1: Before You Start
Package Contents
• Cirrus LT
• Lithium-ion battery
• 65 watt power adapter
• Docking station and 90 watt docking station power adapter (optional)
7
Cirrus LT Manual-1.1b-090814

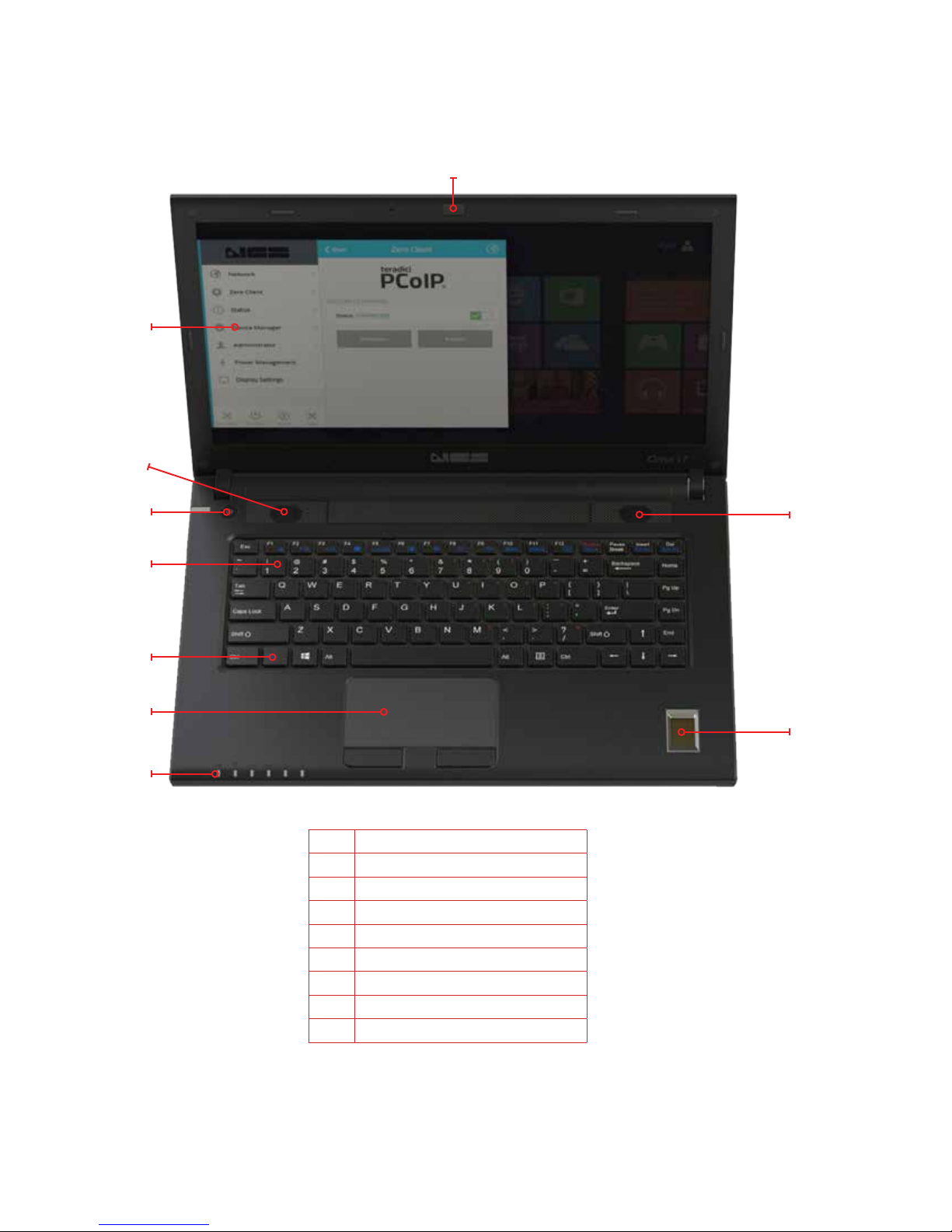

1 Built-in PC Webcam
2 LCD Screen
3 Speakers
4 Power Button/LED
5 Keyboard
6 Function (Fn) Key
7 Touchpad & Buttons
8 LED Indicators
9 Fingerprint Reader
9
1
3
4
6
7
8
2
3
5
Components
8Cirrus LT Manual-1.1b-090814
• Front View
Optional Secondary
Smart Card Reader
6
• Right View
1 Microphone Jack
2 Headphones/Headset Jack
3 Dedicated Keyboard USB Port
4 Dedicated Mouse USB Port
5 Primary Smart Card Reader
2345
1
1 Security Key Lock
2 DC-in Jack
3 Mini DisplayPort
4 Charging USB Port*
5 RJ-45 LAN Jack
6 PCoIP USB Ports
23456
• Left View
1
*This port is labeled “Local” on the notebook, but it functions as a charging
port for certain devices.
9
Cirrus LT Manual-1.1b-090814
Battery
Port
Replicator
Connector
• Bottom View
• Notebook LEDs
1 Battery
2WiFi
3 PcoIP
4 Local
5 CapsLock
6 NumLock
23 4 6
15
Note: The docking station port may be covered with a rubber cover to keep
dust and debris out of the connector when not in the docking station.
10 Cirrus LT Manual-1.1b-090814
• Docking Station
1 DC-in Jack
2 Headphones Jack
3 Microphone Jack
4Dedicated Mouse and
Keyboard USB Ports
5 PCoIP USB 2.0 Ports
6 Fiber SFP Port
7 Charging USB Port
8 RJ-45 LAN Jack
9 DVI-1 Port
10 DVI-2 Port
23 4 6 7
15 8 9 10
1 CapsLock
2 Battery
3 PCoIP Session Status
4 NumLock
5 Wifi Status LED
6 LOCAL Mode Status - Not Used
7 Power/Connect Button
• Docking Station LED Lights
2
3
14
5
6
7
