Navman S300 Manuel utilisateur
S300 1-1
NAVMAN
English 1-3
Deutsch 2-1
Francaise 3-1
Italiano 4-1
Espana 5-1
Português 6-1
S300
1-2
NAVMAN
S300 1-3
NAVMAN
English
USER GUIDE
S300 – English
S300
S300
1-4
NAVMAN
Navman’s 300 series GPS Sport.Tools provide an affordable and
reliable way to track and store a variety of personal performance
indicators.
Please read this guide carefully and familiarize yourself with
the interface and functions, as well as the intended use and
limitations of the Navman S300 GPS Sport.Tool.
This product complies with CE, FCC, Canada 210, and C-Tick
regulations.
Operation is subject to the following two conditions:
(1) this device may not cause interference
(2) this device must accept any interference, including interference that
may cause undesired operation of the device.
WARNING: Entering information or handling the Navman
Sport.Tool while moving is unsafe and may cause you to
be distracted or fail to observe safe practices necessary to
avoid death, serious injury, collisions or accidents to you or
others. Use the memory functions to review data when you
are not moving.
CAUTION: The Navman S300 GPS Sport.Tool is intended for
recreational use only. Do not use this product for obtaining
measurements that require professional or industrial
precision. Consult your physician before starting or
changing any exercise programs.
Welcome
Welcome
S300 1-5
NAVMAN
Content
S300 - Content
1.0 General information 1-6
1.1 Checklist 1-6
1.2 Care and maintenance 1-6
1.3 Water resistance 1-6
1.4 Changing the battery 1-7
2.0 Navman S300 interface 1-8
2.1 Button functions 1-8
2.2 Display screen 1-8
3.0 Getting started 1-9
3.1 Be outdoors 1-9
3.2 Fit the S300 1-9
3.3 Startup 1-9
3.3.1 Enter setup 1-10
3.3.2 Start normal operation 1-10
4.0 Setup 1-11
4.1 Setting options 1-11
4.1.1 Set time format 1-12
4.1.2 Set date format 1-12
4.1.3 Beep 1-13
4.1.4 Set speed units 1-13
4.1.5 Set offset (set local time) 1-14
4.1.6 Editing settings (overview) 1-15
5.0 Normal operation 1-16
5.1 Modes 1-16
5.1.1 Speed mode 1-17
5.1.2 Speed (AVG) mode 1-17
5.1.3 Speed (MAX) mode 1-18
5.1.4 Odometer mode 1-18
5.1.5 Zone mode 1-19
5.1.5.1 Zone (MIN) 1-19
5.1.5.2 Zone (MAX) 1-20
5.1.6 Clock mode 1-21
5.1.7 Timer mode 1-22
5.1.8 Mode operation (overview) 1-23
6.0 Restoring default settings 1-24
7.0 Glossary 1-25
8.0 Copyright 1-25
9.0 Additional warnings, disclaimers, and limitations on
liability 1-26
S300
1-6
NAVMAN
1.0 General information
1.1 Checklist
The S300 package should contain the following items:
• Navman S300 GPS Sport.Tool
• armband
• quick guide
• user guide
• 1 x AA battery
• registration card
1.2 Care and maintenance
Do not attempt to disassemble the S300; there are no user
serviceable components in this product.
The S300 is of robust design. However, care should be taken to
protect from shocks or extreme heat.
Clean using only a soft cloth with mild soap and warm water. Do
not use abrasive cleaning materials or products. We recommend
rinsing the S300 with fresh water after any exposure to salt
water.
CAUTION: Please ensure battery cover is in place during
cleaning.
Store the S300 away from direct sunlight or extreme heat
sources. (Remove battery before storing for an extended
period.)
1.3 Water resistance
The Navman S300 GPS Sport.Tool is water resistant.
S300 – General information
S300 1-7
NAVMAN S300 - General information
1.4 Changing the battery
Always shut down the S300 before changing the battery.
Note: All system settings, and the calculated data that was stored
at the last controlled shutdown*, are retained when the battery is
removed. This information persists indefinitely until updated or reset.
If battery power becomes low during operation the battery icon
is displayed.
For best performance:
General use = Alkaline
Below 5 oC = NiMH
!
constant = low power
flashing = approx. 5 min before automatic shutdown**
* Press and hold to perform a controlled shutdown.
** When battery power becomes too low to continue operation,
a controlled shutdown is automatically executed (current data
is saved).
battery icon
PM
1. Turn D-ring anti-clockwise and slide enclosure cover down to
open battery enclosure.
2. Insert battery with «» end as indicated inside enclosure.
3. Replace enclosure cover (ensuring lugs at the bottom of the
cover are aligned with slots in the enclosure surround), turn
D-ring clockwise to seal.
S300
1-8
NAVMAN
2.1 Button functions
There are two control buttons, and . These buttons are
pressed separately or together to turn the unit on and off, cycle
through modes, and select mode options.
Throughout this guide the button icons are used as follows:
= press this button
= press this button
= press both buttons together
Note: where it is required to press and HOLD buttons, a countdown
begins. To perform the required action continue to hold until the
counter reaches zero; if you release the button sooner the action will
not be performed.
2.2 Display screen
The illustration above shows the complete display capability of the S300.
Only a sub-set of these elements appear at any time during operation.
The upper screen section displays the antenna and battery
icons, as well as all values and units. The lower screen
section displays the mode icons and the setup icon (SYSTEM
SET).
Mode Icons
2.0 Navman S300 interface
S300 - Interface
Clock
Timer
Speed
Speed (average)
Speed (maximum)
Odometer
Zone Set
8 7 2
3
ZONE
SET
SYSTEM
SET
kmmi PM
MAXMIN
km/hmph
MAX
AVG
ZONE
SET
AVG
MAX
8 7 2
3
S300 1-9
NAVMAN S300 - Getting started
3.1 Be outdoors
The S300 is not intended for operation indoors or under water
as it uses Global Positioning System (GPS) satellites to get
time and date information, and to calculate distance and
speed. For best results, always use the S300 outdoors with an
unobstructed view of the sky.
3.2 Fit the S300
The S300 is designed to be worn on the left upper arm. The
easiest way to fit the unit is to feed the strap through the
fastener to create a loose enclosure. Then slide your left arm
through the enclosure and tighten the strap after the unit is in a
comfortable position.
3.3 Startup
Press and hold to turn the power on and enter setup, OR
press to turn the power on and start normal operation.
First start may take up to 80 seconds to get all the satellite data
Flashing = seeking GPS data
Constant = GPS data obtained
3.0 Getting started
!Always enter setup first if you wish to change settings.
To enter setup after starting normal operation, you will
need to shut down and re-start the unit.
�
S300
1-10
NAVMAN
S300 - Getting started

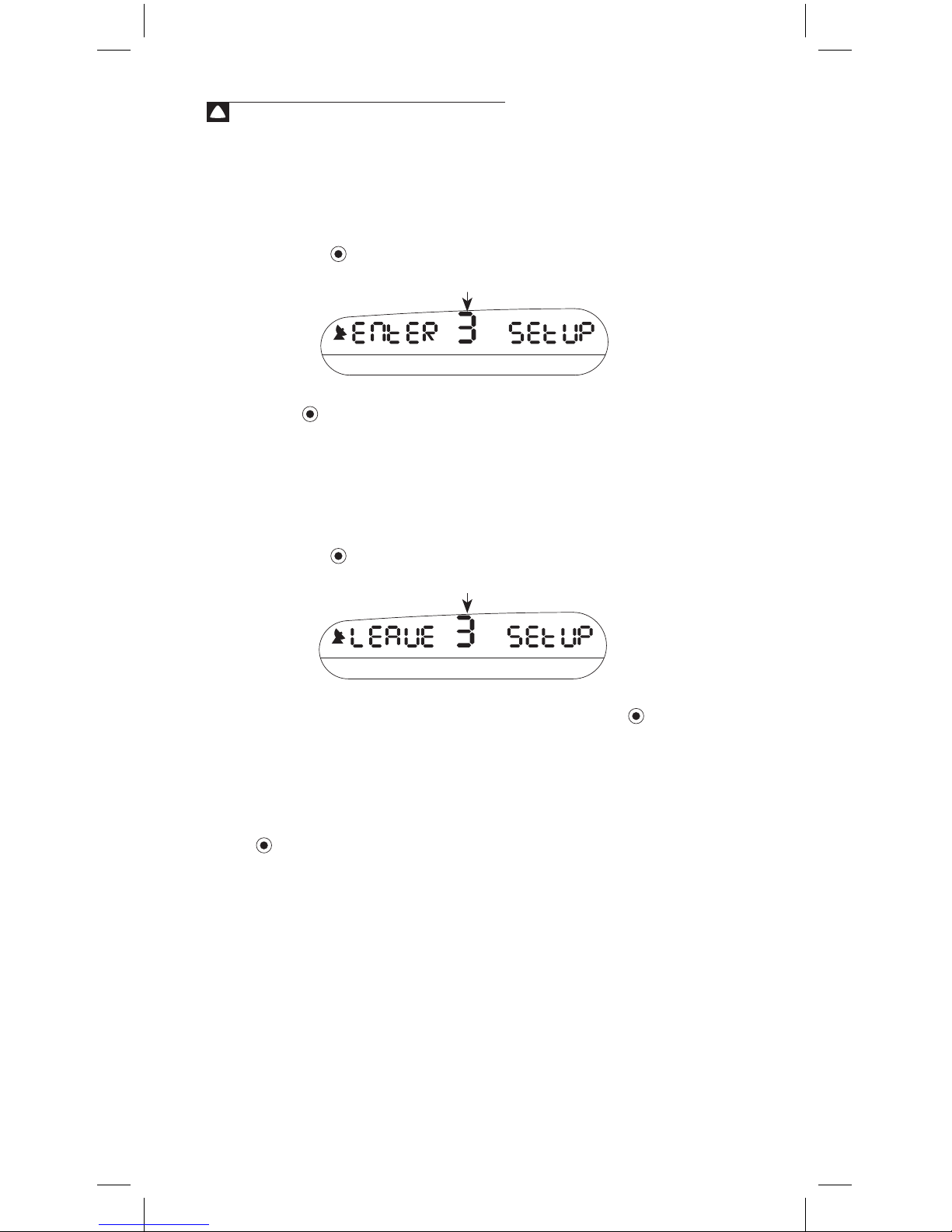

3.3.1 Enter setup
To enter setup
Press and hold to turn the power on and enter setup.
When the counter reaches zero, the S300 will enter setup. If
you release before the counter reaches zero the S300 will
immediately start normal operation.
Note: To enter setup after starting normal operation you will need to
restart the S300. For details about changing settings see Section 4.0.
To leave setup
Press and hold to leave setup and start normal operation.
When the counter reaches zero, the S300 will leave setup and
start normal operation in Speed mode. If you release before
the counter reaches zero the S300 will remain in setup.
Note: you must leave setup first if you want to turn the power off.
3.3.2 Start normal operation
To start normal operation
Press to turn the power on and start normal operation.
When starting directly into normal operation, the S300 will start
in the mode it was in at last shutdown. (Speed mode is always
displayed first when starting normal operation after leaving
setup.) For details about normal operating modes see Section
5.0.
counter
counter
