NAV TOOL LR3 Manuel utilisateur

Land Rover LR3 2005-2009

Installation Manual

Land Rover LR3 2005-2009

NOTICE: Navtool recommends having this installation performed by a certied technician.

Logos and trademarks used here in are the properties of their respective owners.

Interface with HDMI Mirroring

Part #: NAVTOOL6.0-LG2-RR

Land Rover LR3 2005-2009

Table of Contents

Precautions

What’s In The Box

Interface Connectors Description

Universal Harness Description

NEED HELP?

WELCOME

IMPORTANT WARNING

This product includes instructions for

installation, which must be carefully

followed. The instructions are worded

in such a manner to assume that

the installer is capable of completing

these types of electronic installations.

Suppose you are unclear about what

you are instructed to do or believe

you do not understand the instruc-

tions to complete the installation

properly and safely. In that case, you

should consult a technician who has

this knowledge and understanding.

Failure to follow these instructions

carefully and install the interface as

described could cause harm to the

vehicle or safety systems on the

vehicle. Interference with specic

safety systems could cause damage

to persons as well.

Open the camera app on your smart-

phone and point your rear camera at

the QR-Code to scan it. Finally, tap

the pop up banner to open support

website.

Quick Connection Guide

Installation Instructions

Testing and Settings

7-8

9-16

17-20

Installation Instructions

Video Interface Menus

Connect Rear Screens With AV Input

Connect Rear Screens With HDMI Input

22-28

Extra Details

Vehicle Reassembly Checklist 21

User Manual

User Manual End Pages 1-4

Print End Pages 1-4

and give them to the customer

Land Rover LR3 2005-2009

PLEASE READ BEFORE YOU START THE INSTALLATION

• Please study these instructions carefully before installing NavTool interface.

• Many new vehicles use low-voltage or data-bus systems that can be damaged by test lights and

logic probes. Test all circuits with a digital multi-meter before making connections.

• Do not disconnect the battery if the vehicle has an anti-theft-coded radio, unless you have the radio

code.

• If installing an external push button switch, check with the customer about where to install the

switch.

• To avoid accidental battery drainage turn off the interior lights or remove the dome light fuse.

• Roll down a window to avoid being locked out of the car.

• Use of this product in a manner different to its intended way of operation may result in property

damage, personal injury, or death.

• Set Parking brake.

• Remove the negative battery cable.

• Protect fenders before starting.

• Using protective blankets to cover front seats, interior of the vehicle and center console.

• Always install a fuse 6-12 inches away from NavTool interface, 5 amp fuse should be used.

• Always secure NavTool interface with Velcro or double side tape to prevent rattling of the interface.

• When securing NavTool interface make sure that panels can be closed back easily.

• Use electrical tape on all you connections and splices, do not leave any exposed connections.

• Route all wires along factory harnesses, try not to drill or make any unnecessary holes.

• Make sure you are not connecting to any data wires; always check your connections with a multi-

meter.

• Always use help of a professional installer to prevent any damage to the vehicle or NavTool

interface.

Precautions

Land Rover LR3 2005-2009

What’s In The Box?

NavTool Interface

(Part # NAVTOOL6.0-LG2)

NavTool LVDS Cables

(Part # NT-RR-LVDS)

NavTool Interface Harness

(Part # NT-WHNT6)

NavTool Vehicle Specic

Plug and Play Harness

(Part # NT-RRSPL)

USB Conguration Cable

(Part # NT-USB-CNG)

Land Rover LR3 2005-2009

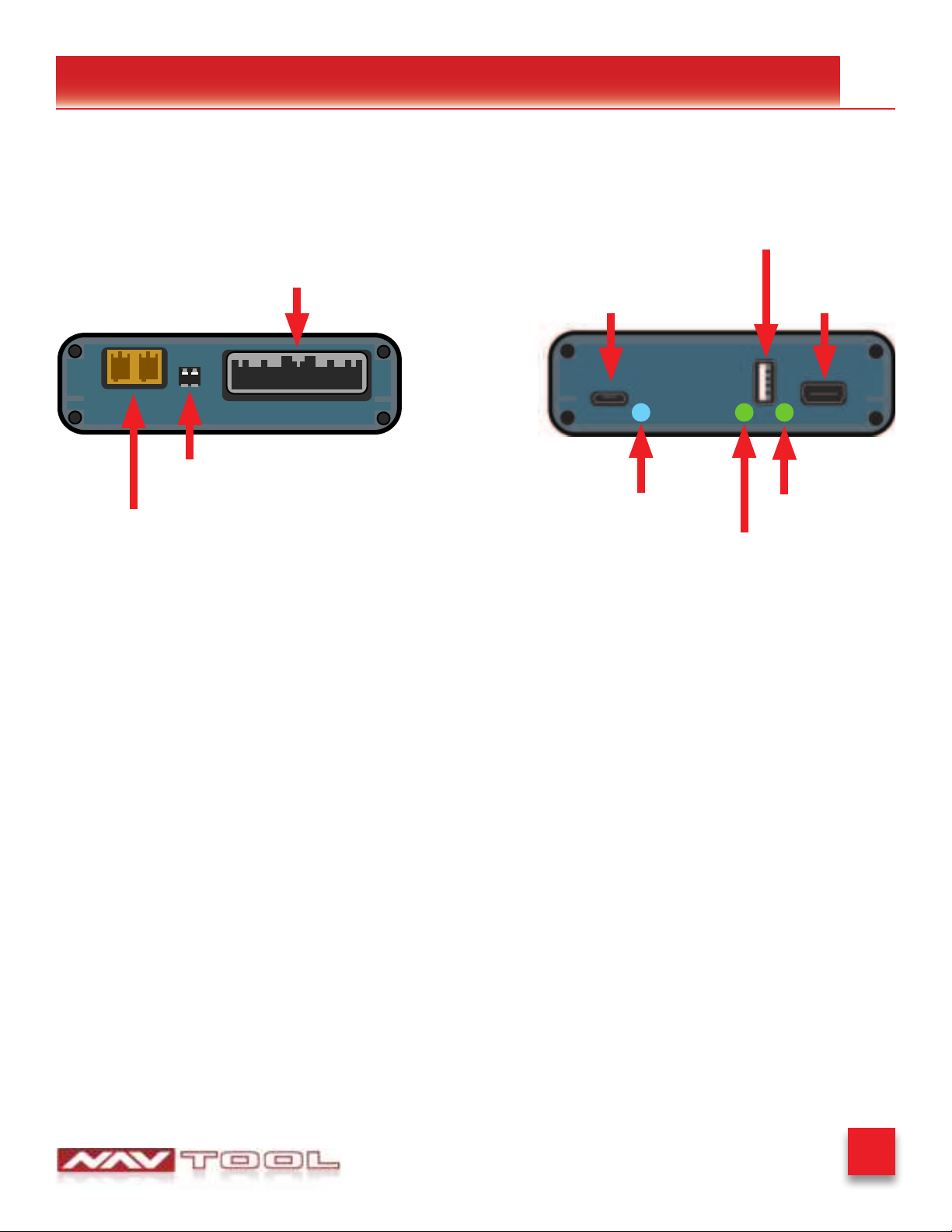

Interface Connectors Description

USB Port for

Apple CarPlay and

Android Auto

Conguration Port HDMI Port

Main Connector for

Universal Interface Harness

Data LED

Power LED

HDMI LED

Main Connector for Universal Interface Harness- This port is dedicated for a connection of a universal wiring harness

LVDS Cables Input and Output- This port is dedicated for the LVDS cables.

Dip Switches- Set dip switches to ON positio, see page 7, ON position is DOWN.

Conguration Port- This USB port is dedicated for the interface conguration only.

Data LED- Normal operation of the interface must have blue LED blinking. If the blue LED is not blinking, the interface is

not receiving data from the vehicle. If the blue LED is not blinking, the interface will not operate properly.

Power LED- Normal operation of the interface must have a green LED ON. If the green LED is not ON, the interface is

not receiving power. If the green LED is not ON, the interface will not work, and your vehicle radio may also stay OFF.

HDMI LED- Normal operation of the interface must have a green LED ON. If the green LED is not ON, the interface HDMI

is not receiving power. If the green LED is not ON, the interface HDMI port will not work.

USB Port for Apple CarPlay and Android Auto- Not Used

HDMI Port- HDMI port is dedicated for connecting video sources such as iPhone mirroring, Android Mirroring, Apple TV,

Roku, FireStick, Chromecast, PlayStation, Xbox, or similar devices.

NavTool Interface

(Part # NAVTOOL6.0-LG2)

LVDS Cables

Input and Output

ON 1 2

Dip Switches

Land Rover LR3 2005-2009

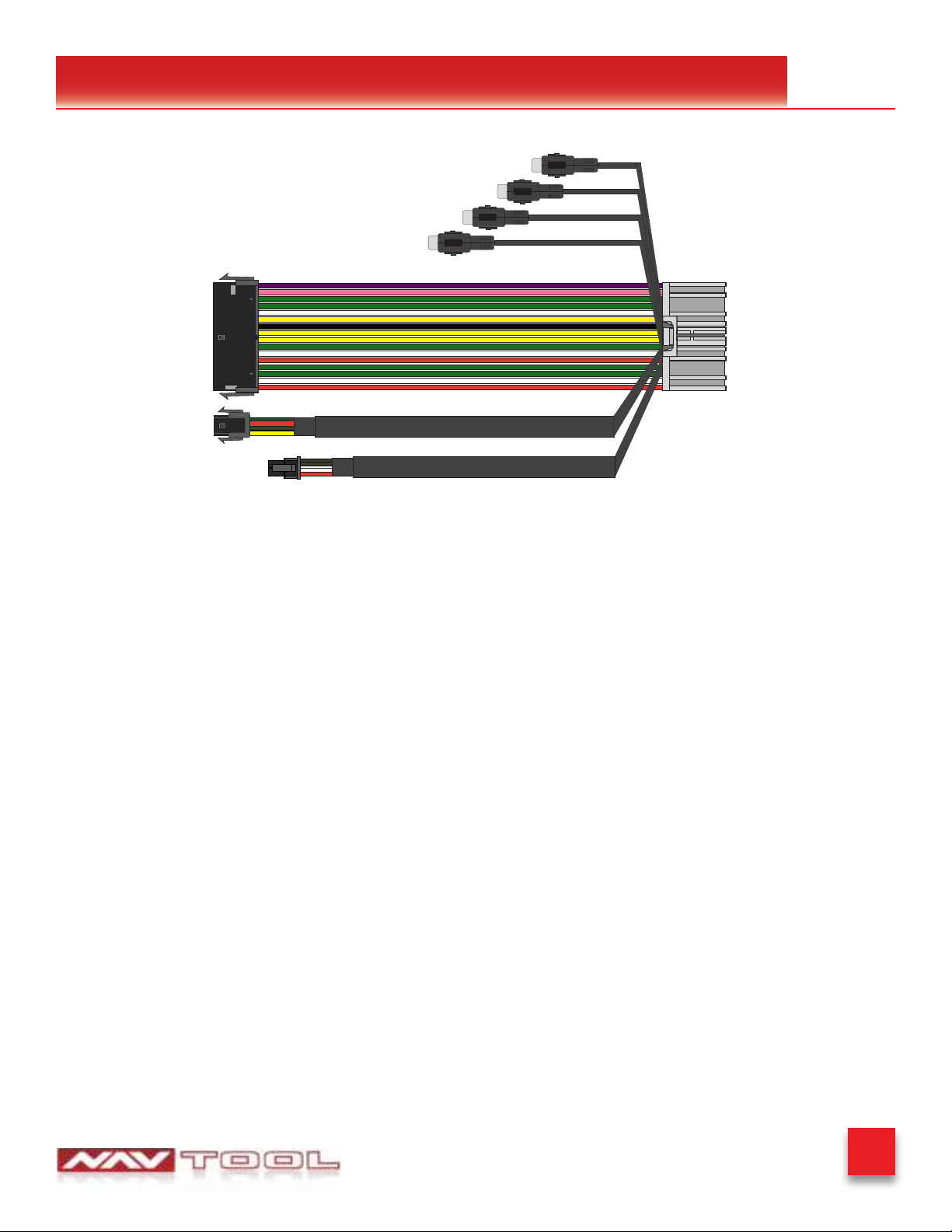

Universal Harness Description

Left Camera Input/ Video Input 3

Right Camera Input/ Video Input 4

Front Camera Input/ Video Input 2

Rear Camera Input/ Video Input 1

Connector for Microphone Input

Connector for Controller

Connector for

Vehicle Specific Harness

Manual Activation Wire

12V Output Wire

Rear Camera Input /Video Input 1- This input is dedicated for an aftermarket rearview camera or a video source with an

RCA video output. Your vehicle factory camera will continue to work as before without any changes.

Front Camera Input /Video Input 2- This input is dedicated for an aftermarket front view camera or a video source with

an RCA video output. Your vehicle factory camera will continue to work as before without any changes.

Left Camera Input / Video Input 3- This input is dedicated for an aftermarket left view camera or a video source with an

RCA video output. Your vehicle factory camera will continue to work as before without any changes.

Right Camera Input / Video Input 4- This input is dedicated for an aftermarket right view camera or a video source with

an RCA video output. Your vehicle factory camera will continue to work as before without any changes.

Connector for Vehicle Specic Harness- This connection is dedicated for connecting vehicle specic plug and play

wiring harness.

Connector to Controller- Not Used

Connector for Microphone Input- Not Used

+12V Manual Activation Input- This connection is used only if the factory rearview camera is not operating correctly

in reverse. In that case, this wire must be connected to the vehicle’s reverse +12V output. (Change setting “Manual

Activation Wire as +12V Reverse Input” See page 41)

+12V Output- 500 mA output can be used to drive a relay. This output provides +12V at all times when the vehicle is

running.

NavTool Interface Harness

(Part # NT-WHNT6)

Land Rover LR3 2005-2009

Quick Connection Guide

ON 1 2

Click

Factory Wire

NavTool Supplied Cable

(Part # NT-RRSPL)

NavTool Interface

(Part # NAVTOOL6.0-AR2-NBT)

NavTool Supplied Harness

(Part # NT-WHNT6)

Back of Navigation

Left Camera Input/ Video Input 3

Right Camera Input/ Video Input 4

Front Camera Input/ Video Input 2

Rear Camera Input/ Video Input 1

Click Click

Click

(Not Used)

AUX Input depends on the type of jack

installed in your car from the factory

Click

ON 1 2

- OFF Position - Both Switches Up

- ON Position - Both Switches Down

Switch 1 Set to ON - ON is Down

Switch 2 Set to ON - ON is Down

See Page 8 NavTool Interface

(Part # NAVTOOL6.0-LG2)

Land Rover LR3 2005-2009

Quick Connection Guide

Click

Click Click

Click

Close Up View of Radio Connectors

*2- Cable that previously used to be

connected to blue connector in the

back of the navigation

NavTool Supplied LVDS Cable

Factory LVDS Cable

NavTool Interface

Back of Car Navigation

ON 1 2

- OFF Position - Both Switches Up

- ON Position - Both Switches Down

Switch 1 Set to ON - ON is Down

Switch 2 Set to ON - ON is Down

See Page 7

Land Rover LR3 2005-2009

Installation Instructions

NO APPLICATION OR SOFTWARE DOWNLOAD IS REQUIRED TO CONFIGURE THE INTERFACE.

To congure the interface, you must use Windows, Mac, or Google computer.

Windows computers must use the latest version of Google Chrome or Microsoft Edge browser.

Mac computers must use the latest version of the Google Chrome browser.

Google computers must use the latest version of the Google Chrome browser.

TO CONFIGURE THE INTERFACE, GO TO HTTPS://CONFIG.NAVTOOL.COM

Connect the interface to the computer using supplied USB Conguration Cable (Part # NT-USB-CNG)

To see a video of the conguration process

Scan QR-Code or go to

https://youtu.be/iES_rW240X0

Remove Vehicle Navigation Radio or Color Screen

List of Required Tools:

1. Plastic Panel Removal Tool- Example of a removal tool is shown below. Any similar removal tool will do the job. It does

not need to be the same as the picture below.

2. 7 mm Socket- Example of a 7 mm socket tool is shown below. Any similar tool will do the job. It does not need to be the

same as the picture below.

STEP 2

STEP 1

Land Rover LR3 2005-2009

Installation Instructions

STEP 2 Continued

Navigation is located behind the cover of the left cargo area.

Land Rover: Range Rover 2005-2009

Land Rover: Range Rover Evoque 2005-2009
