Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.

If you have any questions concerning these instructions, please call National Customer Service 8 .482.1717.

Vora™ Assembly Instrucon

Required Tools

•5mm Hex Key Wrench

(Included)

Package Contents

Qty.

•Back assembly

•Plastic base

•Gas lift cylinder

•Seat assembly

•Hardware Kit:

Telephone 8 .482.1717

Fax 812.482.88

www.NationalOfficeFurniture.com

Part # 3215490

Rev, -

Printed in U.S.A

Product Line

Vora™ Task Chair

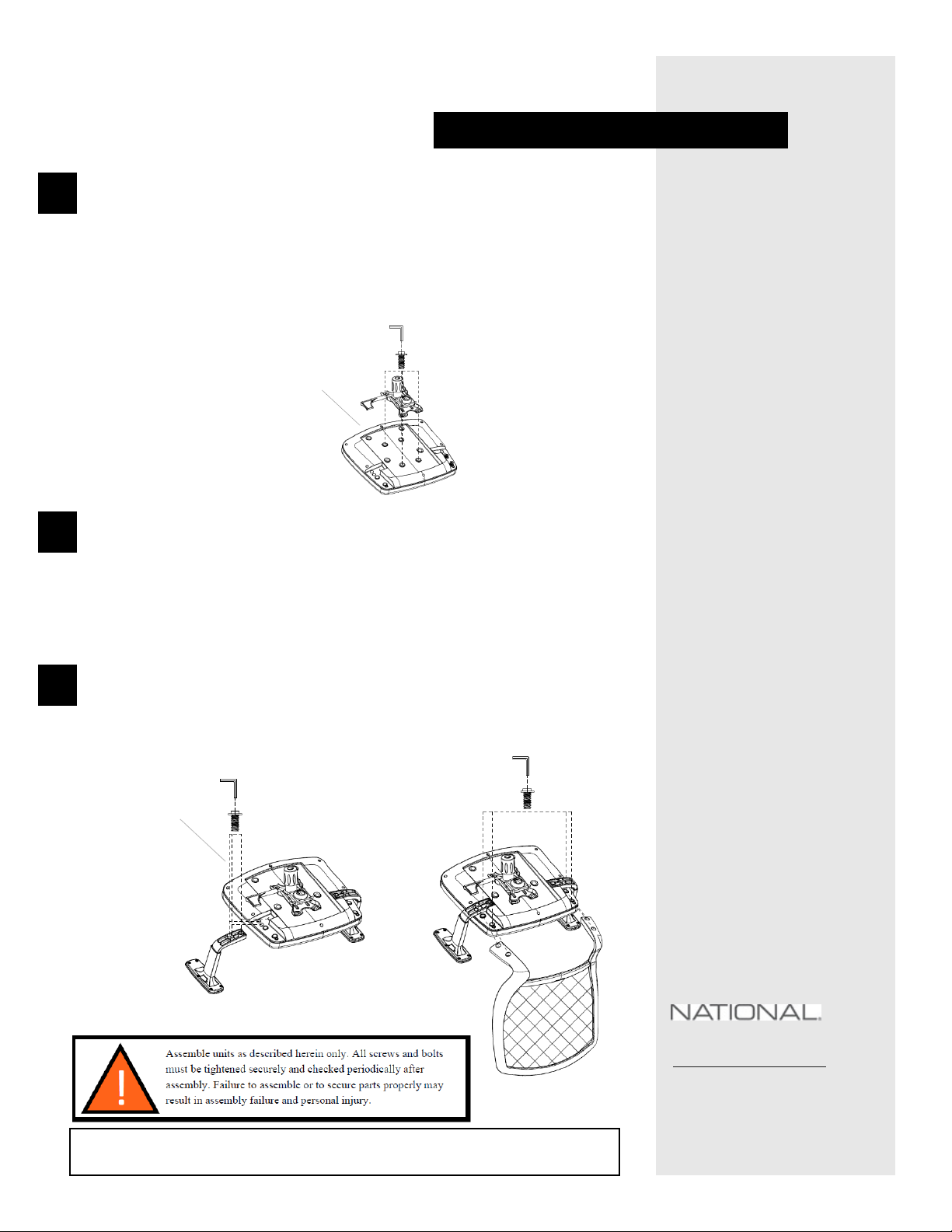

1 Place seat assembly upside down on an elevated flat surface. Position swivel

tilt control mechanism on bottom side of seat assembly to match the inside

4-hole configuration. Note: The swivel tilt control adjustment knob is to be

positioned toward the front of the seat. The front of the seat is identified by

the front asset label. Using the 5mm Hex Key Wrench, secure the swivel tilt

control mechanism to the seat assembly using four 5/16-18 x 1" hex head

bolts. Figure A.

Figure B

Figure A

2 Position the right and left arm assemblies on the bottom of the seat as shown

in Figure B. Note: To assure proper assembly of the right and left arms, each

arm should angle toward the front of the seat, not rearward. Using the 5mm

hex key wrench, secure each arm with three 5/16-18 x 1 1/4" truss head bolts.

Position the back assembly to the corresponding hole configuration on the

back bottom of the seat assembly. Using the 5mm hex key wrench, secure

the back assembly with four

5/16-18 x 1 1/4" hex head bolts. Figure C.

Front of Seat

•

Right arm assembly

Left arm assembly

Swivel tilt control

mechanism

Set of five casters

•5/16-18 X 1” hex

head bolts

•Hex Key Wrench 1

Figure C

•

5/16-18 X 1 1/4”

truss head bolts

5/16-18 X 1 1/4”

hex head bolts 4

Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.

If you have any questions concerning these instructions, please call National Customer Service 8 .482.1717.

Figure D

Assembly Instruction

Telephone 8 .482.1717

Fax 812.482.88

www.NationalOfficeFurniture.com

Part # 3215490

Rev, -

Printed in U.S.A

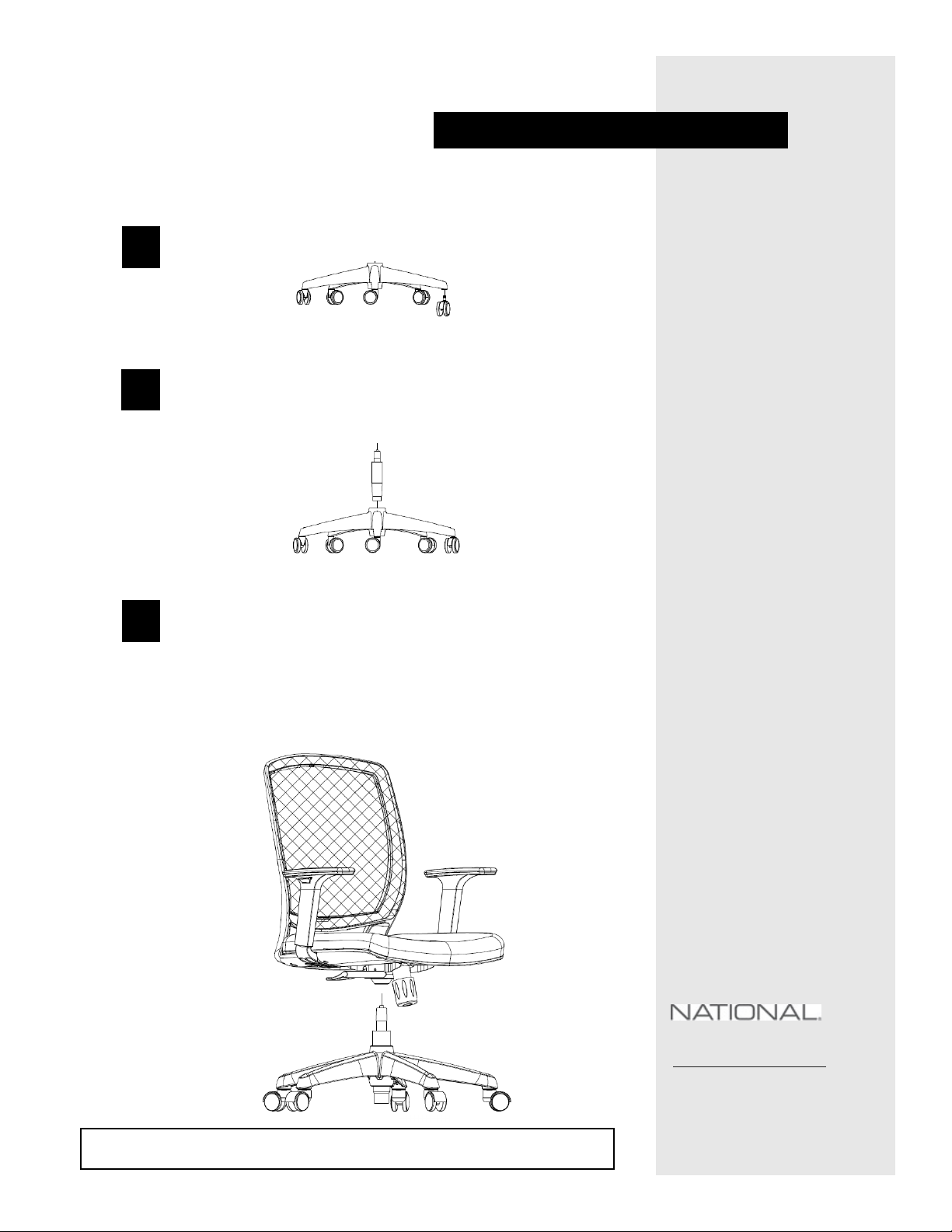

4Insert 5 casters into the plastic base as shown in Figure D.

Figure E

Figure F

Carefully position the seat assembly over the gas lift cylinder,

aligning the hole in the seat control with the top, smaller end

of the cylinder. Press the seat assembly onto the cylinder

then sit on the seat to completely mate the components

together. While seated, actuate height control lever and

remove weight from chair to adjust chair up to comfortable

sitting height. Figure F.

5Orient the gas lift cylinder as shown and insert the larger end of

the cylinder into the hole in the center of the base. Figure E.
