INSTALLATION GUIDE

NI PXI-8195/8196

This document contains information about installing your

NI PXI-8195/8196 controller in a PXI chassis. For complete configuration

and troubleshooting information (including information about BIOS setup,

adding RAM, etc.), see the NI PXI-8195/8196 User Manual. The manual is

in PDF format on the recovery CD included with your controller and on the

National Instruments Web site, ni.com.

Installing the NI PXI-8195/8196

This section contains general installation instructions for the

NI PXI-8195/8196. Consult your PXI chassis user manual for specific

instructions and warnings.

1. Plug in your chassis before installing the NI PXI-8195/8196. The

power cord grounds the chassis and protects it from electrical damage

while you install the module. (Make sure the power switch is

turned off.)

Caution To protect both yourself and the chassis from electrical hazards, leave the chassis

off until you finish installing the NI PXI-8195/8196 module.

2. Remove any panels blocking access to the system controller slot

(Slot 1) in the chassis.

3. Touch the metal part of the case to discharge any static electricity that

might be on your clothes or body.

4. Remove the protective plastic covers from the four bracket-retaining

screws as shown in Figure 1.

5. Make sure the injector/ejector handle is in its downward position.

Align the NI PXI-8195/8196 with the card guides on the top and

bottom of the system controller slot.

NI PXI-8195/8196 Installation Guide 2 ni.com

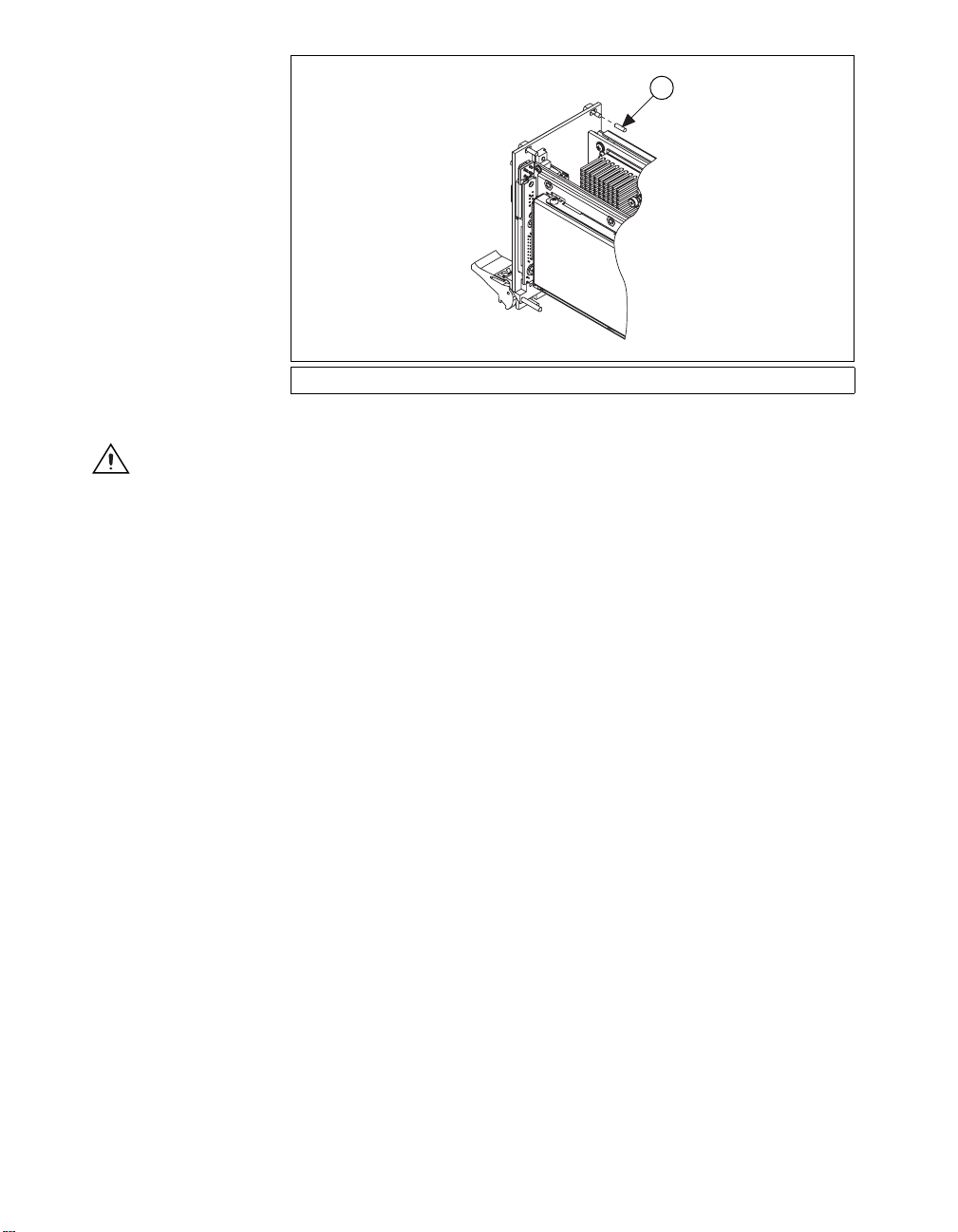

Figure 1. Removing Protective Screw Caps

Caution Do not raise the injector/ejector handle as you insert the NI PXI-8195/8196. The

module will not insert properly unless the handle is in its downward position so that it does

not interfere with the injector rail on the chassis.

6. Hold the handle as you slowly slide the module into the chassis until

the handle catches on the injector/ejector rail.

7. Raise the injector/ejector handle until the module firmly seats into the

backplane receptacle connectors. The front panel of the

NI PXI-8195/8196 should be even with the front panel of the chassis.

8. Tighten the four bracket-retaining screws on the top and bottom of the

front panel to secure the NI PXI-8195/8196 to the chassis.

9. Check the installation.

10. Connect the keyboard and mouse to the USB connectors. If you are

using a PS/2 keyboard and a PS/2 mouse, use USB-to-PS/2 adapters to

connect both to the USB connectors on the front panel. You may use a

Y-splitter adapter to connect both keyboard and mouse to one USB

port, leaving the other USB port free for another peripheral, such as a

CD-ROM drive, or secondary hard drive. National Instruments offers

a Y-splitter adapter cable, Part Number 763608-01, available through

the online catalog at ni.com/products.

11. Connect the VGA monitor video cable to the VGA connector.

12. Connect devices to ports as required by your system configuration.

13. Power on the chassis.

14. Verify that the controller boots. If it does not boot, refer to the What If

the NI PXI-8195/8196 Does Not Boot? section later in this guide.

1 Protective Screw Cap (4X)

©National Instruments Corporation 3 NI PXI-8195/8196 Installation Guide

Figure 2 shows an NI PXI-8195/8196 controller installed in the system

controller slot of a National Instruments PXI-1042 chassis. You can place

PXI devices in any other slot.

Figure 2. NI 8195/8196 Installed in a PXI Chassis

How to Remove the Controller from the PXI Chassis

The NI PXI-8195/8196 controllers are designed for easy handling. To

remove the unit from the PXI chassis:

1. Turn off power.

2. Remove the bracket-retaining screws in the front panel.

3. Press the injector/ejector handle down.

4. Slide the unit out of the chassis.

What If the NI PXI-8195/8196 Does Not Boot?

Several problems can cause a controller not to boot. Here are some things

to look for and possible solutions.

Things to Notice

• Which LEDs come on? The Power OK LED should stay lit. The

Drive LED should blink during boot as the disk is accessed.

• What appears on the display? Does it hang at some particular point

(BIOS, Operating System, etc.)? If nothing appears on the screen, try

a different monitor. Does your monitor work with a different PC? If it

hangs, note the last screen output that you saw for reference when

consulting National Instruments technical support.

1 PXI-1042 Chassis 2 NI PXI-8195/8196

Controller

3 Injector/Ejector Rail

NI PXI-1042

National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation.

Refer to the Terms of Use section on ni.com/legal for more information about National

Instruments trademarks. Other product and company names mentioned herein are trademarks or trade

names of their respective companies. For patents covering National Instruments products, refer to the

appropriate location: Help»Patents in your software, the patents.txt file on your CD, or

ni.com/patents.

• What has changed about the system? Did you recently move the

system? Was there electrical storm activity? Did you recently add a

new module, memory chip, or piece of software?

Things to Try

• Make sure the chassis is plugged in to a working power source.

• Check any fuses or circuit breakers in the chassis or other power

supply (possibly a UPS).

• Make sure the controller module is firmly seated in the chassis.

• Remove all other modules from the chassis.

• Remove any nonessential cables or devices.

• Try the controller in a different chassis or a similar controller in this

same chassis.

• Recover the hard drive on the controller. (Refer to the Hard Drive

Recovery section of the NI PXI-8195/8196 User Manual.)

• Clear the CMOS. (Refer to the System CMOS section of the

NI PXI-8195/8196 User Manual.)

For more troubleshooting information, refer to the NI PXI-8195/8196 User

Manual. The manual is in PDF format on the recovery CD included with

your controller and on the National Instruments Web site, ni.com.

What If I Can’t See The Video?

This problem usually results from having the video card output set past the

limits of the monitor. You will need to boot Windows in Safe Mode. To do

this, reboot the controller. As Windows begins to boot, hold down <F8>.

You should now be able to reset the video driver to lower settings. Try

setting the resolution to 640 × 480 and the refresh rate to 60 Hz. Once you

reboot, you can raise these values again, using the test option in Windows.

These settings are accessible through the Advanced tab of the Display item

in the Control Panel. Alternately, you can try a different monitor,

preferably a newer and larger one.

If the system has been booted to Windows without a monitor attached, the

driver may have defaulted to the CRT connector being disabled. Press

<CTRL-ALT-F1> to re-enable the CRT in Windows.
