LANGHAM

Dresser

Please read the instructions and warnings carefully before use to ensure safe and satisfactory

operation of this product.

Your child’s safety is your responsibility. If you have a query with this product or require replacement

parts, please contact 01692 408802.

Lay out the parts on a soft level surface and compare to the part/ﬁxing checklist on pages 2 & 3. Do

not discard any packaging until you are sure that you have all the parts.

Keep children clear during assembly as pack contains small parts which may present a choking

hazard.

Hardware:

Cam Pin x 12

Medium Bolt (30mm) x 4

Small Bolt (20mm) x 20

Round Headed Bolt (22mm) x 6

Hexagonal key

Round Headed Woodscrew (12mm) x 24

Plastic Nut x 32

Small Woodscrew (25mm) x 8

Long Woodscrew (40mm) x 32

Cam Nut x 12

IMPORTANT

RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

Left Side

Right Side

Back Panel x 2

Base Frame

Central Divider Crossbar x 1

Crossbar x 3

Top Front Crossbar x 1

Central Divider

Large Drawer Back x 2

Large Drawer Front x 2

Small Drawer Back x 2

Small Drawer Front x 2

Drawer Support x 2

Left Drawer Side x 4

Handle x 6

Foot x 4

Changer Top

Small Drawer Base x 2

Large Drawer Base x 2

You will need the following tools to complete assembly:

Flat-headed screwdriver and Cross point screwdriver.

Wooden parts:

Top Back Crossbar x 1

Right Drawer Side x 4

NOTE: You may ﬁnd it easier to complete the ﬁrst 4 stages of the assembly with the Left Side lying ﬂat

on the ﬂoor or other soft level surface.

Insert 3 Cam Pins into the Left Side as shown. Attach 2 Crossbars and the Top Back Crossbar by

inserting 3 Cam Nuts, making sure that the arrow on one of the screwdriver slots points to the

nearest edge of the part. To secure the parts, turn the Cam Nut approximately 1/2 turn clockwise until

resistance is felt.

Slide the Central Divider into the frame and line up with the hole in the centre of the Top Back

Crossbar. NOTE: Support the Central Divider until secured to the front crossbars in next step. Attach to

the Top Back Crossbar using a Small Bolt (20mm) as shown.

Top Back Crossbar

Cam Pin x 3

Cam Nut x 3

Crossbar

Small Bolt (20mm)

Left Side

Central Divider

Dresser Assembly 1. Fitting the Back Crossbars.

Dresser Assembly 2. Fitting the Central Divider.

Insert 3 Cam Pins into the Left Side as shown. Insert 3 Cam Nuts into the Crossbars making sure the

arrow on the Cam Nut is facing towards the edge of the part. Turn the Cam Nut approximately 1/2

turn clockwise until resistance is felt.

Secure the Central Divider with 2 Small Bolts (20mm) as shown. Attach the Right Side as in previous

steps using 6 Cam Pins and 6 Cam Nuts.

Crossbar

Top Front Crossbar

Central Divider Crossbar

Cam Pin x 3

Cam Nut x 3

Cam Nut x 6

Right Side

Cam Pin x 6

Dresser Assembly 3. Fitting the Front Crossbars.

Dresser Assembly 4. Securing the Central Divider & Attaching the Right Side.

Small Bolt (20mm)

Insert the Feet into the 4 corners using the attached dowels. Insert 4 Medium Bolts (30mm) into each

Foot to secure them.

To secure the Base Frame to the dresser turn the frame over and insert 6 Small Bolts (20mm) into the

holes as shown.

Medium Bolt (30mm) x 4

Small Bolt (20mm) x 6

Foot x 4

Base Frame

Dresser Assembly 5. Attaching the Base.

Dresser Assembly 6. Attaching the Feet.

Secure the Changer top with 11 Small bolts (20mm) into the underneath of the Left and Right Side, the

Central Divider and the Top Crossbar.

Attach the 2 Back Panels with 24 Round Headed Woodscrews (12mm).

Small Bolt (20mm) x 4

Small Bolt (20mm) x 3

Small Bolt (20mm) x 4

Round Headed

Woodscrew (12mm)

x 24

Changer Top

Back Panel x 2

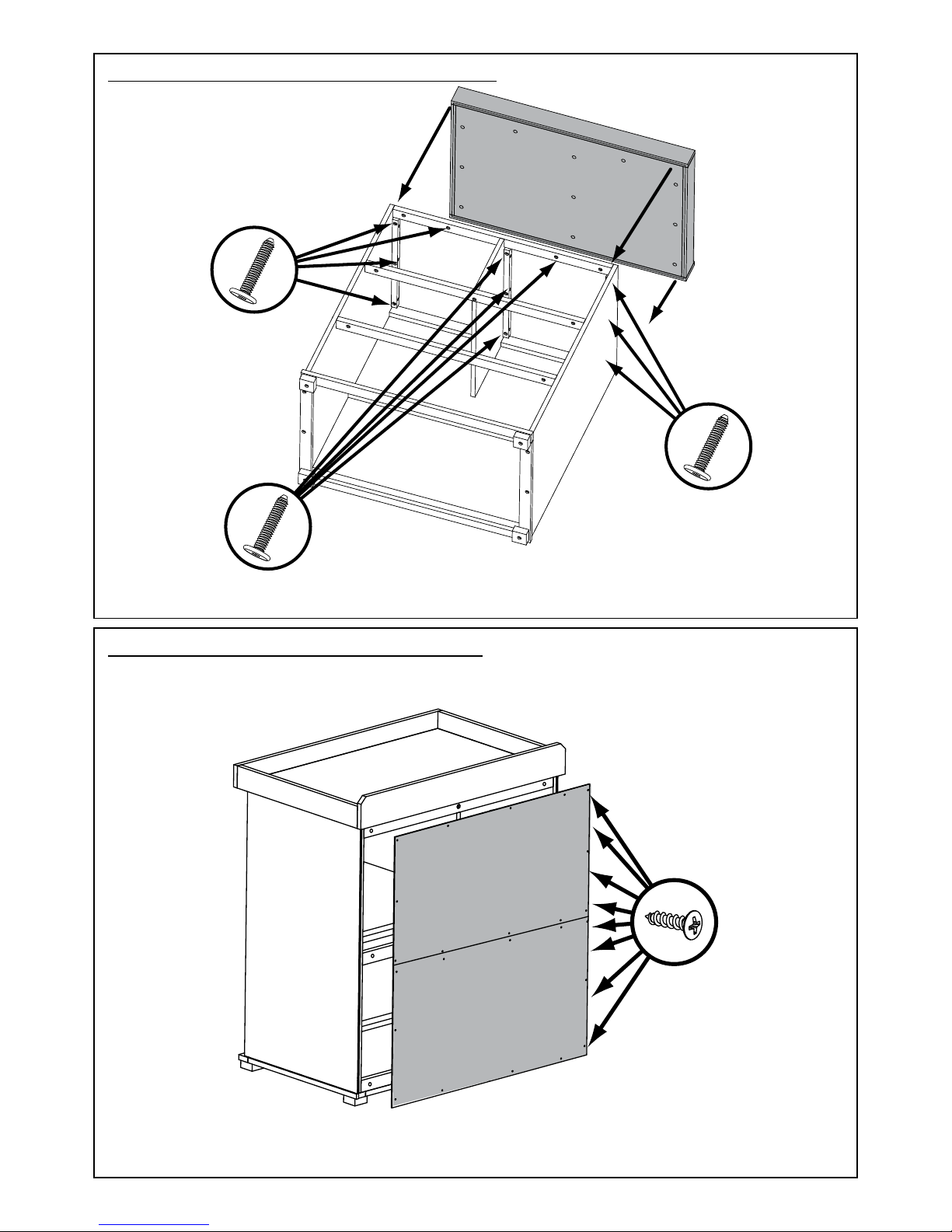

Dresser Assembly 7. Fixing the Changing Top.

Dresser Assembly 8. Fitting the Back Panels.

Fit 4 Plastic Nuts into the Small Drawer Front panel making sure the holes point towards the edge of

the piece. Fit 4 more Plastic Nuts into the Small Drawer Back.

Attach the drawer parts together using 8 Long Woodscrews (40mm) into the Drawer Sides. Slot the

Small Drawer Base into the grooves of the drawer parts as you join them together. Repeat the above

step for the other Small drawer.

Small Drawer Front Small Drawer Back

Plastic Nut x 4

Long Woodscrew (40mm) x 4

Drawer Side

Small Drawer Front

Small Drawer Back

Small Drawer Base

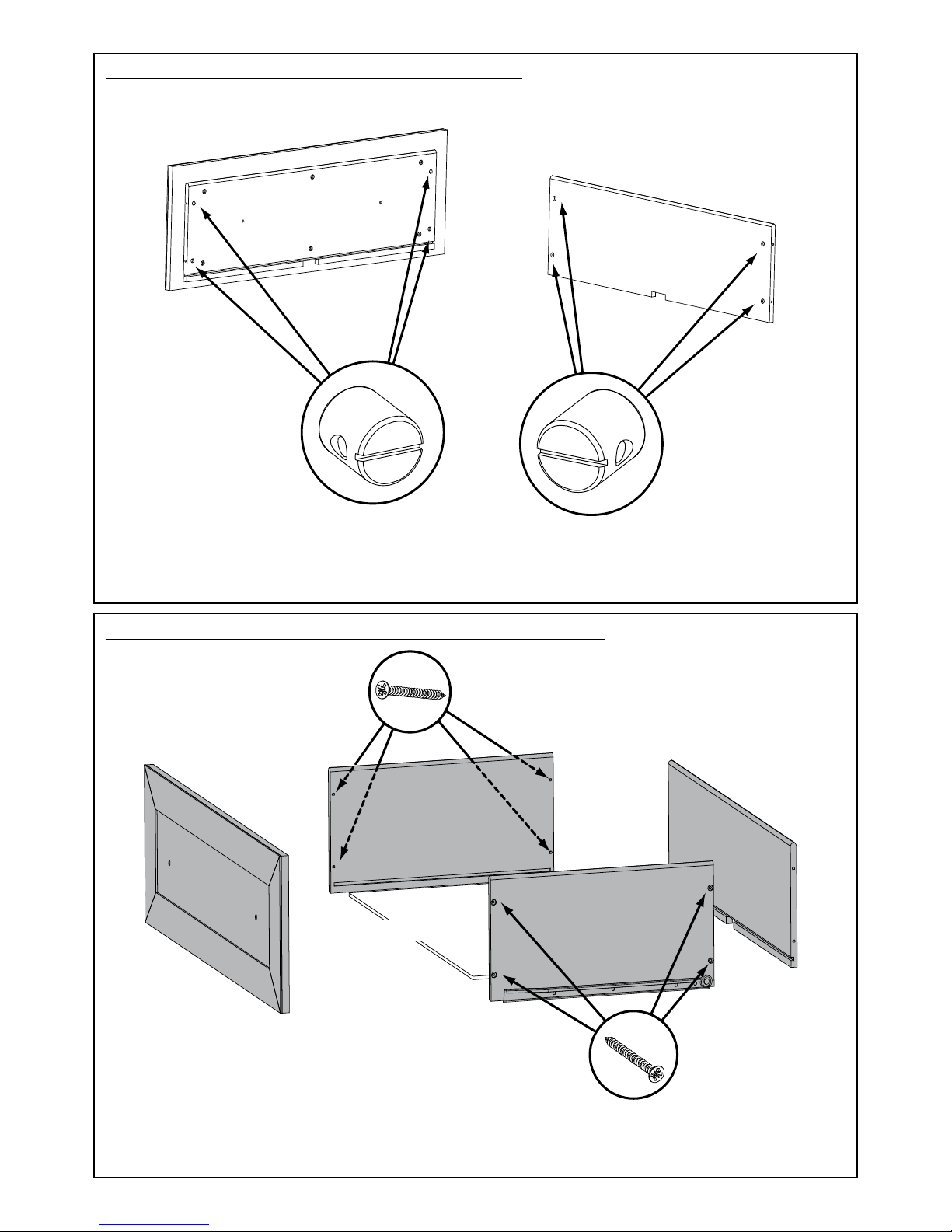

Small Drawer Assembly 1. Fitting the Plastic Nuts.

Small Drawer Assembly 2. Attaching the Sides to the Base.

Fit 4 Plastic Nuts into the Large Drawer Front panel making sure the holes point towards the edge of

the piece. Fit 4 more Plastic Nuts into the Large drawer back.

Attach the drawer parts together using 8 Long Woodscrews (40mm) into the Drawer Sides. Slot the

Drawer Base into the grooves of the drawer parts as you join them together. Repeat the above step

for the other Large drawer

Long Woodscrew (40mm) x 4

Large Drawer Back

Large Drawer Front

Plastic Nut x 4

Large Drawer Front

Large Drawer Back

Large Drawer Base

Drawer Side

Large Drawer Assembly 1. Fitting the Plastic Nuts.

Large Drawer Assembly 2. Attaching the Sides to the Base.

Attach the Drawer Support to the bottom of the Large Drawer with 4 Small Woodscrews (25mm).

Affix the 2 Handles on the Large drawer with 2 Round Headed Bolts through the drawer and into

the Handle. Use 1 Round Headed Bolt for the Small drawer. Repeat for the other drawers.

Drawer Support

Small Woodscrew (25mm) x 4

Handle x 2 Handle

Round Headed Bolt x 2 Round Headed Bolt

Large Drawer

Large Drawer Assembly 3. Fitting the Drawer Support.

Final Drawer Assembly. Fitting the Drawer Handles.
