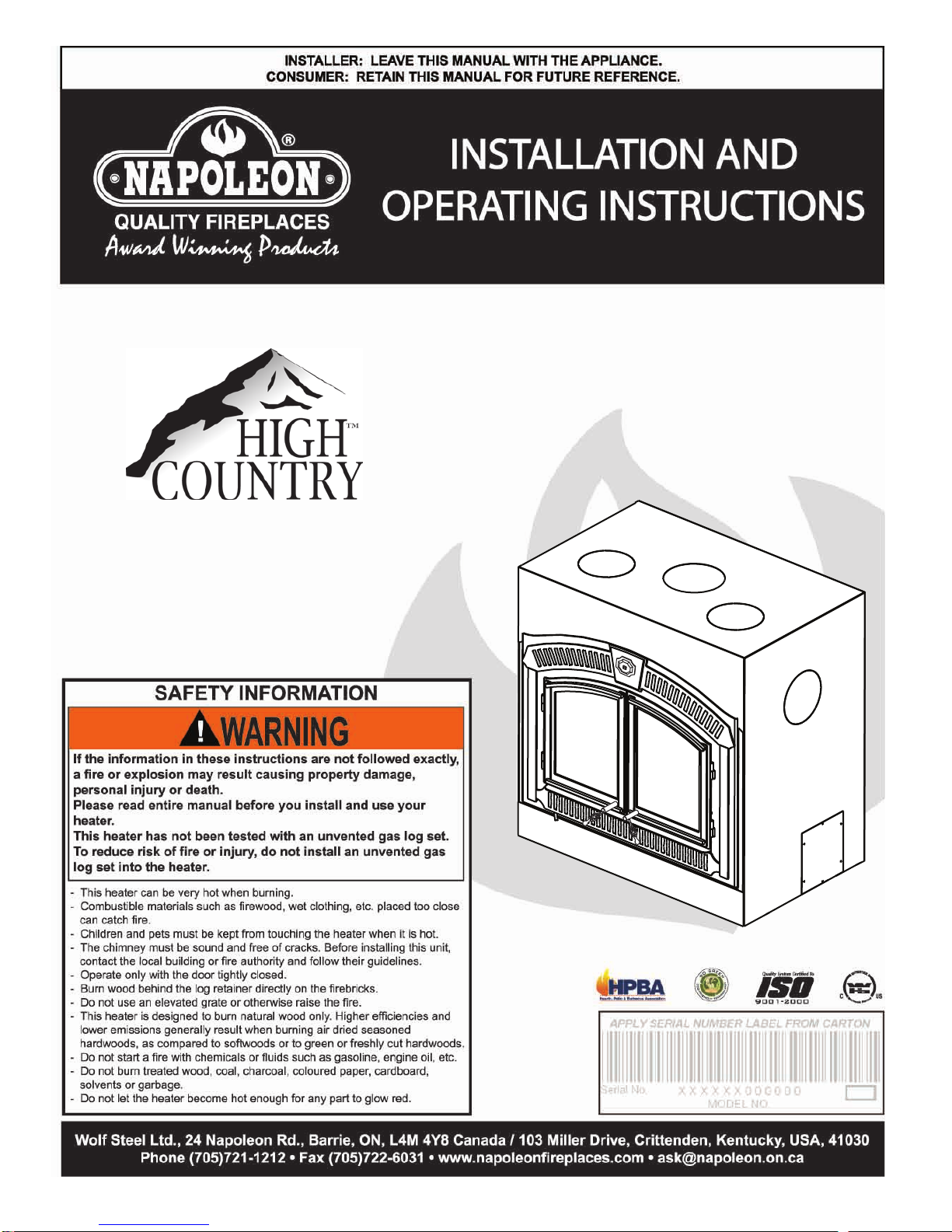

Napoleon NZ3000 Manuel utilisateur

W415-0711 / 10.03.08

$10.00

NZ3000

SOLID FUEL BURNING

ZERO CLEARANCE

FIREPLACE

THIS FIREPLACE HAS BEEN TESTEDAND LISTED BY INTERTEK TESTING SERVICES NALTD. AS PER THE STANDARDS: CAN/ULC S610, UL 127

FOR FACTORY BUILT FIREPLACES AND TO ULC S639 FOR STEEL LINER ASSEMBLIES FOR SOLID FUEL BURNING MASONRY FIREPLACES.

CERTIFIED UNDER USAENVIRONMENTAL PROTECTION AGENCY (EPA).

W415-0711 / 10.03.08

1.0 INTRODUCTION 3

1.1 WARNINGS & SAFETY PRECAUTIONS 3

1.2 WARRANTY 4

1.3 DIMENSIONS 5

1.4 INSTALLATION OVERVIEW 5

2.0 GENERAL INFORMATION 6

2.1 FEATURES 6

2.2 HEATING SPECIFICATIONS 6

2.3 ELECTRICAL SPECIFICATIONS 6

2.4 PACKING LIST 6

2.5 CALIFORNIA PROP 65 6

2.6 EPA COMPLIANCE 6

2.7 CARE OF GLASS 7

2.8 HI-EFFICIENCY HEATING 7

2.8.1 HOTAIR GRAVITY VENT SYSTEM (Nz220) 7

2.8.2 CENTRAL HEATING SYSTEM (Nz62CH) 8

2.8.3 BLOWER CIRCULATION (Nz64) 8

3.0 INSTALLATION PLANNING 9

3.1 LOCATION AND CLEARANCES 9

3.2 COMBUSTION AIR 10

3.3 EMBER STRIPAND HEARTH ExTENSIONS 11

3.4 HEARTH ExAMPLES 12

3.5 MINIMUM CLEARANCE TO COMBUSTIBLES 13

3.6 MINIMUM CLEARANCES TO COMBUSTIBLE ENCLOSURES 13

4.0 CHIMNEY INSTALLATION 14

4.1 ADDING CHIMNEY SECTIONS 16

4.2 OFFSETCHIMNEY INSTALLATION 17

4.3 INSTALLING FLASHINGAND STORM COLLAR 18

4.4 CONNECTIONTOAMASONRYCHIMNEY 18

5.0 FIREPLACE INSTALLATION 19

5.1 FRAMING 19

5.2 FINISHING 20

5.3 ENCLOSURE VENTILATION 21

5.4 MINIMUM MANTEL CLEARANCES 22

6.0 FIREPLACE FINISHING 23

6.1 BAFFLE AND INSULATION BLANKET INSTALLATION 23

6.2 FACE PLATE, UPPER GRILLE, KEYSTONE AND DOOR INSTALLATION 24

6.2.1 REMOVE TEMPLATE 24

6.2.2 FACEPLATE, HINGE, ASH LIPAND AIR CONTROL ARM INSTALLATION 24

6.2.3 H336-WI DOOR ASSEMBLY 25

6.2.4 DOOR AND TRIM INSTALLATION 25

6.2.5 OPTIONAL SPARK SCREEN INSTALLATION 26

6.3 OPTIONAL Nz64 BLOWER INSTALLATION 27

6.4 Nz64 BLOWER REPLACEMENT 29

7.0 OPERATING INSTRUCTIONS 30

7.1 HEATER OPERATION 30

7.2 OPERATING SOUNDS AND SMELLS 30

7.3 STARTING A FIRE 30

7.4 DRAFT CONTROL 31

7.5 STARTING THE FIRE 31

7.6 FUEL LOADING AND BURN CYCLE 33

7.7 RE-LOADING THE FIREPLACE 33

7.8 FLASH FIRES 33

7.9 OVERNIGHT BURN 34

7.10 ASH REMOVAL PROCEDURES 34

8.0 MAINTENANCE 35

8.1 RUN-AWAY OR CHIMNEY FIRE 35

8.2 FIRE ExTINGUISHERS AND SMOKE DETECTORS 35

8.3 GLASS AND GASKET REPLACEMENT 35

8.4 CREOSOTE FORMATION AND REMOVAL 36

8.5 SELECTING WOOD 36

9.0 REPLACEMENTS 37

10.0 TROUBLE SHOOTING GUIDE 39

11.0 RATING PLATE LOCATION 40

12.0 FIREPLACE SERVICE HISTORY 41

13.0 NOTES 42

TABLE OF CONTENTS

NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.

W415-0711 / 10.03.08

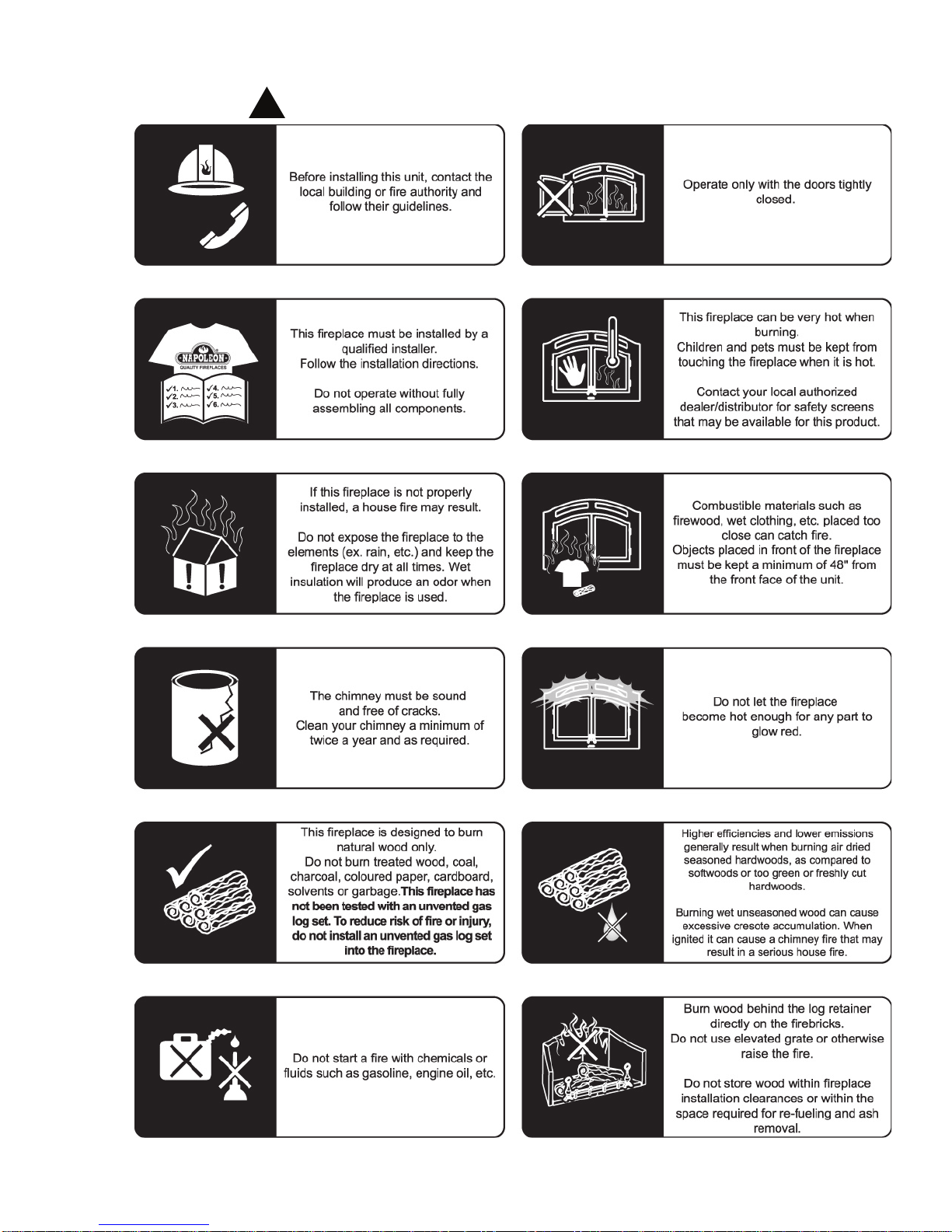

1.1 wArNiNgS & SAFETy prECAuTiONS

1.0 iNTrOduCTiON

TP - WOOD WARNING

WARNING

W415-0711 / 10.03.08

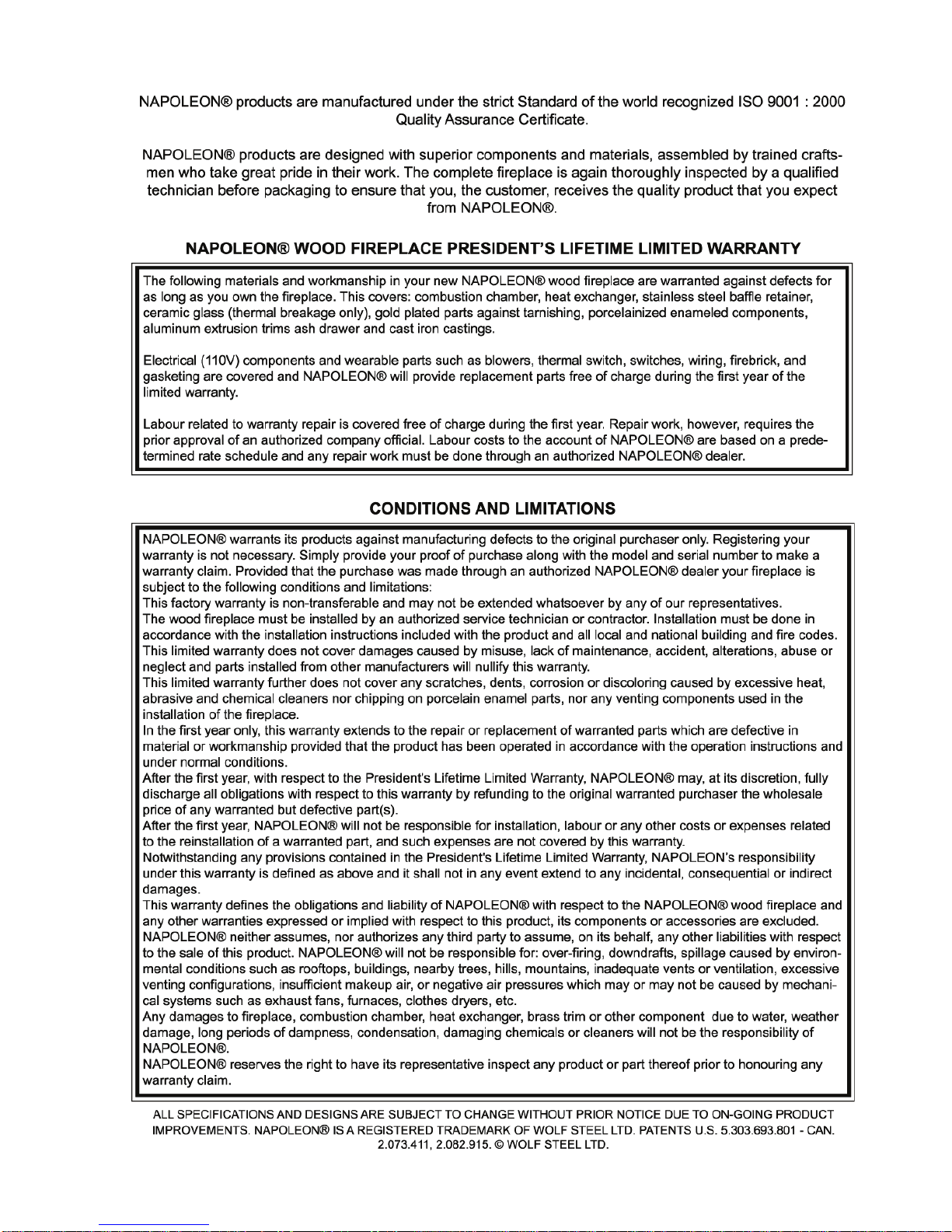

1.2 wArrANTy

TP - NAPOLEON - WOOD WARRANTY

W415-0711 / 10.03.08

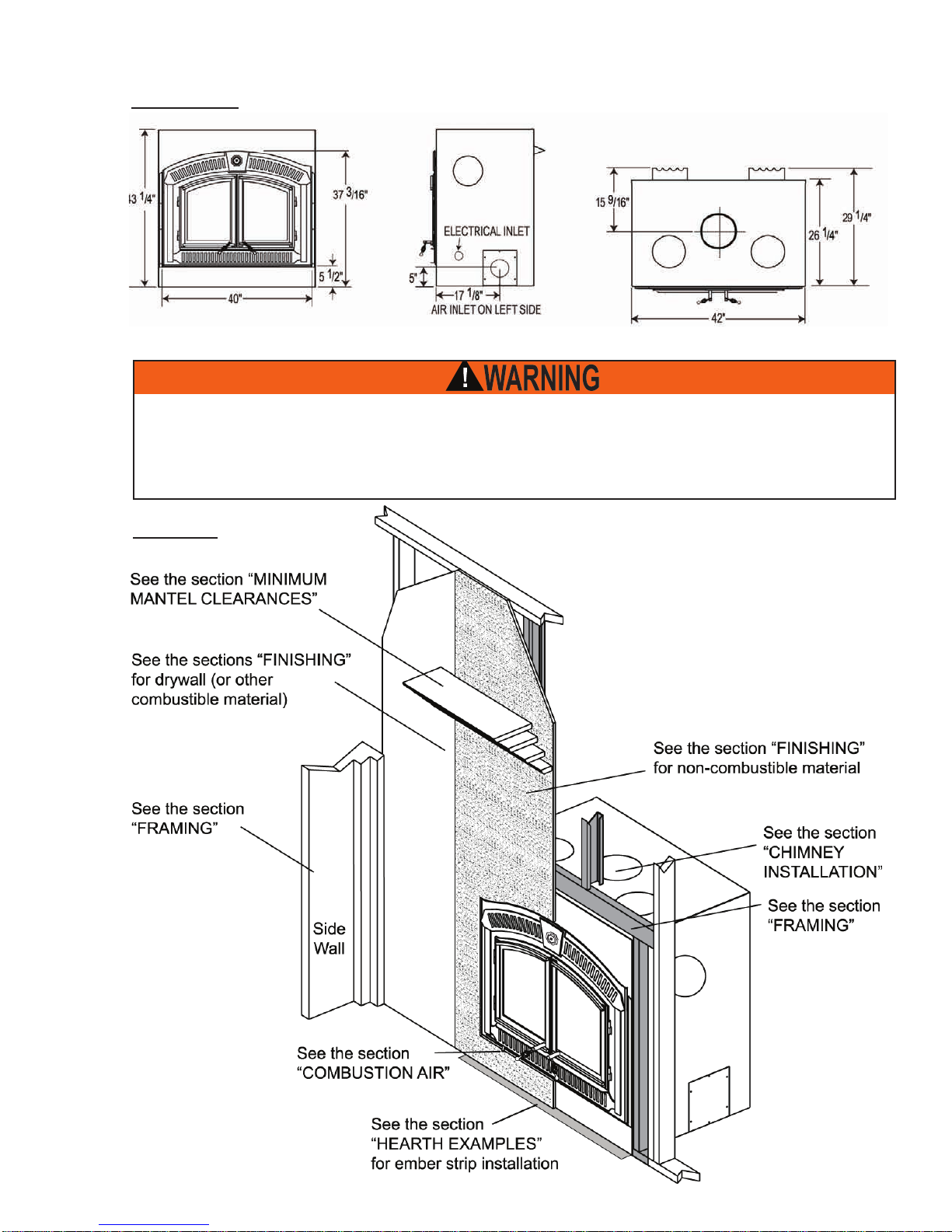

1.3 dimENSiONS

1.4 iNSTALLATiON OVErViEw

FIGURE 1.3a-c

FIGURE 1.4

-

tion to or substitution for items in this system, unless allowed by these installation instructions, will



installation. Read through these instructions thoroughly before starting your installation and follow



W415-0711 / 10.03.08

2.0 gENErAL iNFOrmATiON

• Maximum log length of 25" • Large rebox capacity - 2.78 cu. ft.

• Long burn time - up to 12 hours • Large doors with ceramic glass for maximum visibility

• Firebrick lining for rebox protection • Optional 440 CFM blower for convection heat

• Thermostat for automatic control of the blower • Inside or outside air for combustion

• BTU Output per hour 10,000 to 60,000 (Cord wood method)

 

Installation manual Installation instructions and hardware

Bafe 

Ember Strip Installation instructions and hardware

2.1 FEATurES

2.2 HEATiNg SpECiFiCATiONS

Approximate Heating Capacity up to 3,000 square feet (Will vary with the home's oor plan, insulation and outside temperature).

2.3 ELECTriCAL SpECiFiCATiONS

Where applicable the blowers and motors draw < 12 amps.

2.4 pACkiNg LiST

2.5 CALiFOrNiA prOp 65

Use of this product may produce smoke which contains chemicals known to the State of California to cause

cancer, birth defects, or other reproductive harm.

Your replace must be installed in accordance with all national and local building code standards and the standard

of Chimney and Fireplaces, Vents and Solid Fuel Burning Appliances NFPA #211. Consult the authority having juris-

diction (such as municipal building department, re department, re prevention bureau, etc.) to determine the need

to obtain a permit. If you are in doubt about the proper instal-

lation for your situation, contact your dealer or local building

or re ofcial. The manufacturer does not guarantee that this

replace and its options will completely heat your entire home.

Negative pressure within your home may inadvertently affect

your replace.

TP - CARE OF GLASS_WOOD











2.6 EpA COmpLiANCE

This heater has been tested in accordance with standard 40, section 60 of the Environmental Protection Agency

(EPA).

W415-0711 / 10.03.08

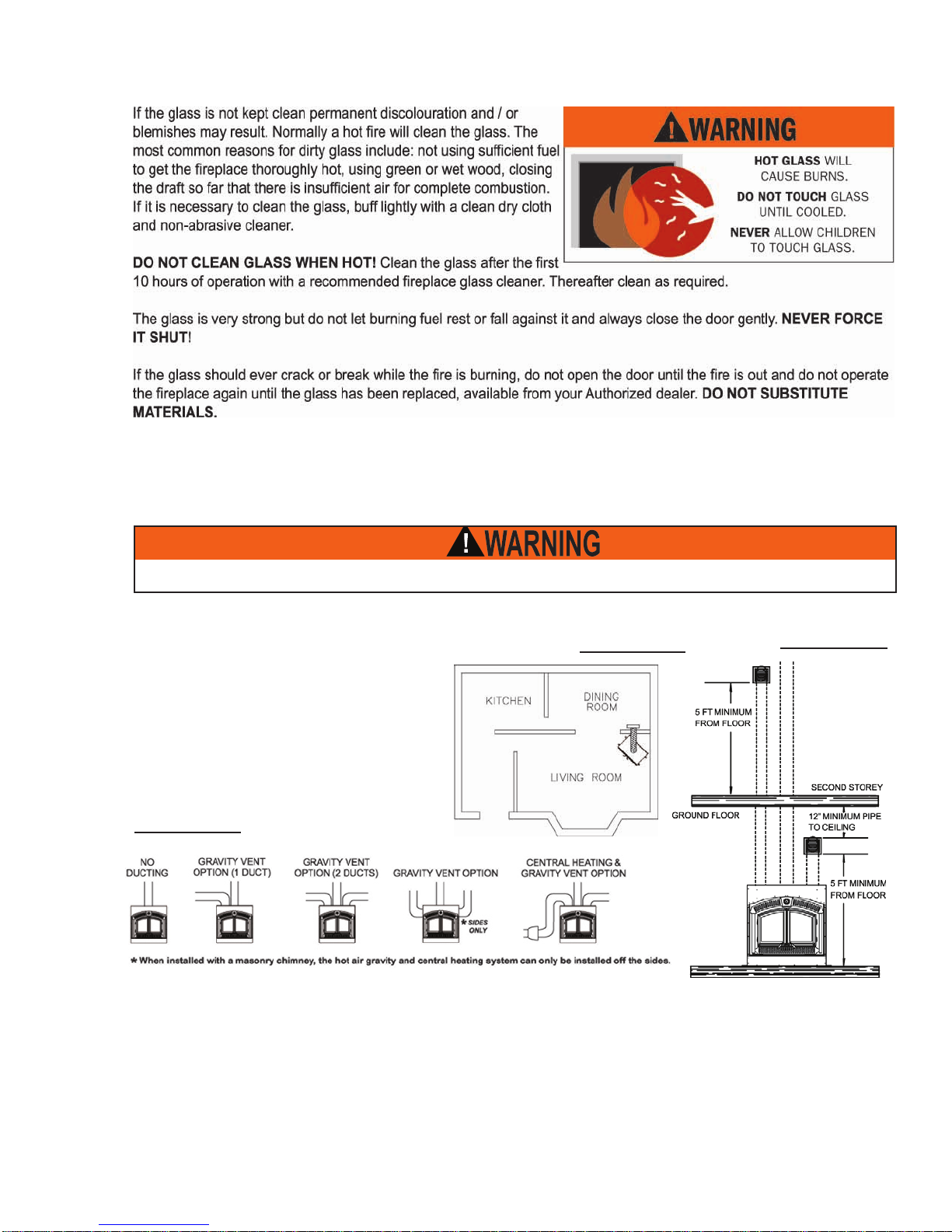

2.7 CArE OF gLASS

To operate this hi-efciency replace as a basic system, the blower is not required, however, to enhance its

efciency a blower is recommended.

2.8 Hi-EFFiCiENCy HEATiNg

2.8.1 HOT Air grAViTy VENT SySTEm (Nz220)

All hot air gravity vents must be insulated.

May be used to distribute heat to an adjoining room (located either above, or beside the room containing the fireplace) by way of vents,

eliminating the need of an additional blower. While this system may be used in conjunction with the optional blowers, it could reduce

the flow of hot air being distributed to additional rooms. It must be

experimented with and the dampers adjusted manually

to suit your requirements. This may take a few attempts;

thereafter adjustments should no longer be required as

is normally experienced with your central heating system

registers. No more than two hot air gravity vents can

be installed to fireplace. Individual vent runs are not to

exceed 10 feet.

FIGURE 2.8.1c

FIGURE 2.8.1a FIGURE 2.8.1b

W415-0711 / 10.03.08

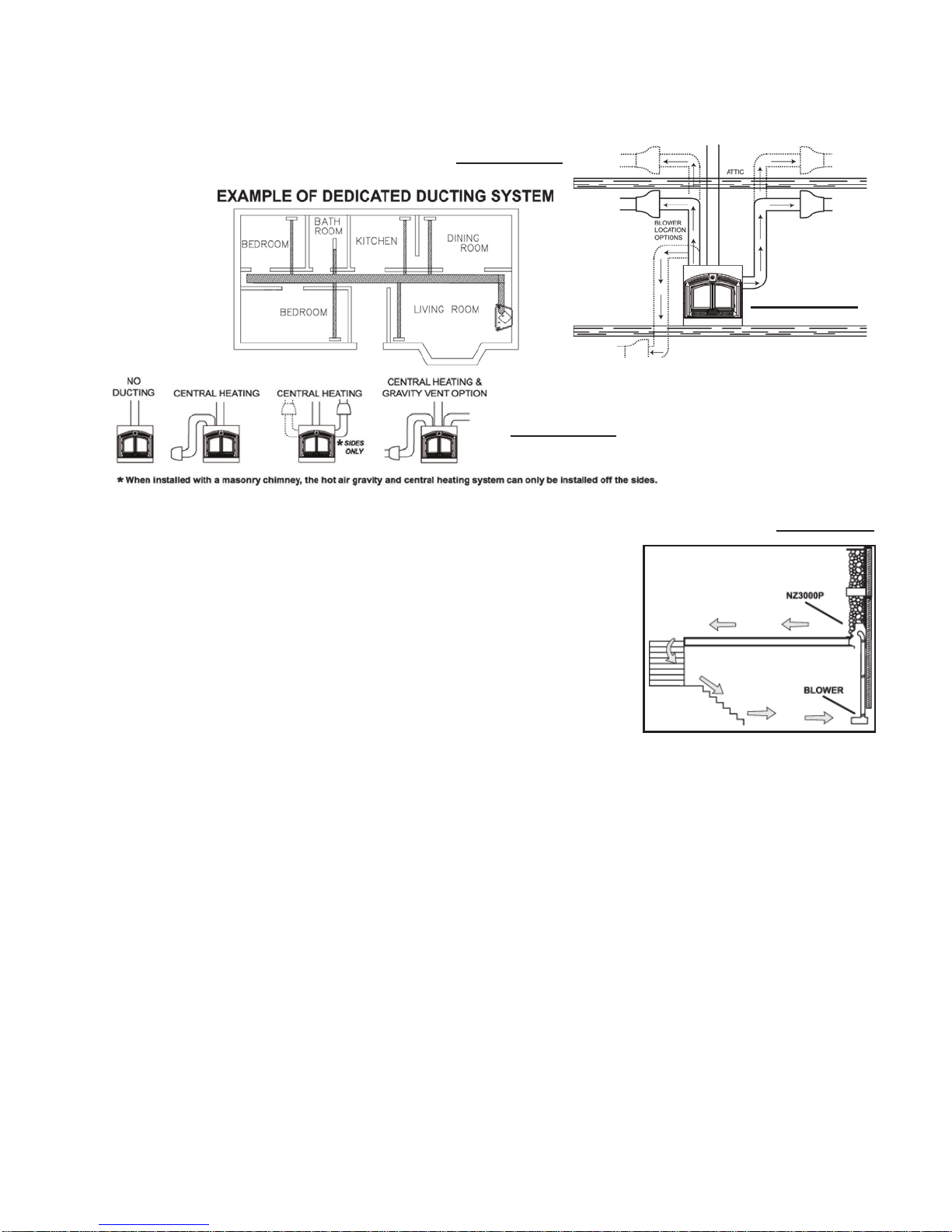

2.8.2 CENTrAL HEATiNg SySTEm (Nz62CH)

May be used to heat rooms up to 50 feet from the replace. A wall mounted thermostat located in the room to be heated

controls the blower supplying warm air from the room containing the replace. Consult with a heating specialist to ensure

a proper duct layout for your home. If the NZ62CH is installed at the

bottom of the replace, it could introduce a cool draft

into the room that the replace is installed in. When

attached to the

top or sides of

the replace,

it provides a

higher heat

output. This op-

tion may not be

used in mobile

homes.

2.8.3 BLOwEr CirCuLATiON (Nz64)

The NZ64 provides an ideal means of circulating warm air within the room it resides.

The blower will only operate when the doors are fully closed.

We recommend installing the blower in a different room or even a different level of the

house. This will generate greater air movement and improve the distribution of the

warm air coming from the replace as well as improving air movement in the summer

months if using the summer by pass switch option.

These options may be incorporated with one another. If the optional blower is to be

installed, make provision during framing to route a 110 volt power line to the replace.

Detailed installation instructions are included with each venting kit.

FIGURE 2.8.2a

FIGURE 2.8.2b

FIGURE 2.8.3

FIGURE 2.8.2c

W415-0711 / 10.03.08

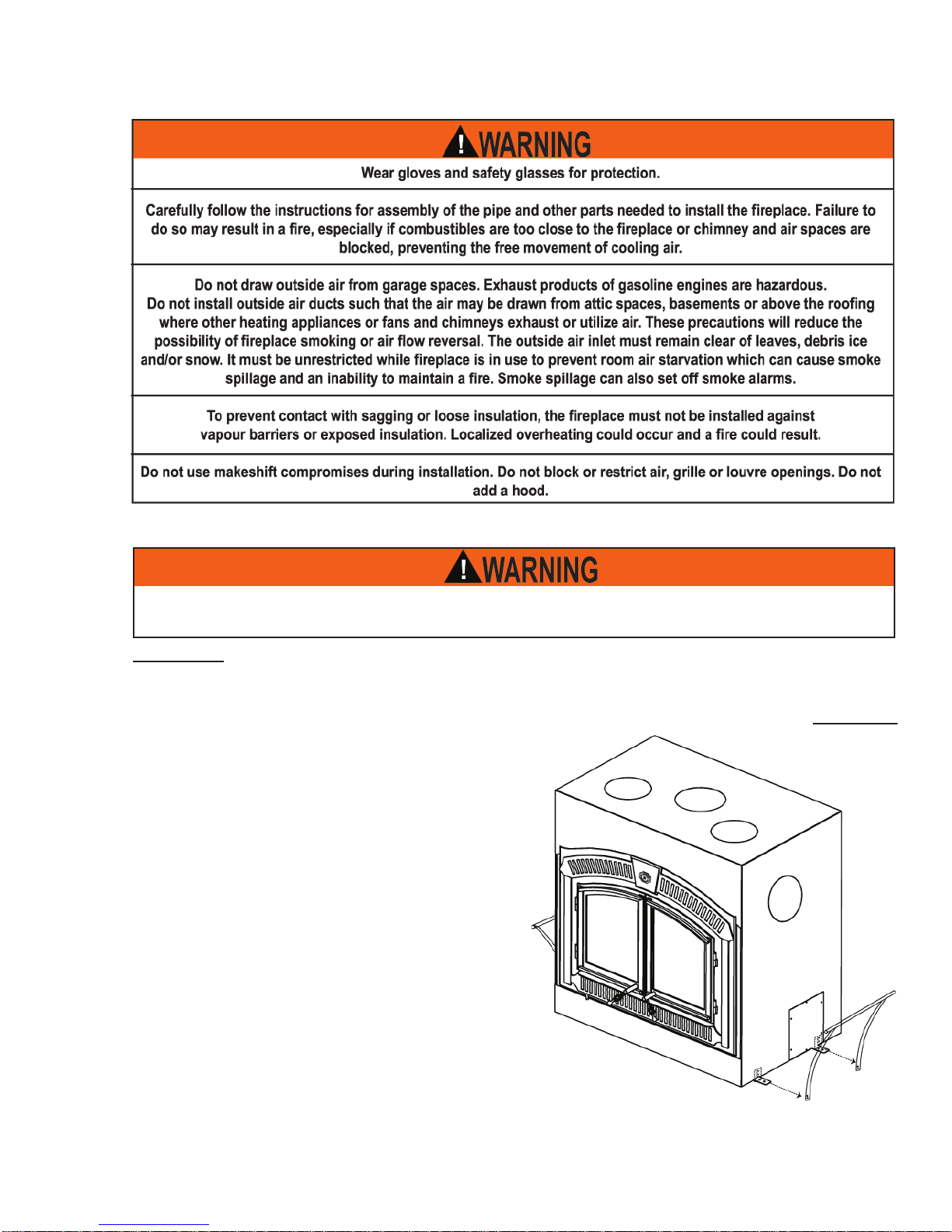

3.0 iNSTALLATiON pLANNiNg

We recommend that the replace be secured to the

oor in all cases.

Remove and discard the lifting handles. Bend the tabs

down and secure the replace to the oor.

The location of windows, doors and the trafc ow in

the room where the replace is to be located should be

considered. If possible, you should choose a location

where the chimney will pass through the house without

cutting a oor or roof joist.

3.1 LOCATiON ANd CLEArANCES

IMPORTANT

This replace, fully dressed, weighs 575 lbs. Ensure there is adequate oor support for the replace, chimney

and nishing material. Some material could weigh thousands of pounds.





FIGURE 3.1

TP - INSTALLATION PLANNING

W415-0711 / 10.03.08

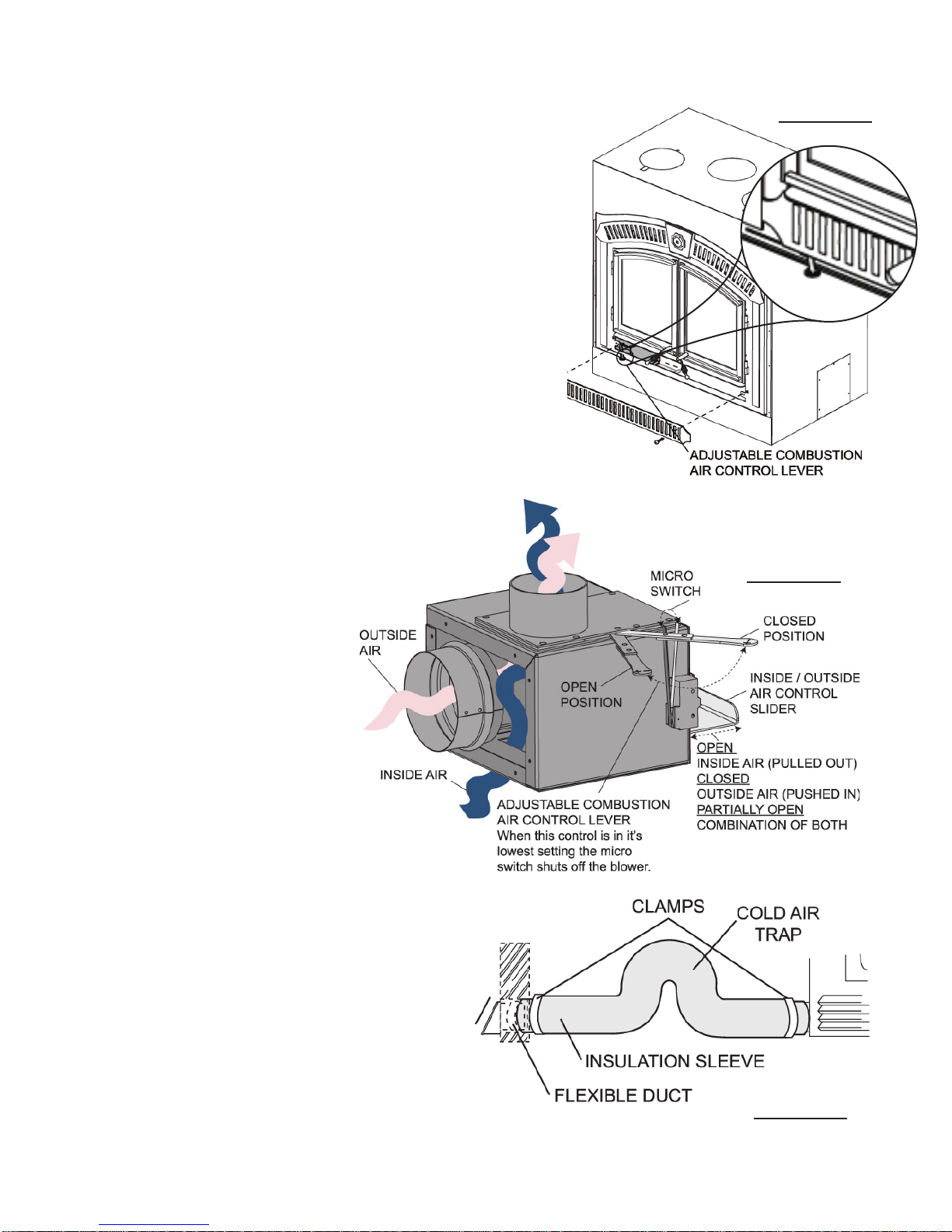

Model NZ3000 has the option of taking outside air directly into the

replace through the opening on the left hand side or taking

inside air through the lower front grille or a combination

of both. Figure 3.2a-b.

If the optional outside air kit (available through your authorized

dealer) is installed, it must not draw air from the attic or garage.

It may only come from outside the house. The maximum length

of the 4" air duct is 20 feet; thereafter enlarge the duct to a 6"

diameter.

Decide on the most convenient location for the outside air inlet

duct and hood which may be installed above or below oor

level but must be installed above grade level.

Make a 5" hole in an outside wall of the house. From

outside, place the outside air hood into the hole, open side

down.

At each end, carefully pull back the insulation sleeve exposing

the exible duct. Apply sealant to both the outside air hood

collar and the connector collar at the replace. Place the

insulated exible duct over the outside air hood and over

the replace outside air connector. Carefully push the

insulation sleeve back over the duct. Using the clamps,

fasten the insulated duct into place on both sides.

Figure 3.2c.

Cold air ow can be minimized by

putting a dip or loop in the duct

creating a cold air trap.

Figure 3.2c. This trap can also

help prevent heat build-up and

exhausting out the intake due to

stack effect. The outside air kit

inlet should be positioned in a

manner that will not allow snow,

leaves, etc. to block the inlet. In

some installations the air duct

may need to be run vertically.

3.2 COmBuSTiON Air

FIGURE 3.2c

FIGURE 3.2a

FIGURE 3.2b
