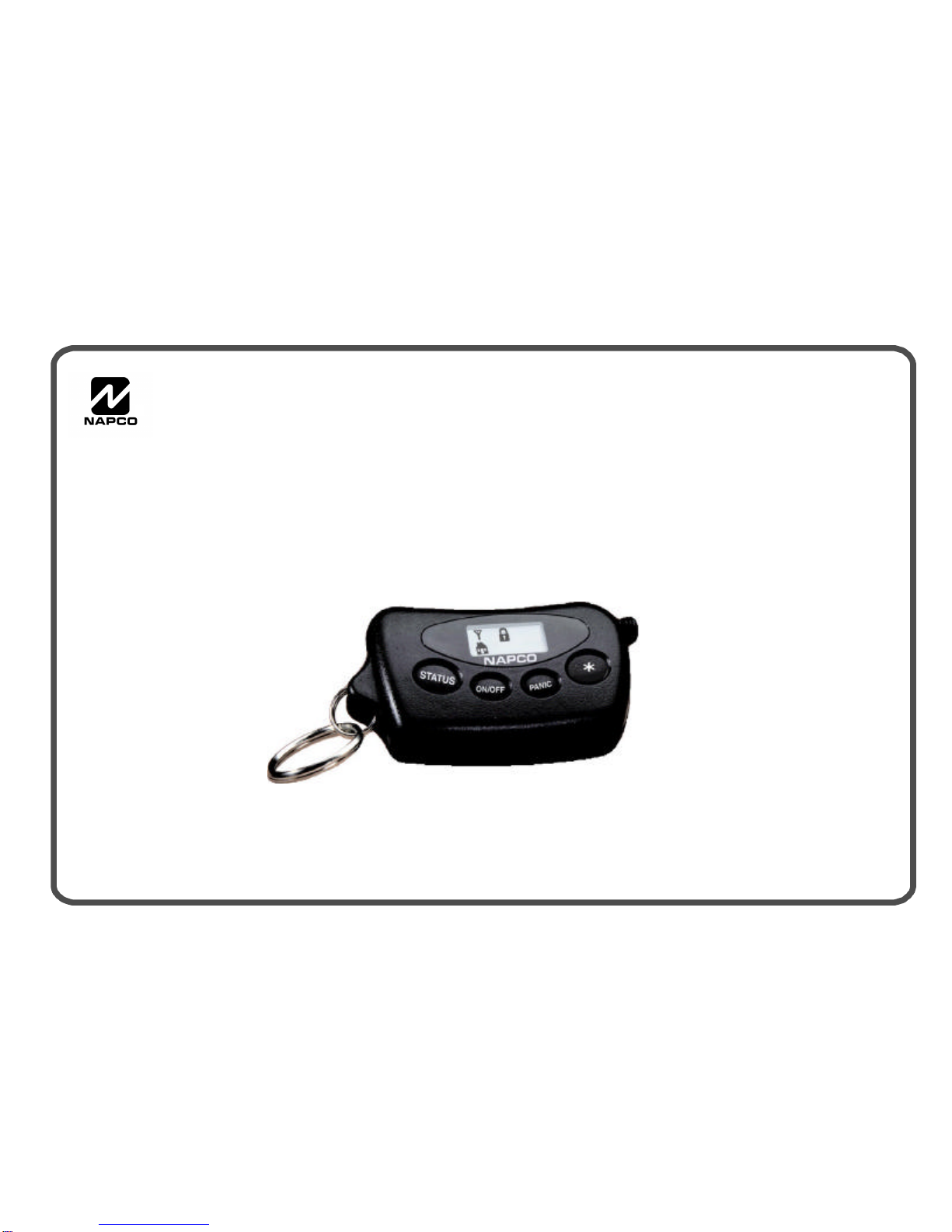

Bi-Directional LCD KeyFob

Installation Instructions

2WI1024B 2WAY-UNIVKF Installation Instructions

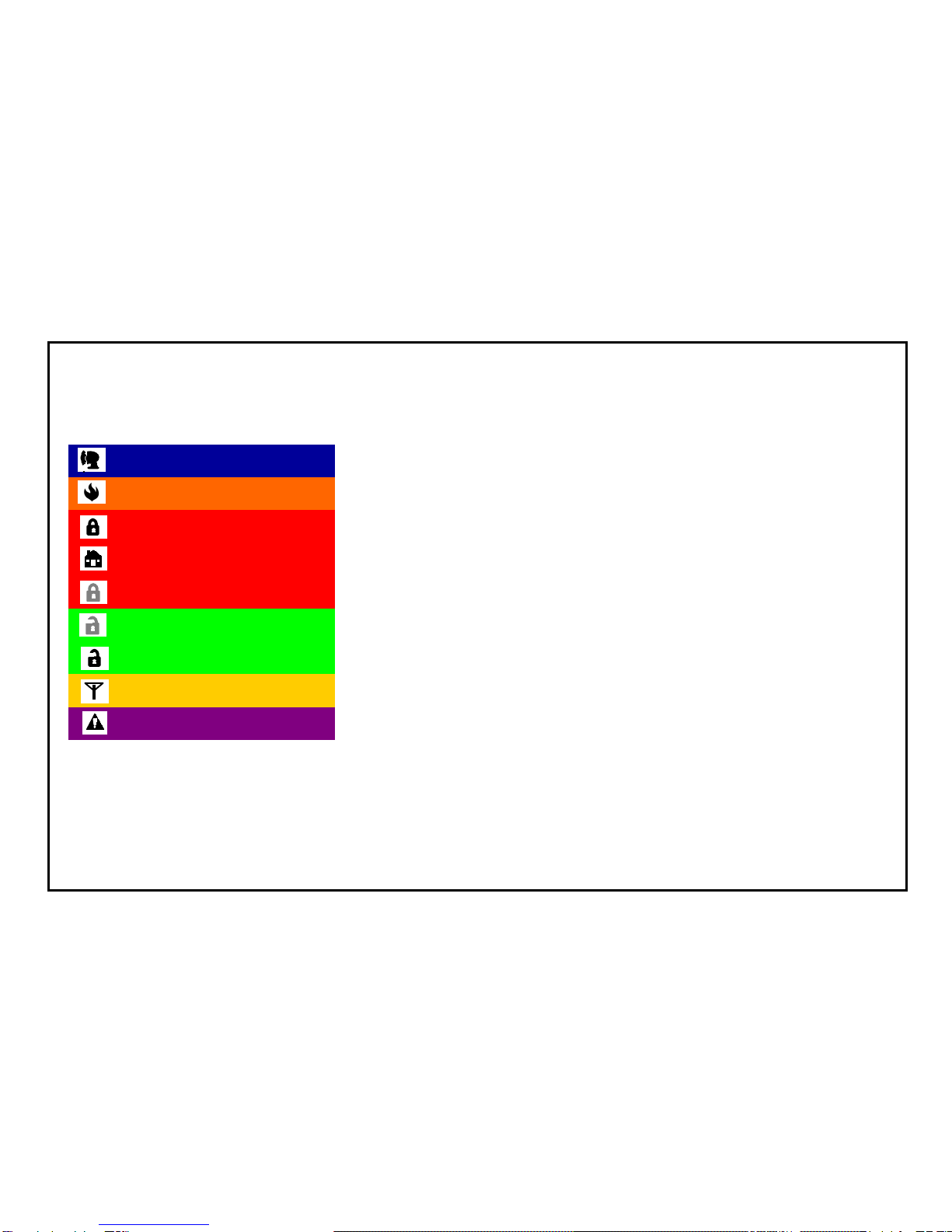

Easy LCD ICON Indicators

Burglar Alarm

Fire Alarm

Armed - Away

Armed - Stay

Armed - Zones Bypassed

Disarmed - Zones Faulted

Disarmed - System Ready

Transmit

System Trouble

Note: Grey ICON indicates pulsing

NAPCO introduces the new 2WAY-UNIVKF, the security industry’s only

universal bi-directional Keyfob with LCD status display and integral mini

sounder, supported by a revolutionary 2-way receiver.

Designed to be compatible with most major control panel brands, including

NAPCOs Gemini and Magnum and others such as ADEMCO, DSC and

more, this 2-Way Keyfob is super-miniaturized for portability yet packs

tremendous sales potential and consumer market appeal.

System Status is indicated through 8 intuitive ICONS (a lock, a house, a

flame, etc.) on the LCD display, accompanied by corresponding beep

sequences on its mini sounder. Providing both easily understood visual and

audible feedback, the user always knows with certainty that the system has

carried out their command.

In addition to the many standard commands it can issue the system, it can also

control up to 2 groups of lighting control, such as X-10, and up to 2 separate

Garage Doors.

NAPCO 2WAY-UNIVKF keyfobs are also sold in a kit with the 2-way

receiver, Model 2WAY–UNIVKFKIT. Each receiver supports up to 7

keyfobs.

2WAY-UNIVKF - The 2-Way Universal LCD Keyfob that puts the power of a keypad in your pocket.

General Description

The 2WAY-UNIVKF is a miniature

remote control device which provides 4

buttons to issue commands to a security

system and confirms status visually and

audibly through an LCD ICON screen

and a mini sounder. It is keypad bus

compatible with the NAPCO GeminI

Series control panels as well as the

Ademco Vista 10 and 20 series. It is

also universally compatible with any

control panel which offers keyswitch

arming and an armed status output.

Keypad Bus compatible control panels:

NAPCO: GEM-P816

GEM-P1632

GEM-3200

GEM-P9600

Ademco: Vista 10

Vista 20

Vista 40

For additonal information and details on

universal operation, see system

overview on page 4.

Features

• 3 Form C Relay Outputs

• Arm/Disarm

• Panic

• Garage Door Control

• Lighting Control or Second Garage Door

control

Specifications

• Input Voltage: 12V DC Nominal

• Input Current: 40mA standby, 90mA max.

(all relays active)

• Operating Temperature: 0-49°C (32-

120°F)

• Maximum # of KeyFobs supported: 7

• Dimensions:

• Receiver: 6 3/4“ X 3 5/8” X 1 1/2”

• KeyFob: 2 “ X 1 3/8” X 1/2”

• Relay Contact Rating: 1A @ 24 VDC

• KeyFob Battery: 1.5V Alkaline AAA size

• Frequency: 431 Mhz

• Operating Range: 750 feet (open air)

TABLE OF CONTENTS

Section Page

GENERAL DESCRIPTION.....................................................3

SYSTEM OVERVIEW.............................................................4

WIRING DIAGRAM/ CONFIGURATION.................................5

CONTROLS AND AUDIBLE INDICATORS..........................6

VISUAL INDICATORS.............................................................7

BUS MODE WIRING AND CONFIG......................................8

BUS MODE ENROLLING KEYFOBS...................................9

BUS MODE ENROLLING USER CODES............................10

BUS MODE GARAGE DOOR & SPECIAL APPS.............11

BUS MODE - TYPICAL APPLICATIONS.............................12

UNIVERSAL MODE WIRING ARM/DISARM/PANIC...........13

UNIVERSAL MODE ENROLLING KEYFOBS.....................14

UNIVERSAL MODE ARM / ALARM SENSE.......................15

UNIVERSAL MODE WIRING FOR STAY MODE................16

UNIVERSAL MODE GARAGE DOOR CONTROL..............17

CHANGING THE KEYFOB BATTERY..................................17

UNIVERSAL MODE - TYPICAL APPLICATIONS................18

WARRANTY..............................................................................20

For Technical Assistance, Contact the NAPCO

Toll Free Helpline ( (800) 645-9440

NAPCO Security Systems, Inc.

333 Bayview Avenue l Amityville, New York 11701

For Sales and Repairs, call Toll Free: (800) 645-9445

4WI1024B 2WAY-UNIVKF Installation Instructions

SYSTEM OVERVIEW

The 2WAY-UNIVKF is compatible with virtually any control panel either through bus compatible operation or universal mode

operation. When used on a panel on which it is bus-compatible, full functionality is realized, including lighting, appliance and X10

control. When used in the Universal Mode, functionality is dependent on the feature set of the control panel, such as a keyswitch

arm zone for arm / disarm capability, an armed output to provide an Armed indication, a steady bell output for an alarm indication

and a pulsing bell output for a fire alarm indication.

This manual is divided into 3 sections which are marked on the outer border of each page - General Information (pages 2-6),

which applies to both modes of operation, NAPCO Gemini / Ademco Bus Operation (pages 8-12) and Universal Operation

(pages 13-19). After reviewing the General Information section for an overview on the system, refer to the section which applies

to the type of installation at hand, Bus or Universal Operation and follow all indicated steps.

Bus Mode Features

Keyfob Commands

• Arm / Disarm

• Stay Mode Arming

• Panic

• Garage Door Control

• Appliance Control 1 / † Relay Group 1 Control

• Garage 2 or Appliance Control 2/ † Relay Group 2 Control

Keyfob Indicators

• Armed

• Armed Stay

• Armed / Zones Bypassed

• Disarmed / System Ready

• Disarmed / Zones Faulted

• Alarm

• Alarm Memory

• Fire Alarm

• System Trouble

• KeyFob Low Battery † NAPCO GEM-P3200 & P9600 only

Universal Mode Features

Keyfob Commands Required Control Panel Feature

• Arm / Disarm Keyswitch arm zone or input

(Momentary)

• Stay Mode Arming Automatic Interior Bypass

• Panic 24 hour panic zone

• Garage Door Control Standard

Use these tables to determine the Keyfob functionality you

can expect when used on a particular control panel.

General Information

Keyfob Indicators Required Control Panel Feature

• Armed / Disarmed Armed output or lug (high or low)

• Armed Stay Automatic Interior Bypass

• Alarm Steady bell output (high or low)

• Alarm Memory Steady bell output (high or low)

• Fire Alarm Pulsing Bell output (high or low)

• KeyFob Low Battery Standard

41 2 3 85 6 7 129 10 11 1613 14 15

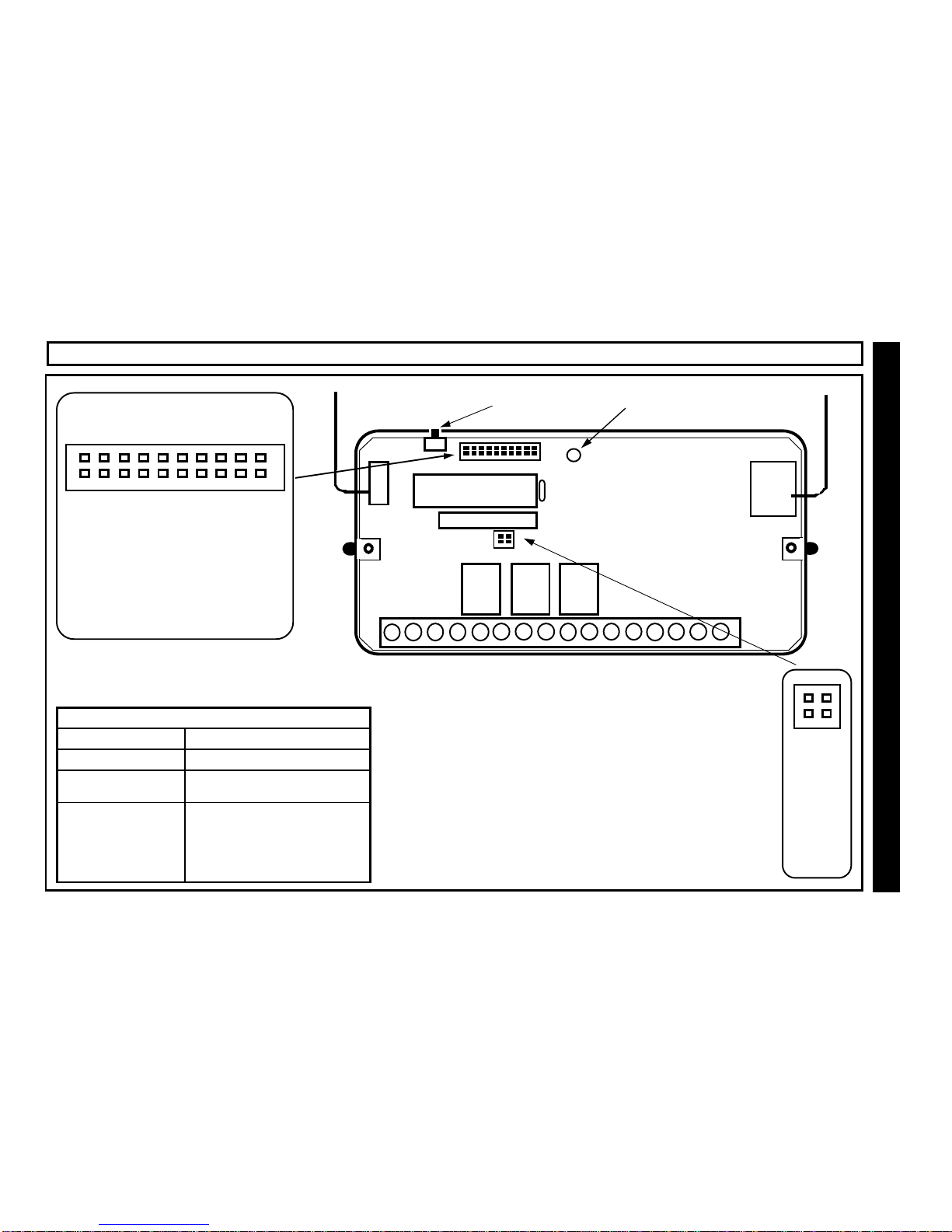

WIRING DIAGRAM AND SYSTEM CONFIGURATION

A B

Invert Alarm Sense A

Invert Armed Sense B

Enroll Mode Push Button Receiver LED

General Information

RED +12V DC

BLACK Ground

GREEN RX

YELLOW TX

Armed Sense Input

Alarm Sense Input

PGM

Relay 1 N/O

Relay 1 COM

Relay 1 N/C

Relay 2 N/O

Relay 2 COM

Relay 2 N/C

Relay 3 N/O

Relay 3 COM

Relay 3 N/C

RES

RE4

RE3

RE2

RE1

R2T

Reserved J1

Invert Stay Mode PGM J2

Panel Type J3

Panel Type J4

Panel Type J5

Relay 2 momentary J6

Reserved J7

Keypad Address J8

Keypad Address J9

Keypad Address J10

System Configuration Jumpers

••

12345678910

Receiver LED Indications

KeyFob Enroll Mode Rapid Flash

User Enroll Mode Rapid Flash / Pulse

Universal Mode

Normal Operation Steady

Bus Mode Normal

Operation Pulsing

If not pulsing in Bus Mode,

check the following:

• Keypad not programmed

• Bus wiring incorrect

6WI1024B 2WAY-UNIVKF Installation Instructions

Audible Indicators

Each time a command is

issued, the KeyFob’s mini

sounder will issue an

audible confirmation beep

with the visual indication.

# of

Beeps Status

1Armed

2Disarmed

3Armed,

Stay mode

4Armed, zones

bypassed

5 †System Trouble

6...

(repeats) Alarm !

CONTROLS AND INDICATORS

General Information

Press ON/OFF to arm or

disarm the alarm system.

Hold Down ON/OFF to Arm

the system in STAY mode.

Press STATUS to

update the display

with the current

system status.

The proper icon(s)

will appear, accom-

panied by the appr-

opriate beep(s). (see

Audible Indicators)

The icon(s) will

automatically go out

in about 6 seconds.

ON/OFF ∗

∗

AND

Press ON/OFF and ∗∗ simultaneously to

activate lighting or other special application.†

†Bus Operation Only

The KeyFob antenna

may be extended for

increased operating

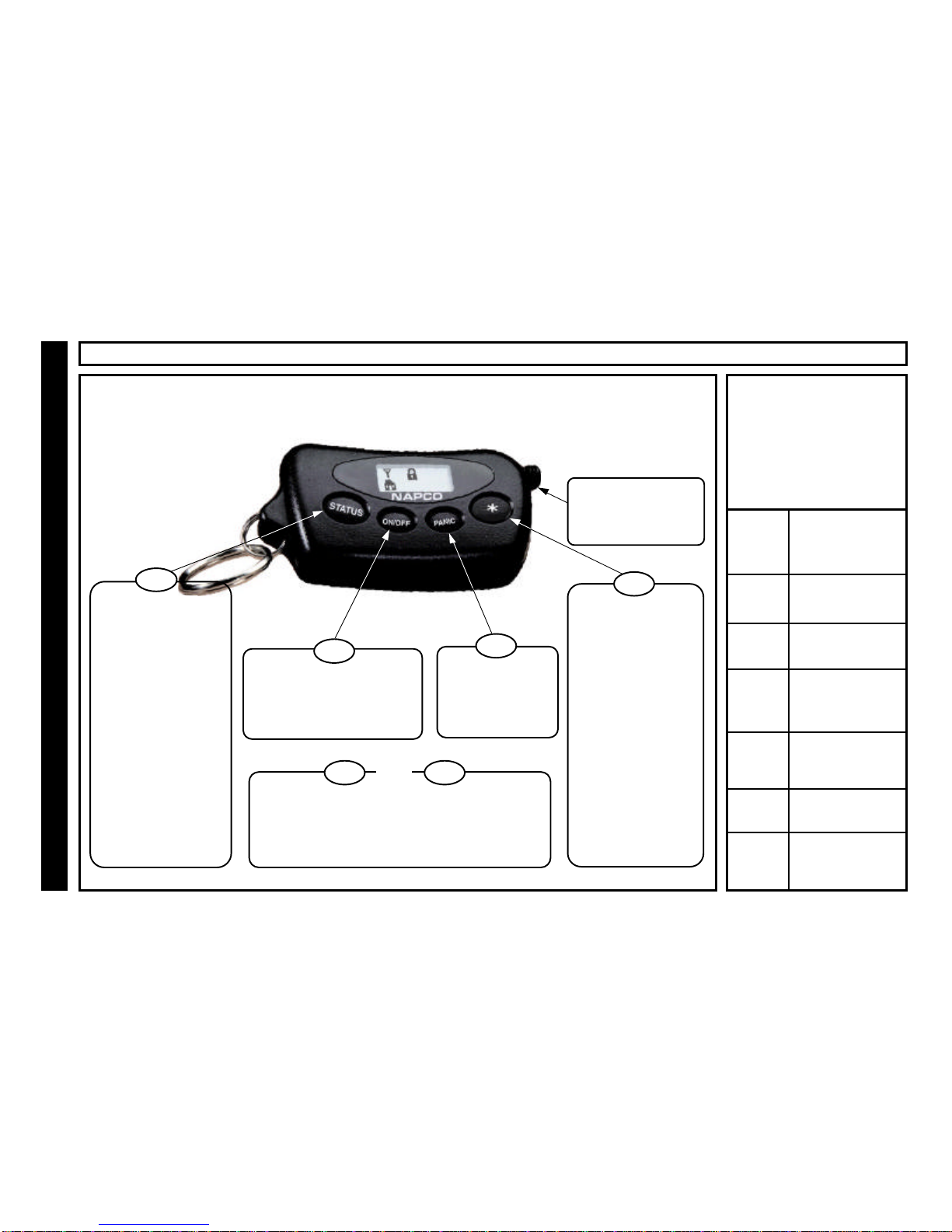

Controls

The KeyFob’s 4 command buttons provide complete system control. Commands are issued to

the alarm system by either pressing or holding down (for 2 seconds) the appropriate button.

Hold Down PANIC

for 2 seconds to

activate a panic

alarm.

PANIC

ON/OFF

∗

Press ∗∗ to open

garage door

Hold Down ∗∗ for 2

seconds to activ-

ate lighting or

other special appl-

ication. †

Hold Down ∗∗ for 2

seconds to open a

second garage

door. †

STATUS

CONTROLS AND INDICATORS

General Information

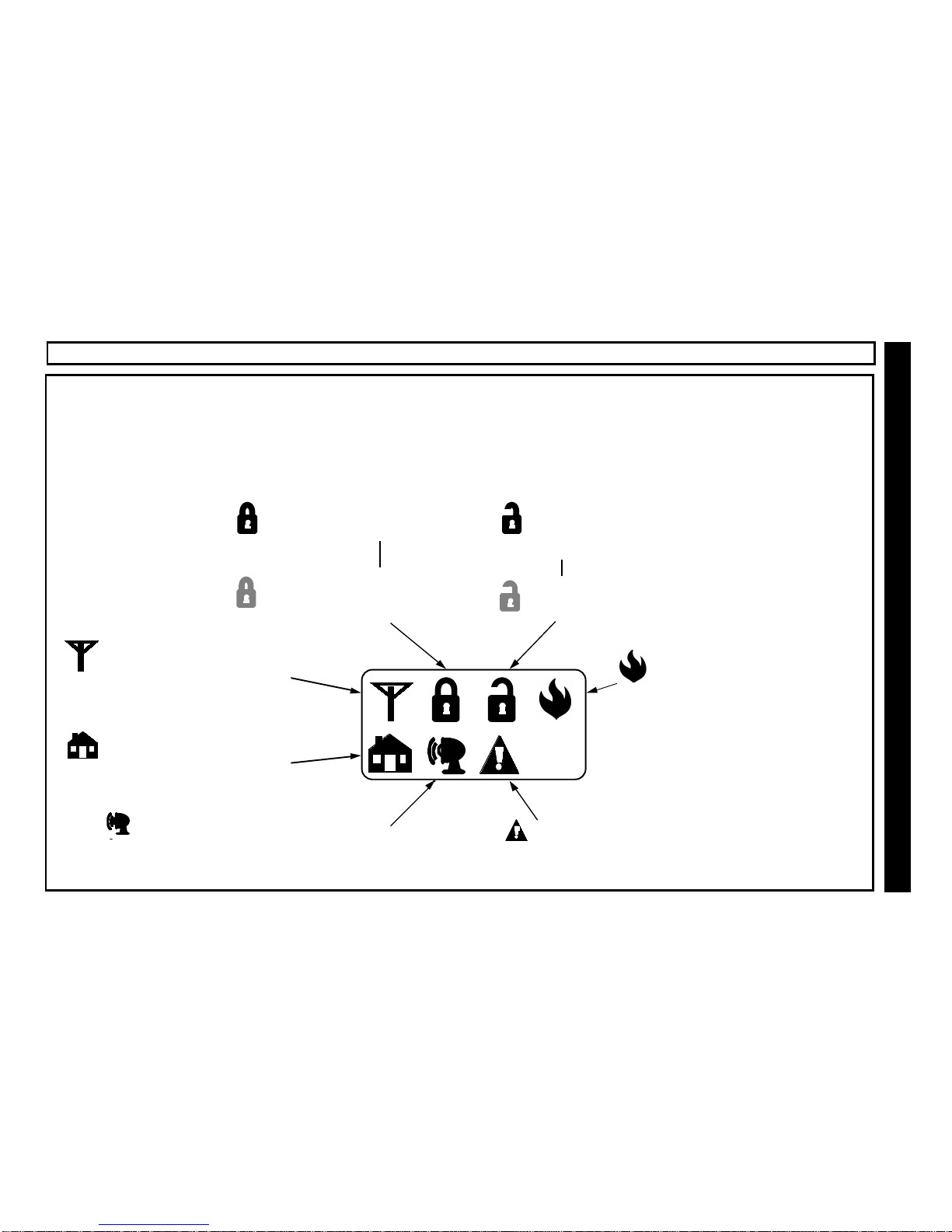

Visual LCD Indicators

The 2WAY-UNIVKF uses a series of icons to convey the status of the system. Each time the STATUS button is pressed, or

a command is issued, the appropriate icon(s) will display for about 6 seconds. For example, if ON/OFF is pressed to arm the

system, the Armed Icon will light in a few seconds to confirm that the command was successfully carried out. Below is a

description of each icon indicator. Please note that the icons marked “†” are optional and may not apply to all systems.

Armed

The system is armed. System Ready The system is

disarmed, with all zones secure.

The system is ready to arm.

Transmit Each time a button is

pressed the transmit ICON will light to

indicate that the KeyFob is

transmitting to the receiver.

Armed Bypassed †

(slowly flashing) the system is

armed with zones bypassed.

Zones Faulted †(slowly flashing)

Disarmed, zones faulted.

Stay Mode †The system

is armed with interior zones

bypassed.

Fire Alarm †(flashing) The

system is in a fire alarm condition

System in Alarm / Alarm Memory

(flashing) The system alarm is sounding

or an alarm has occurred while you were

away. Proceed with caution!

System Trouble † The alarm system is in a

trouble condition. Consult keypad and owners

manual for the exact nature of the trouble.

8WI1024B 2WAY-UNIVKF Installation Instructions

STEP 1 - WIRING AND CONFIGURATION

Mounting

The 2 way receiver should be mounted in a location which is centrally located

in the area of anticipated usage. It is not recommended that the receiver be

installed in an attic or mounted within 24 inches of any metallic objects.

Installation in a basement will result in reduced range. It should not be mounted

in the control panel enclosure. The receiver should be positioned with the

antennas pointed up.

Wiring

The 2WAY-UNIVKF is compatible with the keypad bus of the NAPCO Gemini

GEM-P816, GEM-P1632, GEM-P3200 and GEM-P9600 control panels. It is

also compatible with the keypad bus of the Ademco models Vista 10 and 20.

Note: for Bus Operation, DO NOT connect any wires to terminals 5 & 6.

Programming

The Gemini control panel must be programmed for an additional keypad. For

example if the installation currently has 2 keypads, an additional keypad,

keypad # 3 must be enabled in programming. This is not required for the

Ademco Vista 10 and 20.

If KeyFob panic is desired, Keypad Panic should be enabled in the control

panel program. For the Ademco Vista 10 and 20, zone 95 must be programmed

for 24 Hr Audible or 24 Hr Silent. For the Vista 20 zone 99 must be

programmed for 24 Hr Audible or 24 Hr Silent.

Configuring the Receiver Address

For the NAPCO Gemini bus operation, the receiver must be addressed to

match the address of the additional keypad enabled in programming above. For

example, if the receiver is to be addressed as keypad 3, refer to the Receiver

Address Chart and install the appropriate address jumpers (J8 off, J9 ON,

J10 ON). This is not required for the Ademco Vista 10 and 20.

Configuring the Control Panel Type

For a bus compatible installations only, refer to the Panel Type Configuration

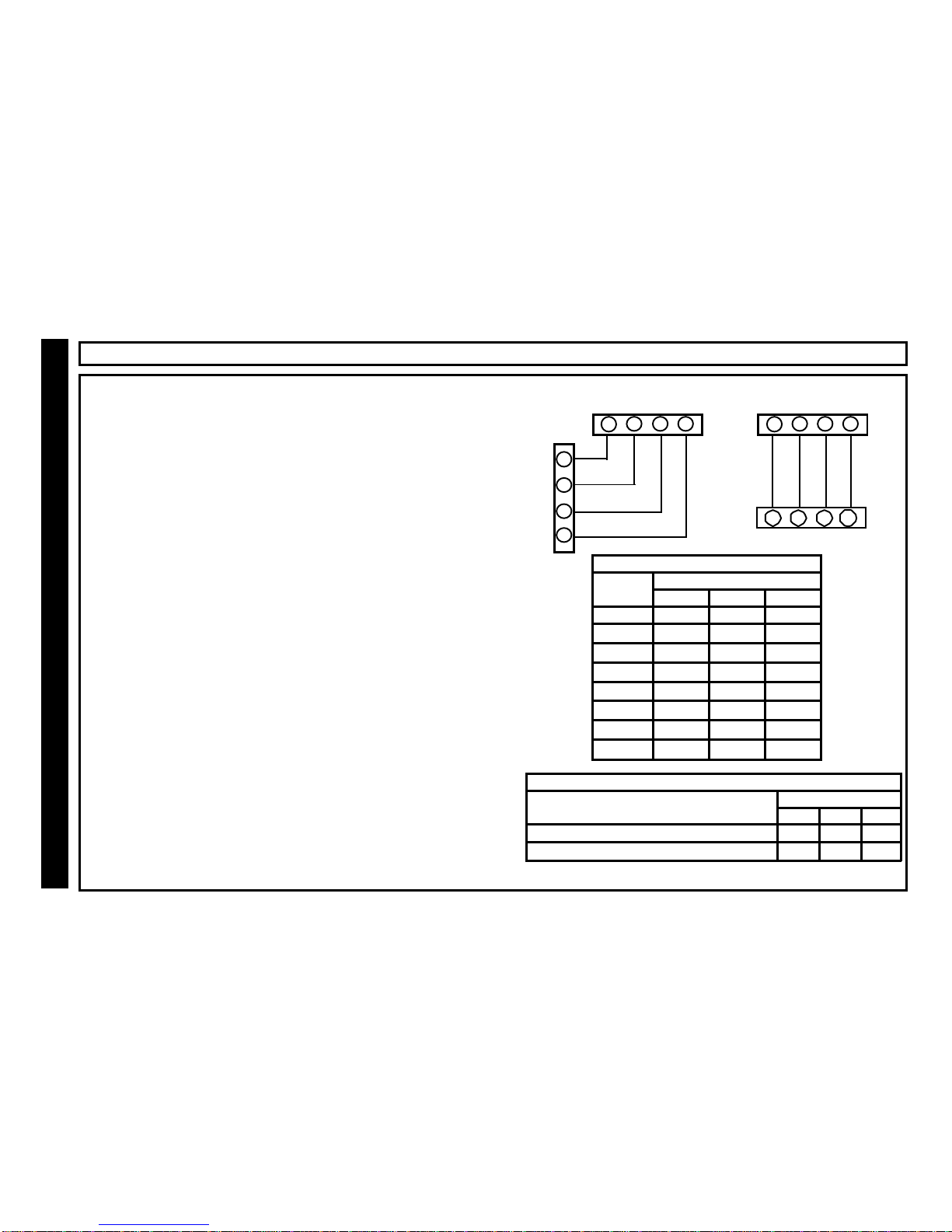

RECEIVER

GND+12V TX

41 2 3

RED

BLACK

GREEN

YELLOW

GEMINI PANEL

RECEIVER ADDRESS CHART

KEYPAD ADDRESS JUMPERS

# J8 J9 J10

1off off off

1off off ON

2off ON off

3off ON ON

4ON off off

5ON off ON

6ON ON off

7ON ON ON

PANEL TYPE CONFIG. CHART

PANEL TYPE CONFIG. JUMPERS

J3 J4 J5

NAPCO GEM-P816, P1632, P3200, P9600 off off off

Ademco Vista 10, 20 off off ON

Ademco 40, 50 off ON off

RECEIVER

GND+12V TX

41 2 3

RED

BLACK

GREEN

YELLOW

ADEMCO PANEL

NAPCO Gemini & Ademco Bus Operation

STEP 2 - ENROLLING KEYFOBS

Enrolling and Removing KeyFobs

Each KeyFob to be used in the system must be enrolled into the receiver. The following procedure is used to enroll

the unique RF ID number stored in the non volatile memory of each KeyFob into the receiver memory.

1Arm system from any keypad

2Disarm system from any keypad

3Enter Unique Code 1114 [ON/OFF] / [STAY] The Enroll Mode LED will flash rapidly.

The keypad will give error beeps - ignore.

4Press the ∗∗ button on KeyFob 1 The KeyFob will sound a confirmation beep.

.... Repeat for each KeyFob to be enrolled

• Press [RESET] on Keypad OR [ON/OFF] on Keyfob Exit Enroll Mode - the Enroll Mode LED will go out

• All instructions which require keystroke entry on the NAPCO or Ademco keypad will be followed by the appropriate button in

[NAPCO] / [Ademco] format. For example [ON/OFF] / [STAY].

• The Keyfob Enroll Mode may also be entered / exited by pressing the the Enroll Mode Push Button on the top of the

receiver. See page 15 for more information.

To Remove a lost KeyFob from the system: Enter and then exit the Keyfob Enroll Mode. Enter 1114 [ON/OFF] /

[STAY] and then press [RESET]. All keyfobs will be deleted from the system.

NAPCO Gemini & Ademco Bus Mode

10 WI1024B 2WAY-UNIVKF Installation Instructions

STEP 3 - ENROLLING USER CODES

Enrolling User Codes into the 2 Way receiver

The 2 way receiver must be “taught” the User code which will represent each KeyFob to be used on the system. This allows the

receiver to uniquely identify each KeyFob and log KeyFob opening and closing activity in the control panel’s event buffer as well

as report openings and closings by KeyFob user if desired.

Note: Before proceeding, a 4 digit User Code representing each KeyFob must be programmed into the control panel.

1Arm system from any keypad

2Disarm system from any keypad

3Enter Unique Code 1113 [ON/OFF] / [STAY] Enroll Mode LED will flash / pulse

The keypad will give error beeps -

ignore.

4Enter 4 digit User Code to represent KeyFob # 1, press [ON/OFF] / [AWAY] System will Arm

5Reenter the 4 digit User Code for KeyFob # 1, press [ON/OFF] / [OFF] System will Disarm

System will automatically test

code by quickly Arming and

Disarming.

... Repeat steps 4 & 5 for each KeyFob to be enrolled

• Press [RESET] on Keypad Exit Enroll Mode - the Enroll

Mode LED will go out

NAPCO Gemini & Ademco Bus Operation

Autres manuels pour 2WAY-UNIVKF

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NAPCO Démarreur à distance

NAPCO

NAPCO 2WAY-UNIVKF Manuel utilisateur

Manuels Démarreur à distance populaires d'autres marques

AstroStart

AstroStart 803U Manuel utilisateur

Durite

Durite 0-649-20 Manuel

EINHELL

EINHELL BT-PS 1000 Manuel

Linear

Linear ACCESS AK-21 Caractéristiques techniques

Soundstream

Soundstream TARANTULA RS.2 Manuel utilisateur

Jaycar Electronics

Jaycar Electronics MB3752 Manuel utilisateur

Ultra Start

Ultra Start 72 Series Manuel utilisateur

ADS

ADS FLASHLOGIC FLRSVW1 Manuel utilisateur

Selecta

Selecta JS012 Manuel utilisateur

Black Widow Security

Black Widow Security BW RAS 400 Manuel utilisateur

Vector

Vector Power City DK080706 Supplément

Code Alarm

Code Alarm CA-535 Manuel utilisateur

Ozito

Ozito OJS-800 Manuel utilisateur

Profi-Partner

Profi-Partner 46387 Manuel utilisateur

EZ STARTER

EZ STARTER EZ-45 Manuel utilisateur

Viper

Viper 4204 Manuel utilisateur

Essex Electronics

Essex Electronics KE-1701 Manuel utilisateur

EINHELL

EINHELL EGS 3600 Manuel
