Nagman PHP 10 Manuel utilisateur
Nagman®
PNEUMATIC HAND PUMP
PHP 10 / 20 / 25 / 35 / 40
NAG/IM/PHP 10-40/01/22 2
BRIEF PROFILE
An ISO 9001-2015 certified Instrumentation company
(since 1972) serving Industries in India & Worldwide thro’ the
Manufacture & Supply of World-Class Calibration
Instruments & Systems like Temperature, Pressure & Signal
Calibrators, Black Body Calibration Sources, Pneumatic &
Hydraulic Hand Pumps, Dead Weight & Comparison Testers,
Calibration Test Benches, etc.
NAG/IM/PHP 10-40/01/22 3
Dear User,
Thank you for selecting Nagman’s Pneumatic
Hand Pump and becoming a proud owner of
this Calibration Instrument.
We have strived hard to ensure the accuracy
of the contents of this manual. We would
appreciate any suggestions/feedback to
correct any errors noticed and to improve
the quality of contents of this Manual
Specifications are subject to change owing to
continuous development and we reserve
rights to effect Changes / Modifications to
this Manual.
Read the Instructions before starting to use
the Product.
Wishing you for a long association with us.
For any service related issues, please contact
VERSION CONTROL
Version No. Updated on Updated by
V 1.1 01.09.2022 Nagman
NAG/IM/PHP 10-40/01/22 4
CONTENTS
S.No. Description Page No.
1. Introduction …………………………………………………………..5
2. Specification…………………………………………………………….6
3. Standard Delivery & Optional Accessories ……………7
4. Parts Identification …………………………………………………8
5. Functional Description ………………………………………….…9
6. Connection Diagram ………………………………………….…10
7. Safety Instructions ….…………………………………………….11
8. Operation – Pressure / Vacuum ……….…………………….13
9. Troubleshooting / Maintenance……………………………..14
NAG/IM/PHP 10-40/01/22 5
1. INTRODUCTION
Nagman’s calibration hand pump is designed to manually
generate pressure between -0.90 upto 10/25/35/40 bar
(depending upon models) of vacuum and pressure for quick
and accurate calibration of pressure gauges and other
pressure measuring Instruments.
This pump is manufactured with high quality components for
calibrating Analog / Digital gauges by comparison method. It
can be used for lab and field applications.
There is a pressure / vacuum changeover switch in the pump,
which is used for selecting either vacuum or pressure output.
It is fitted with a fine Adjustment valve and a Release valve.
The output pressure / vacuum of the hand pump can be
adjusted precisely by the fine Adjustment valve while
calibration. Release valve is used for releasing the pressure /
vacuum after calibration.
The output pressure / vacuum of the pump is in the range of:
-0.9 vacuum to 10 / 20 / 25 / 35 / 40 bar pressure depending
upon the model.
Model
Range
PHP 10
-
0
.90 to 10 bar
PHP 20
-
0
.90 to 20 bar
PHP 25
-
0
.90 to 25 bar
PHP 35
-
0
.90 to 35 bar
PHP 40
-
0
.90 to 40 bar
NAG/IM/PHP 10-40/01/22 6
2. SPECIFICATION
Range -0.90 bar Vacuum to 10 / 25 / 35 /
40 bar Pressure
Medium Air
Sensitivity / Resolution Upto 1 mbar
Gauge / Indicator
Connection Port
3/8” (F) BSP
Test Connection Port 1/4" (F) BSP
Stabilization time 1-2 minutes
Instrument Dimension 230 x 140 x 65 mm (L x B x H)
Instrument Weight
(approx.)
750 gms.
NAG/IM/PHP 10-40/01/22 7
3. STANDARD DELIVERY & OPTIONAL ACCESSORIES
Standard Delivery
Basic Pump
Nylon Hose (1 Meter) with Swivel Adaptor (1/4” BSP
(F))
Plastic Caps (2 Nos.) for Dust Protection
Seals kit consisting of Nylon washers 3/8” (F) (2
Nos.); 1/4” (F) (2 Nos.)
Conformance Certificate
Instruction Manual
Optional Accessories
Carrying Case (Soft/Hard)
Analog / Digital Pressure Gauges
Quick Connector
Spare Seals Kit
Set of Adaptors
⅛” BSP(F) X ¼” BSP (M)
½” BSP(F) X ¼” BSP (M) BSP
⅜” BSP(F) X ¼” BSP (M)
⅛” NPT(F) X ¼” BSP (M)
¼” NPT(F) X ¼” BSP (M) NPT
½” NPT(F) X ¼” BSP (M)
⅜” NPT(F) X ¼” BSP (M)
NAG/IM/PHP 10-40/01/22 8

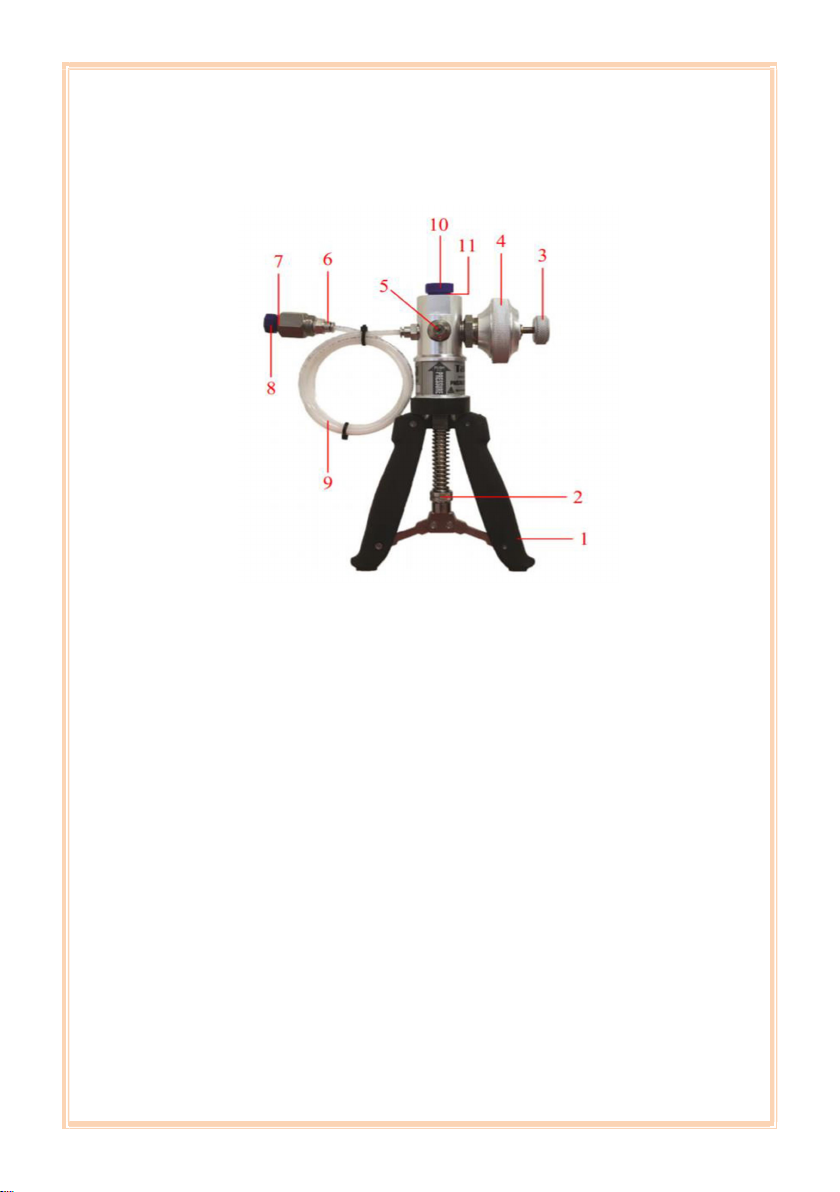

4. PARTS IDENTIFICATION
1) Pump Handles
2) Knurling Thumb Nut
3) Pressure Release Valve
4) Fine Adjustment Valve
5) Pressure / Vacuum selector
6) Quick-Fit “ Connector - ¼” BSP (F) (Swivel Adaptor)
7) Nylon Washer ¼”
8) Plastic Plug
9) Flexible hose to connect unit under test (UUT)
10) Pressure Port – 3/8" BSP Female Connection to Connect
Master Instrument
11) Nylon Washer 3/8”
NAG/IM/PHP 10-40/01/22 9

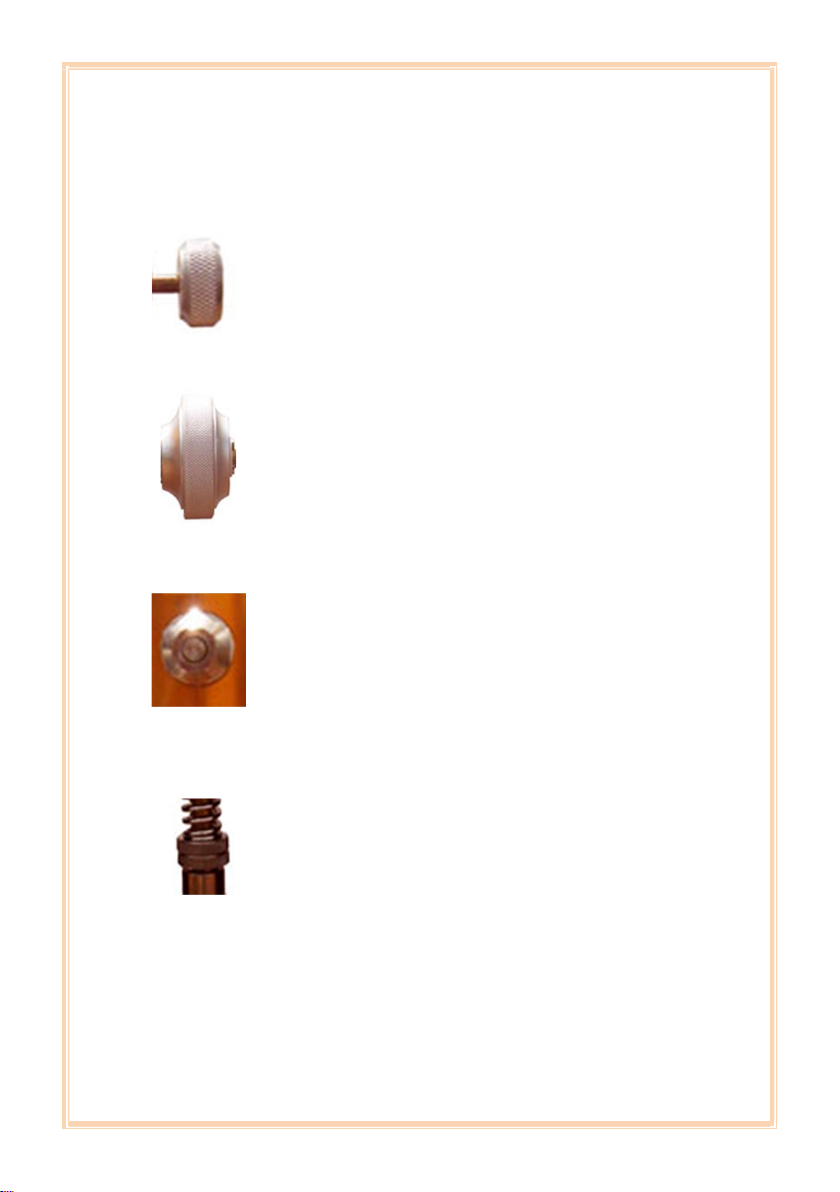

5. FUNCTIONAL DESCRIPTION
Pressure Release Valve (3):
Used to reduce or release the vacuum /
pressure in the system. Minimal force is
required to seal the system.
Fine Adjustment Valve (4):
The vacuum / pressure can be finely adjusted
by turning this fine adjustment valve either
clockwise or anticlockwise to increase or
decrease pressure accordingly.
Pressure or Vacuum Selector (5):
Press the selector as indicated in Figure 1 to
engage the desired mode. Ensure that the
release valve is closed firmly (clockwise
motion) prior to pumping.
Knurling Thumb Nut (2) (Over Pressure
Protection):
To adjust maximum output pressure of the
pump turn the knurling thumb nuts (2) to
increase or decrease the stroke length so
that the maximum pressure is controlled per
stroke.
NAG/IM/PHP 10-40/01/22 10
6. CONNECTION DIAGRAM
1. Master / Reference Measurement
2. Unit Under Test
