N-Com Basic kit 2 Mode d’emploi

USER INSTRUCTIONS AND SAFETY

Congratulations on your purchase of a Nolan N-Com product.

The N-Com Basic Kit2 was designed and built using the latest

technologies and the best materials. Long tests and thorough

system development have made it possible to achieve the

highest sound quality.

The N-Com Basic Kit2 is the basic equipment for one of

the communication systems of the Nolan N-Com product

line.

The Basic Kit2 can only be installed on Nolan helmets

preset for N-Com.

------------------------------------------------------------------

Reference standards

The Basic Kit2 product of the N-Com line complies with EEC

Directive.

EMC 2004/108

Table of contents

1. WARNINGS AND SAFETY ____ 4

1.1.Road safety _________________ 4

1.2.Switching on the system in

safe environments_________________ 4

1.3.Interferences ________________ 5

1.4.Appropriate use ______________ 5

1.5.Qualified personnel ___________ 5

1.6.Accessories and batteries ______ 6

1.7.Disposal ____________________ 6

2. CONTENTS OF THE

PACKAGING ______________ 7

3. INSTALLING THE BASIC

KIT2____________________ 8

3.1.Installing and removing the

battery__________________________ 8

3.2.Installation of Basic Kit2 for the

modular helmet N102 _____________ 10

3.3.Installation of Basic Kit2 for the

jet helmet N42/N42E _____________ 15

3.4.Installing the basic card ______ 21

4. REMOVING THE BASIC KIT2 23

5. USING THE BASIC KIT2

WITH A CELL PHONE ______ 23

5.1.Answering a phone call _______ 24

5.2.Making a phone call__________ 25

5.3.Vocal calls _________________ 25

6. USING OTHER AUDIO

PERIPHERAL DEVICES ____ 26

7. MAINTENANCE ___________ 26

8. LIMITED WARRANTY ______ 27

8.1.Warranty coverage __________ 27

8.2.Exclusions and limitations of

the coverage ___________________ 27

8.3.Validity of this limited warranty 28

8.4.Procedure for the forwarding of

claims _________________________ 29

8.5.Product identification ________ 30

9. WARRANTY REGISTRATION

FORM___________________ 31

1. WARNINGS AND SAFETY

Read this User Manual carefully, as well as the User Manuals for other N-Com kits that you

will be using with the N-Com Basic Kit2. Read the simple rules listed below. Failure to

comply with these rules may lead to dangerous situations.

Caution: The product cannot be used in official or non-official competitions, motordromes,

circuits, racing tracks and the like.

Caution: Installation of the N-Com Basic Kit2 system results in a weight increase of

approximately 70g, which is added to the weight of the helmet and of the other

accessories.

Warning: The electronic components of the N-Com system mounted inside the helmet are

not waterproof. Consequently, make sure the inside of the helmet, including the

comfort padding, does not get wet in order to avoid damage to the system. If it does,

remove the N-Com system and the helmet comfort padding and let it air dry.

Disconnect the battery connector and let it dry as well.

1.1. Road safety

Always obey all Traffic Regulations in force. While riding the motorcycle, your hands should

always be engaged in actually riding the vehicle. Any operation to the N-Com system must

be carried out with the vehicle stopped. Specifically:

Set your cell phone on automatic answer (see the cell phone instructions to do this).

If your cell phone is not equipped with this function, first stop your vehicle in a safe

area, in compliance with Traffic Regulations and then answer the call.

Do not make any calls while riding. Stop your vehicle in a safe place in compliance

with Traffic Regulations, and then make the call.

Adjust the volume so that it does not cause a disturbance or distraction while riding

and at the same time allows you to distinctively hear background noises.

Do not operate your cell phone or other devices connected to N-Com while riding your

motorcycle.

In all cases, obey the Traffic Regulations and remember that riding the motorcycle

has absolute priority over any other maneuver.

1.2. Switching on the system in safe environments

When using the N-Com system, comply with all limitations and instructions related to

the use of cell phones.

Do not turn on your cell phone or the N-Com system whenever their use is forbidden

or when the devices can cause interference or dangerous situations.

Turn off while refuelling. Do not use the N-Com system in filling stations. Do not use

the device near combustible materials or chemical products.

Turn off in proximity to explosive materials.

1.3. Interferences

All phones and devices with wireless signal transmission are subject to interferences that

may affect the performance of the device connected to them. These interferences are not

ascribable to a defect of the N-Com system.

1.4. Appropriate use

Use the device only in the normal position, as described in the product documentation. Do

not attempt to disassemble, tamper with or modify any part of the N-Com system.

Caution: Adjust the volume of the N-Com system (where provided) and of the audio

sources connected to it before you use the system on the road.

Caution: Adjusting the volume to very high levels may cause damage to your hearing.

Caution: Adjust the volume of the N-Com system (where provided) and of the audio

sources connected to it so as to avoid audio reproduction at high volumes. Constant

exposure to high audio volumes may damage your hearing.

Caution: An incorrect installation of the system in the helmet may alter the aerodynamic

and safety characteristics of the helmet itself, thus creating dangerous conditions.

Install the N-Com system according to the instructions provided in the product

documentation. In case of doubt, please contact your local N-Com dealer.

Warning: Listening to other equipment should not interfere with driving the vehicle, which

must be the top priority at all times. Carry out all operations on the electronic

equipment and on the N-Com system with the vehicle stopped, in compliance with

Traffic Regulations.

1.5. Qualified personnel

Only qualified personnel can carry out technical assistance on this product. In case of

any malfunction, always turn to your local dealer.

The helmet is a safety device. Tampering with it and/or with the electronic system

inside the helmet, in addition to invalidating the product warranty, can also lead to

dangerous situations.

1.6. Accessories and batteries

Only use the type of batteries, battery chargers and accessories approved by Nolan

for the specific model.

The use of a battery type different from the recommended one may lead to dangerous

situations and invalidate the warranty.

Contact your local dealer to see about the availability of approved accessories.

When disconnecting the power supply cable of any accessory or of the battery

charger, always grab and pull the plug not the cable.

Do not use batteries for purposes other than the prescribed ones.

Never use batteries or battery chargers that turn out to be damaged.

Do not short-circuit the battery.

Keep the battery at a temperature between 0° / +45°C (charging); -20° / +60

°C (in use).

Danger of fire or explosion: do not throw the batteries into a fire nor expose them to

high temperatures!

Do not throw out batteries together with household refuse. The batteries should be

disposed of in compliance with local regulations

Do not wear the helmet while the battery is recharging.

The helmet should never be left within the reach of unsupervised children in order to

prevent damage to their health caused by access to the batteries.

1.7. Disposal

Refer to this user manual and to manuals related to other parts of the N-Com system in

order to disassemble the system from the helmet. Once the system has been disassembled,

dispose of it according to the following instructions:

The presence of a crossed-out wheelie bin indicates that in the European

Union the product is subject to separate collection at the end of its useful

life (European Directive 2002/96/EC).

Do not dispose of these products together with undifferentiated urban

waste.

The proper disposal of obsolete equipment contributes to preventing possible negative

consequences on people’s health and on the environment.

For more detailed information on the disposal of obsolete equipment, contact your

municipality, a waste disposal service or the store where the product was purchased.

2. CONTENTS OF THE PACKAGING

Basic Kit2

Nomenclature

Basic card

Protection cover

Positioning

tab

Loudspeaker

Microphone

way Connector

Cable

3. INSTALLING THE BASIC KIT2

3.1. Installing and removing the battery

If the system contemplates the use of a rechargeable battery, the battery must be

installed in advance, as described below.

Fig. 1

Fig. 2

Fig. 3 – N42

Fig. 4 – N102

Position the battery in the housing behind the right side of the Basic Kit2 (fig. 1).

Connect the battery cable (Red+Black) to the proper connector, passing the

cables through the housing (fig. 2).

Position the battery charge cable so that it passes through the housing (fig.3-4).

Fig. 5

To take out the battery, simply

remove the charge cable from its

housing; then disconnect the

battery cable (Red +Black) from its

connector. Keep the female

connector in place and pull out the

male part (fig. 5).

3.2. Installation of Basic Kit2 for the modular helmet N102

Fig. 6

Fig. 7

Open the helmet chin guard.

Remove both cheek pads, right and left, from the helmet (fig. 6).

Remove the Noise Reducers from the two cheek pads, and tear off the pre-cut

plastic inserts. (fig. 7)

Fig. 8

Fig. 9

Remove the rear part of the comfort padding, pulling on the neck roll until it

separates from the shell. Temporarily put the padding back inside the helmet

(Fig. 8).

Remove the “N-Com” protection cover located on the left side of the helmet (fig.

9).

Table des matières

Autres manuels N-Com Accessoires pour motos

N-Com

N-Com B901 Manuel utilisateur

N-Com

N-Com B902 Manuel utilisateur

N-Com

N-Com B901-R Mode d’emploi

N-Com

N-Com B602 Manuel utilisateur

N-Com

N-Com SPCOM00000109 Manuel utilisateur

N-Com

N-Com B902 X Series Mode d’emploi

N-Com

N-Com B902L Mode d’emploi

N-Com

N-Com SPCOM00000034 Manuel utilisateur

N-Com

N-Com SPCOM00000044 Manuel utilisateur

N-Com

N-Com M5 Mode d’emploi

N-Com

N-Com B902 Manuel utilisateur

N-Com

N-Com SPCOM00000100 Manuel utilisateur

N-Com

N-Com SK Series Manuel utilisateur

N-Com

N-Com MCS II Instructions d'installation

N-Com

N-Com B101 Manuel utilisateur

N-Com

N-Com ESS III Manuel utilisateur

N-Com

N-Com B901 Manuel utilisateur

N-Com

N-Com S Series B901 Mode d’emploi

N-Com

N-Com B901 Manuel utilisateur

N-Com

N-Com SPCOM00000091 Manuel utilisateur

N-Com

N-Com R Series Mode d’emploi

N-Com

N-Com SPCOM00000026 Manuel utilisateur

N-Com

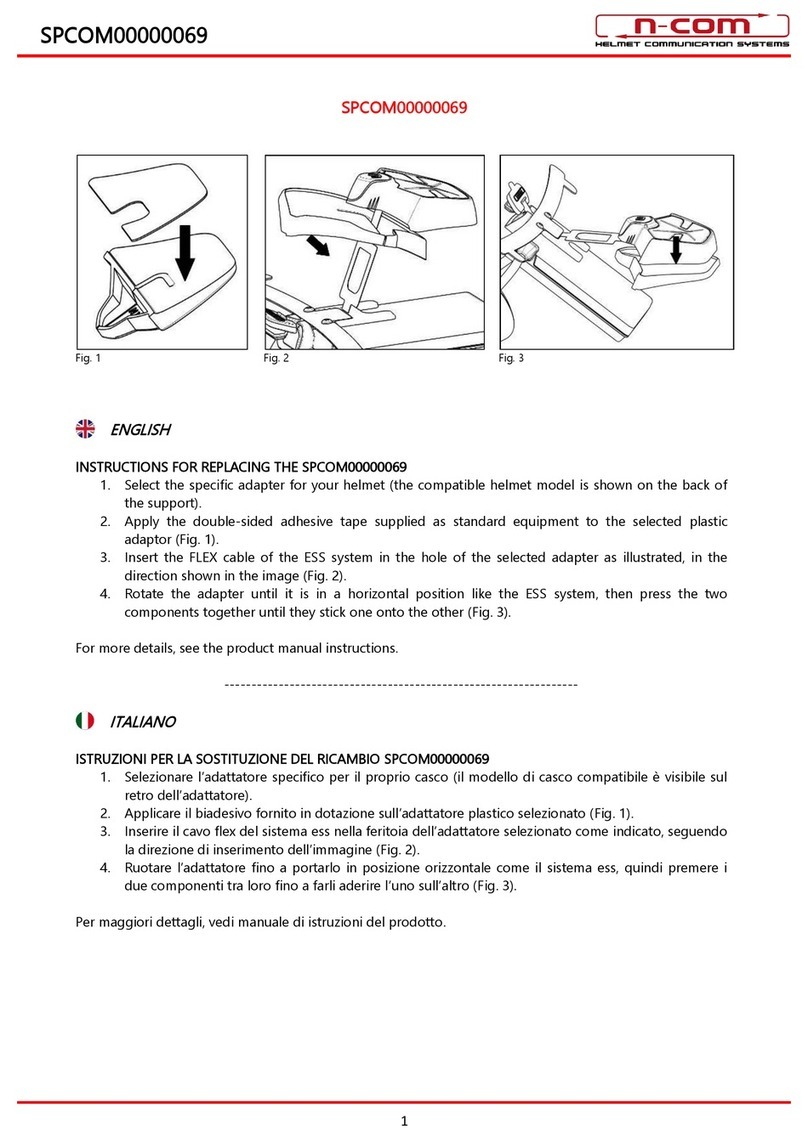

N-Com SPCOM00000069 Manuel utilisateur
