INSTALLATION GUIDE
3G Mobile Signal Repeater
Nikrans NS-1000 3G model
3G connection | 2100MHz
Coverage: 1000 m2
Contents
1. Purposes
2. Technical features
3. Technical specifications
4. System configuration
5. Operation instructions
5.1. Descriptions of the overall dimension of the
equipment
5.2. Instructions on installation
5.3. Debugging and commissioning
5.4. System maintenance
6. Descriptions on maintenance
6.1. Faults and failures
6.2. Troubleshooting
2
MyAmplifiers.com - +44 977215553 (UK) , +33 977215553 (France),
E-mail: contact@myamplifiers.com - Skype: gsm_amplifier www.myamplifiers.com
Nikrans NS-10003G Signal Booster
1. Purpose
As the domestic mobile communication industry
develops rapidly, the amount of mobile communications
users increases so steadily that the cell planning gets
smaller and smaller while the base station positions get
lower and lower. On the other hand, as city construction
develops, more and more high-rise buildings are set up
constantly, based on the shadow effect of the radio
propagation, the mobile communications may get a signal
blind spot behind or between the buildings. Moreover, in
order to avoid interference from adjacent districts, the main
lobe of the antenna radiation orientation of the cell mobile
communication base station in construction has a bigger
down-tilt obliquity, thus the signals usually can not be
received effectively in the high and medium parts of the
high rise buildings. Furthermore, due to the shield effect to
electro-magnetic waves caused by buildings, the mobile
communication signals cannot be received in tunnels,
subways, underground stores, entertainment complex,
parking fields, hotels, office buildings and other large-size
and closed buildings.
Signal amplifier is an effective device that makes up
the insufficient base station coverage in the mobile network,
enlarges the coverage area of the base station and fills in
the blind spots, which adopts double-ended duplex design
and external power supply with advantages of convenient
mounting and high reliability. The bandwidth of the signal
amplifier may cover GSM 25MHz/19 MHz/ 6MHz,
CDMA10MHz/DCS75 MHz with compatibility between
digital system and analogue system.
2. Technical features
High system gains
Full duplex and double-end design, external power
supply, and convenient installation
ALC technology with auto-steady function adopted.
Provide power indication and uplink and downlink
indications.
With the amplified linear power, the intermodulation and
spuriousness are suppressed effectively.
The reliability conforms to GB6993-86 standards.
The electromagnetic compatibility conforms to ETS300
609-4 standards.
3
MyAmplifiers.com - +44 977215553 (UK) , +33 977215553 (France),
E-mail: contact@myamplifiers.com - Skype: gsm_amplifier www.myamplifiers.com

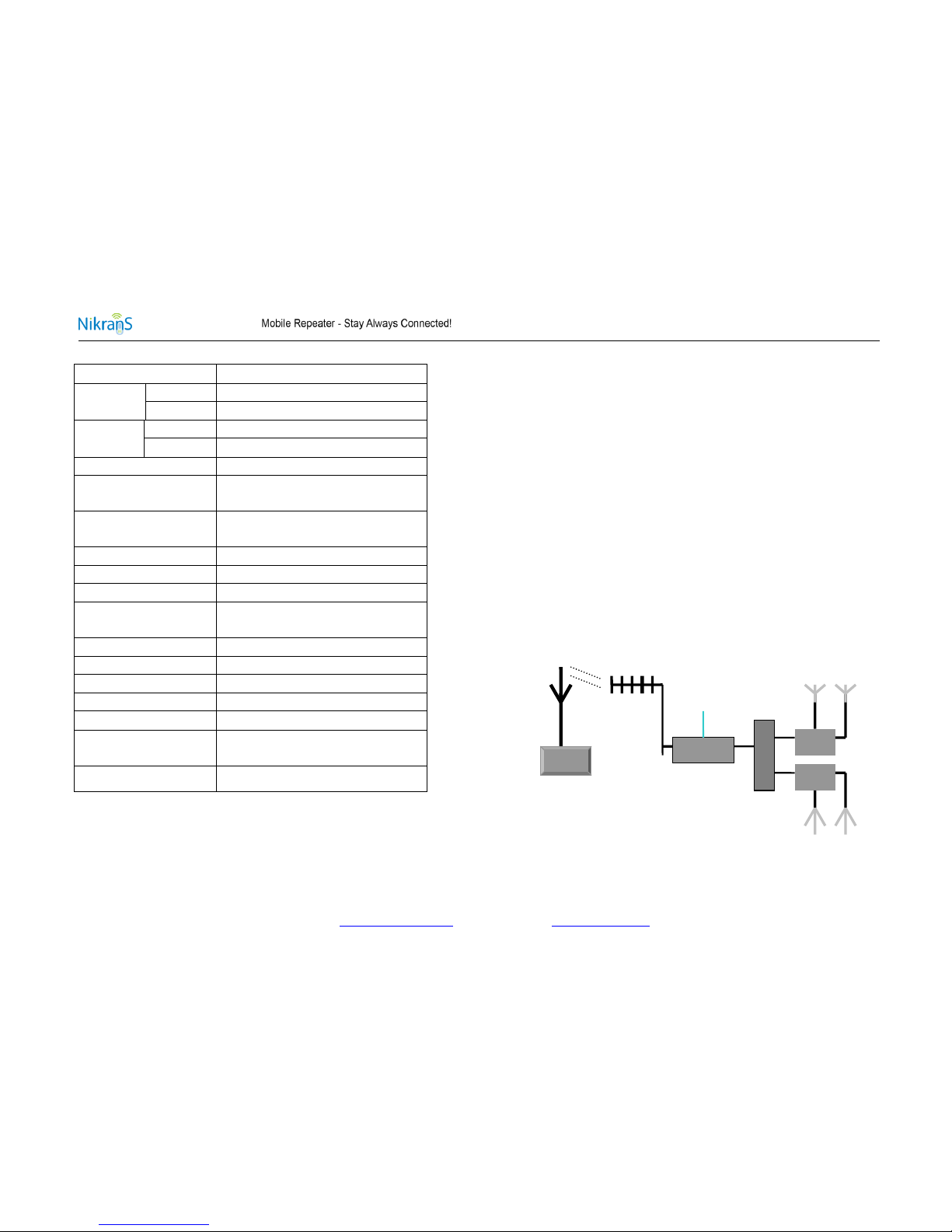

3. Technical 3G Signal Booster specification
Specification
Frequency
range(MHz)
Up link
1920-1980
Downlink
2110-2170
Gain(dB)
Up link
65
Downlink
70
Output power(dBm)
15
Pass band ripple
≤5dB
Guard band rejection
(BW-60dB)≤42 MHz(BW-70dB)≤45 MHz
I/O impedance
50/N Connector
I/O return loss
≤-10dB
Noise figure
≤8dB
Intermodulation attenuation
(Po=5dBm)
≥38dBc
Transmission Delay
≤0.5us
Ambient temperature
-10℃～50℃
Power supply
AC110～220V±10% 45～55Hz
Size
158mm*136mm*37mm
Reliability
To the GB6993-86 standard
Electromagnetic
compatibility
To the ETS300 694-4 standard
Function
a) Power supply LED denote
4. System structure
A simple signal amplifier system is composed of a host
signal amplifier, reverse antenna and in-door covering
system. Reverse antenna aims at the reverse base station
that requires for expanding the coverage, the BTS Port of
the host signal amplifier is connected with reverse antenna
and User’s Port is connected with in-door covering system.
As shown in the following diagram, firstly, the indoor signals
introduced by the signal amplifier are divided into two-way
signals by splitters, then each signal is distributed two
antennas through a coupler with the power distribution ratio
equal to circuit exhaust ratio so as to ensure both of the
antennas to obtain equal power (splitter and coupler may
can be configured flexibility). It shall be attached importance
that at least 15dB of the isolation shall be bigger than the
plus between reverse antenna and covering system for
meeting the requirements of C/I≥15dB of the
GSM/CDMA/DCS/PCS system.
220V
System structure diagram
BTS
Signal amplifier
splitter
Coupler
Coupler
4
MyAmplifiers.com - +44 977215553 (UK) , +33 977215553 (France),
E-mail: contact@myamplifiers.com - Skype: gsm_amplifier www.myamplifiers.com
5. Operation instructions

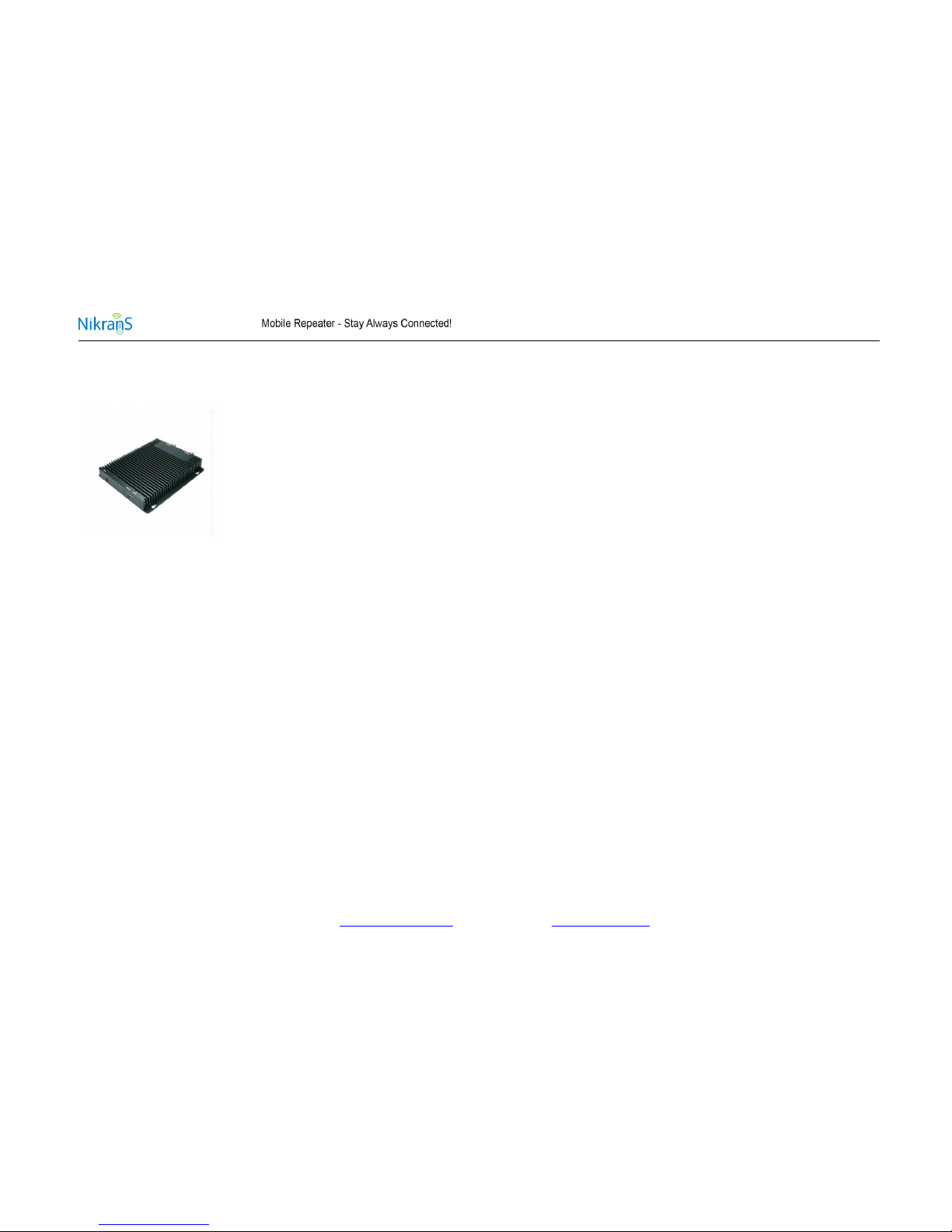

5.1. Descriptions of the overall dimension of the equipment
The whole-set shape is shown as follows:
RF Port BTS Port （Uplink input, Downlink output）
connected with reverse antenna facing to the base
station.
RF Port User’s Port （Uplink input, Downlink
output）connected with indoor covering system
Install Bracket
Power interface
Power indicator light
5.2 Instructions on installation
1. Firstly, select an appropriate position to mount. The
signal amplifier is better to be mounted close to
walls. At the position selected, punch a hole in the
wall as shown in the diagram and aim the bolt at the
hole. Then fasten and fix with expansion bolts.
2. Connect the BTS Port (in the diagram) with out door
reverse antenna through radio frequency cable. In
general, the reverse antenna is mounted at a higher
position. Yagi antenna and panel antenna may be
used. The main lobe of the antenna radiation is
oriented towards the base station and the reverse
antenna and base station antenna should be visible
as possible.
3. Connect User’s Port (in the diagram ) with the ports
of indoor covering system or indoor relay antenna.
In general, the indoor covering system is composed
of several splitters, couplers, expansion amplifiers
and antennas and applied as per specific
engineering design for the purpose of satisfying the
signal covering demands in large area or
complicated terrain indoor space. In the case of
small area indoor space, the requirements for
covering can be satisfied by using single relay
antenna with the option of hanging antenna or
ceiling antenna.
4. Finally, connect the power interface shown as in the
diagram to 5V8A power adapter and power on the
adapter with 220v AC. The signal amplifier
installation is thus completed.
5.3. Debugging and commissioning
5
MyAmplifiers.com - +44 977215553 (UK) , +33 977215553 (France),
E-mail: contact@myamplifiers.com - Skype: gsm_amplifier www.myamplifiers.com
1. Power on with 220V AC at the premise of no fault
being found in inspection. The glowing indicator light
shown as in the above diagram is means the power
supply works normally.
2. If the reverse antenna is mounted correctly, the
Downlink power indicator light should be on. In this
case, the covering area of the equipment shall be
larger than that in the technical specifications.
3. If the required covering area is too large and the
Downlink power indicator light is off after powering
on, it means that the input power is not sufficient
and the position of the reverse antenna should be
adjusted to receive more strong downlink signals.
4. When the debug is completed, select more than 20
points in the covering area to test the signal level
and talking effect of the mobile phone. It should be
ensured that the signal bar shall be fully filled with
strong signal in 90% of the covering area, and less
than 5% of the covering area can have two signal
bars. Meanwhile talking clearly and no interruption
occurs.
5. Switch off and then power on, check whether it is
normal. Then test with mobile phone, the working
state shall remain same as the original. Keep it
running for one to two hours around for further test.
6. Recheck the whole system and clean up the
working site.
7. Record the work and fill in the Engineering Records
Form in details and make the archives as well.
Notice:
1. The signal amplifier must be put into operation as per
the above mentioned steps strictly.
2. Ensure safety of the equipment and personnel. Be sure
that there is no connection fault before powering on.
3. Well Record the process and any fault shall be reported.
5.4 System maintenance
The strict power supply protection and power protection
measures in the design of the signal amplifier assure high
reliability of the equipment. When it is put into operation,
rarely is manual maintenance required. But for assuring the
high reliability of the communication in the covered area, it
is recommended to check them half a year regularly, which
shall include:
1. Check the reverse antenna system: find out if the
antenna orientation or position is changed, or if the bolt
is unfastened or loosened.
2. Check the indoor covering system: find out if the lines
are removed or if the fixed devices are loose and if
power is well connected. Remove the potential hazards
as early as possible, if any.
3. Check transmitting power: find out if the panel indicator
lights of the signal amplifier are working normally. The
power indicator light should be on and the Uplink and
Downlink power indicator lights should be on as well.
4. Timely remove the malfunction if any. Record the
maintaining process and fill in related forms.
6
MyAmplifiers.com - +44 977215553 (UK) , +33 977215553 (France),
E-mail: contact@myamplifiers.com - Skype: gsm_amplifier www.myamplifiers.com
6. Descriptions on maintenance
6.1. Faults
1. When 220VAC is connected, the power indicator light is
not on.
2. The power supply is normal, but the Uplink and
Downlink power indicator lights are not on even with the
signals received.
6.2. Troubleshooting
1. When the 220VAC is powered, the power indicator light
is not on. Firstly, check if the AC socket is in good
conditions and then check if the 220V power is in the
normal state with a multimeter at the voltage of AC
750V.
2. If the power supply is confirmed to be normal and the
signal is applicable, the Uplink and Downlink power
indicator lights are not on, check if cables are correctly
connected, and if the position and orientation of the
antenna are appropriate.
3. The above-mentioned check methods are mainly
applied for jobsite maintenance. In general, only a
multimeter is used instead of large size instruments.
Please contact the manufacturer if the malfunction still
cannot be removed after implementing the
above-mentioned methods of 1 and 2. HP8713D
network analyzer may be used for testing in the process
of maintaining in the labs or production plants. Different
malfunctions shall adopt different methods.
Service is forever
This User Manual concerns the signal amplifier product
series of our company. Some omissions are inevitable due
to insufficient preparing time. For any question, please
contact us for correction. We are ready for reply and serve
you wholeheartedly.
We sincerely hope that this User’s Manual will bring you
convenience, the changes of the standards, technical
requirements or varieties of product dimensions involved in
this User Manual may result in revision without notification
to you as technology develops and time goes by.
7
MyAmplifiers.com - +44 977215553 (UK) , +33 977215553 (France),
E-mail: contact@myamplifiers.com - Skype: gsm_amplifier www.myamplifiers.com
Contact Us
Customer Service contact information:
E-mail: contact@myamplifiers.com
MSN: contact@myamplifiers.com
Skype: gsm_amplifier
Phone: +(33) 977215553 (France)
+(44) 977215553 (UK)
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels MyAmplifiers Extenseur
