6G-SDI EXTENDER OVER FIBER
500732
500732-SM10
500732-SM40
500732-SM80
Installation & Operation Manual
© MuxLab Inc. 6G-SDI Extender Over FIBER
Page 2
Copyright Notice:
Copyright © 2015 MuxLab Inc. All rights reserved.
Printed in Canada. No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or
otherwise without prior written permission of the author.
Trademarks:
MuxLab Broadcast is a registered trademark of MuxLab Inc.
© MuxLab Inc. 6G-SDI Extender Over FIBER
Page 3
Table of Contents
1. Overview.........................................................................4
1.1. Description..............................................................4
1.2. Features...................................................................6
2. Technical Specifications ................................................7
3. Installation Procedure...................................................9
3.1. Parts List .................................................................9
3.2. Product Overview .................................................10
3.3. Physical Installation..............................................12
3.4. Installation & Power-up Procedure.......................14
3.5. Supported SDI Modes...........................................15
3.6. Supported Video Modes........................................16
3.7. SDI Input Connections..........................................17
3.8. SDI Output Connections.......................................17
4. Firmware Upgrade Procedure....................................18
4.1. Firmware Upgrade Procedure ...............................18
4.2. USB Driver Setup .................................................21
5. Unit Control and Status...............................................24
6. Troubleshooting ...........................................................25
7. Appendix.......................................................................27
A. ASCII Command Set.............................................27
8. Product Warranty Policy............................................30
© MuxLab Inc. 6G-SDI Extender Over FIBER
Page 4
1.
Overview
1.1.
Description
The 6G-SDI Extender is a unique new solution from MuxLab for
extending SDI based cameras* or other SDI sources* up to 4K @
30Hz resolution with the added benefit of extending the High
Resolution signal up to 985ft (300m) via OM3 multimode fiber
(model 500732), up to 1300ft (400m) via OM4 multimode fiber
(model 500732), up to 33,000ft (10km) via singlemode fiber
(model 500732-SM10), up to 132,000ft (40km) via singlemode
fiber (model 500732-SM40), and up to 264,000ft (80km) via
singlemode fiber (model 500732-SM80).
The input source for the 6G-SDI Extender over FIBER is either
HD-SDI using four coax cables, 3G-SDI using two coax cables, or
6G-SDI using a single coax cable.
© MuxLab Inc. 6G-SDI Extender Over FIBER
Page 5

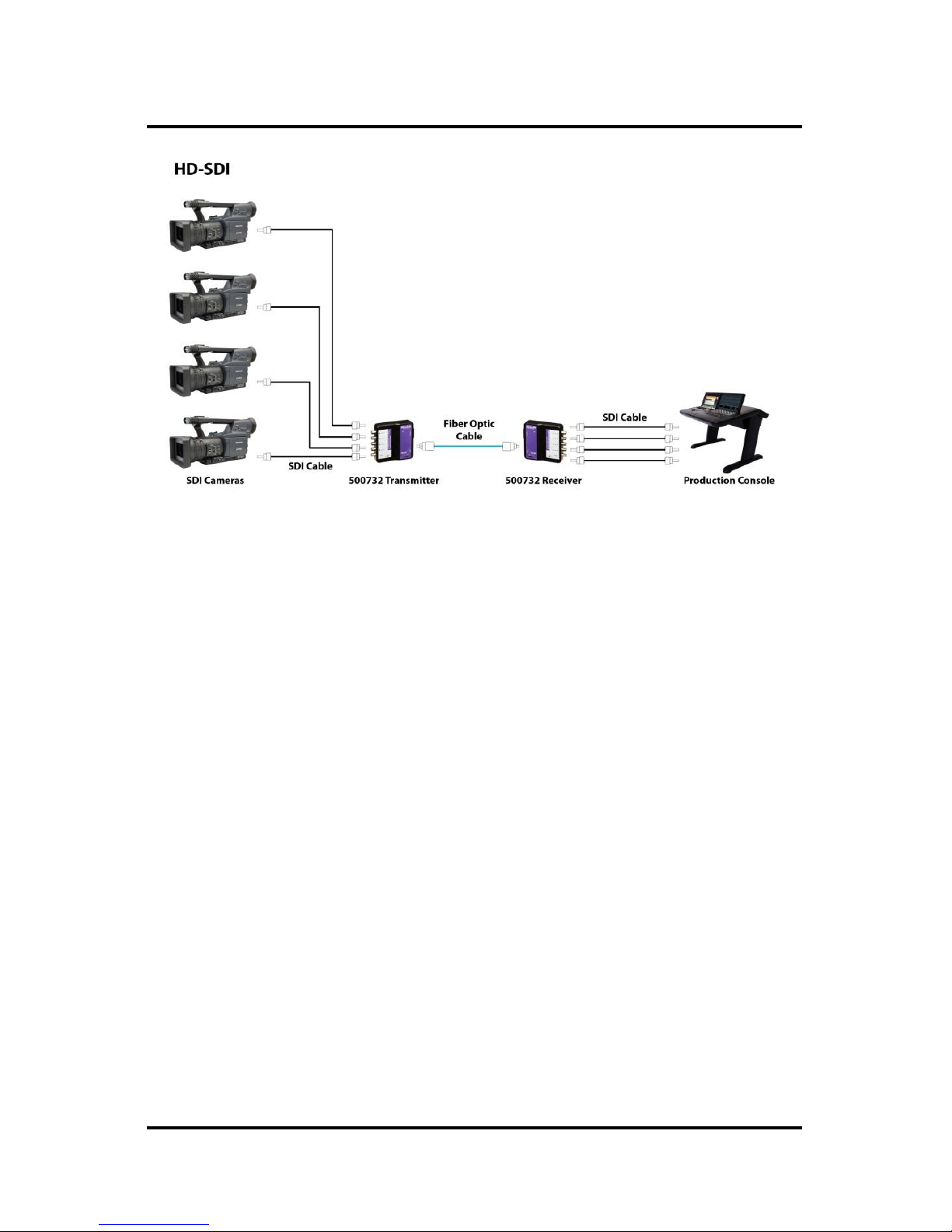

Figure 1 System Connectivity Overview
Typical Applications:
Video (cinema) production
Studio broadcasting production
Studio to Studio
Mobile video (broadcasting vehicle)
News coverage and live events
Post production
© MuxLab Inc. 6G-SDI Extender Over FIBER
Page 6
1.2.
Features
Up to 1300ft (400m) via multimode OM4 fiber and
up to 264,000ft (80km) via singlemode fiber.
HD-SDI using single, two or four coax cables, 3G-
SDI using single or two coax cables, 6G-SDI using
a single coax cable, with HDMI 3D support.
Maximum resolution supported: 4096x2160 @
24/25Hz, 3840x2160 @ 30Hz
Supported SMPTE Standards:
SMPTE-292M, SMPTE-296M, SMPTE-372M,
SMPTE-424M, SMPTE-425M
Supports all 6G channel configurations (1/2/4).
Automatic SDI Link recognition and configuration.
USB interface for field upgradable firmware and
diagnostics.
Standard 10G SFP+ module.
Multiple ¼”-20 threads for Camera mounting or
equipment attachment.
© MuxLab Inc. 6G-SDI Extender Over FIBER
Page 7
2.
Technical Specifications
Specifications
Environment
6G-SDI Digital Signal Transmission
Enclosures
Measurements
Tx: 110mm (4.3”) x 110mm (4.3”) x 32mm (1.25”)
Rx: 110mm (4.3”) x 110mm (4.3”) x 32mm (1.25”)
Color
Black Electrophoresis (Tx Unit)
Control
Serial Console Emulation with USB Interface
Distance
Model 500732: Up to 985ft (300m) via OM3
multimode fiber and 1300ft (400m) via OM4
multimode fiber.
Model 500732-SM10: Up to 33,000ft (10km) via
singlemode fiber.
Model 500732-SM40: Up to 132,000ft (40km) via
singlemode fiber. Requires a 5dB attenuator for
distances less than 33,000ft (10km).
Model 500732-SM80: Up to 264,000ft (80km) via
singlemode fiber. Requires a 10dB attenuator for
distances less than 115,500ft (35km).
Compliance
FCC, CE, RoHS
Power
12VDC, 1.25Amp
External Power Supply with US, UK & Euro blades
Table 1 Specifications
© MuxLab Inc. 6G-SDI Extender Over FIBER
Page 8
Transmitter Connectivity
Front Side
4x BNC SDI Input Connectors (0.8V pp, 75Ohms)
1x BNC Sync Output Connector
Rear Side
1x SFP+ module Connector
1x terminal block for RS232 interface
Top Side
Mini USB for firmware updates (plus control & status)
Table 2 Transmitter Connectivity
Receiver Connectivity
Front Side
4x BNC SDI Output Connectors (0.8V pp, 75Ohms)
1x BNC Sync Input Connector
Rear Side
1x SFP+ module Connector
1x terminal block for RS232 interface
Top Side
Mini USB for firmware updates (plus control & status)
Table 3 Receiver Connectivity
© MuxLab Inc. 6G-SDI Extender Over FIBER
Page 9
3.
Installation Procedure
3.1.
Parts List
The 6G-SDI Extender over FIBER Kit (500732,
500732-SM10, 500732-SM40 & 500732-SM80) come
with the following parts:
1x Transmitter Unit (Tx)
1x Receiver Unit (Rx)
2x 12VDC Wall-mount Power Supply
US, UK & Euro Blades for the Wall-mount Power
Supply
10G SFP+ modules with LC connectors
© MuxLab Inc. 6G-SDI Extender Over FIBER
Page 10
3.2.
Product Overview
3.2.1.
Transmitter
The external connections and light indicators of the
transmitter unit are detailed in Figure 2. Please
familiarize yourself with them before installing the unit.
6G/3G/HD-SDI Input
Compatible
LED Indicator
When SDI Link
is established
Power
LED Indicator
Mini-USB Port
Firmware Upgrade
& Unit Control
Flashing LED
Indicator
When
information
Is passing
through the link
Sync
Output
SFP+ module
3G/HD-SDI Input
Compatible
HD-SDI Input
Compatible
Figure 2 Front View of Transmitter
POWER
connector
SERIAL port
