MuxLab 500402 Manuel utilisateur

8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5

Tel: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

mail:

videoease@muxlab.com

URL:

www.muxlab.com

Specifications

Environment HDMI 1.4

Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers

supporting HDMI.

Transmission Transparent to the user

Bandwidth 225 MHz

Signals HDMI 1.4 protocol

Connectors HDMI receptacle.

Two (2) RJ45S for Cat 5e unshielded or shielded twisted pair.

Maximum Distance 480i/p: Cat5e: 150 ft (45 m) Cat6: 200 ft (60 m)

720p, 1080i: Cat5e: 150 ft (45 m)

Cat6: 200 ft (60 m)

1080p:

Cat5e: 100 ft (30 m) Cat6: 150 ft (45 m)

STP is recommended where EMI/RFI may be an issue. Usage of

patch panels is not recommended. When connected to Deep

Color equipment, the 500402 removes the Deep Color content to

support greater cable length than would normally be achieved.

RJ45 Pin Configuration

Reverse Polarity Sensitive

Use EIA/TIA 568 A or B

straight-through wiring.

RJ45 A (Video)

Pin 1 (R) Pin 2 (T)

Pin 3 (R) Pin 6 (T)

Pin 4 (R) Pin 5 (T)

Pin 7 (R) Pin 8 (T)

RJ45 B (DDC)

Pin 1 (R) Pin 2 (T)

Pin 3 (R) Pin 6 (T)

Pin 4 (R) Pin 5 (T)

Pin 7 (R) Pin 8 (T)

Cable Two (2) Cat5e/6 or better solid core twisted pair cables required

Temperature Operating: 0° to 55°C Storage: -20° to 85°C

Humidity: up to 95% non-condensing

Enclosure Metal enclosure, PVC sleeve

Dimensions 10.6” x 1.9” x 0.8” (27.0 cm x 4.8 cm x 2.0 cm)

Weight 10.8 oz. (307 g)

Compliance Regulatory: FCC, CE, RoHS

Flammability: 94V1

Warranty 2 years

Order Information 500402 HDMI Passive Extender Kit

HDMI Passive Extender Kit (500402)

Quick Installation Guide

Overview

The HDMI Passive Extender Kit (500402) allows HDMI equipment to be

connected up to 150 ft (45m) @ 1080i via two (2) Cat5e unshielded twisted pair

cables in a point-to-point configuration. The product also works with 1080p up to

150 ft (45m) via Cat6 cable. The kit comes with one (1) Transmitter and one (1)

Receiver. Applications include; commercial and residential AV systems, classroom

projector systems, digital signage, boardroom systems, collaborative PC systems,

medical information systems.

Pre-Installation Check

Identify the connectors on the Source Side and Display Side as indicated on the

product.

All manuals and user guides at all-guides.com

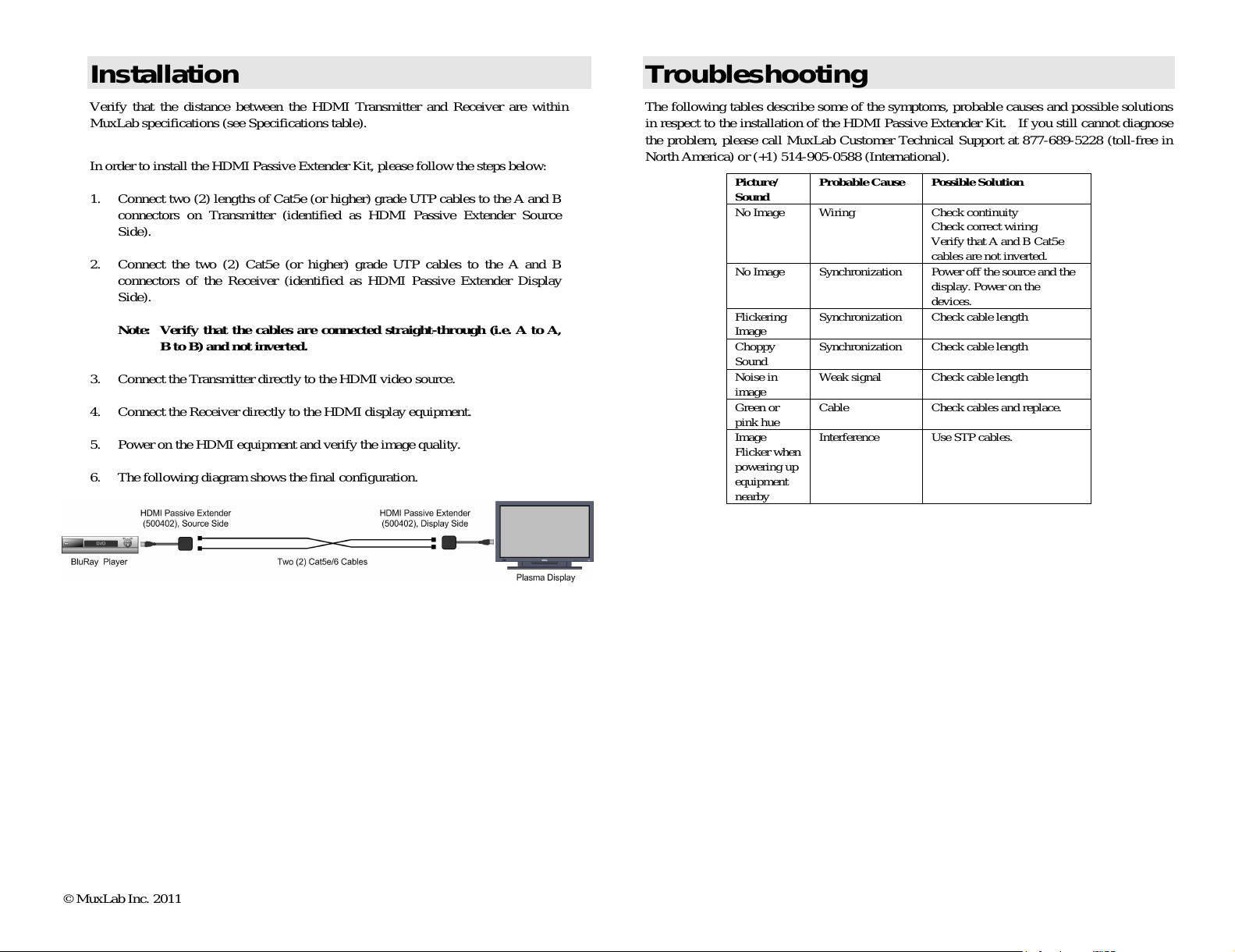

Installation

Verify that the distance between the HDMI Transmitter and Receiver are within

MuxLab specifications (see Specifications table).

In order to install the HDMI Passive Extender Kit, please follow the steps below:

1. Connect two (2) lengths of Cat5e (or higher) grade UTP cables to the A and B

connectors on Transmitter (identified as HDMI Passive Extender Source

Side).

2. Connect the two (2) Cat5e (or higher) grade UTP cables to the A and B

connectors of the Receiver (identified as HDMI Passive Extender Display

Side).

Note: Verify that the cables are connected straight-through (i.e. A to A,

B to B) and not inverted.

3. Connect the Transmitter directly to the HDMI video source.

4. Connect the Receiver directly to the HDMI display equipment.

5. Power on the HDMI equipment and verify the image quality.

6. The following diagram shows the final configuration.

Troubleshooting

The following tables describe some of the symptoms, probable causes and possible solutions

in respect to the installation of the HDMI Passive Extender Kit. If you still cannot diagnose

the problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in

North America) or (+1) 514-905-0588 (International).

Picture/

Sound Probable Cause Possible Solution

No Image Wiring Check continuity

Check correct wiring

Verify that A and B Cat5e

cables are not inverted.

No Image Synchronization Power off the source and the

display. Power on the

devices.

Flickering

Image Synchronization Check cable length

Choppy

Sound Synchronization Check cable length

Noise in

image Weak signal Check cable length

Green or

pink hue Cable Check cables and replace.


Flicker when

powering up

equipment

nearby

Interference Use STP cables.
