MuxLab 500816 Manuel utilisateur

8 Button RS232/IR

Control Panel

500816

8 Button RS232/IR Control Panel Installation & Operation Manual

SAFETY PRECAUTIONS

To insure the best use from the product, please read all instructions carefully before

using the device. Save this manual for further reference.

Follow basic safety precautions to reduce the risk of fire, electrical shock and injury

to persons.

Do not dismantle the housing or modify the module. It may result in electrical shock

or burn.

To prevent fire or shock hazard, do not expose the unit to rain, moisture or install

this product near water. Keep the product away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage.

If an object or liquid falls or spills on to the housing, unplug the module immediately.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to

the device before cleaning.

Using supplies or parts not meeting the product’s specifications may cause damage,

deterioration or malfunction.

Refer all servicing to qualified service personnel.

Install the device in a place with good ventilation to avoid damage due to

overheating.

Unplug the power cord when left unused for a long period of time.

Do not put any heavy items on the unit or on extension cable.

Do not remove the housing of the device as you may be exposed to dangerous

voltage or other hazards.

Information on disposal of devices: do not burn or mix with general household

waste, please treat this device as normal electrical waste.

Unpack the equipment carefully and save the original box and packing material for

possible future shipment.

Please read this user manual carefully before using the product.

8 Button RS232/IR Control Panel Installation & Operation Manual

Contents

Introduction ...............................................................................................................41.

1.1. Introduction to the 8 Button RS232/IR Control Panel.....................................4

1.2. Features.........................................................................................................4

1.3. Package Content ...........................................................................................5

1.4. Installation......................................................................................................5

Specification..............................................................................................................62.

Panel Description......................................................................................................73.

3.1. Front Panel ....................................................................................................7

3.2. Rear Panel.....................................................................................................8

3.3. Side Panel .....................................................................................................9

Connections............................................................................................................104.

4.1. Safety Precautions.......................................................................................10

4.2. System Diagram ..........................................................................................10

4.3. Connections for Programming and Looping.................................................10

System Operation ...................................................................................................125.

5.1. USB Driver Installation.................................................................................12

5.2. Software Programming................................................................................12

5.2.1. Main Menu...................................................................................................13

5.2.2. Panel/Key setting.........................................................................................16

5.2.3. Action List ....................................................................................................18

5.2.4. Setting Events..............................................................................................19

5.2.5. Event List.....................................................................................................29

Panel Drawing.........................................................................................................316.

Troubleshooting & Maintenance..............................................................................327.

Regulatory Compliance ................................................................................................33

8 Button RS232/IR Control Panel Installation & Operation Manual

Introduction1.

1.1. Introduction to the 8 Button RS232/IR Control Panel

The programmable control panel is a Wall-Mounted Control Panel. Every button is

programmable and works either individually or together. The programmable control

panel is built with the following interface: three (3) RS232, One (1) RS485, Three (3)

Infrared, two (2) Relay, and one (1) mini USB for programming.

Please note that:

“RS232 (1)”and “IR2”share the same port, and cannot be used at the same

time.

“RS232 (2)”and “IR3”share the same port, and cannot be used at the same

time.

The 8 Button RS232/IR Control Panel can control MuxLab products, as well as third

party devices such as projectors, screens etc. It is an easy-to-use control device for

presentation show rooms, classrooms and boardrooms.

1.2. Features

Each button can be programmed to send bi-direction RS232 and RS485

commands simultaneously to control MuxLab and third party devices.

Each button can be programmed to send infrared codes and control the

relays simultaneously to control MuxLab and the third party devices.

Each button supports a built in infrared code and RS232 code learning

function, including baud-rate setting.

ID looping function. Up to 99 units may be chained (looped) and controlled

together, via an ID identification.

The unit may be programmed through the USB or RS232 port, via the Control

Panel PC Software.

The unit supports backlit buttons with easy to change customizable labels.

The backlit brightness is controllable.

Face-Plate Dimension: 11.4cm (H) x 7cm (W).

Antistatic case design: providing good protection for long-term and stable

performance.

8 Button RS232/IR Control Panel Installation & Operation Manual

1.3. Package Content

One (1) 8 Button RS232/IR Control Panel

Four (4) captive screw Terminal Block connectors

Three (3) IR Emitter probes

One (1) Button Label sheet

One (1) USB type Ato Mini USB cable

Eight (8) Button Caps

One (1) 12VDC, 2.0A Power Adapter with US, UK & Euro Blade.

One (1) User Manual

Please verify that the product and the accessories are all included; if not, please

contact your dealer.

1.4. Installation

Follow the steps to install the device:

First, cut a hole on the surface of where the unit is to be installed, such as on a

desktop or desk-side panel, etc. Cut to the size indicated by the cut-out diagram in

Figure 1.

Second, fit the unit into the cut-out and adjust it so that it is flush with the surface (see

Figure 2).

Next, screw the unit face-plate securely to the surface with two screws and nuts.

Lastly, connect the unit power connector to the provided 12VDC power supply, but

do not connect the 12VDC power supply to the AC power outlet at this time.

Figure 1 Cut-out diagram

Figure 2 Installation Guide

8 Button RS232/IR Control Panel Installation & Operation Manual

Specification2.

Devices

Matrix, Switch, DVD, projectors, monitors, TV.

Compatibility

Compatible with MuxLab & Third party products

Output Ports

Three (3) RS232 ports

One (1) RS485 port

Three (3) Infrared Emitter ports

Two (2) Relay ports

Control Ports

USB or RS232 (either may be used)

Connectors

One (1) 2-pin terminal block (3.81 mm) for Power

Two (2) 2-pin terminal blocks (3.81 mm) for Relay

Two (2) 5-pin terminal blocks (3.81 mm) for Serial & IR

One (1) USB Port for firmware upgrade

Power Supply

One (1) 110-240VAC to 12VDC/2.0A power supply with US,

UK & Euro Blade

Temperature

Operating: 0° to 40°C Storage: -20° to 70°C

Humidity: Up to 95% non-condensing

Enclosure

Metal

Dimensions

4.49” x 2.76” x 1.10” (114mm x 70mm x 28mm)

Weight

0.33 lbs (0.15 kg)

Compliance

Regulatory: FCC, CE, RoHS

Warranty

2 years

Order Information

500816 8 Button RS232/IR Control Panel

8 Button RS232/IR Control Panel Installation & Operation Manual

Panel Description3.

3.1. Front Panel

No.

Name

Description

Button

Crystal clear and luminescent, programmable buttons:

Each button can be independently programed using the

Control Panel PC Software. To do so run the application

and connect the computer via a USB or RS232

connection to the 8 button RS232/IR Control Panel (see

section 5 for details on using the Control Panel PC

Software, found on the MuxLab website).

Each label within a button can be easily changed.

Simply select the label you need and change it as

shown below:

①

8 Button RS232/IR Control Panel Installation & Operation Manual

3.2. Rear Panel

No.

Name

Description

Power

Power connector: 12VDC. Please make sure the “+”

and “-” are connected correctly (using the correct

polarity), in order not to damage the unit.

Relay

Low Voltage Relay.

Output Port

(Section 1)

RS232 (1)/IR2: RS232 (1) and IR2 share the same

port, the actual use depends on the configuration set

by the Control Panel PC Software. When configured

for RS232, it is a unidirectional transmission,

meaning data may be transmitted, but not received.

IR1: IR1 may be used to control devices, and can be

program via the Control Panel PC Software.

RS485: The RS485 can be programmed to control a

device via the RS485 port. The command set for

RS485 is the same as for RS232 (1).

Output Port

(Section 2)

The section includes two groups:

RS232 (2)/IR3: RS232 (2) and IR3 may be used to

control devices, or used for chaining (looping output).

①

④

③

②

8 Button RS232/IR Control Panel Installation & Operation Manual

No.

Name

Description

RS232 (2) and IR3 share the same port, the actual

use depends on the configuration set by the Control

Panel PC Software.

RS232 (3): RS232(3) may be used to control

devices, used for chaining (looping output), or to

connect to a computer when programming the 8

button RS232/IR Control Panel.

These two groups share the same ground.

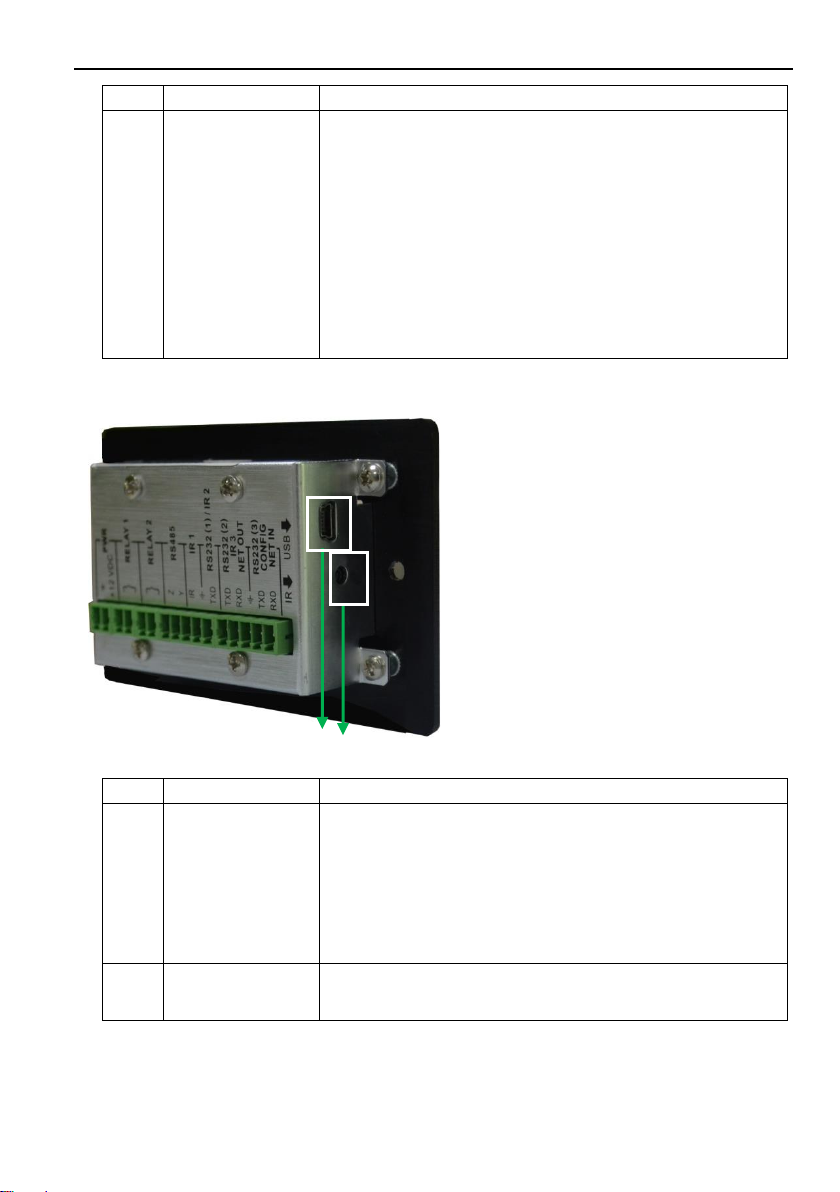

3.3. Side Panel

No.

Name

Description

Mini USB

Communicates with the computer and may be used

to update the unit firmware, or used in conjunction

with the Control Panel PC Software to program the

buttons of the device.

Transmit the infrared data when learning IR

(Optional).

IR Sensor

Receives and learns IR codes, in order to build an IR

command database.

①

②

8 Button RS232/IR Control Panel Installation & Operation Manual

Connections4.

4.1. Safety Precautions

The system should be installed in a clean environment with temperature and humidity

levels within the specified operating range.

All devices should be connected before turning on power.

4.2. System Diagram

The programmable 8 Button RS232/IR Control Panel (also references here-in as

programmable Control Panel) can send commands to different ports at the same time.

Meaning, each button can send RS232 commands, RS485 commands, IR codes and

control the relays with a single push of one button. See the example system diagram

below (Figure 3).

Figure 3 Example System Diagram

4.3. Connections for Programming and Looping

The programmable control panel may be connected to a computer in order to program

Table des matières

Autres manuels MuxLab Panneau de contrôle

MuxLab

MuxLab 500816-IP-V2 Manuel utilisateur

Manuels Panneau de contrôle populaires d'autres marques

RDZ

RDZ PC-HRX Manuel utilisateur

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manuel technique

Efka

Efka Variocontrol V810 Manuel utilisateur

Cebora

Cebora 208-10 Manuel utilisateur

AMX

AMX AutoPatch CP-15 Manuel utilisateur

Satel

Satel CA-6 KLED-S Manuel utilisateur

Evolution

Evolution IQ plus 800 Manuel utilisateur

Fagor

Fagor 8040 TCO CNC Manuel utilisateur

Trane

Trane ComfortLink II XL950 Control Manuel utilisateur

AKO

AKO PROCool AKO-17635-2 Manuel utilisateur

ABB

ABB 6136/30M-101 Manuel utilisateur

Telikou

Telikou BK-603 Belt Pack Manuel utilisateur

Mapei

Mapei Mapeheat Thermo Touch Manuel utilisateur

Bosch

Bosch D9412GV4 Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manuel utilisateur

Sminn

Sminn BOX L VF1L EI Manuel utilisateur

Balboa

Balboa TP600 Manuel utilisateur

Nice

Nice HSCU1 Caractéristiques techniques
