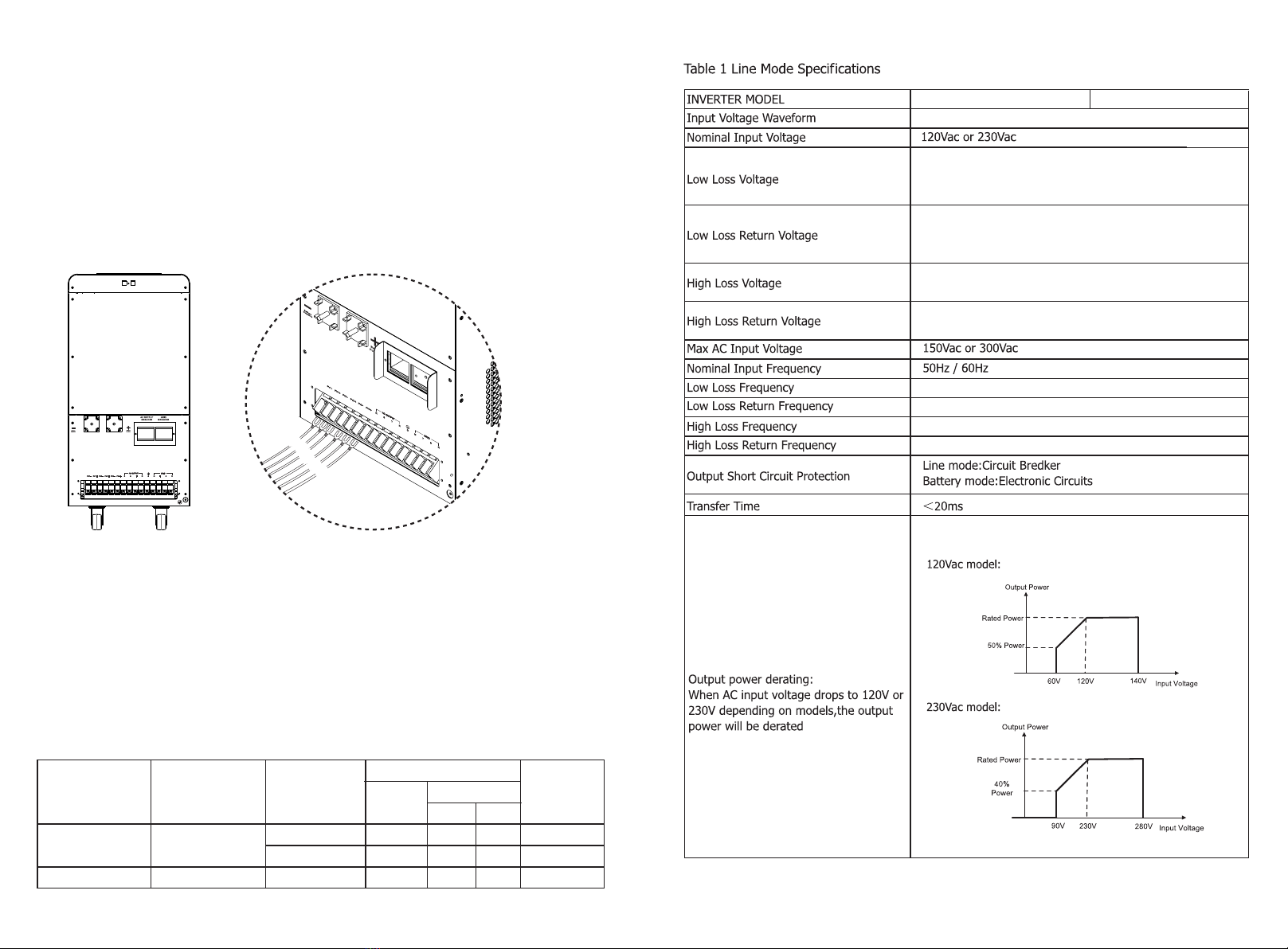

PRODUCT INTRODUCTION
This is a multi-function Energy Storage Inverter, combining functions of inverter, On-Grid,
MPPT solar charger and battery charger to offer uninterruptible power support. It's
comprehensive LCD display offers user-configurable and easy-accessible button operation
such as battery charging current, AC/solar charger priority, and acceptable input voltage
based on different applications.
Features
Pure sine wave inverter.
Built-in MPPT solar charge controller.
On-grid Inverter with Energy Storage.
Selectable input voltage range for home appliances and personal computers LCD setting.
Selectable battery charging current based on applications via LCD setting.
Selectable Multiple application modes: Load priority mode, Math load mode, Sell mode,
Backup UPS mode and Off grid priority mode.
Auto restart while AC is recovering.
Smart battery charge design for optimized battery performance.
Multiple communication for RS-485 and CAN BUS.
Overload and short circuit protection.
Basic System Architecture
This energy storage inverter can provide Power to connected loads by utilizing PV power,
grid power and battery power.
External
Battery pack
Grid
PV panel
Home Appliances
PV panel PV panel
- 2 -
Fault code 84
Fault code 85
Fault code 86
Fault code 87
Fault code 88
Fault code 89
Fault code 90
CAN ID setting Error
AC input voltage and
frequency are
detected different
AC output current
unbalance
AC output mode setting
is different
1.Check the grid wiring
conncetion and restart the
inverter.
2.If the problem remains,
please contact your installer.
1.Restart the inverter.
2.If the problem remains,
please contact your installer
1.Switch off the inverter
and check the DIP switch
setting.
2.If the problem remains,
please contact you installer.r
Current feedback into the
inverter is detected.
The firmware version of
each inverter is not the
same.
The output current of each
inverter is different.
1.Check if sharing cables are
connected well and restart
the inverter.
2.If the problem remains,
please contact your installer.
1.Update all inverter firmware
to the same version.
2.If the problem remains,
please contact your installer.
1.Restart the inverter.
2.If the problem remains,
please contact your installer.
1.Switch off the inverter and
check the DIP switch setting.
2.If the problem remains,
please contact your installer.
Fault code 80 CAN data loss
Fault code 81 Host data loss
Fault code 82
Fault code 83
1.Check if communication
cables are connected well
and restart the inverter.
2.If the problem remains,
please contact your installer.
1.Make sure all inverters s
hare same groups of
batteries together.
2.If the problem remains,
please contact your installer.
The battery voltage of
each inverter isnot
the same.
Synchronization data loss
