musikelectronic geithain

TS 37SP

TS 37KSP

Instructions for installation and use

TABLE OF CONTENTS II

musikelectronic geithain GmbH TS 37SP / TS 37KSP

Table of contents

1 Introduction 1

2 Disclaimer 2

3 System description 3

4 Specications 4

4.1 Technicalspecications 4

4.2 Acousticaldiagramms 6

4.3 Technicaldrawings 7

5 Basic information 9

5.1 Guidelines 9

5.2 Disposal 9

5.3 Safetyinstructions 11

5.4 Deliverycontents 14

5.5 Cleaning 14

5.6 Environmentalconditions 14

5.7 Guaranteeacknowledgements 14

6 Controls and connections 15

7 Installation and operation 17

7.1 Mountingandpositioning 17

7.2 Startingupthespeakers 18

7.3 Wiring 19

7.4 Cableconnection 19

8 Operationandcongurationofthedevice 20

8.1 DesktopsoftwareMEGeithainDSPControl 20

8.2 Menustructure 20

8.3 Homescreen 20

8.4 Presetmenu 21

8.5 Channelmenu 22

8.6 Enteringnamesandpasswords 24

9 User rights 25

10 Troubleshooting 26

11 Notes 27

INTRODUCTION 1

musikelectronic geithain GmbH TS 37SP / TS 37KSP

1 Introduction

Dearcustomer,

Thankyouforthetrustyouhaveputinusbybuyingthesespeakers.Youdecideduponaquality

productthatinregardtotonalandtechnicalcharacteristicscompliestotheutmostexpectations.

Theusualburn-inperiodisnotrequired,becausethespeakersarearticiallyagedin-house.

Pleasereadthetechnicaldescriptionandmanualtotakeadvantageofthecapabilities

of these speakers and ensure safe operation.

DISCLAIMER 2

musikelectronic geithain GmbH TS 37SP / TS 37KSP

2 Disclaimer

Technical data and appearances are subject to changes without notice. Errors and omissions

excepted.MusikelectronicGeithainGmbHassumesnoliabilityforanylosswhichmaybesuffered

byanypersonwhorelieseitherwhollyorinpartuponanydescription,photographorstatement

contained herein. Musikelectronic Geithain GmbH products are sold through authorized fulllers

and resellers only. Fulllers and resellers are not agents of Musikelectronic Geithain GmbH and

have absolutely no authority to bind Musikelectronic Geithain GmbH by any express or implied

undertakingorrepresentation.Thismanualiscopyrighted.Nopartofthismanualmaybereproduced

ortransmittedinanyformorbyanymeans,electronicormechanical,includingphotocopyingand

recording,orbyanyinformationstorageorretrievalsystemwithoutthepriorwrittenpermissionof

MusikelectronicGeithainGmbH.

Allrightsreserved

SYSTEMDESCRIPTION 3

musikelectronic geithain GmbH TS 37SP / TS 37KSP

3 System description

The active two-way reinforcement systems TS37KSP and TS37SP feature linearity and high

dynamics.Asanall-roundsystemtheyareusefulforspeechandmusicreproductioninmiddleand

largesizedauditoriaandaretherightdecisionwhensystemswithhighlevelsareneeded.Theactive

conceptallowsexibleadjustmentstoacousticalconditionsandguaranteesaperfectcombinationof

speakersandampliers.Thankstopre-programmedpresetsacombinationofouractivesubwoofers

andspeakerssavesthetimetocongurealoudspeakermanagementsystemandimmediatelyoffers

aperfectlyadjustedsystem.

Thecomponentsincludetwo10-inchconewoofersandone1.4-inchcompressiondriver.Bothare

effectivelysecuredfromdestructionbyaninternallimiter.Duringdevelopmentthehighfrequency

soundtransmissionwasoptimisedforsmallestpossiblecolouration.ThebassreexversionTS37SP

reaches a lower cut-off frequency of 65Hz. The resulting bass level enables the use as a full-

range system in many situations. Optionally our TT-subwoofers can be employed to extend the

basstransmissionrangemorethanoneoctave.Thewaveguideofthehorndriverisavailableintwo

openinganglesandisalsomountablerotatedthrough90°.Sothespeakerbecomesexiblyusable

andisaswellvariableregardingthemountingposition.

Avarietyofavailablemountingsprovideeasyassemblyforalmosteveryapplication.

SPECIFICATIONS 4

musikelectronic geithain GmbH TS 37SP / TS 37KSP

4 Specications

4.1 Technicalspecications

Cabinettype

TS37SP

TS37KSP

ventedcabinet

cardioiddirectivityinlowfrequencies

MaximumSPL 129dBpeak/r=1m(3′3″)

Frequencyresponse

TS37SP

TS37KSP

65Hz…20kHz−6dB

100Hz…20kHz−6dB

Coverageanglef>2 kHz 90°×60°(H×V)

60°×40°(H×V)

Transducers

2× 10″cone

1× 1.4″compressiondriver

Calibration

Acousticoutputlevel/PE=−14dBu 99dBSPL/r=1m(3′3″)

Mainsvoltage 85V…260V

Powerconsumption

Maximum

No-load

Stand-by

800W

25W

16W

Mainsconnectors 1×Powercon

1×Powerconloop-throughoutput

Ampliertype 2-channelPWMamplierwithtemperaturecontrolled

fan

Nominaloutputpower 2×300W

Maximumoutputpower 2×450W

Noiselevel ≤9dB(A)/r=1m(3′3″)

Inputs 1×XLRanalogue

Inputlevel −6dBu...+6dBu

Outputs 1×XLRanalogue

Controlinputs 1×RJ45Ethernet

1× USB

Electroniccrossoverfrequency 1.9kHz

Directivityindex seediagram

Equalizer 10freeprogrammableparametricEQs

Delay upto800ms

Dimensions(h×w×d) 860×320×370mm(33.9″×12.6″×14.6″)

SPECIFICATIONS 5

musikelectronic geithain GmbH TS 37SP / TS 37KSP

Weight 30kg(66.2lbs)

Environmentalspecications

Operatingtemperature

Storagetemperature

Relativehumidity

+15°C…+35°C(+59°F...+95°F)

−25°C…+45°C(−13°F...+113°F)

45%…75%

Designofthecabinet lumbercoreplywoodwithscratchproofstructure

coating

blackRAL9005,othercoloursonrequest

Additionalaccessories(optional) securitylug

stand,wallandceilingmountelements

SPECIFICATIONS 6

musikelectronic geithain GmbH TS 37SP / TS 37KSP

4.2 Acoustical diagramms

20 50 100 200 500 1k 2k 5k 10k 20k

[dB]

[Hz]

DIRECTIVITY INDEX (coverage angle 90° x 40°)

25 50 100 200 500 1k 2k 5k 10k 20k

105

100

[dB]

[Hz]

0° (TS37SP) 0° (TS37KSP) 45°h 180°h

FREE FIELD FREQUENCY RESPONSE

SPECIFICATIONS 7

musikelectronic geithain GmbH TS 37SP / TS 37KSP

4.3 Technical drawings

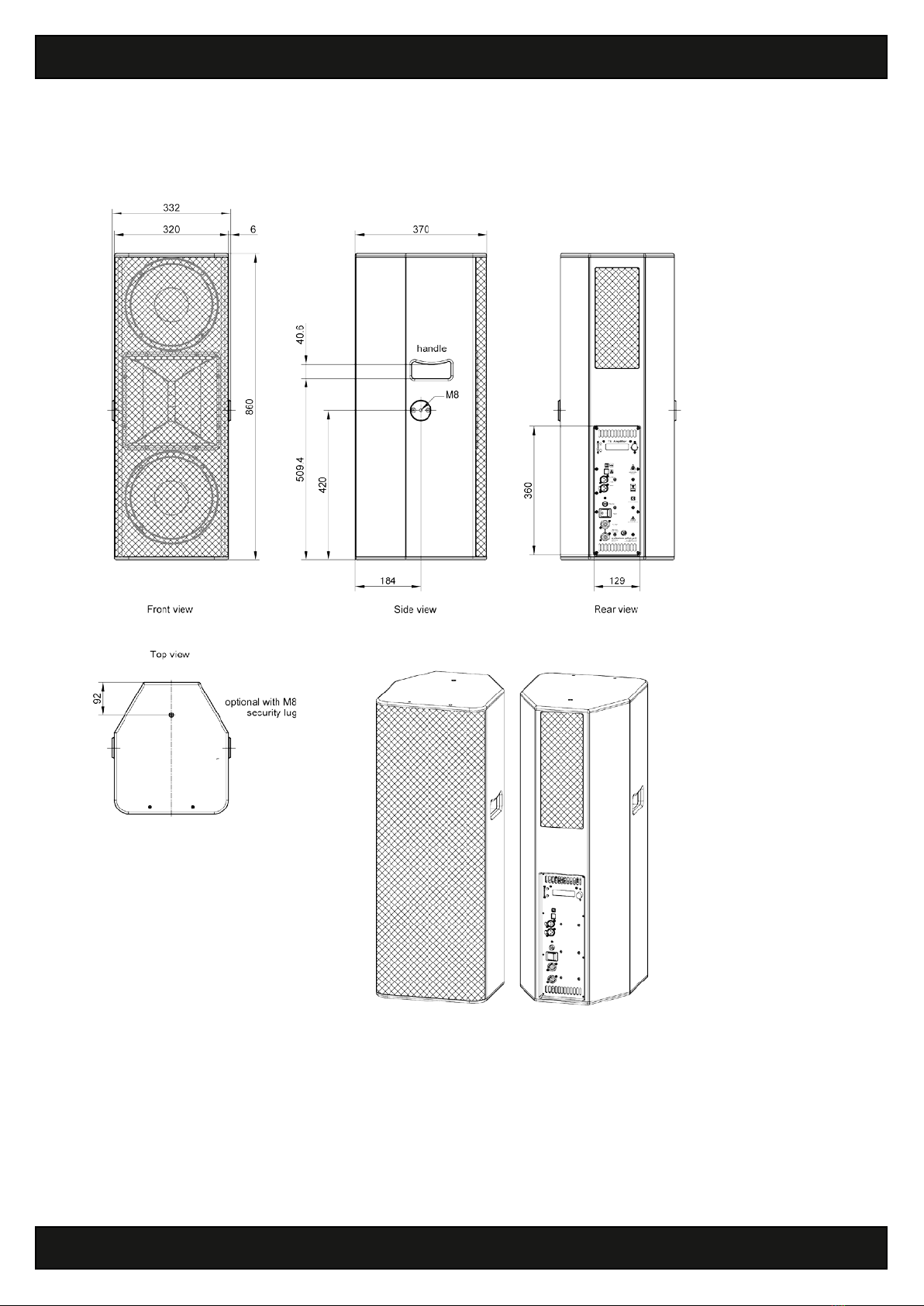

4.3.1 TS 37SP

SPECIFICATIONS 8

musikelectronic geithain GmbH TS 37SP / TS 37KSP

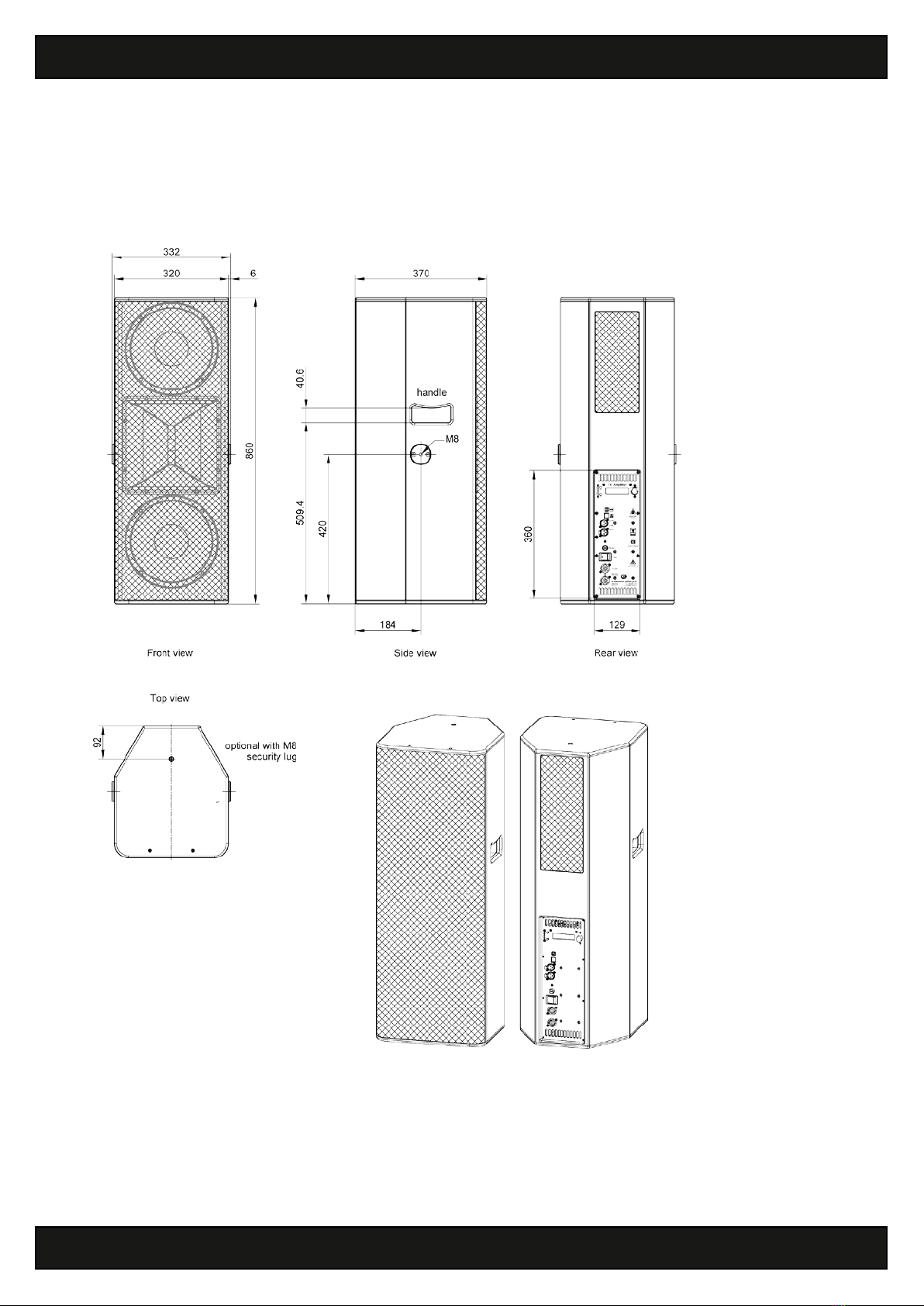

4.3.2 TS 37KSP
