musikelectronic geithain ME802K Manuel utilisateur
musikelectronic geithain
ME 802K
Instructions for installation and use
TABLE OF CONTENTS II
musikelectronic geithain GmbH ME 802K
Table of contents
1 Introduction 1
2 Disclaimer 2
3 System description 3
4 Basic information 4
4.1 Guidelines 4
4.2 Safety instructions 4
4.3 Unboxing 6
4.4 Delivery contents 6
4.5 Cleaning 6
4.6 Environmental conditions 6
4.7 Guarantee acknowledgements 6
5 Positioning 7
5.1 Positioning near walls 7
5.2 Stereo operation 8
5.3 Surround operation 9
6 Set-up the speakers 10
6.1 Mains connection 10
6.2 Cable connection 10
6.3 Adjustment controller 11
6.4 Status indication 11
6.5 LFE input 11
7 Specications 12
8 Acoustic measurements 13
9 Notes 14
INTRODUCTION 1
musikelectronic geithain GmbH ME 802K
1 Introduction
Dear customer,
Thank you for the trust you have put in us by buying these speakers. You decided upon a quality
product that in regard to tonal and technical characteristics complies to the utmost expectations.
The usual burn-in period is not required, because the speakers are articially aged in-house.
Please read the technical description and manual to take advantage of the capabilities
of these speakers and ensure safe operation.
DISCLAIMER 2
musikelectronic geithain GmbH ME 802K
2 Disclaimer
Technical data and appearances are subject to changes without notice. Errors and omissions
excepted. Musikelectronic Geithain GmbH assumes no liability for any loss which may be suffered
by any person who relies either wholly or in part upon any description, photograph or statement
contained herein. Musikelectronic Geithain GmbH products are sold through authorized fulllers
and resellers only. Fulllers and resellers are not agents of Musikelectronic Geithain GmbH and
have absolutely no authority to bind Musikelectronic Geithain GmbH by any express or implied
undertaking or representation. This manual is copyrighted. No part of this manual may be reproduced
or transmitted in any form or by any means, electronic or mechanical, including photocopying and
recording, or by any information storage or retrieval system without the prior written permission of
Musikelectronic Geithain GmbH.
All rights reserved
Copyright © 2018 Musikelectronic Geithain GmbH
SYSTEM DESCRIPTION 3
musikelectronic geithain GmbH ME 802K
3 System description
The 4-way concept of the ME 802K comprises three 10-inch woofer systems, a 6.5-inch high-
performance midrange system and a tweeter array with three vertically arranged 1-inch dome
tweeters. The directivity of the system has been optimized for listening distances of between three
and eight metres, rendering a natural sound pattern in stereo and multichannel operation. Two 1000 W
and two 500 W amplier modules supply the bass, mid and treble channels with sufcient power. The
resulting overload safety ensures that even signals with highest peak levels are not limited. Also,
sound pressure levels of up to 125dB can be performed without audible distortions throughout the
effective frequency range. A room compensation network, integrated into the amplier electronics,
allows control of the room-dependent frequency response.
The vertical arrangement of the 10-inch woofers provides a directivity index that ensures realistic
bass presence even at listening distances of up to eight metres. Our reliable K Technology minimizes
rearward-directed room reections in the bass range and simplies the positioning of the ME 802K
in the listening room. If required, the three 10-inch bass units can be operated as subwoofers via
the LFE input.
The low coloration and low distortion of the 6.5-inch high-performance midrange system result from
the intelligent combination of several construction details. The cone loudspeaker, for example, runs
without contact to the enclosure, thus avoiding the problem of cabinet resonances. Instead, the
midrange system is operated with a rearward-directed acoustic ow resistor in order to achieve the
desired directivity.
Frequently used wave guides in front of tweeter systems make directivity control easy. However,
they tend to produce unavoidable coloration due to short-time reections on the inner horn surface.
We take a different approach by using a tweeter array and doing without horn loudspeaker systems
for sound level enhancement. The tweeter unit that is arranged coaxially in front of the midrange
system guarantees the trademark low coloration reproduction of sound events in our loudspeakers.
All these features make the ME802K so unique on the loudspeaker market. It is ideal for large
listening distances and for acoustically less attenuated rooms.
BASIC INFORMATION 4
musikelectronic geithain GmbH ME 802K
4 Basic information
4.1 Guidelines
This product complies to requirements of current European and national guidelines (2004/108/EG
Electromagnetical Compatiblity). The conformity is ascertained, corresponding declarations and
records are deposited with the manufacturer.
Products built by us belong to B2C-class of the WEEE guidelines and must not
be disposed with domestic waste.
4.2 Safety instructions
Like using any other electrical device you should observe the following operation guidelines, safety
instructions and warning signs to ensure optimum functionality and safety of operation!
;Read these instructions carefully.
;Keep these instructions during the life cycle at a safe place. The instructions are an important
part of the product.
;Heed all warnings. Follow all instructions.
;The product may only be used in accordance with the information provided in the user manual.
Before and during the usage of the amplier please ensure that all recommendations, especially
the safety recommendations in the user manual, are adhered to.
;Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may
fall, causing serious injury, and damage to the product.
;The heat sink must not be blocked or covered. This product should not be installed unless
proper ventilation is provided or manufacturer‘s instructions have been adhered to.
;Do not install the device near any heat sources.
;Do not expose the device to direct sun radiation.
;Do not install the device in rooms with high humidity.
;Do not try to insert anything into device openings.
;The device shall not be exposed to dripping or splashing and no objects lled with liquids shall
be placed on the device.
;Clean only with dry or slightly moistened cloth.
;Protect the power cord from being walked on,pinched or damaged in any other way. Pay
particular attention to plugs and the point where they exit the device.
BASIC INFORMATION 5
musikelectronic geithain GmbH ME 802K
;Do not attempt to service this product yourself as opening or removing cover may expose you
to dangerous voltage or other hazards.
;Refer all servicing to qualied service personnel.
BASIC INFORMATION 6
musikelectronic geithain GmbH ME 802K
4.3 Unboxing
The speakers are shipped in proper condition. Unpack the speaker carefully and check for visible
damages. In case of damages report them to your retailer. Keep the packaging, in case the speaker
has to be transported in the future.
4.4 Delivery contents
;Speaker ME 802K
;Mains cable
;Technical description and user manual
4.5 Cleaning
The speaker is made of real wood veneer and needs to be nurtured in the same way as furnishings.
We advise quality wax polish to ensure durability of the veneer. Surfaces can also be cleaned with
tidy, slightly damped, fuzz-free, smooth cloth.
4.6 Environmental conditions
Ensure the following environmental conditions in your listening room:
;Operating temperature +15 °C ... +35°C (+59°F ... +95°F)
;Storage temperature range −25 °C ... +45 °C (−13 °F ... +113 °F)
;Relative humidity 45 % ... 75 %
4.7 Guarantee acknowledgements
Opening the device by unauthorized personnel leads to all claims under guarantee expire. In case of
destruction by overload, misuse or outside inuences there are no claims under guarantee.
POSITIONING 7
musikelectronic geithain GmbH ME 802K
5 Positioning
Our speakers do not impose special requirements neither in stereo nor in multichannel set-ups.
Nonetheless speaker positioning has inuence on listening impression because every room is
individually designed and furnished. The following advices are just guidelines that ease proper
positioning. In addition we offer a measurement service to take advantage of the capabilities of your
listening environment.
5.1 Positioning near walls
When speakers are installed near walls sound quality is physically affected. Every customary speaker
behaves as a punctual sonic source in the low frequency range, with sonic waves spherical radiated
without any constructional measures. Back wall reections are unavoidable.
The speakers ME802K however utilize cardioid radiation characteristics with rearward attenuation
greater than 10dB. Because of this structural measurement installation near walls is considerably
less critical. For optimum listening experience a minimum distance of 20 cm (7.9″) to walls and
furniture should be ensured. Avoid corner installations because unwanted bass accentuation could
arise.
b
b

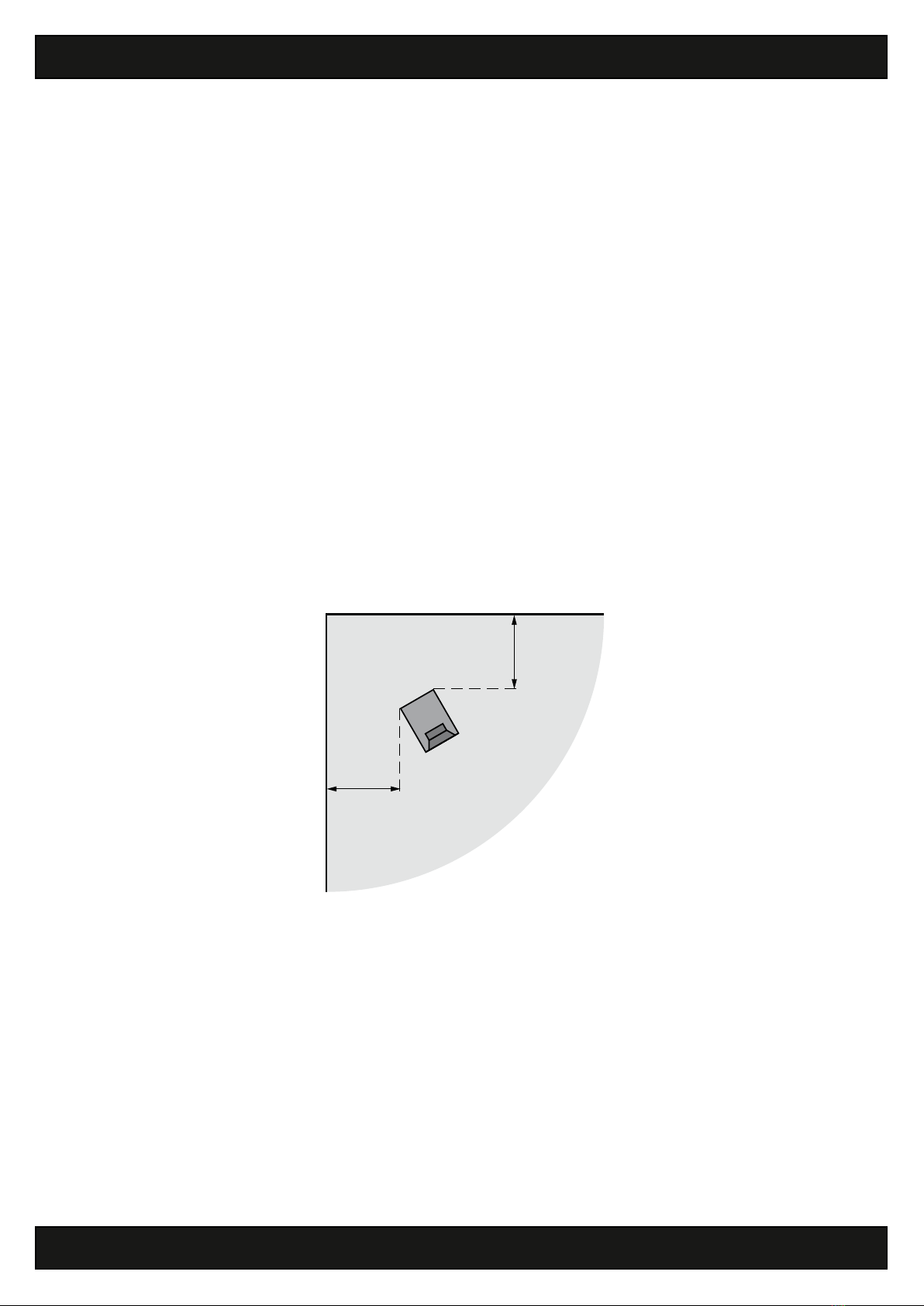

;Minimum distance to wall b ≥ 20 cm (7.9″)
POSITIONING 8
musikelectronic geithain GmbH ME 802K
5.2 Stereo operation

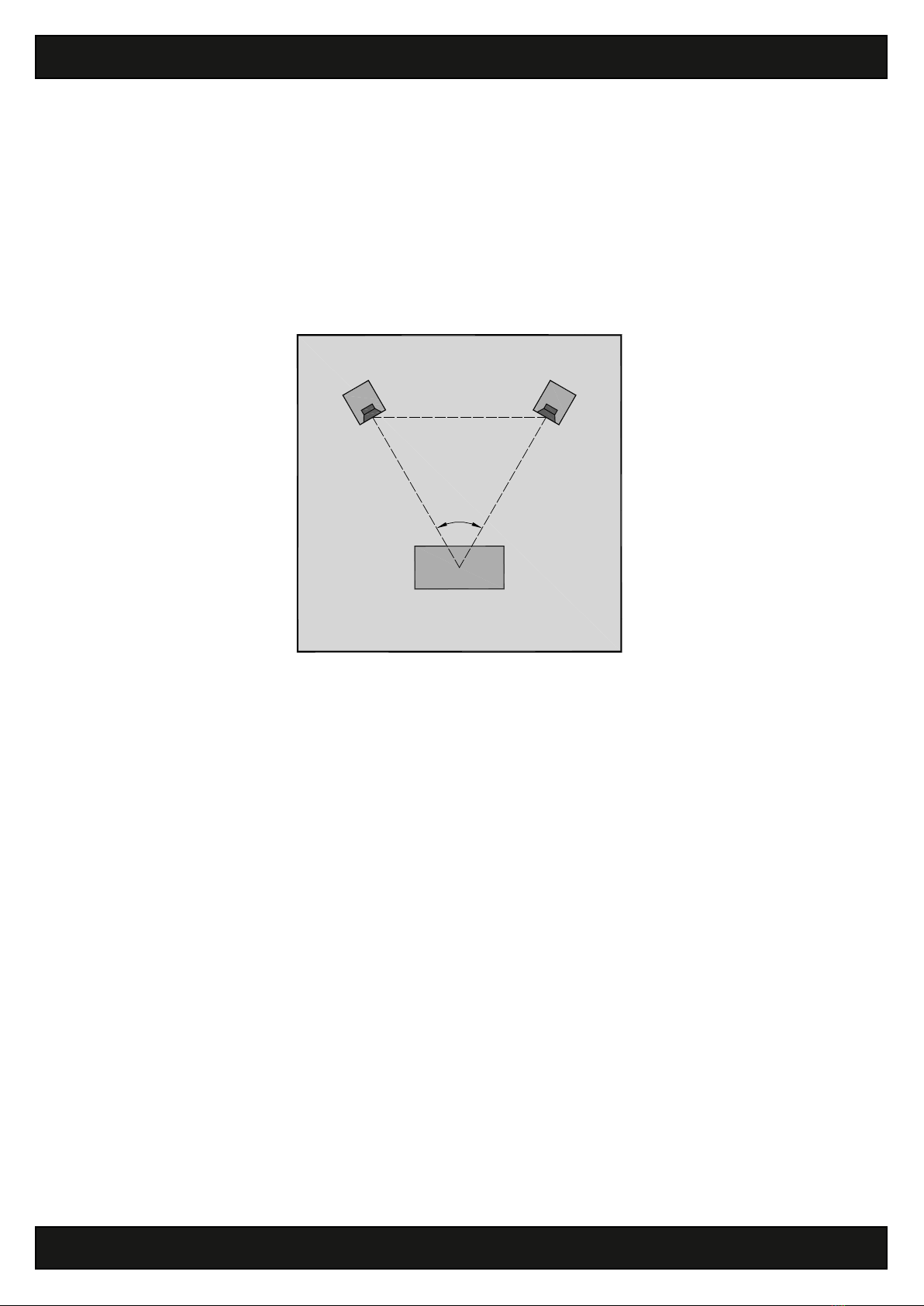

The optimum position of the speakers in your listening environment is the so-called stereo triangle
(see gure). The base distance between the speakers and the distance to the hearing zone form
an equilateral triangle (stereo triangle). A distance less than 3 m (9′10″) or more than 8 m (26′3″)
should be avoided. For precise,spacial reproduction turn the speakers inside,directed to the hearing
zone.
a
a a
hearing zone
60°
;Distance between speakers and your listening position a = 3 m … 8 m (9′10″ … 26′3″)
;Adjust the speaker horizontally to the height of the ear at the listening position
