Murphy HelmView HV450 Manuel utilisateur

HelmView



450

Model HV450

Operation Manual

00-02-0870

2015-04-16

Section 78

In order to consistently bring you the highest quality, full-featured products, we reserve the right to change our

specifications and designs at any time. The latest version of this manual can be found at www.fwmurphy.com.

BEFORE BEGINNING INSTALLATION OF THIS MURPHY

PRODUCT:

•Read and follow all installation instructions.

•Please contact Enovation Controls immediately if you have

any questions.

•A visual inspection of this product for damage during

shipping is recommended before installation.

•It is your responsibility to ensure that qualified mechanical

and electrical technicians install this product.

Contact Enovation Controls Technical Service if you have any

questions or concerns at: +1 918-317-4100.

Table of Contents

Product Information...................................................................................................................4

Forum Access......................................................................................................................4

HV450 Features and Operations..............................................................................................5

Setting Up your HV450 Display for the First Time.................................................................6

Product Features........................................................................................................................8

Power Up..............................................................................................................................8

Main Menu............................................................................................................................8

Gauge Display .....................................................................................................................9

Engine Diagnostics...........................................................................................................11

Fault Code Pop-Ups..........................................................................................................12

User Settings .....................................................................................................................13

Utilities................................................................................................................................18

Section 78 00-02-0870

2015-04-16 - 3 -

ProductInformation

The HelmView™ HV450 display was specifically designed for instrumentation and control on

electronically controlled engines. These engines communicate using SAE J1939 and NMEA

2000 protocols. The HV450 display allows operators to view many different engine and

transmission parameters and service codes. The unit can simultaneously display port and

starboard (left and right, respectively) information. Optional upgrades (software and firmware)

are available to expand the usability. For more information, review the following summary

about the Enovation Controls Murphy Forum.

Forum Access

Enovation Controls has created a forum for PowerVision Configuration Studio ® supported

products. The forum is a location where a demonstration/trial version of the PowerVision

configuration tool is available for download. Many frequently asked questions are stored on the

forum along with demo configurations and examples on how to configure products. Please use

the link below and register for the forum:

http://forum.fwmurphy.com/

Once you register, you will receive your user name and password confirmation in separate

emails. Go to the Forum and log in; a page displays indicating a successful login. Almost

immediately, the page is directed to the Demo Users Forum. From here, you can investigate

and download a demo-configuration software tool or review previously asked questions.

In addition, the Forum contains software that has been released to the public. You can obtain

software updates here, so check the Forum regularly. Use the link below to go directly to the

software section:

http://forum.fwmurphy.com/viewtopic.php?f=10&t=43

This tool allows you to test and even build your own configurations. You can save them, but if

you would like to download the configuration to a product, please contact your local sales

representative.

Section 78 00-02-0870

2015-04-16 - 4 -

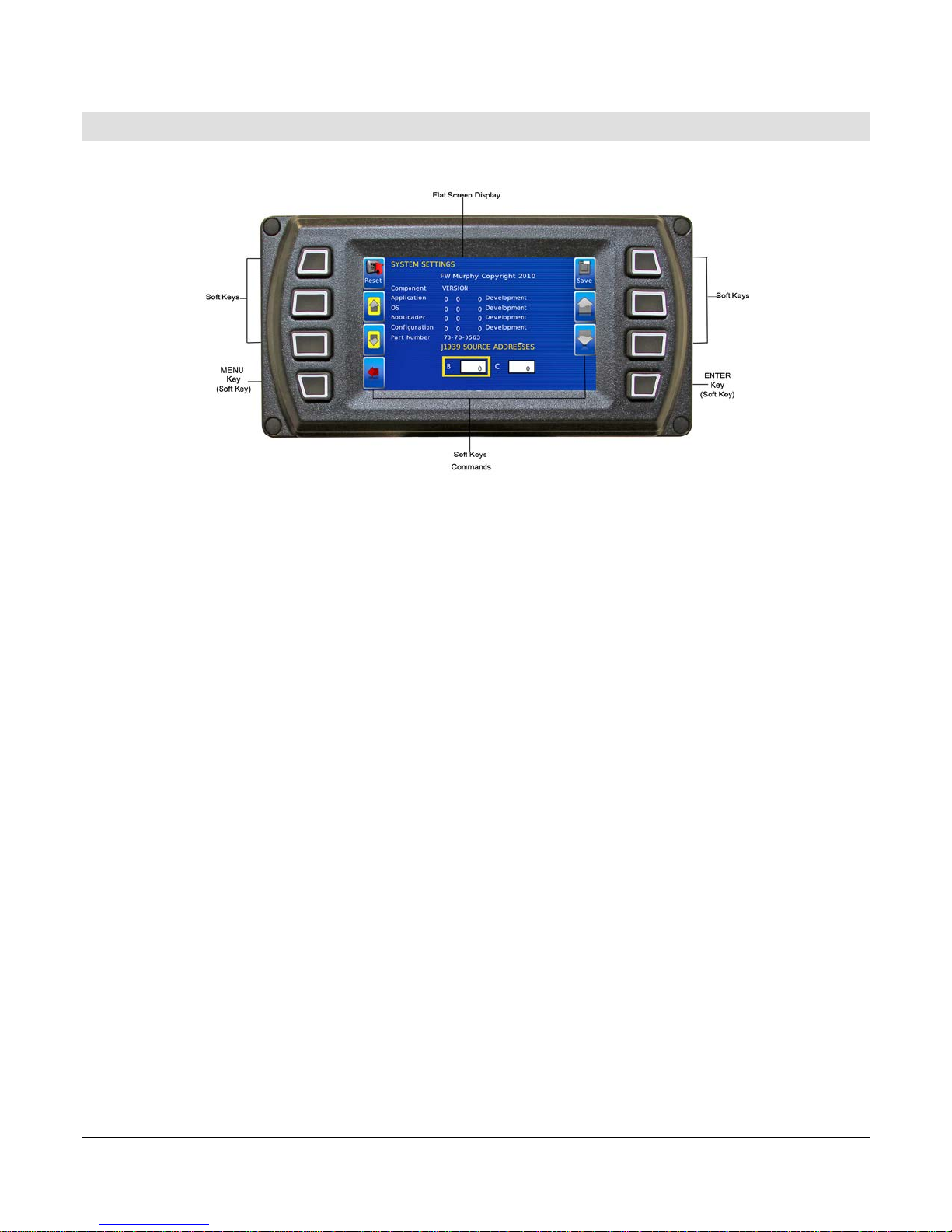

HV450 Features and Operations

LCD Screen Display

A color screen displays gauges, soft key commands and fault messages, as well as menu

options for setup and configuration.

Soft Key Commands

Columns of vertical commands may be located to the left and/or right of the display. They will

change according to the options available for the screen being displayed.

Soft Keys

The soft keys correspond to the soft key commands and allow selections to be made

accordingly.

MENU Key

The bottom left key is a soft key reserved in most cases for the Menu. In rare cases, it could be

used for other options. Pressing the MENU key at any time displays the list of menu options. If

not labeled, it is the MENU key.

ENTER Key

The bottom right key is a soft key reserved in most cases for Enter. In rare cases, it could be

used for other options. Pressing the ENTER key will select the option displayed much like the

ENTER key on a keyboard. If not labeled, it is the ENTER key

Section 78 00-02-0870

2015-04-16 - 5 -

Setting Up your HV450 Display for the First Time

The guidelines presented below are intended for setting up the HV450 display for the first time.

Once the configuration is set up, there is no need to revisit or change any of the settings.

NOTE: If you require assistance during the set-up process, contact Enovation

Controls customer support at +1(918) 317-4100.

1. At the main menu, press the soft key to the left of Utilities.

2. The Utilities sub-menu is displayed.

3. From the Utilities sub-menu, select System Settings. The following screen is displayed.

Section 78 00-02-0870

2015-04-16 - 6 -

4. With the cursor highlighting the J1939 source addresses, use the left side soft keys to

scroll through the ports and the right side soft keys to change the address. Press the

Save key to save selected changes or the Restore Defaults key to return to the default

settings.

Section 78 00-02-0870

2015-04-16 - 7 -

Product Features

Power Up

There are two options to connecting the HV450 display:

•The battery and ignition inputs to display are both connected to the battery

•The battery input is connected to the battery, and the ignition input is connected to the

ignition switch.

NOTE: If both are connected to the battery, then an inline battery

disconnect must be installed.

When the ignition is turned on, the HV450 display powers up, and the engine health statistics

can be viewed via preset gauges. To see more gauge screens, press the Enter key.

Main Menu

The main menu is activated at any time by pressing the Menu key on the display.

The following features are accessed through the main menu:

•Gauge Display – provides a series of screens that display engine and auxiliary

information in a variety of formats.

•Engine Diagnostics – displays a list of engine fault codes and descriptions through a

DM1 message structure.

•User Settings – allows you to customize the display options for ambient light and

brightness, set US or metric units, language, specify the Home screen and screen setup

status.

•Utilities – allows configuration of the plug address. Also displays software version

information at the top of the page.

Section 78 00-02-0870

2015-04-16 - 8 -

Gauge Display

The Gauge Display screen consists of several predefined layouts that contain combinations of

analog gauges, straight bar gauges or digital (text) readouts. These screens are displayed

upon startup.

To scroll through the various gauge screens, press the Prev and Next soft keys. This can be

repeated until all screens have been viewed. The currently displayed screen will stay active

until another key is pressed.

Soft Key Commands

When a Gauge Display screen is active, pressing the Enter key will display soft key

commands, as shown below. Continuing to press Enter will toggle through any additional soft

keys and will eventually remove the soft key commands from the screen.

Soft Key commands provide quick navigation and access to the following features:

•Home

•Video Input

•Prev

•Day/Night

•Video

•Next

Home - This one-touch navigation feature allows a predefined Home screen to be accessed

from the available Gauge Display screens. Once selected, the Home screen will be displayed

anytime the Home key is pressed.

NOTE: For instructions on how to set up the Home screen, refer to the User

Settings section of this manual.

Video Input – Allows you to toggle between two different video inputs that will be displayed on

various screens.

Section 78 00-02-0870

2015-04-16 - 9 -

NOTE: .This feature can also be changed in the User Settings section of this

manual.

Day/Night - Allows you to toggle the display screen between Day View and Night View.

NOTE: This feature can also be changed in the User Settings section of this

manual.

Video – When enabled, displays either full-screen video or partial video within a window on the

gauge display.

NOTE: For instructions on how to enable full or partial screen video, refer to the

User Settings section of this manual.

Full View Video

NOTE: For instructions on how to turn screens ON or OFF, refer to the User

Settings section of this manual.

Section 78 00-02-0870

2015-04-16 - 10 -
