Multplx J-PLUG LAPTOP SECURITY CABLE Manuel utilisateur

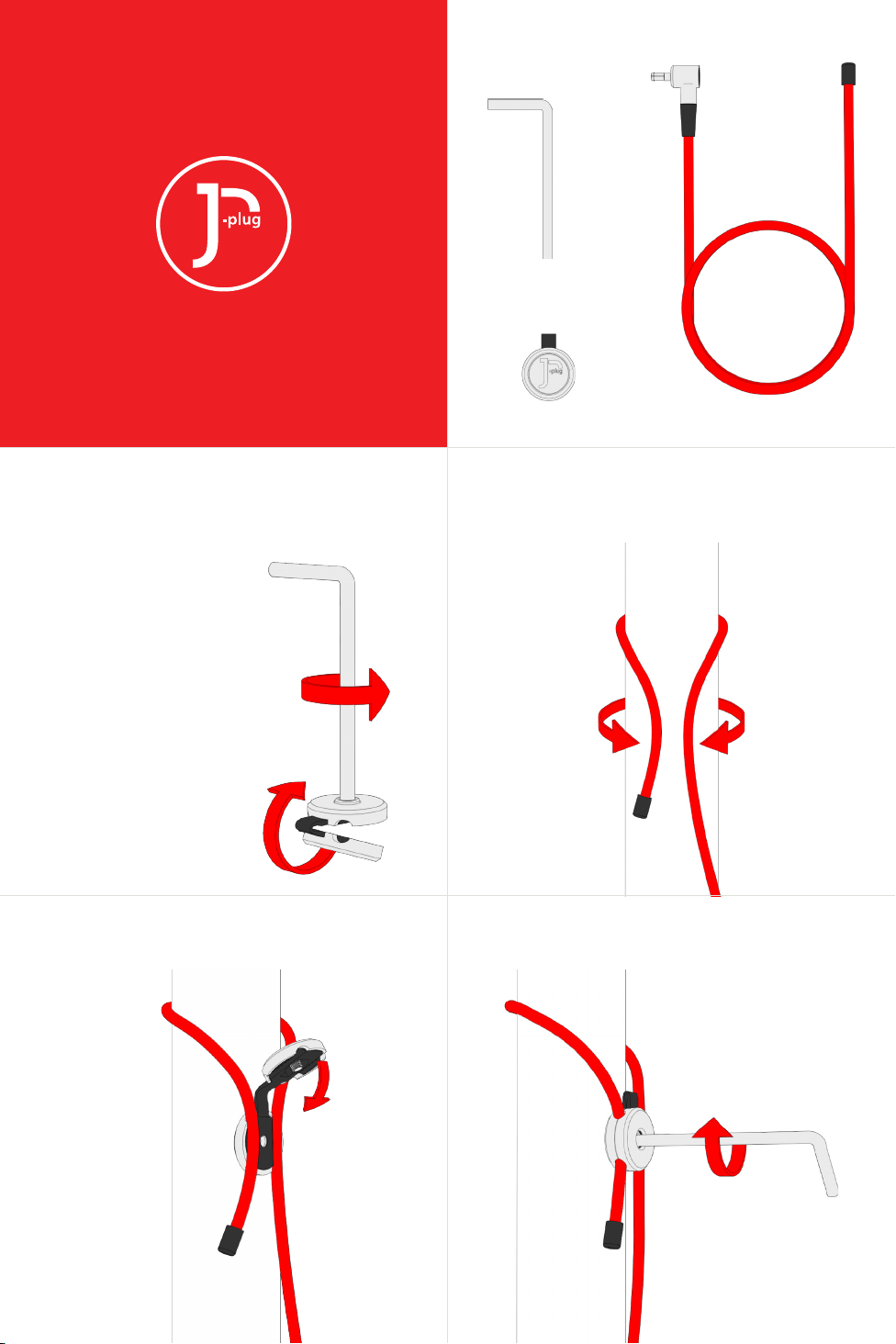

SECURING TO A FIXING POINT
PARTS
Take the Loop end of the cable and wrap it around a
secured xing point.
Attach the Pendant to the cable and close the Pendant. Using the Key, rotate clockwise to secure the Pendant.
2.
3. 4.
Using the Key, rotate anti-clockwise to release
the Pendant.
Lift and open the Pendant.
1a.
b.
LAPTOP SECURITY CABLE
Security Cable
Key
Pendant
a
b
SECURING TO YOUR LAPTOP Insert the Lock into the 3.5 audio socket of your laptop.
Using the Key, rotate clockwise slowly until the Lock is
secured in the audio socket.
Ensure the Lock is fully secured, then reattach the
rubber cap.
Remove the rubber cap from the Lock end of the cable.
6.
7. 8.
5.
REMOVING THE SECURITY CABLE
Remove the rubber cap, then using the Key, rotate
anti-clockwise to release the Lock.
Using the Key, rotate anti-clockwise to release the
Pendant and unwrap it from the xing point.
Detach the Lock from your laptop and reattach the
rubber cap for safe keeping.
9a.
10.
b.
