PROFI CAR 403 and 707

Operating instructions

Before operating the transmitter, please select the language (see 9.4, page 42)!

Dear customer,

dear fellow modeller,

we are delighted that you have decided to purchase a MULTIPLEX radio control system.

The „PROFI CAR“ is the first „pistol-grip“ transmitter designed and developed by MULTIPLEX.

Ergonomic efficiency and user-friendliness were our top priority during the development

process.

That’s not to say that we have neglected performance: the new system includes many

innovative and practical features, offering you facilities which until now have not been

available in systems of this class. They include:

vInterchangeable RF module, switchable to suit AM and FM receivers

vUp to 7 channels (steering, throttle/brake + 5 auxiliary channels)

v2 steering servos and 2 brake servos (PROFI CAR 707 only)

vSeparate throttle servo (PROFI CAR 707 only)

Of course, you don’t need to use these features; you can still operate the PROFI CAR as a

„completely normal“ set, i.e. with one steering servo and a second servo for throttle/brake.

We are confident that you will have many hours of pleasure with your PROFI CAR.

Yours the MULTIPLEX team

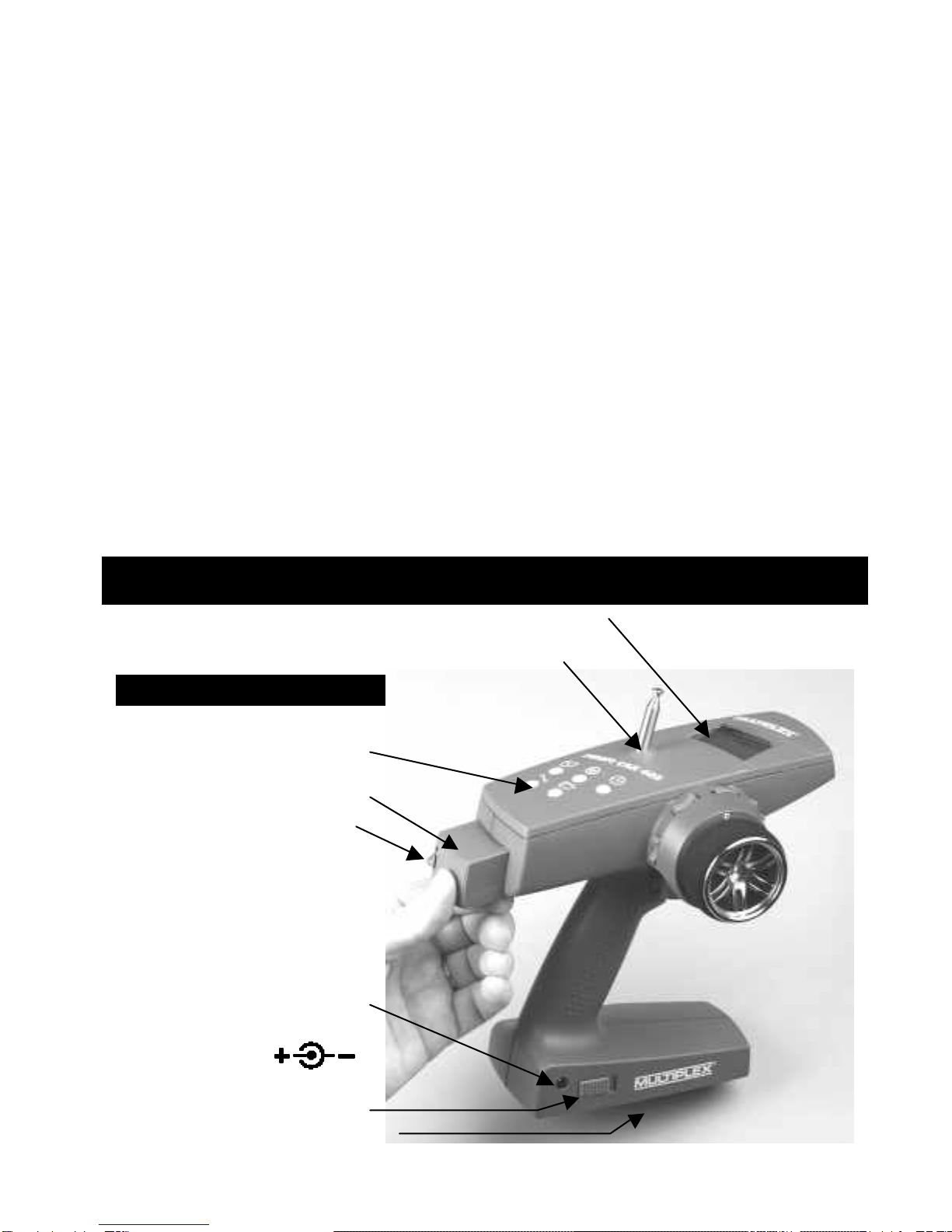

A quick look at the transmitter

Transmitter crystal

CAUTION:

Use only

genuine

MULTIPLEX

crystals

RF module

Charge socket

maximum 600 mA

ON/OFF switch

Aerial (screw fitting)

Menu buttons

Screen

Transmitter battery in base

With thermal fuse!

Contents

A quick look at the transmitter 2

Contents 3

Safety 5

System facilities 6

The transmitter controls in detail 7

The „instrument panel“ (screen) 8

The principle 9

Switching on for the first time 11

1.1. Charging the transmitter battery (maximum charge current 1 A) 11

1.2. Charging the receiver battery 11

1.3. Fitting the transmitter crystal 11

1.4. Adjusting the trigger loop 11

1.5. Testing the transmitter 12

2. Short and to the point 12

2.1. Selecting the vehicle TYPE 13

2.2. Setting the servo norm, direction of rotation, travels and centre 14

2.3. AdjustingSTEERING L15

2.4. AdjustingTHROTTLE A15

2.5. Adjusting BRAKE A 16

3. More about steering LL 17

3.1. Adjusting the steering servo („T“ menu) 17

3.2. Adjusting the steering trim („T“ menu) 19

3.3. Adjusting the steering CENTRE, accepting the trim setting 19

3.4. Setting the minimum steering TRAVEL 20

3.5. SLOW 21

3.6. EXPO 21

3.7. Auto Dual Rates for steering 21

3.7.1. Reduced Travel RT at full throttle 22

3.7.2. Auto Dual Rate delay 22

3.8. The second steering servo (PROFI CAR 707 only) 22

4. More about THROTTLE AA 23

4.1. 2-point throttle curve with EXPO 23

4.2. 5-point throttle curve 24

4.3. Automatic Start 25

4.3.1. Setting the „addition“ for Initial Throttle „IT+“ 25

4.3.2. Initiating the automatic start function using the trigger 26

4.3.3. Initiating the start function with the handle button or trigger 26

4.3.4. Terminating the automatic start phase 26

4.4.TC = traction control (nur PROFI CAR 707) 27

5. More about BRAKE 28

5.1. Two-point brake curve with EXPO 28

5.2. Trimming the Lock Point LP using rocker D 29

5.3. ABS = Advanced Braking System (PROFI CAR 707 only) 30

5.4. Braking with more than one servo (PROFI CAR 707 only) 31

6. Timers and lap counters ºº 0000 33

6.1. Timer mode 33

6.2. Lap time memory 34

6.3. Setting the nominal time T-NOM 35

6.4. Setting the race duration (timer mode 3 only 35

6.4.1. Race duration by laps 35

6.4.2. Race duration by time 35

6.5. Checking the transmitter’s operating time 36

6.6. Erasing the timer ERASE 36

7. Model memories 11 37

7.1. Switching to a different model memory 37

7.2. Copying 37

7.3. Entering the model name 38

7.4. Erasing 38

7.5. Reverting to the PREVious state 38

8. Driving trucks 39

8.1. Selecting the model type 2+5 CH (truck) 40

8.2. Setting the control mode for the auxiliary channels 40

8.3. Adjusting travel and centre of the auxiliary channels 41

8.4. Truck steering and throttle/brake 41

9. The “toolbox” TT 41

9.1. Adjusting the trigger deadband („T“ menu, DEADB) 41

9.2. Switching between AM and FM („T“ menu, AM-FM) 42

9.3. Entering the owner’s name („T“ menu, NAME) 42

9.4. Selecting the display language („T“ menu, TEXT) 42

9.5. Setting the battery alarm threshold („T“ menu, ALARM) 42

10. Tips on installing the receiving system in the model 43

11. The system in use 44

11.1. Post Office Regulations for the U.K. 44

11.2. Range testing 44

11.3. Care of the transmitter 45

11.4. Maintenance 45

Specification, system characteristics 46

Menu summary for the PROFI CAR 403 and 707 47

Safety

Radio-controlled models are not toys!

You can make a major contribution to safety when operating your models by acting

responsibly and handling your radio control system and model with due care.

vCheck the electrical and mechanical connections in the model at regular

intervals.

vCheck all moving parts regularly: they must be free to move, and must not

exhibit undue lost motion.

vCarry out regular range checks (see „Range testing“).

vWhen other drivers are present at the track, find out which channels are

already in use before you switch on.

vBefore every run: extend the transmitter aerial to full length, and check that

it is in good condition and firmly seated.

vCheck that you have selected the model memory corresponding to the

model you are running.

vCheck all the working systems in your model before you start:

Do the servos rotate in the correct direction?

Are the travels correct?

vAre the transmitter and receiver battery adequately charged, and in well

maintained and roadworthy condition?

vUse only genuine MULTIPLEX crystals, batteries and accessories.

vIf your receiving system includes components which are not covered by

these operating instructions, be sure to read the instructions supplied with

those items.

If you are in doubt on any point -don’t operate your model! Take your time, carefully

check the system again, and eliminate the fault. If you cannot solve the problem,

your local model shop or the MULTIPLEX customer service department will be

pleased to help you with advice and practical help.

!! Read and observe the notes in Chapter 11 on using the system!

System facilities

403 707

Model memories 612

Copy, reset, erase, enter model name

Steering

SLOW, separate for entering and exiting turns üü

EXPOnential steering curve (progressive / degressive) üü

Variable CENTRE and TRAVEL üü

Variable steering trim increment üü

Second steering servo -ü

Throttle

Automatic start system üü

EXPOnential throttle curve (progressive / degressive) üü

Separate THROTTLE / BRAKE servos -ü

5-point throttle curve üü

Traction-Control TC -ü

Brake

Variable engage point and lock point üü

EXPOnential brake curve (progressive / degressive ) üü

ABS (Advanced Braking System) -ü

Second brake servo (front / rear) -ü

Timer and lap counter

Operating time üü

Race duration by time / lap üü

Lap counter üü

Lap time memory 550

Mechanical features

Programmable trigger deadband

High-grip steering wheel lining

Ergonomic controls mounted on the handle

Angled screen for optimum legibility

Light weight

Signal transmission

FM or AM transmission, selectable for each model memory

Plug-in RF module (40/41 MHz and 72 MHz)

Externally accessible plug-in transmitter crystal

Power supply

600 mAh / 6-cell battery, approx. 3 hours operating time

Charge socket in transmitterbase

The transmitter controls in detail

The three pictures below illustrate the essential controls.

The menu buttons

The trigger duster

The trim rockers

Repeat function

All trim rockers have an automatic repeat function when held pressed for longer than

about 1 second.

Special case –TRUCK:

If you wish to control a truck with your Profi Car, you have 5 auxiliary channels

available (see 8: Driving trucks). In this mode only the steering trim (rocker A) is

active; all the other rockers are used to control the auxiliary channels.

Handle Button

Digi Adjustor

DA HB

Steering

Initial throttle

Lock point

rear brake

(throttle/brake servo)

Switched channel or

lock point front brake

(2nd brake servo)

The

„tuning centre“

Everything to hand

The „key“

to the menus

Trigger loop

adjustment screw

The „instrument panel“ (screen)

The picture below shows everything which the screen can display. What you actually

see at any one time depends on what you are doing: whether timers are active,

whether you are currently programming the transmitter, which type of vehicle you

have selected, etc.

A few examples are shown on this page.

Operating display

Timer mode: OFF

If no timer function is active, the first text line displays the

model name you have entered. Text line 2 shows the

transmitter battery voltage.

Timer Mode: LAP

The second text line shows the number of the lap on the left-

hand side. To record the start and end of each lap you press the

handle button G.

Timer-Mode: L+T (Laps + Time memory)

In this mode the second text line shows the number of the lap

on the left (in our example 03) and the time for the current lap

on the right (in our example 28.3 sec).

Timer-Mode: L+T+E (Laps + Time memory + Race duration)

The first text line displays the total duration of the race (in our

example 2 min. 36.5 sec). The second text line shows the

number of laps and the time of the current lap, as in the

previous example.

STV =

Steering travel

IT = Initial Throttle

STR =

Steering TRim

Brake 1

Brake 2

Text line 1

Number of

Active

model memory

Text line 2

BUGGY

7.4V

BATT

BUGGY

03 7.4V

LAP

BATT

BUGGY

03 28:3

LAP

2:36:5

03 28:3

LAP

symbols

Special case: battery alarm with timer active

If one of the timer modes is active and the battery voltage falls to the alarm

threshold, the screen displays the current lap time and the battery voltage and BATT

warning, alternating at 2-second intervals.

When you are changing settings

When you are changing the transmitter settings, the first text

line shows the selected menu point (in our example: the

throttle curve). On the left of the second text line you see the

parameter which you have selected with the help of the handle

button (in our example full throttle). At bottom right the screen shows the current

value (in our example 87%) above the % symbol

The principle

The five menu buttons on the PROFI CAR transmitter are the key to all set-up

processes. The button symbols tell you which menu points you can access with each

button.

button

Menu function

TRIGGER

Adjust everything which is concerned with the throttle, brake and

automatic start function;

on the PROFI CAR 707 it also includes TC (Traction Control) and ABS

STEERING

Adjust the steering to suit the track / vehicle / driver

Centre, travel, Dual Rates, Slow

TIMER

Select the timer mode (T-mode), set nominal time / lap data

Check and erase times

TOOLS

Select the vehicle type

Basic settings for servos, transmitter

MEMORY

Switch, copy, assign name, erase

G-CURV

FT 87

When you have found the menu point you want, you can continue by using the digi-

adjustor and the handle button.

HANDLE BUTTON (HB)

Select curve points

Confirm erasure, ...

DIGI-ADJUSTOR (DA)

Set values (travels, times, ...)

Select sub-menu points (if there is nothing to adjust)

Press any menu button (except the one you last used) to return to the operating

display.

When the operating display is on the screen (i.e. you have finished making

adjustments), the functions of the handle button and digit-adjustor are as follows:

HANDLE BUTTON (HB)

Operate timer functions

Lock brake (PROFI CAR 707 only)

DIGI-ADJUSTOR

Adjust steering travel

Autres manuels pour PROFI CAR 403

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Multiplex Télécommande

Multiplex

Multiplex RX-7-DR light M-LINK Manuel utilisateur

Multiplex

Multiplex Profi TX Manuel utilisateur

Multiplex

Multiplex WINGSTABI-7 Manuel utilisateur

Multiplex

Multiplex PROFI CAR 403 Manuel utilisateur

Multiplex

Multiplex COCKPIT SX Manuel utilisateur

Multiplex

Multiplex M-LINK RX-16-DR MASTER Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

Multiplex

Multiplex COCKPIT SX Manuel utilisateur

Multiplex

Multiplex Profi MC 3010 Manuel utilisateur

Multiplex

Multiplex Royal Evo Manuel utilisateur

Multiplex

Multiplex SMART SX Manuel utilisateur

Multiplex

Multiplex COCKPIT SX M-LINK Mode d'emploi

Multiplex

Multiplex COCKPIT SX Manuel du propriétaire

Multiplex

Multiplex SMART SX FLEXX Manuel utilisateur

Multiplex

Multiplex PROFI mc 4000 Manuel utilisateur

Multiplex

Multiplex COCKPIT SX Mode d'emploi

Multiplex

Multiplex Commander MC Manuel utilisateur

Multiplex

Multiplex PROFI mc 4000 Manuel utilisateur

Multiplex

Multiplex Royal SX 9 Manuel utilisateur

Multiplex

Multiplex EUROPA mc Series Manuel utilisateur

Multiplex

Multiplex Ranger III Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation

Invacare

Invacare G91S Manuel utilisateur
