Multimo 311-NOVA PLUS Manuel utilisateur

Assembly Instructions

VIDEO

link

311-NOVA PLUS WARDROBE

35 min.

60 min.

Technical Service

End User

Page 1 Page 2

TSY - 01

2 / piece

AF - 01

2/ piece

MNG - 01

12 / piece

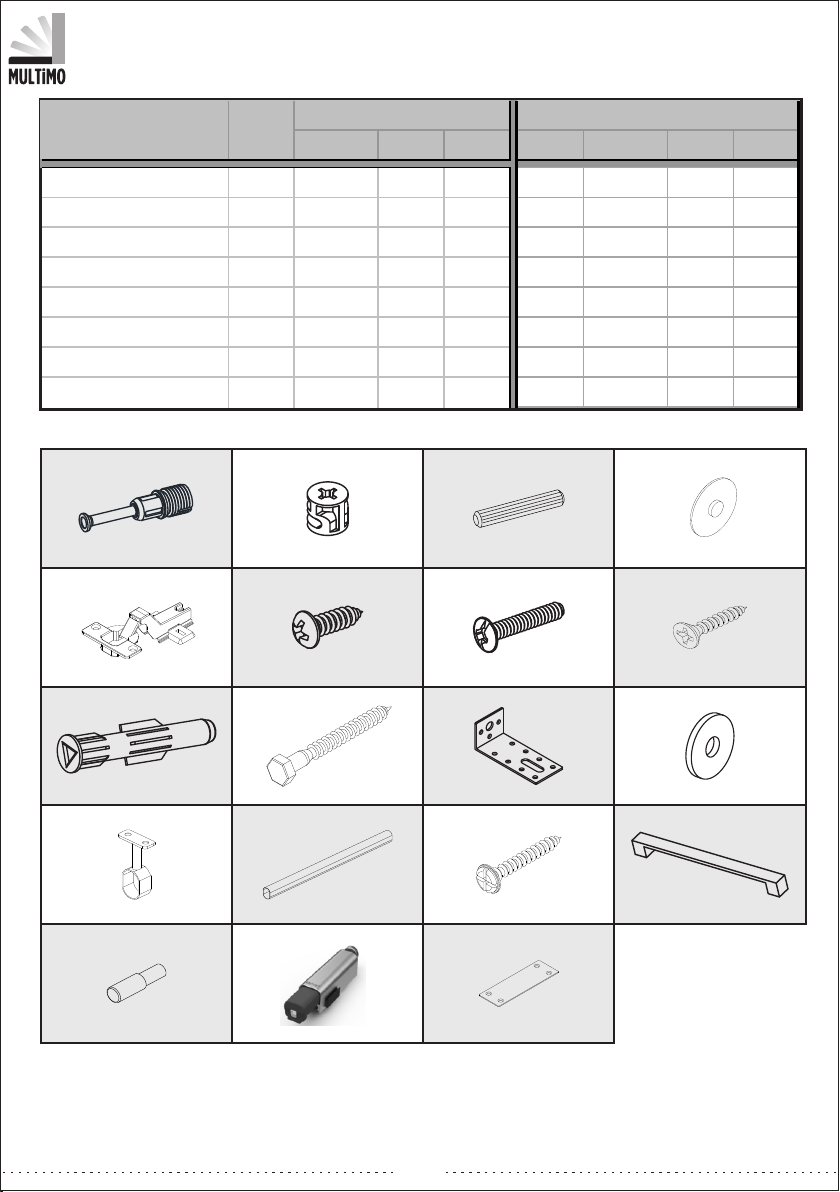

Accessories List

DSE - 01 (40x90x32) mm

1 / piece

DD - 01 ( R10 )

1 / piece

PM - 01

8 / piece

TS - 03

5 / piece

VKP - 01 (22) mm

4 / piece

VD - 03 ( 3,5x18 ) mm

24 / piece

BO - 01

1 / piece

LEFT

RIGHT

12 / piece

MNX 02 TAP - 01

12 / piece

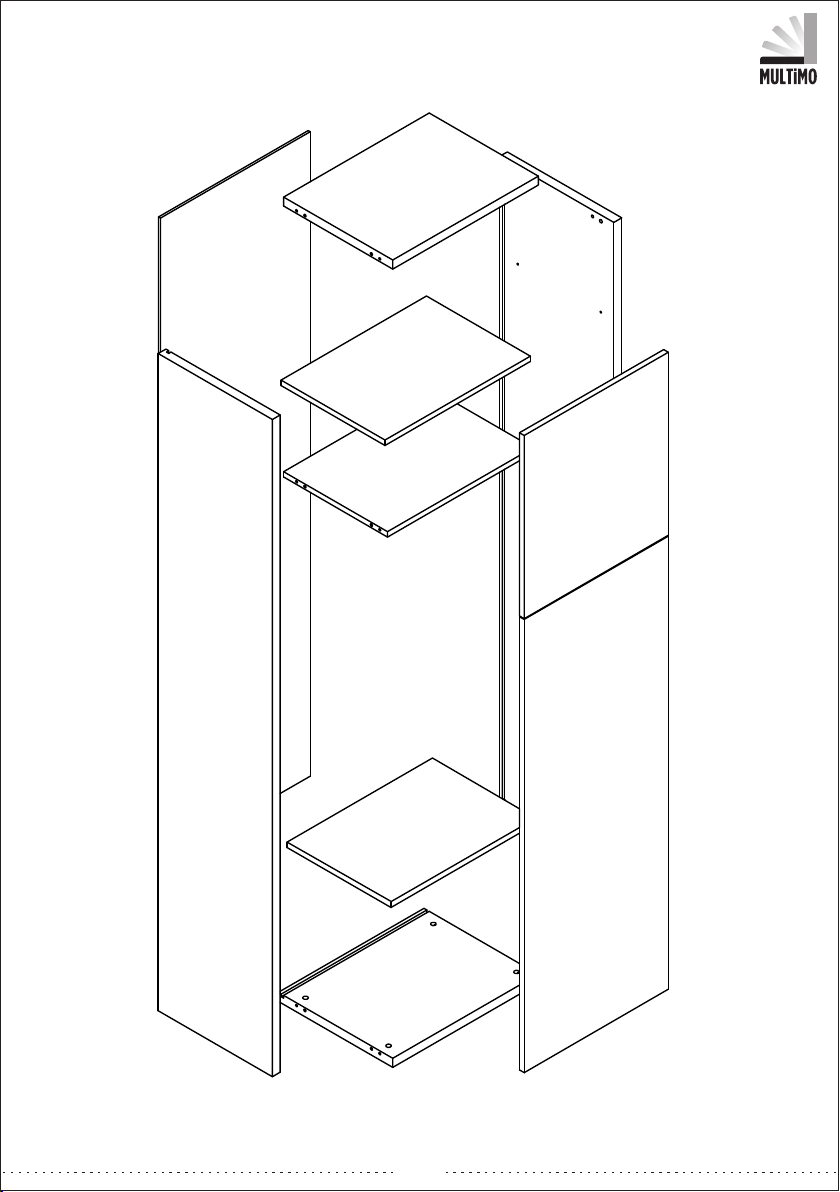

Piece T hickness Length Width Piece T hick H eight M ost

A1,18 89,76 17,32 2 30 2280 440

B1,18 22,05 17,32 1 30 560 440

C1,18 22,05 16,54 1 30 560 420

D0,71 22,05 15,75 1 18 560 400

E0,71 22,05 15,75 2 18 560 400

F0,71 62,99 21,85 1 18 1600 555

G0,71 24,02 21,85 1 18 610 555

H0,31 88,86 22,68 1 8 2257 576

Track Title (inch) (mm)

KP - 01 ( 128 ) mm

2 / piece

KVL 01

12 / piece

PL - 02 (8x22x1) mm

1 / piece

VD - 02 (3,5x25) mm

4 / piece

TFC - 01(8x70) mm

1 / piece

VTB - 01 (4,8x16) mm

8 / piece

BRK- 01

1 / piece

Page 1 Page 2

TSY - 01

2 / piece

AF - 01

2/ piece

MNG - 01

12 / piece

Accessories List

DSE - 01 (40x90x32) mm

1 / piece

DD - 01 ( R10 )

1 / piece

PM - 01

8 / piece

TS - 03

5 / piece

VKP - 01 (22) mm

4 / piece

VD - 03 ( 3,5x18 ) mm

24 / piece

BO - 01

1 / piece

LEFT

RIGHT

12 / piece

MNX 02 TAP - 01

12 / piece

Piece T hickness Length Width Piece T hick H eight M ost

A1,18 89,76 17,32 2 30 2280 440

B1,18 22,05 17,32 1 30 560 440

C1,18 22,05 16,54 1 30 560 420

D0,71 22,05 15,75 1 18 560 400

E0,71 22,05 15,75 2 18 560 400

F0,71 62,99 21,85 1 18 1600 555

G0,71 24,02 21,85 1 18 610 555

H0,31 88,86 22,68 1 8 2257 576

Track Title (inch) (mm)

KP - 01 ( 128 ) mm

2 / piece

KVL 01

12 / piece

PL - 02 (8x22x1) mm

1 / piece

VD - 02 (3,5x25) mm

4 / piece

TFC - 01(8x70) mm

1 / piece

VTB - 01 (4,8x16) mm

8 / piece

BRK- 01

1 / piece

Page 3 Page 4

VIDEO

link

VIDEO

link

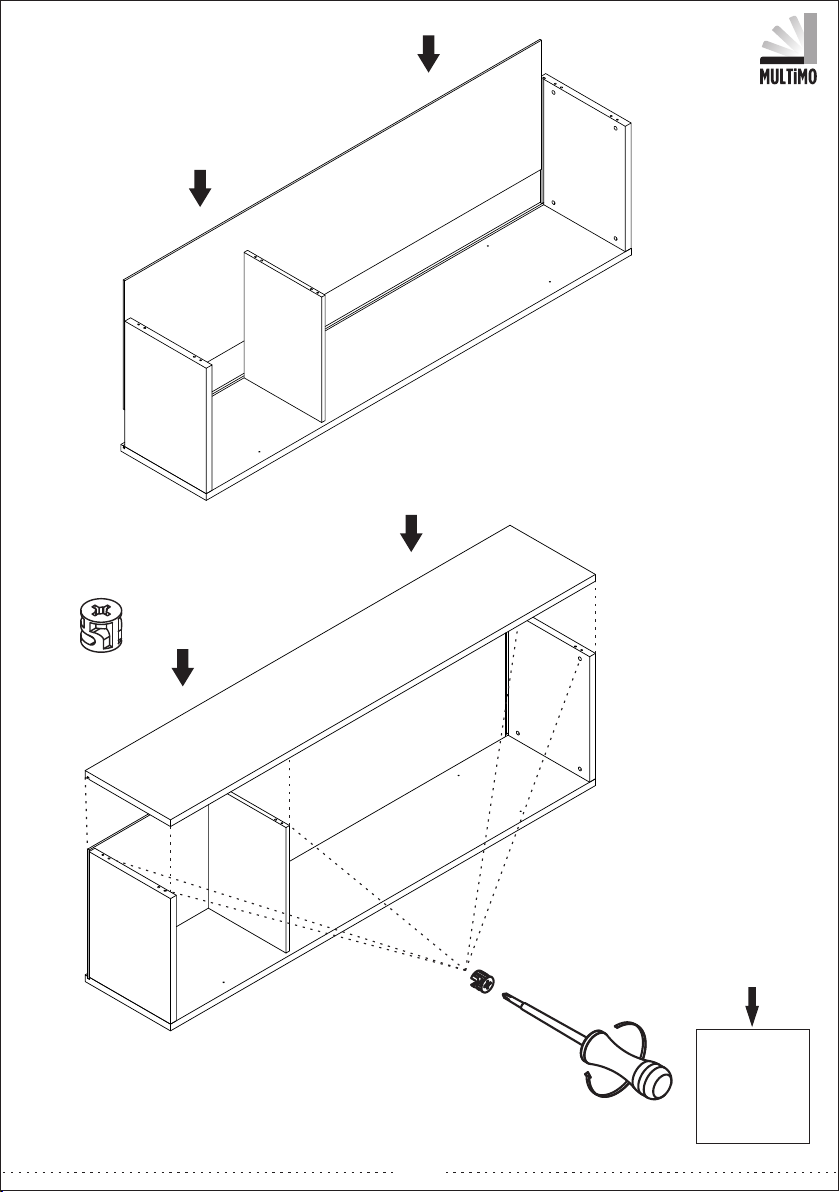

STEP 1

TRACK TITLE

A LEFT / A RIGHT

STEP 2

STEP 3

STEP 4

MNX - 02

KVL 01

MNG - 02 x 6

MNG - 01

MNG - 02 x 6

Page 3 Page 4

VIDEO

link

VIDEO

link

STEP 1

TRACK TITLE

A LEFT / A RIGHT

STEP 2

STEP 3

STEP 4

MNX - 02

KVL 01

MNG - 02 x 6

MNG - 01

MNG - 02 x 6

Page 5 Page 6

VIDEO

link

VIDEO

link

STEP 5

STEP 6

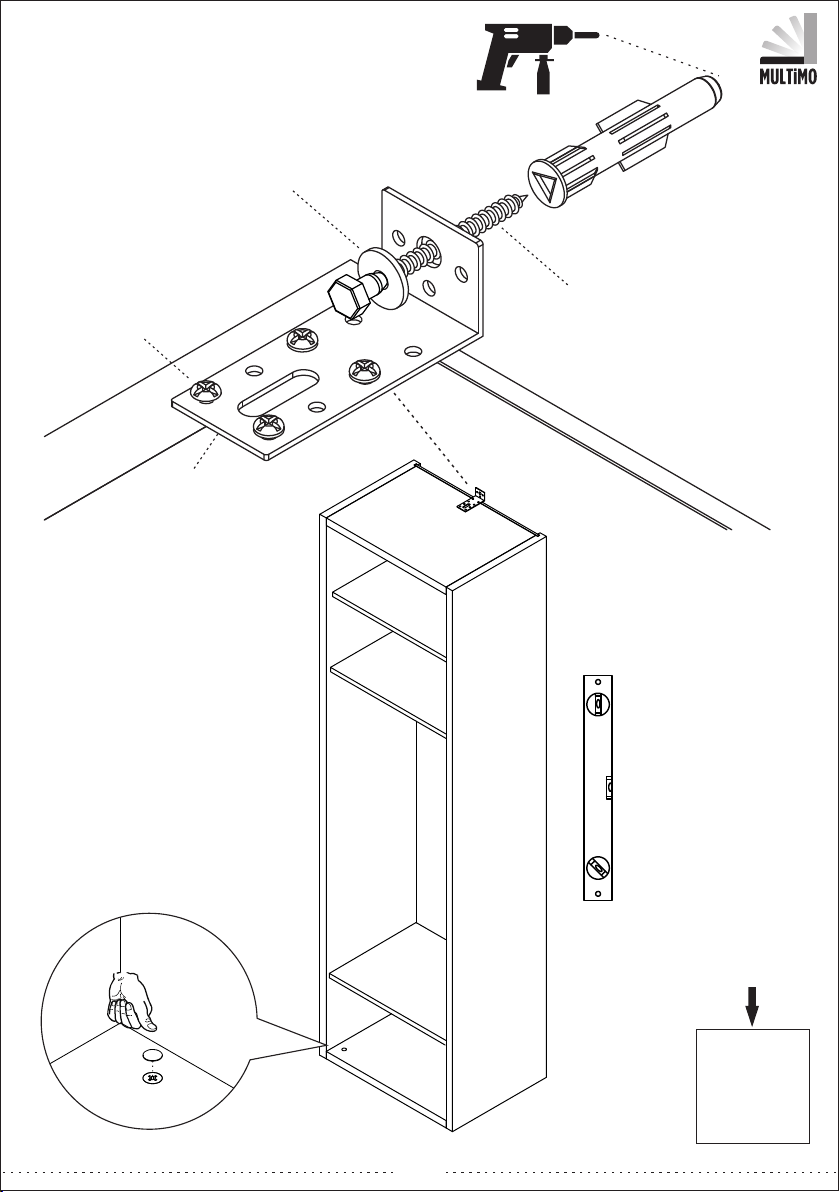

STEP 7 Ø 10 mm / 0,254 nch

DD - 01

TFC - 01

DSE - 01

VTB - 01

PL - 02

PM - 01 x 8

TAP - 01

AF - 01

BO - 01

VD - 03

STEP 8

VD - 02 x 4

Page 5 Page 6

VIDEO

link

VIDEO

link

STEP 5

STEP 6

STEP 7 Ø 10 mm / 0,254 nch

DD - 01

TFC - 01

DSE - 01

VTB - 01

PL - 02

PM - 01 x 8

TAP - 01

AF - 01

BO - 01

VD - 03

STEP 8

VD - 02 x 4

Page 7 Page 8

VIDEO

link

VIDEO

link

STEP 9

TSY- 01 x 2

1- 2- 3-

TS - 01

STEP 10

VD - 03 x 6

VD - 03 x 4

VD - 03 x 10

Page 7 Page 8

VIDEO

link

VIDEO

link

STEP 9

TSY- 01 x 2

1- 2- 3-

TS - 01

STEP 10

VD - 03 x 6

VD - 03 x 4

VD - 03 x 10

Page 9 Page 10

ATTENTION / HOW TO / READ ME / OWNER'S GUIDE

1. When mountng on a regular drywall, furnture must be fastened to wood or

metal studs. Sold walls made of brck, concrete or smlar strong materal are

also accaptable. Do not mount furnture to paper-mache or sheet rock lke

materal wthout properly aaxng to stud.

2. For safety and product longevty you must perodcally nspect the mountng

and mechancal connectons for ntegrty and tghtness. Confrm hardware

remans properly affxed and connectons snug.

3. Wall Bed mattress thckness may not exceed 8 nch. Take care to remove

pllows and excess blankets before closng. Dong so keeps mechansm free of

obstructon and unnecessary stress.

4. Do not lean or rest heavy objects on sde or top of furnture. Ths may cause

balance ssues and compromse the ntegrty of your mountng connectons.

5. Please use the furnture's beds, desks and shelvng as ntended. Not desgned

to be sat, stood, leaned, jumped (etc) on. Improper use may cause personal njury

and damage to property.

6. Wth seasonal humdty change you must nspect nteror and exteror of

furnture.

7. Sngle, Twn, Twn XL beds accommodate the weght of one person.

Improperly sleepng more than one person rsks njury to person and damage to

property.

8. Before any un-mountng or dsassembly please contact Multmo for techncal

support and nstructon. Falure to properly detach rsks njury to person and

damage to property.

9. For Bunk Beds:

a. Always use provded ladder when accessng top bunk.

b. Be slow, careful and aware of surroundngs when openng top bunk.

c. Do not horseplay. Beds are to be slept on only.

d. Some have legs that fully extend when open- be aware of where the leg s and

wll be.

VIDEO

link

VKP - 01 x 4

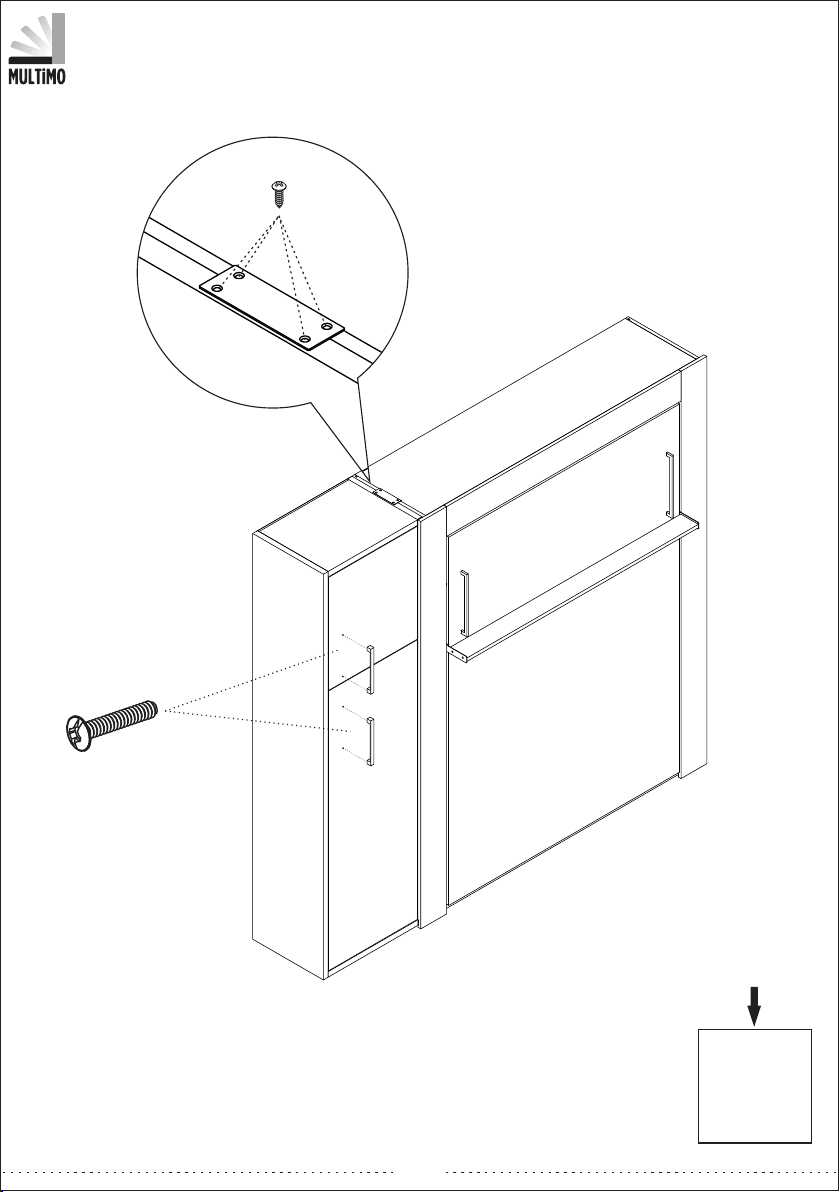

STEP 11

VTB - 01 X 4

BRK - 01
