Mueller 9x12 Greenhouse Kit Manuel utilisateur
Mueller Greenhouse Building Kits are not engineered structures and do not meet any specic building code criteria.
For video installation instructions, visit our website at www.muellerinc.com/downloads-home/videos-home
877-2-MUELLER • www.muellerinc.com
9x12 Greenhouse Kit Instructions
Mueller, Inc.9x12Greenhouse Kit Instructions;For additional information, see the Greenhouse Installation Video 2
PARTS LIST
Refer to the parts list on the itemized invoice delivered with your building.

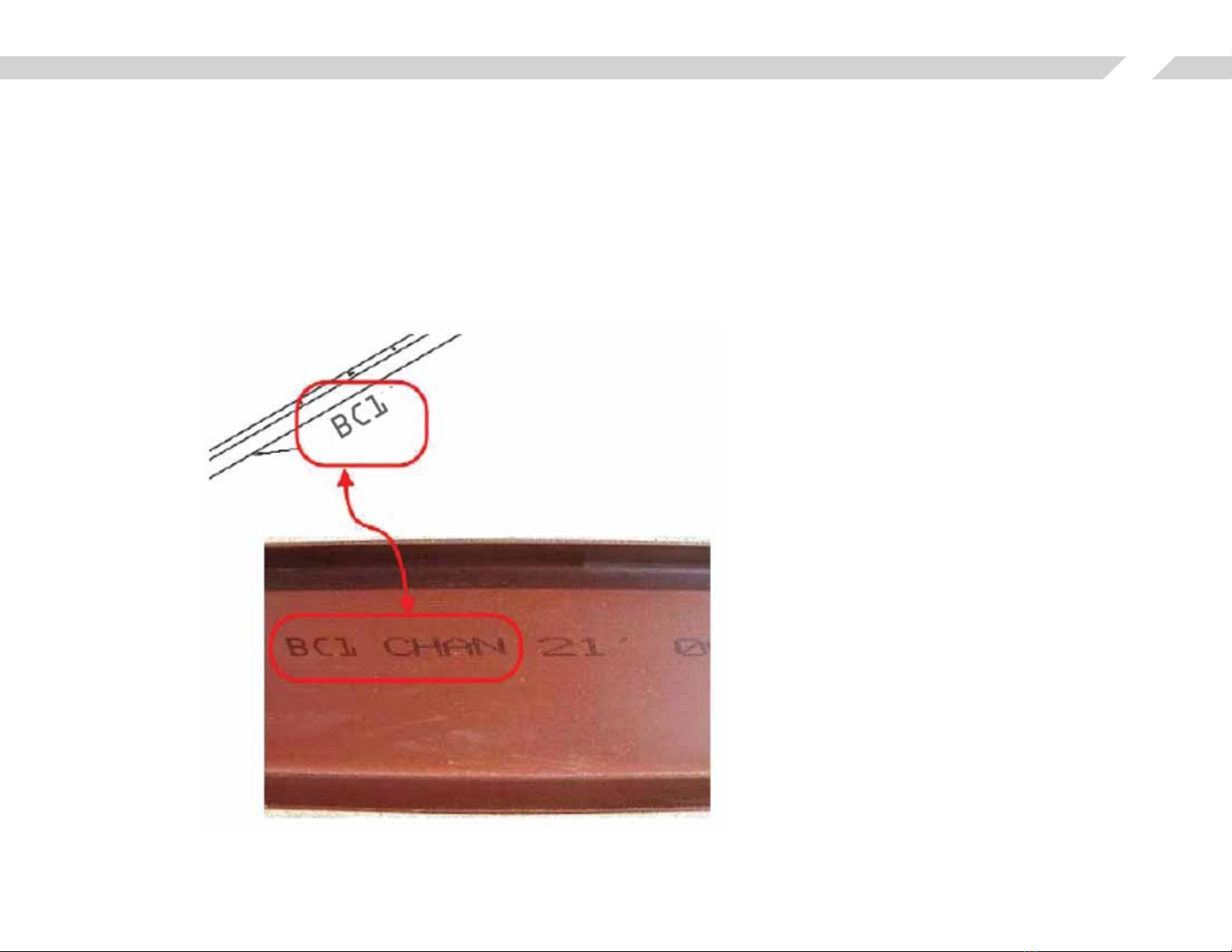

All parts are stenciled on the inside of the channel, purlin, girts and rafters. Example of this below:
Parts List
Due to continuing improvements, please refer to the parts list on the itemized invoice delivered with your building. All
parts are stenciled on the inside of the channel, purlin, girts and rafters. Example of this is below:
PG 2
MuellerInc‐6x9DIYBackYardKitInstructions;For additional information, see the D.I.Y Installation Video
PG 2
MuellerInc‐6x9DIYBackYardKitInstructions;For additional information, see the D.I.Y Installation VideoPG 2
MuellerInc‐6x9DIYBackYardKitInstructions;For additional information, see the D.I.Y Installation Video
Mueller, Inc.9x12Greenhouse Kit Instructions;For additional information, see the Greenhouse Installation Video 3

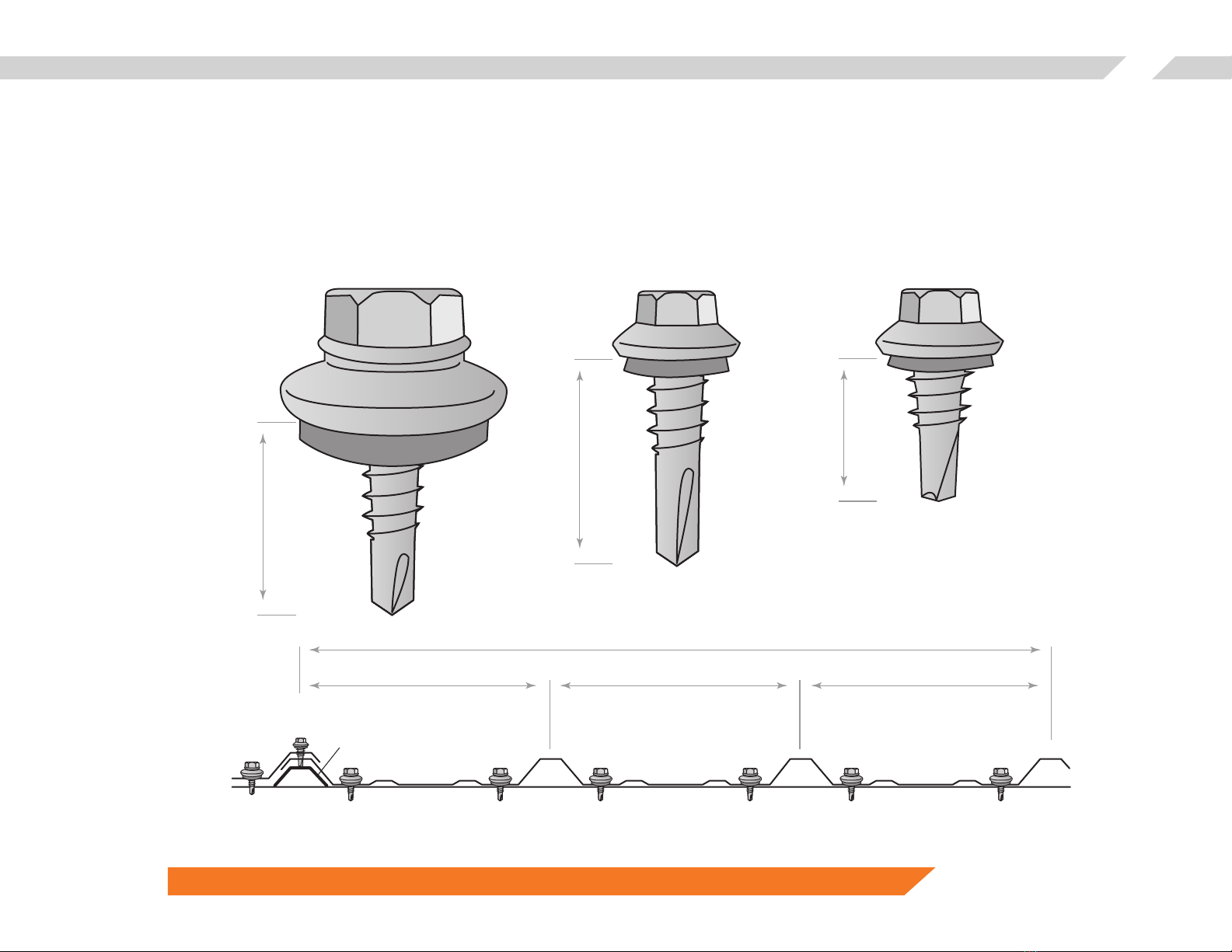

TYPES OF SCREWS
⅞"
Lap TEK
Screw Lap Strap
“on the bottom”
Skylight
Screw
Skylight
Screw
Skylight
Screw
Skylight
Screw
Skylight
Screw
Skylight
Screw
Skylight
Screw
12"12"12"
36"
1 ¼"
¾"
TEK Screw
For attaching sheet metal to purlin
Skylight Screw
“Large Head”
Lap TEK Screw
For attaching sheet metal to sheet metal
NOTE: Make sure to use TEK screws to attach sheets to purlins, lap TEK screws to attach sheets to sheets.
Mueller, Inc.9x12Greenhouse Kit Instructions;For additional information, see the Greenhouse Installation Video 4
NOTE: Leading and trailing edge of
channels are overbent for a tight
t. Spread apart as needed to
nest the purlin into the channel.

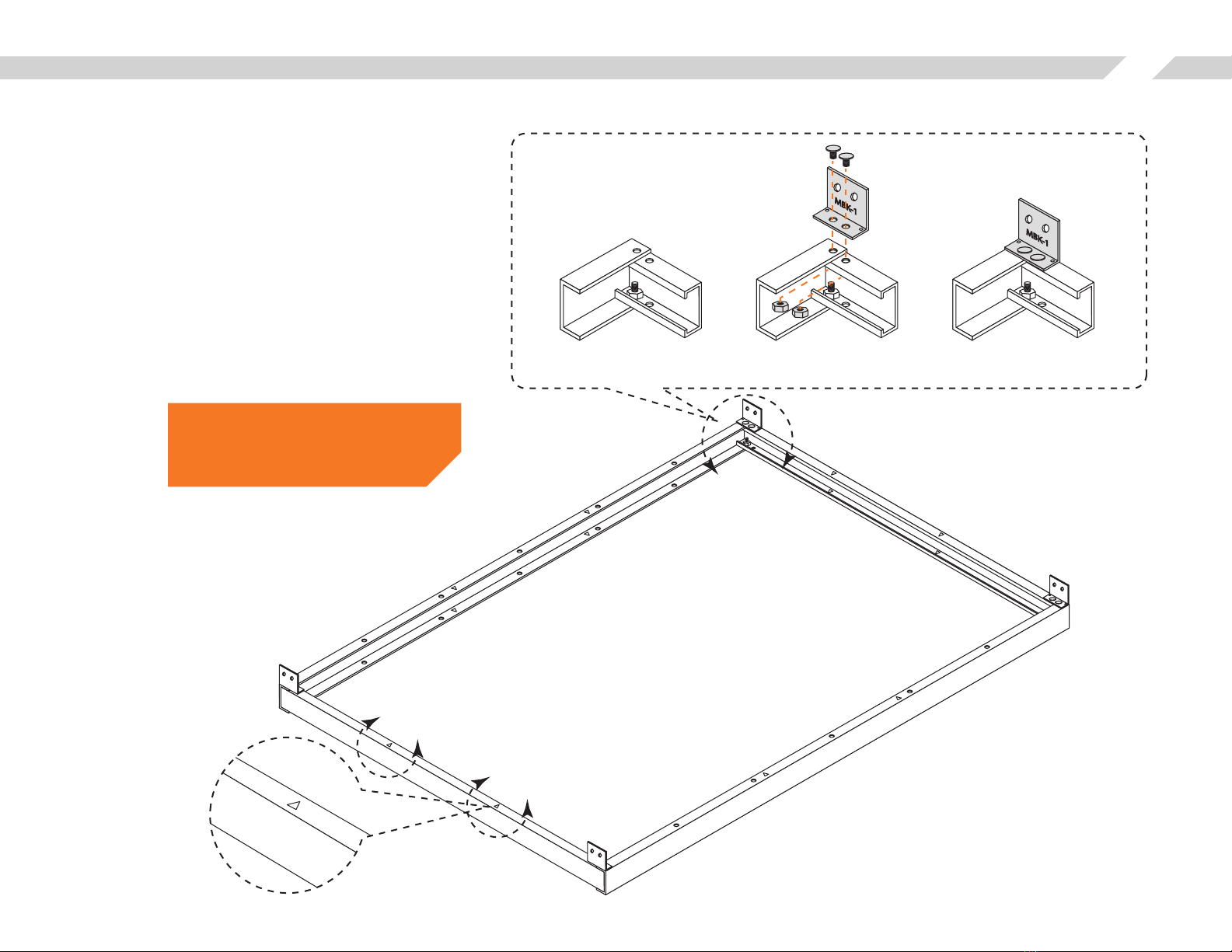

BASE LAYOUT (BC-1 AND BP-1)
Leveling and proper blocking is
critical for the base layout.
BC-1
(Base Channel)
BC-1
(Base Channel)
BP-1
(Base Purlin)
BP-1
(Base Purlin)
STEP 1
Insert BP-1 into BC-1
Triangles are for
door centering
STEP 2
Add MKB-1 (Galvanized MKB-2)
to top of BP-1 into BC-1
STEP 3
Mueller, Inc.9x12Greenhouse Kit Instructions;For additional information, see the Greenhouse Installation Video 5
MAKE SURE THE ASSEMBLY IS SQUARE
NOTE: Mueller recommends the building be placed on leveling
blocks (not included) to support the base channel
and purlins. Mueller also recommends the building be
anchored to the ground or foundation. The method of
anchor is at the owner’s discretion.
Make sure the assembly is
square. Assembly is square
when the corner to corner
measurements are equal.
9'4"
12'1"
Mueller, Inc.9x12Greenhouse Kit Instructions;For additional information, see the Greenhouse Installation Video 6
ERECTING COLUMNS (C-1)
Attach column to MKB-1 (Galvanized MKB-2) clip using 1/2"x1" Fin Head Bolts.
HINT: Add clips to top of columns before standing up.
BP-1
BP-1
BC-1
BC-1
C-1
C-1
C-1
C-1
MC-1
Mueller, Inc.9x12Greenhouse Kit Instructions;For additional information, see the Greenhouse Installation Video 7

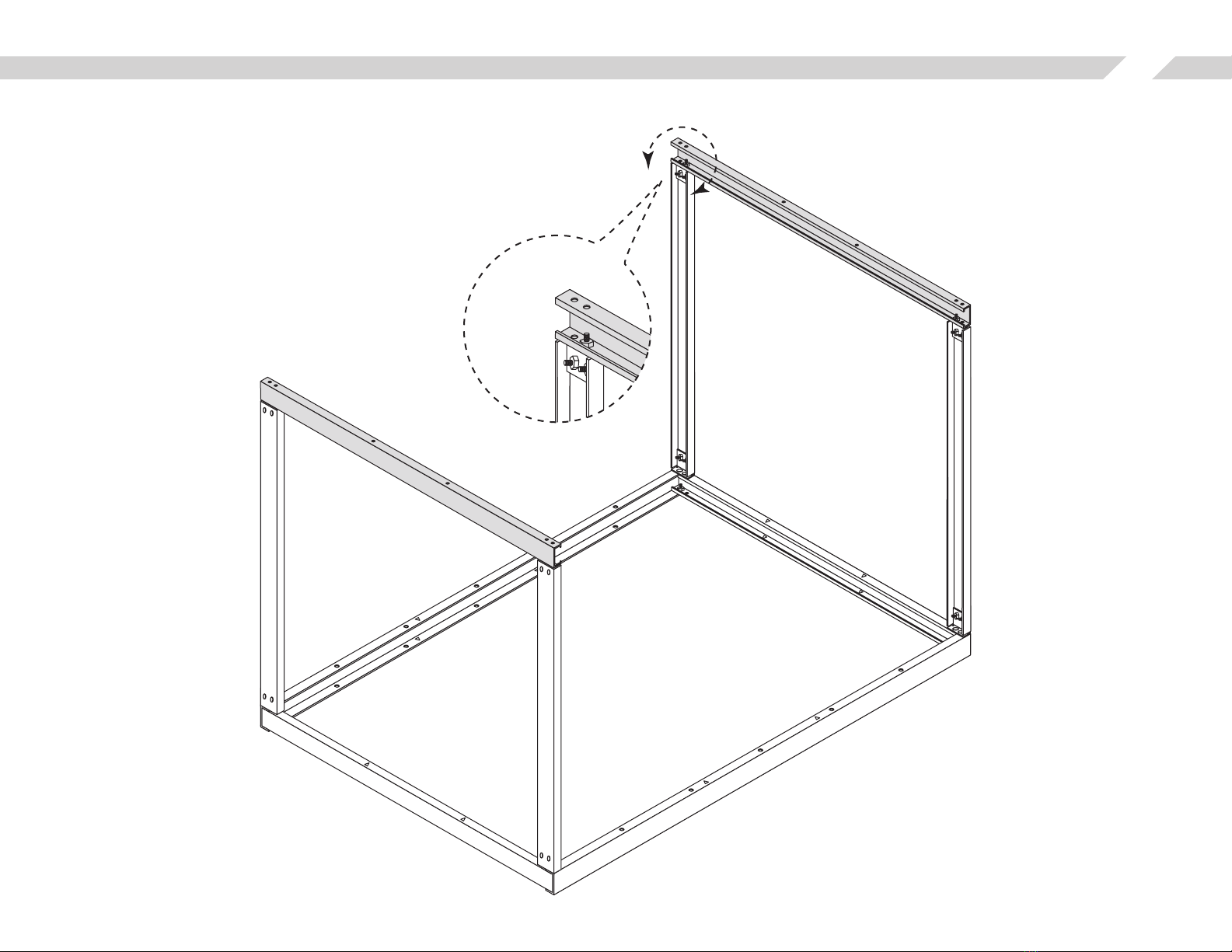

RAFTERS (R-1)
Bolts should remain loose until EC-1 is installed.
R-1
R-1
Place only
inside bolt
as shown.
Mueller, Inc.9x12Greenhouse Kit Instructions;For additional information, see the Greenhouse Installation Video 8

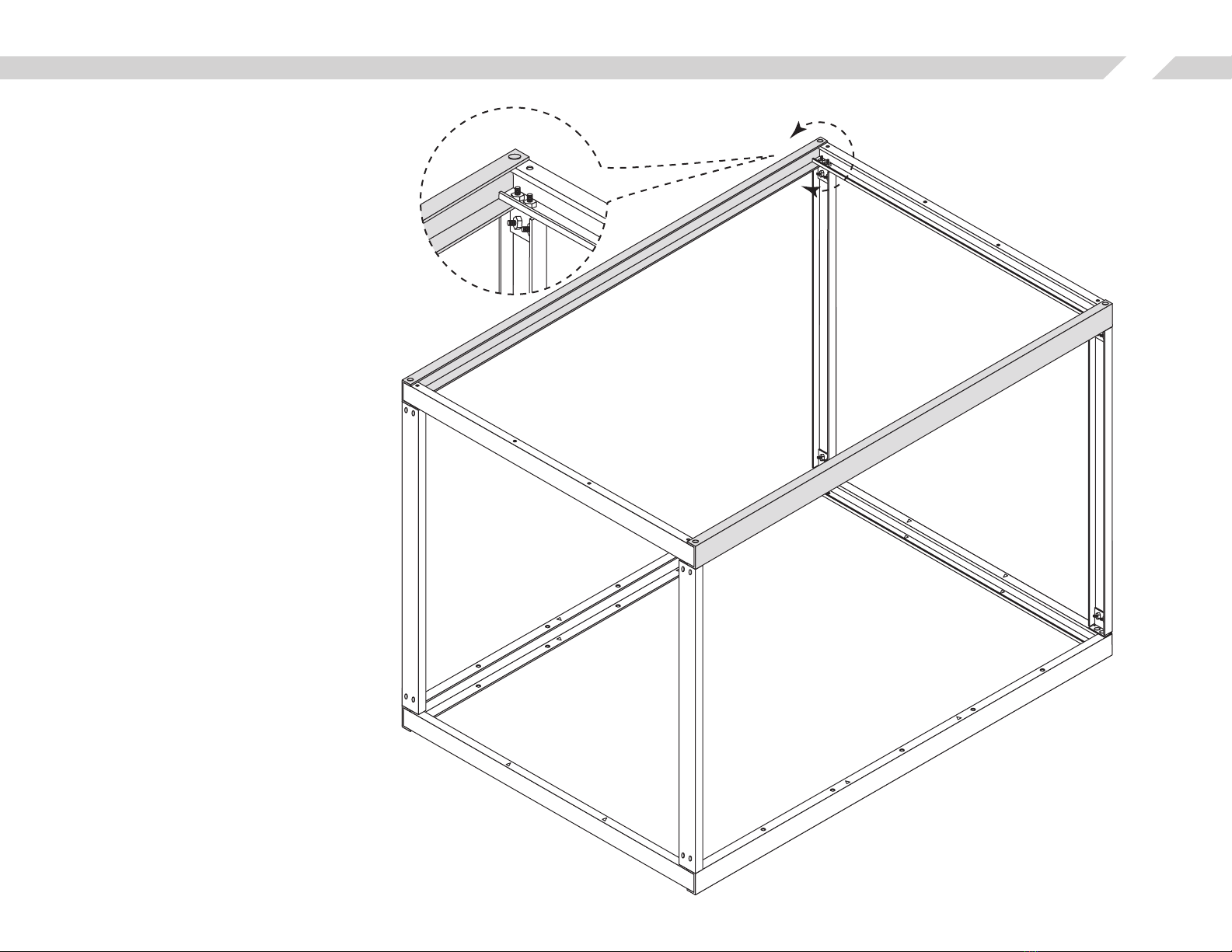

EAVE CHANNEL (EC-1)
Tighten bolts after EC-1 is installed.
EC-1
EC-1
Mueller, Inc.9x12Greenhouse Kit Instructions;For additional information, see the Greenhouse Installation Video 9

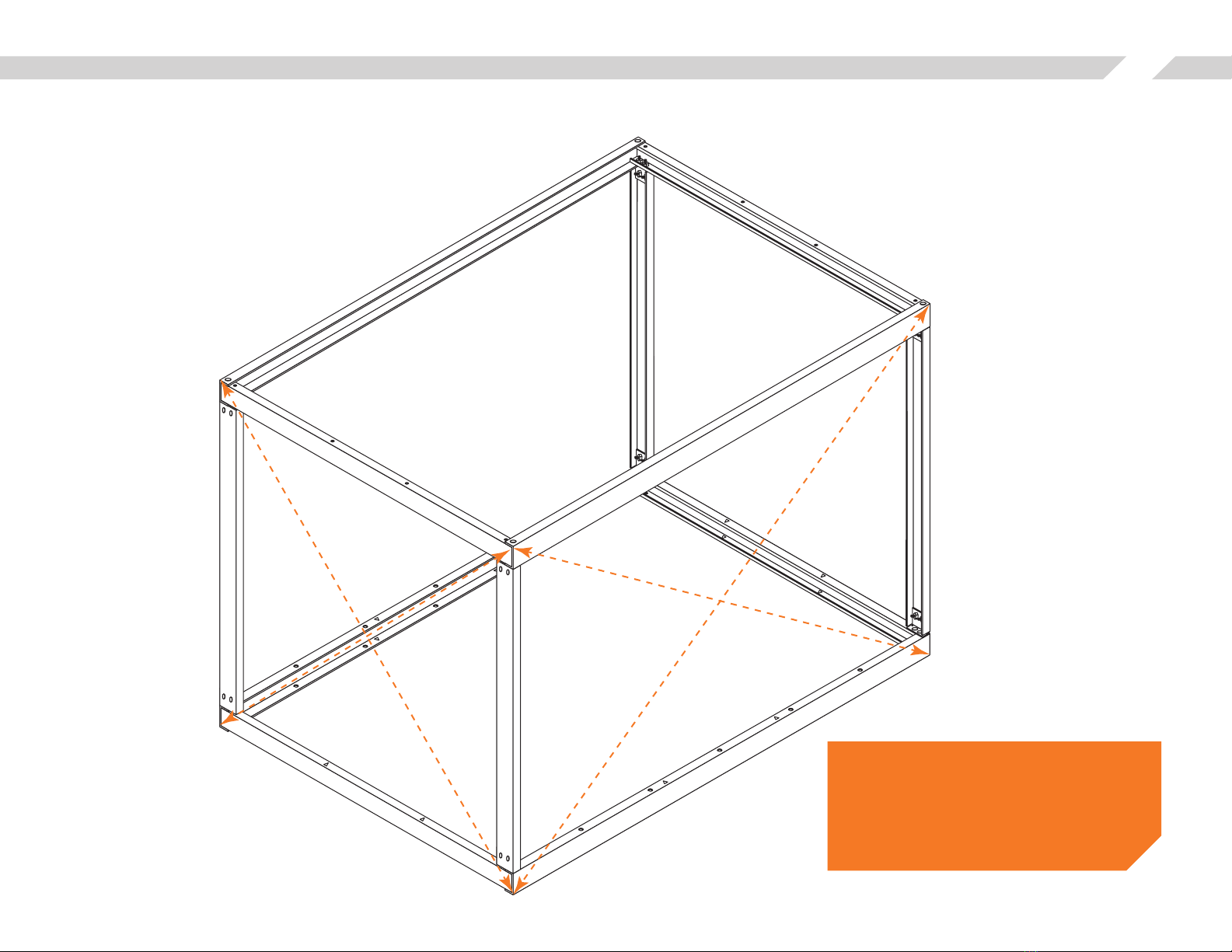

MAKE SURE THE ASSEMBLY
IS SQUARE AND LEVEL
BP-1
BP-1
BC-1
BC-1
C-1
C-1
C-1
C-1
R-1
EC-1
EC-1
R-1
Make sure the assembly is square.
Assembly is square when the corner to
corner measurements are equal. Use
temporary bracing (not included) to
hold assembly square if required.
Mueller, Inc.9x12Greenhouse Kit Instructions;For additional information, see the Greenhouse Installation Video 10
R-1
EC-1
EC-1
R-1
RP-1
RP-1

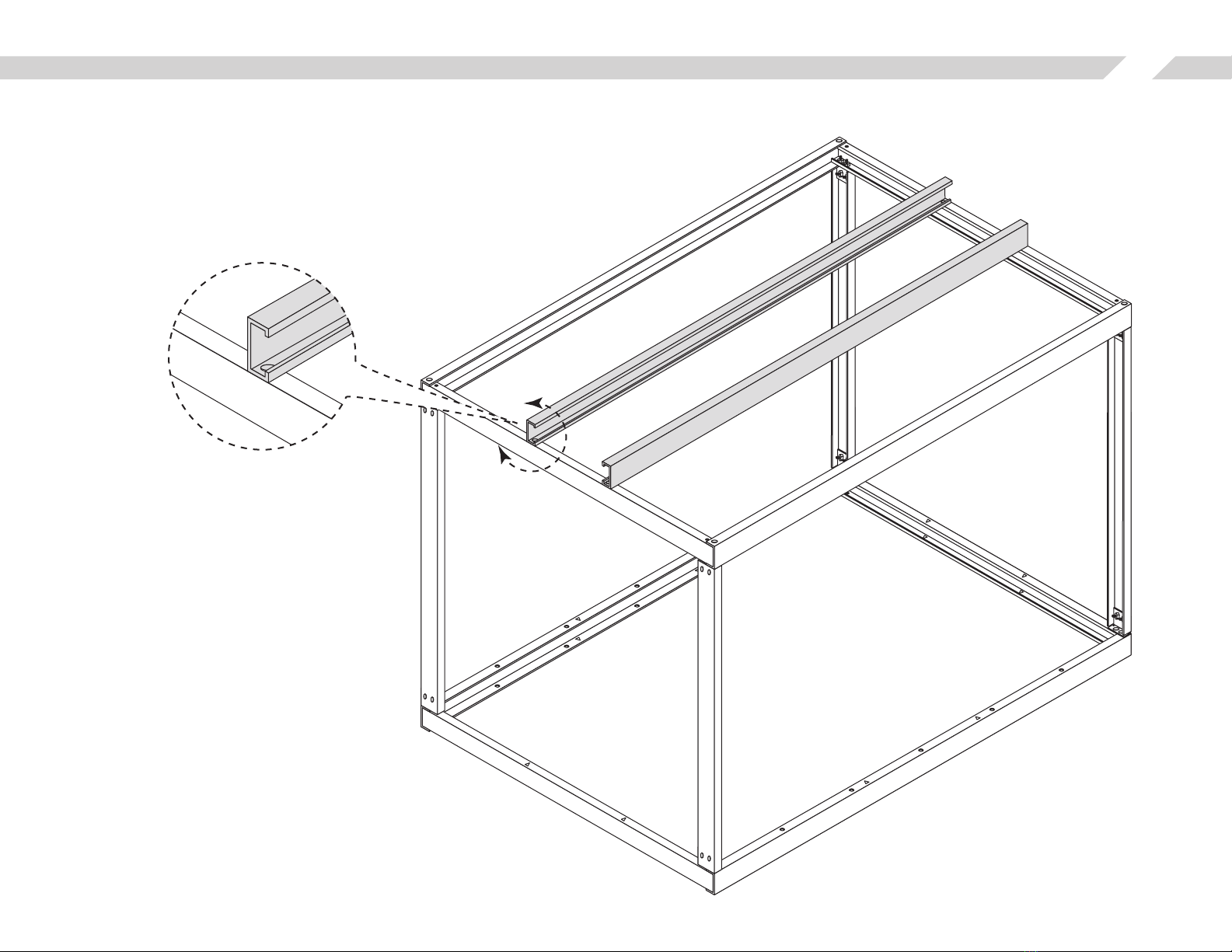

ROOF PURLIN
Open side of RP-1 faces to center of building.
