TECHNOLOGY MANUAL
INSTANTANEOUS GAS WATER HEATER
MODEL: 5L/6L CF
EDITION: 01 / MAY, 2007
ISSUED BY MTS (CHINA)
Technology Manual – Instantaneous Gas Water Heater 5L/6L CF
- 1 -
INDEX
Characteristic & Function…………………………………………………………………..2 - - 4
¾Outlook & summary………………………………………………………………………….2
¾General technology data………………………………………………………………………3
¾Function……………………………………………………………………………………….4
Structure & Components……………………………………………………………………5 - - 8
¾Structure & Main components list…………………………………………………………….5
¾Gas & water valve…………………………………………………………………………….6
¾Work and control program……………………………………………………………………7
¾Electric circuit…………………………………………………………………………………8
Installation…………………………………………………………………………………9 - - 15
¾Product dimension....................................................................................................................9
¾Installation place requirement.................................................................................................10
¾Fixation of heater……………………………………………………………………………13
¾Water pipe and gas pipe……………………………………………………………………..14
¾Exhausting pipe……………………………………………………………………………..15
Use instruction……………………………………………………………………………………16
General Safety instruction……………………………………………………………..….17 - - 18
General failure & Solution……………………………………………………………..…19 - - 23
Technology Manual – Instantaneous Gas Water Heater 5L/6L CF
- 2 -
OUTLOOK & SUMMARY
Exhaustfluepipe
Digitaltemperaturedisplay
Flamewindow
Water adjust knob, control heating water volume
Winter/Summer switch knob; control half or whole burner working
Batterypowerlight
Gas adjust knob, control gas combustion input power
Batterypowerswitch
Batterybox,2pcsA1inside
Coldwaterinletwithfilter,G1/2”
Waterpressurereleasesvalve,workingpressure:0.8Mpa
Hotwaterinlet,G1/2”
Gas inlet, G1/2”
Technology Manual – Instantaneous Gas Water Heater 5L/6L CF
- 3 -
GENERALTECHNOLOGY DATA
FUN
CTIO
NS
Model 5L CF 6L CF
Hot water output(L/Min) 5 6
Heat input(KW) 10 12
Heat efficiency >80%
Gas type Liquefied Petroleum Gas(LPG) / Natural gas (NG)
Gas pressure (Kpa) 2.8---LPG / 2.0---NG
Gas consume ( M3/h) 0.367-PG / 1.029- NG 0.424-LPG / 1.241-NG
Min.water start pressure (Mpa) <0.025
Water working pressure (Mpa) 0.025-0.1
Installation place Indoor
Exhaust type Natural flue
Ignition Electrical
burning Natural atmosphere burning
Heat exchanger Normal copper
Safety protection Electronic flame sensor
Water temperature control Mechanical
Display Light/LED
Rated voltage DC3V
Water inlet / outlet G1/2
Gas inlet G1/2
Exhaust outlet Φ90mm
Net weight(Kg) 5.0 5.2
Dimension (mm) 440×300×130
Colour White (paint)
Technology Manual – Instantaneous Gas Water Heater 5L/6L CF
- 4 -
FUNCTION
1. Convenient
This water heater needs two A1 batteries to feed micro-computer(IC) power. You only need to
turn on the power button, open the gas valve, cold water valve and hot water valve; warm water
will be supplied continuously after several seconds. Whichever you turn off cold water valve, hot
water valve or the power button the water heater will stop working.
2. Gas saving
Advanced combustion system is used in the heater; the subsection switch device is designed for
winter & summer type.
3. Dry burning proof protection
It immediately closes the gas valve when there is no water flow.
4. 20 minutes timing protection
After working for 20±3min, the heater will stop for self protection automatically. When user wants
to go on using the heater, restarting it is enough.
5. Over-pressure protection
When water pressure is too high, it will unload automatically to avoid heater damage.
6、Hot water temperature display light(display light model)
While working the display light can shine.
7、Hot water temperature display (LED model)
While working the LED display window can show the hot water temperature.
Technology Manual – Instantaneous Gas Water Heater 5L/6L CF
- 5 -
TRUCTURE & MAIN COMPONENTS
Flue connector
(￠127mm )
Flue exhaust holder
Hang holds
Temp. limit sensor
(6L)
Ignition sensor
Flame sensor
Ignition control(IC)
Solenoid valve Battery box
Microswitch
Water valve
Gas valve
W/S gas valve
Burner
Heating
exchanger (H.E)
Gas inlet (G 1/2”) Water outlet (G 1/2”) Water inlet (G 1/2”)
Technology Manual – Instantaneous Gas Water Heater 5L/6L CF
- 6 -
GAS & WATER VALVE
PART DESCRIPTION PART DESCRIPTION
01 Gas adjust valve
18
Water tap
02 O ring 14.3*9*2.65
19
O ring
03 Mechanical gas valve ring base
20
Steady spring
04 Mechanical gas valve ring
21
Steady spring fixed support
05 Mechanical gas valve ring
22
Steady spring support
06 Ring base for driving
axis
23
Regulative screw for Max. water flow
07 Driving
axis
24
Safety valve
08 airproof
25
O ring
09 O ring
26
Water valve support
10 Rectangle airproof
27
Water valve
11 Spring support
28
Regulative screw for Min. water flow
12 Spring(small)
29
Anchor point for septum
13 5L Spring(small) support
30
Filter
14 O ring
31
Microswitch
15 Septum
32
Solenoid valve
16
Septum support
33
Gas valve
17
O ring
Technology Manual – Instantaneous Gas Water Heater 5L/6L CF
- 7 -

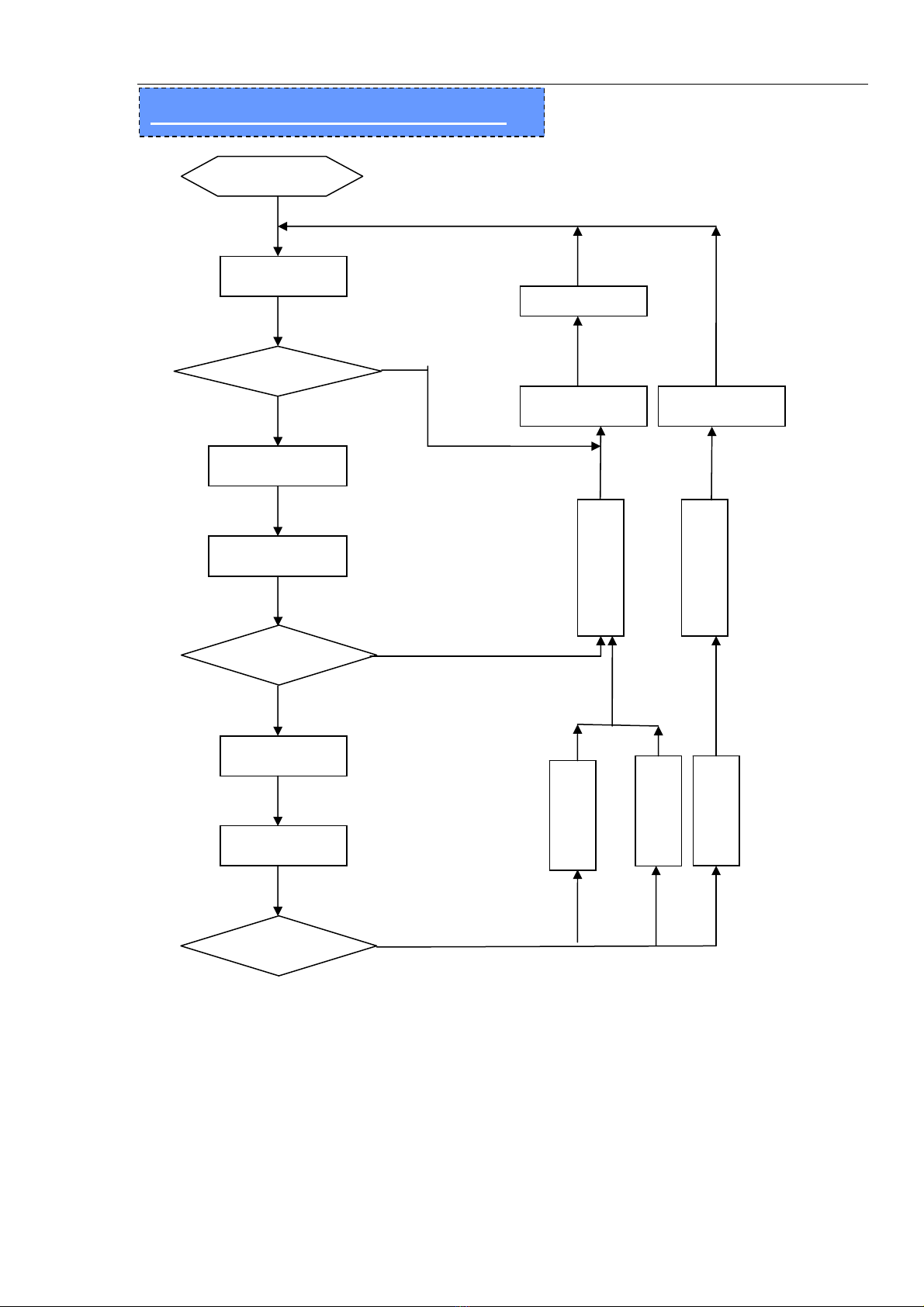

WORK AND CONTROL PROGRAM
Install battery
Open water
Sparking
Open gas valve
Stop ignition
Working
Safety device
Check failure
Close water Close water
Close gas valve
Close gas valve
Flame failure
20m timing
Temp. limit
Flame sensing
N
O
YES
NO
YES
Microswitch
Technology Manual – Instantaneous Gas Water Heater 5L/6L CF
- 8 -

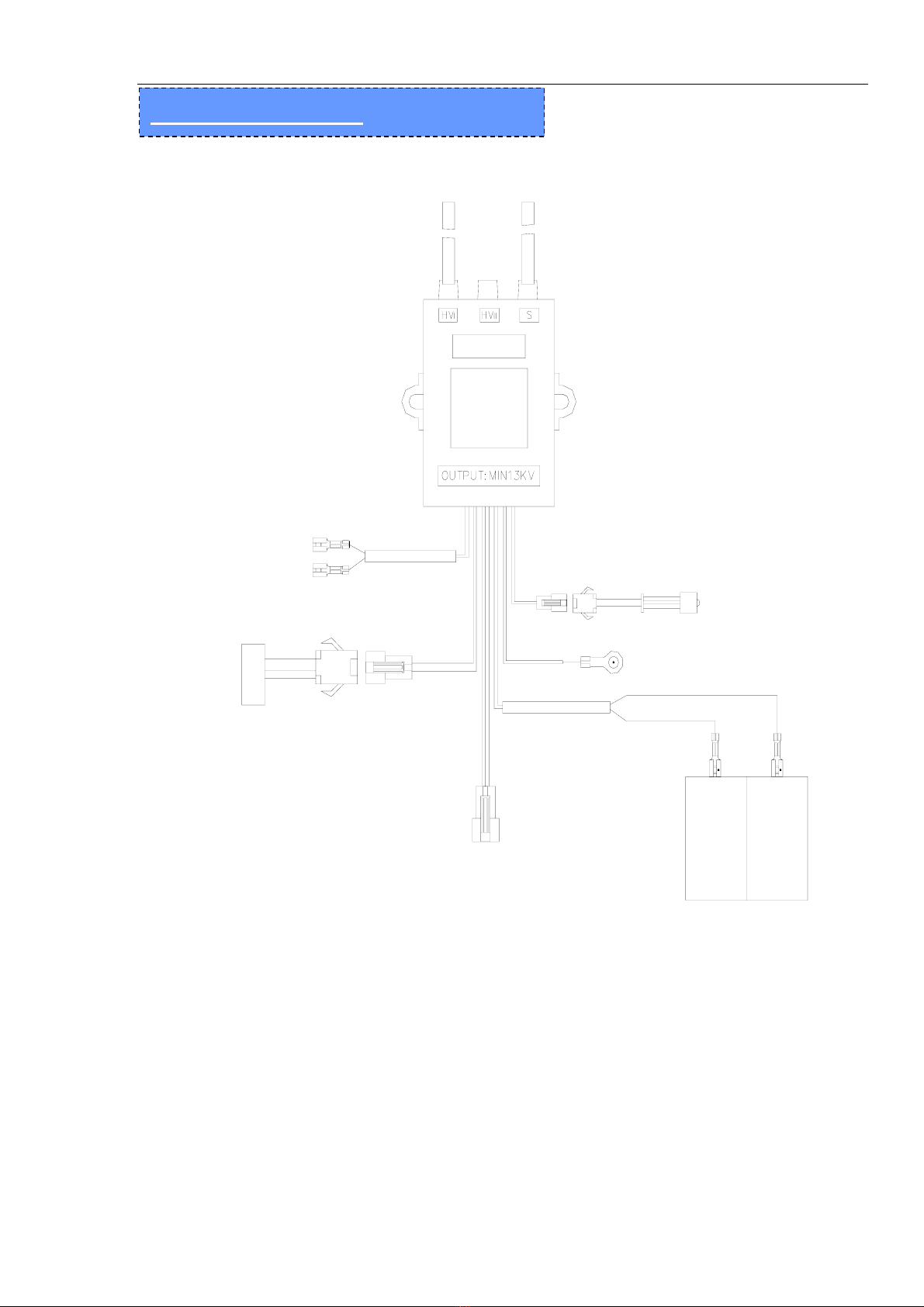

ELECTRIC CIRCUIT
Yellow
Red
Black - Red +
Black
Ignition Flame sensor
LED/
display
light
GND
Battery
box
Totemp. limit
To solenoid valve
Microswitch
Technology Manual – Instantaneous Gas Water Heater 5L/6L CF
- 9 -

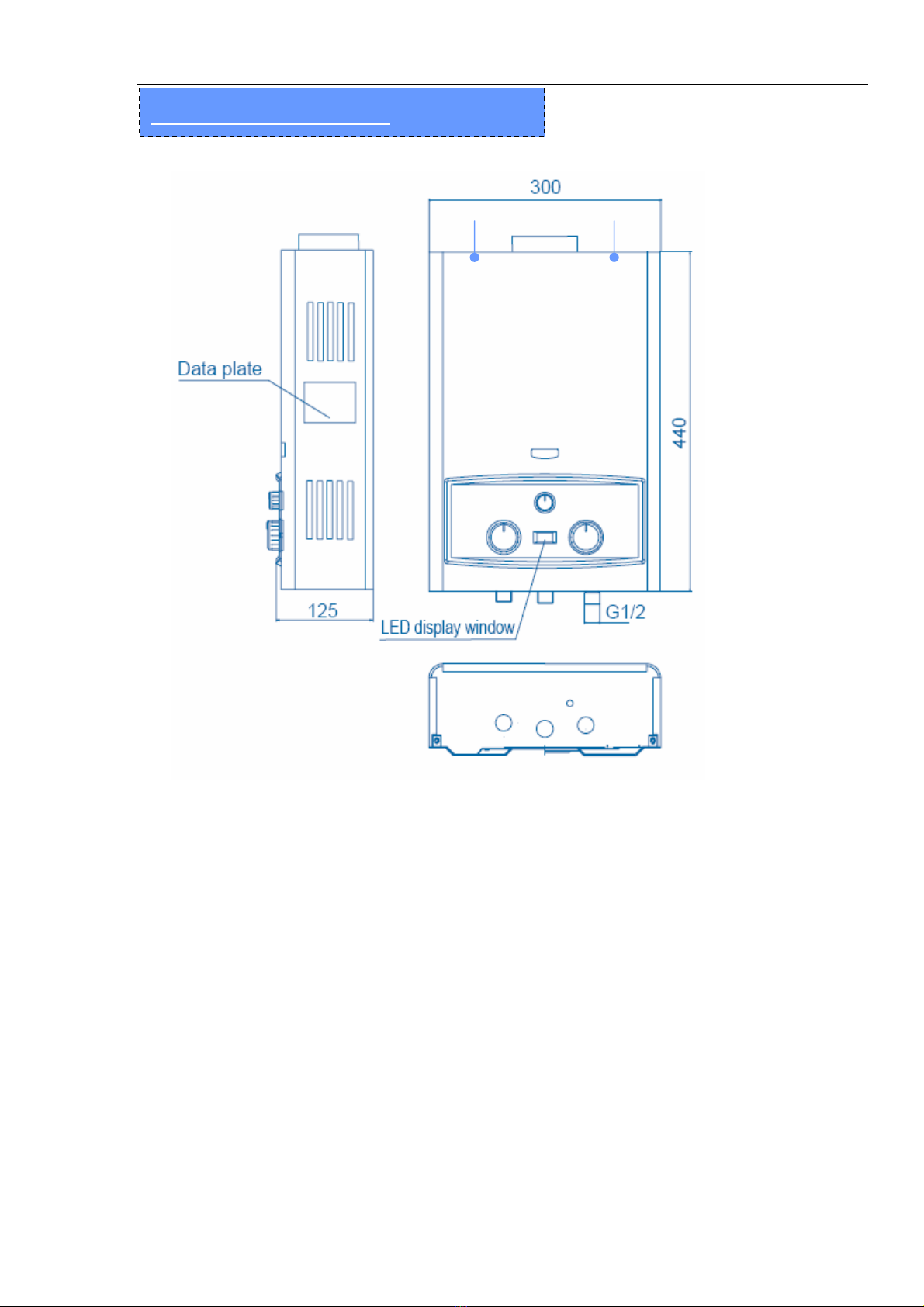

PRODUCT DIMENSION
160
