MTHTrains HO 2-8-4 Guide de démarrage rapide

M.T.H. HO 2-8-4

NKP Berkshire

Steam Engine

Congratulations! You've just purchased the

most feature rich and technically advanced

HO steam engine ever produced! In

addition, it happens to be produced by MTH,

the leader in digital sound and control

technology for model railroading. There

willbemanymoreenginestofollow.

Wehopeyouwillenjoythem.

Now,let'sgetstarted…..

PLEASE READ THE MANUAL BEFORE USE AND SAVE

WWW.MTHHOTRAINS.COM

(PS3)

ENGINEER’S GUIDE

Passenger Station Announcement

Freight Yard Sound

TABLE OF CONTENTS

UNPACKING YOUR ENGINE 4

Removing and Unwrapping Your Engine 4

What Else is in the Box? 4

PRODUCT OVERVIEW 5

Getting to Know Your Engine 5

Engine Diagram 7

SET-UP 8

Coupler Installation 8

Engine and Tender Connection 9

Smoke Unit Preparation and Use 9

Removal/Installation of Drive Wheel Sets 9

Lubrication 12

FEATURES AND OPERATION 13

Analog DC (standard DC power pack) 15

DCC Digital Command Control 20

DCS Digital Command System 23

SPECIFICATIONS 25

CARE AND MAINTENANCE 26

Troubleshooting Guide 26

SERVICE & WARRANTY INFORMATION 32

Service & Warranty Information 32

Limited One-Year Warranty 32

This product may be protected by one or more of the following patents: 6,019,289; 6,280,278;

6,281,606; 6,291,263; 6,457,681; 6,491,263; 6,604,641; 6,619,594; 6,624,537; 6,655,640.

CAUTION: ELECTRICALLY OPERATED PRODUCT:

WARNING:When usingelectricalproducts,basic safetyprecautions shouldbe observed,including thefollowing:

Readthis manualthoroughly beforeusing thisdevice.

lM.T.H. recommends that all users and persons supervising use examine the hobby transformer and other electronic equipment

periodicallyforconditionsthatmayresultintheriskoffire,electricshock,orinjurytopersons,suchasdamagetotheprimarycord,

plug blades, housing, output jacks or other parts. In the event such conditions exist, the train set should not be used until properly

repaired.

lDonot operateyourlayoutunattended. Obstructedaccessoriesorstalledtrainsmayoverheat,resultingindamagetoyourlayout.

lThistrain setisintendedforindooruse. Donotuseifwaterispresent. Seriousinjury orfatalitymayresult.

lDonot operatethehobbytransformerwithdamagedcord,plug,switches,buttonsorcase.

Recommended for Ages 14 and up. Not recommended for children under 14 years of age without adult supervision. As

with all electric products, precautions should be observed during handling and use to prevent electric shock.

M.T.H. HO 2-8-4 NKP Berkshire Steam Engine

QUICK START GUIDE

Of course, you should read your manual over before running your M.T.H.

HO Steam Engine. But if you just can’t wait, choose how you want to run

below and enjoy!! Now, after a few minutes, shut her down and read through

your engineer’s guide.

I USE A REGULAR DC SUPPLY…

Step 1: Unpack your Engine and Tender. (refer to unpacking instruction

on pg 4)…

Step 2: Set the engine on the track …

Step 3: Apply increasing DC voltage until she starts up and pulls out!

I'M A DCC OPERATOR….

Step 1: Unpack your Engine and Tender. (refer to unpacking instructions

on pg 4)…

Step 2: Set the engine on the track …

Step 3: Power up your DCC system…

Step 4: Select engine address 3 and press “F3” to start her up…

Step 5: Turn the throttle and head on down the pike…

I RUN DCS….

Step 1: Unpack your Engine and Tender. (refer to unpacking instructions

on pg 4)…

Step 2: Set the engine on the track …

Step 3: Power up your DCS system…

Step 4: Add the engine to your system and start her up…

Step 5: Turn the throttle and move out….

CAUTION: M.T.H. HO enginesDO NOT OPERATE ON AC VOLTAGE.

Applying AC power to your locomotive could cause permanent damage and will

void your warranty.

UNPACKING YOUR ENGINE

Removing and Unwrapping Your Engine

Carefully remove and unwrap the model on a soft surface. By nature, models with

high levels of detail have some small fragile parts.

Carefully remove any foam packing pieces that may be surrounding the model.

What Else is in the Box?

The following items are packed with your engine.

Engineer's Guide (1)

You probably know that since you're reading it.

Smoke Fluid Pipette (1)

Enough fluid to get you started and then some.

Drive Wheel Set without Traction Tires (1)

For Those who prefer not to use traction tires.

3mm Nut Driver (1)

In case you want to install the drivers without traction tires or replace the standard

drive wheels.

Couplers (2) with mounting hardware

M.T.H. HO 2-8-4 NKP Berkshire Steam Engine

Tender Coupler Engine Coupler

PRODUCT OVERVIEW

Getting to Know Your M.T.H. HO Locomotive

Key Features

Your new HO Steam Engine is equipped with the exclusive M.T.H. Proto-Sound®

3.0 digital sound and control system. In plain English, this means your locomotive

contains state-of-the-art electronics providing realistic digital sounds, puffing smoke

perfectly synchronized with chuffing sounds and motion, precisely controlled speed

in increments of 1 scale mile per hour, and much, much, more.

Compatibility

The Proto-Sound 3 system is universally compatible with track power and/or signal

combinations including analog DC (regular DC power pack), DCC (NMRA Digital

Command Control), or DCS (MTH Digital Command System). Simply set your

Engine on the rails, apply any one of these power/signal sources, and move out!

The Proto-Sound 3.0 system automatically senses the track environment and adapts

accordingly. No hidden jumpers, switches, magic wands, or programming required!!!

A vast array of realistic operation is automatic when the Engine is run on analog

DC. You can expand access to features in a DCC environment. Experience the

most your new locomotive has to offer in the simple to use yet powerful world of

DCS. To be clear, DCS is NOT a proprietary version of DCC, as some other

manufacturers offer. DCS is a comprehensive layout control system designed

with one primary goal: make model trains do amazingly realistic things

using a simple and intuitive controller. We put the complexity on the inside,

and the fun in your hands!

Digital Sound

Your Proto-Sound 3 (PS 3) equipped Engine contains over 100 individual

recordings. These recordings are played back dynamically at appropriate times to

create a symphony of realism for your ears. Hear the chuffs automatically intensify

or lighten when speeding up or slowing down, listen to the sounds of brakes

squeaking and squealing as you come to a stop, or enjoy the random conversations

of railmen working as your model sits at idle. It's all there and it's incredible.

Now, your HO Engine includes the ultimate in realism Proto-Whistle. With this

incredible new feature you have variable control over the steam whistle sound in

your locomotive (when operated in DCS mode with the DCS Commander or DCS

software version 4.0 or greater). Also included is a one button push Grade Crossing

Whistle

M.T.H. HO 2-8-4 NKP Berkshire Steam Engine

Digital Control

In standard analog DC mode, your model still operates under digital control. The

PS 3 advance speed control system converts track voltage into digital speed

commands. Your model will run smoothly and consistently at any speed regardless

of load, hills, or curves. If you are a DCC user, you'll quickly learn to appreciate the

precision of our speed control and linear speed curve. DCS users will enjoy the

added benefits of controlling speeds in increments of 1 scale mile per hour

displayed on DCS controllers or easily changing acceleration and deceleration rates

independently without any discussion of bits or bytes. To be clear, DCS is NOT

DCC.

Lights & Smoke

As you read on, you'll notice there are no instructions for replacing light bulbs in

your Mohawk. That's because there aren't any. We use specially designed and

controlled LEDs to create realistic lighting effects that occur automatically. Again,

NO PROGRAMMING!! Just come to a stop and watch as the headlight dims

automatically in accordance with rule 17. Of course, as you pull away, the headlight

returns to it's fully bright, yet warm, glow. We even included a light in the cab so

the engineer and fireman can see to do their jobs!

M.T.H. is renowned for our realistic smoke systems. This HO Steam Engine is no

exception. When the smoke is on, you will experience copious puffs synchronized

precisely with chuffing sounds at 4 times per revolution of the drive wheels. Of

course, when you stop, the smoke wafts out of the stack steadily, justlike the real

thing! The smoke behavior applies to all operating modes, analog DC, DCC, or

DCS. With some DCC controllers, you can turn smoke on and off remotely. In

DCS mode, you can not only toggle smoke on and off with the press of single

button, you can actually select from 3 output levels to keep those smoke alarms

from going off!

More…

In analog DC operation, just flip the track polarity or direction switch at any speed

and watch your Engine gradually come to stop, turn on the appropriate directional

lighting, and smoothly accelerate back up to speed. No other HO locomotive has

features like these. There are so many more things to learn and enjoy about M.T.H.

HO Engines, we could write a book. But, that's no fun. So, if you haven't already

done so, flip to the Quick Start Guide and let's run your new engine!!

M.T.H. HO 2-8-4 NKP Berkshire Steam Engine

ENGINE DIAGRAM

Boiler

M.T.H. HO 2-8-4 NKP Berkshire Steam Engine

Tender

Sliding Roof Vents

Drawbar

Cab Interior

Light

Fireman/

Engineer

Figures

Drive Wheels Pilot Truck

Smoke Stack

Rear Coupler

Drawbar Pin

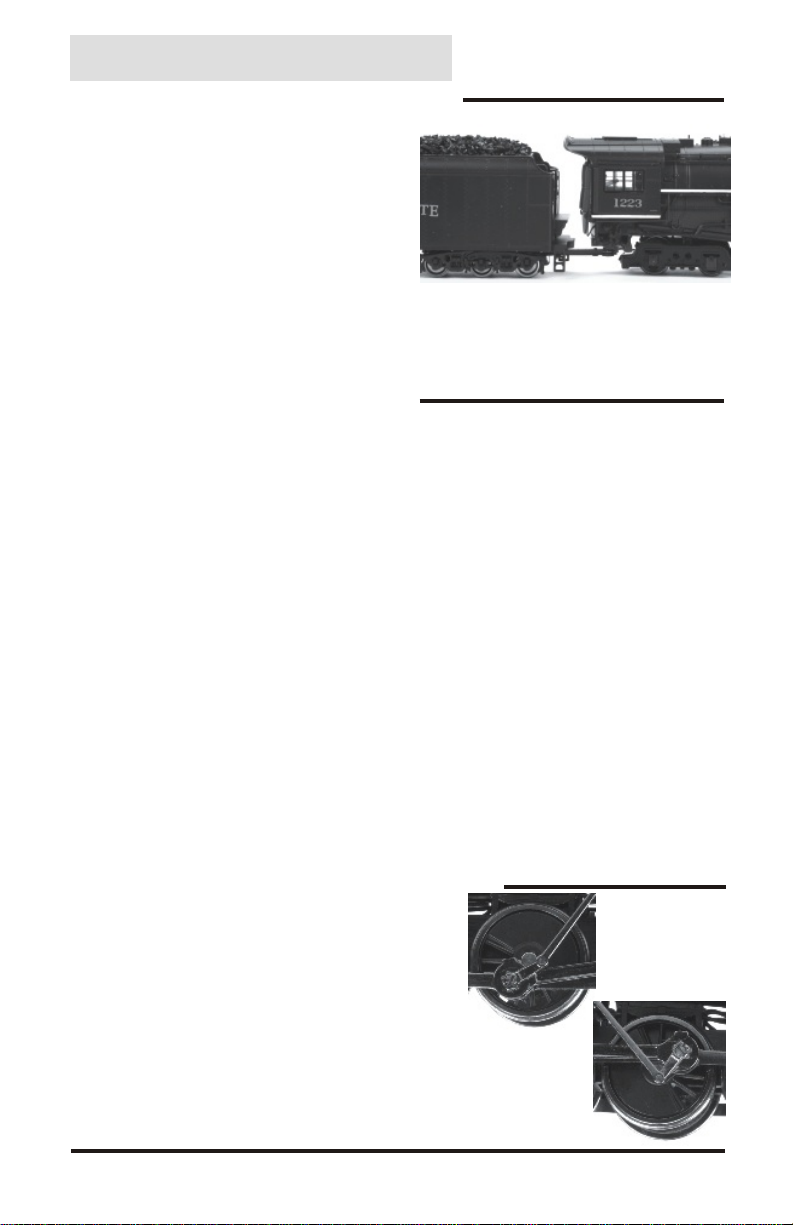

Connection of the Engine and Tender

Your M.T.H. HO Steam Engine is equipped

with bus type draw bar. The drawbar not

only connects the engine and tender it uses

two electrical conductors to transmit digital

information between the engine and the

tender. Connecting the engine and the

tender is just a matter of inserting the

drawbar pin on the front of the tender into the hole closest to the engine is for

operation on smaller radius curves (less than 44 inch radius). The hole at the end of

the drawbar is for larger radius curves (44 inch radius or greater).

Smoke Unit Preparation and Use

Your M.T.H. HO Steam Engineis equipped with a proven fan-driven smoke system

design featured in M.T.H. products for over 10 years. The performance and realism

of this system is unparallel in the model train industry.

Your smoke unit comes primed from the factory however, before running the smoke

unit for more than a few minutes, you should add more fluid. Add between 10-15

drops initially and whenever smoke output diminishes or if the engine has been

stored for a long period of time. We provided some fluid with your model to get

you started. Versions with twin smokestack openings should have smoke fluid

applied in the forward smokestack opening only.

The smoke unit is controlled differently depending upon how your run your engine

so, for particulars on turning it on or off or setting the output levels, check out the

features and operation section.

You shouldn't run your smoke unit without fluid. Doing so can cause overheating

and reduce the performance and/or life of the unit. If you wish to operate your

engine without smoke, turn the smoke unit off. Do not let the smoke unit go dry

with the smoke unit turned on. Of course, we recommend using only M.T.H.

ProtoSmoke fluid. Super Smoke and LVTS brands also work fine.

Removal/Installation of Drive Wheel Sets

Your M.T.H. HO Steamercomes from the

factory with a set of traction tire equipped drive

wheels installed and an alternate set without

traction tires available separately in the box. The

traction tires provide exceptional pulling power on

grades and through curves but should you prefer

the traditional appearance of steel drive wheels,

the alternate set can be easily installed by following

the steps on the next page.

SET-UP

M.T.H. HO 2-8-4 NKP Berkshire Steam Engine

Right Wheel

Left Wheel

M.T.H. HO 2-8-4 NKP Berkshire Steam Engine

Installing Couplers

The coupler for the tender is mounted on the rear of the tender

using the Draft Gear Box that is supplied with the coupler hardware.

The Draft Gear Box with the Coupler installed is attached to the

tender by one screw. The lip of the Draft Gear Box Lid should be

placed against the outside of the rear sill of the tender.

To install the coupler on the tender:

- Place the tender upside down in a foam cradle or other soft

surface. Make sure that the tender will not roll over.

- Place the coupler in the Draft Gear Box. When the Draft

Gear Box is in a position so that the area covered with the

Draft Gear Lid is facing up, the coupler should be placed in the

Draft Gear Box with the Trip Pin hanging down.

- Carefully place the assembled Draft Gear Box and Coupler on

the rear of the tender chassis and insert the larger screw

supplied with the couplers to secure the Draft Gear Box.

Engine Pilot:

The pilot coupler supplied in the packaging is an HO scale

coupler. Prior to mounting the coupler to the engine, the coupler must be inserted into

the draft gear. The draft gear and coupler is then inserted into pilot and attached with a

single screw that is supplied in the packaging.

To install the coupler for the engine:

Place the engine upside down in a foam cradle or other soft surface. Make sure that

the engine will not roll over. Be careful of the small details on the boiler

-Insert the coupler into the slot in the pilot.

- Align the hole in the draft box with the tapped hole on the underside of the pilot and

attach the draft box using the mounting screw that is supplied in the packaging

SET-UP

First, position the engine upside down in a foam cradle or other soft surface, while

being careful of the small details on the boiler. Using a small flat blade

screwdriver, carefully remove the drive rod screws (2) on the 3rd set of drive

wheels. There's one on each side.

MAKE NOTE OF THE ECCENTRIC CRANKS IN REALTION TON

THE AXLE IF THE DRIVER BEING CHANGED. THE ECCENTRICS

MUST BE RE-ASSEMBLED IN THE SOME POSITION.

Remove the Brakeshoe detail along with the bottom plate by removing the 5 screws

indicated in the picture below. Set the cover aside and don't do any thing further

until you have completely read the Caution Note.

Caution Note

Before proceeding, there are a couple of important

things to know. First, under the square bushings on

each end of the axle are tiny springs. They are critical

to the proper operation of your engine and you don't

want to drop them. Next, look closely at the wheel set

and bushings and take note of their orientation.

M.T.H. HO 2-8-4 NKP Berkshire Steam Engine

Driver springs

Screws

Brake Shoe Detail/bottom plate

Table des matières

Autres manuels MTHTrains Jouet

MTHTrains

MTHTrains Premier VO-1000 Diesel Engine Manuel utilisateur

MTHTrains

MTHTrains RAIL KING BALDWIN AS616 DIESEL ENGINE Manuel utilisateur

MTHTrains

MTHTrains PREMIER MTH EP-5 Manuel utilisateur

MTHTrains

MTHTrains Premier P5-a Manuel utilisateur

MTHTrains

MTHTrains 80-2373-1 Guide de démarrage rapide

MTHTrains

MTHTrains 20-2897-1 Manuel utilisateur

MTHTrains

MTHTrains TINPLATE TRADITIONS 8E & Ives 3236R Manuel utilisateur

MTHTrains

MTHTrains PREMIER AC4400CW DIESEL ENGINE Manuel utilisateur

MTHTrains

MTHTrains TINPLATE TRADITIONS 390E Manuel utilisateur

MTHTrains

MTHTrains Premier 20-90003 Manuel utilisateur

MTHTrains

MTHTrains HO GP38-2 Guide de démarrage rapide

MTHTrains

MTHTrains 260E Manuel utilisateur

MTHTrains

MTHTrains PREMIER GP-7 DIESEL ENGINE Manuel utilisateur

MTHTrains

MTHTrains RAIL KING FP45 DIESEL ENGINE Manuel utilisateur

MTHTrains

MTHTrains Premier R11 Subway Car Manuel utilisateur

MTHTrains

MTHTrains RailKing 30-9006 Manuel utilisateur

MTHTrains

MTHTrains Premier 2-4-1A Mountain Manuel utilisateur

MTHTrains

MTHTrains UP 4-12-2 Instructions d'installation et d'utilisation

MTHTrains

MTHTrains Premier French SNCF 2-Rail Passenger Set Manuel utilisateur

MTHTrains

MTHTrains FM TRAINMASTER DIESEL ENGINE Manuel utilisateur

MTHTrains

MTHTrains RAILKING MP-15 DIESEL ENGINE Manuel utilisateur

MTHTrains

MTHTrains Scale Premier F-3 ABA Manuel utilisateur

MTHTrains

MTHTrains Proto-Sound 2.0 Digital Command System Manuel utilisateur

MTHTrains

MTHTrains RAILKING DASH-8 Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

Canon

Canon PAPER CRAFT Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur
