The Premier Bay Window Caboose offers a new

level of excitement and realism for your O

Gauge model railroad. Constructed from sturdy

ABS plastic, the Bay Window Caboose was

created from quality components and has been

designed for years of operation.

The Premier Bay Window Caboose comes fully

assembled, decorated and ready for use right

out of the box. The Bay Window Caboose

features an illuminated interior and exterior

marker lights, controlled from track power. Use

and operation is made easy by following the

instructions on the following pages.

ELECTRIC TRAINS, INC.

Caboose

BayWindow

7020 Columbia Gateway Drive

Columbia, MD 21046-1532

www.mth-railking.com

INSTRUCTIONS

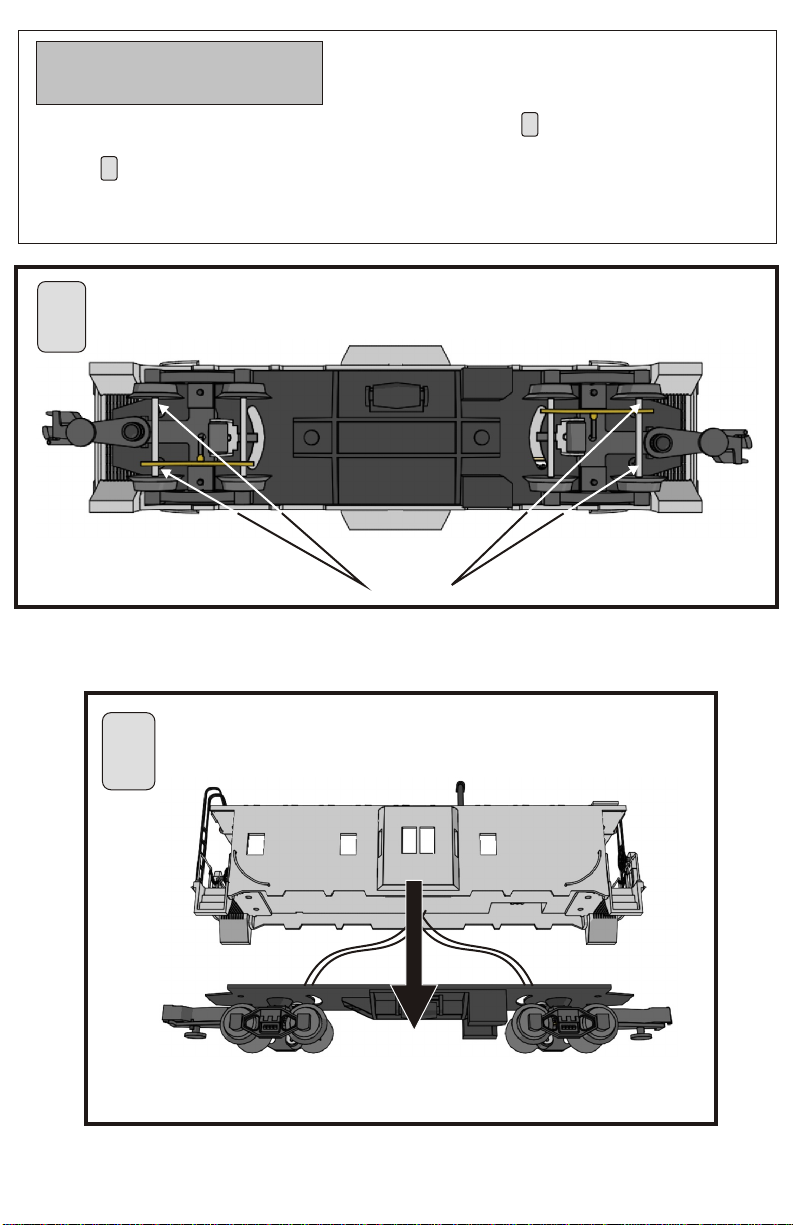

To replace the interior light bulbs, follow these steps. 1) To remove the shell

from the chassis, remove the four mounting screws located underneath the

trucks. 2) With the four screws removed, lower the chassis from the shell, take

care not to pull the wires out.

STEP

11

Remove these

four screws

STEP

22

STEP

1

STEP

2

Bay Window Caboose Instructions 2

3) To be able to separate the interior from the shell you need to remove the step

platform from both ends. In order to do this you need to loosen the Ladder from

the Catwalk. You must do this carefully so that you don't scratch the paint on the

roof of the caboose. First remove the ladder from the Catwalk by pulling the

ladder upward and outward. With

the step platforms loosened you can then lower the interior from the shell (to

completely remove the body from the interior, go to Step 6 which is found on page

4). 5) You can now replace the bulbs by pushing the socket up from the bulb

holder and pulling the bulb from its socket. Replace with a new one, and reverse

the steps to reassemble the caboose. To replace the two red LED lights at the

end of the caboose follow steps 1-4 & 6-7.

You can then remove the step platforms. . 4)

STEP

3

STEP

4

STEP

5

Bay Window Caboose Instructions 3

STEP

55

STEP

44

STEP

33

Step

Platform

Ladder

Bay Window Caboose Instructions 4

You can obtain replacement bulbs directly from the M.T.H. Parts

Department (phone: 410-381-2580; e-mail: parts@mth-

railking.com; mail: 7020 Columbia Gateway Drive, Columbia MD

21046-1532

STEP

77There will be two spots of hot

glue holding the LEDs in place.

Use a screw driver to loosen

the wires from the spots of glue.

The end windows will also need

to be removed. Simply slide

them out. Pull the LEDs back

towards the inside of the shell

to remove them. Replace the

LEDs with a new set and use

hot glue to put the wires back in

place. Plug the wires back into

the connector under the interior.

When reassembling, the end

posts of the shell must pass

through the corresponding

holes in the interior.

End posts

of the shell

STEP

66

Unplug the red LED’s

from underneath the

interior

Notes:______________________________________________

___________________________________________________

Notes:______________________________________________

___________________________________________________

Notes:______________________________________________

___________________________________________________

How to Get Service Under the Terms of the Limited One-Year Warranty

For warranty repair, do not return your product to the place of purchase. Instead, follow the

instructions below to obtain warranty service, as our dealer network is not prepared to service

the product under the terms of this warranty.

1. First, write, call or FAX M.T.H. Electric Trains, 7020 Columbia Gateway Drive, Columbia,

MD 21046, (Tel: 410-381-2580; FAX : 410-423-0009; e-mail: [email protected]),

stating when it was purchased and what seems to be the problem. You will be given a return

authorization number to assure that your merchandise will be properly handled upon its receipt.

2. CAUTION: Make sure the product is packed in its original factory packaging including its

foam and plastic wrapping material so as to prevent damage to the merchandise. The shipment

must be prepaid and we recommend that it be insured. A cover letter including your name,

address, daytime phone number, e-mail address (if available), Return Authorization number,

a copy of your sales receipt and a full description of the problem must be included to facilitate

the repairs. Please include the description regardless of whether you discussed the problem

with one of our service technicians when contacting M.T.H. for your Return Authorization

number.

3. Please make sure you have followed the instructions carefully before returning any

merchandise for service.

Limited One-Year Warranty

All M.T.H. products purchased from an Authorized M.T.H. Train Merchant are covered

by this warranty.

See our website at or call 1-888-640-3700 to identify an Authorized

M.T.H. Train Merchant near you.

M.T.H. products are warrantied for one year from the date of purchase against defects in

material or workmanship, excluding light bulbs and traction tires. We will repair or replace (at

our option) the defective part without charge for the parts or labor, if the item is returned to

M.T.H. Electric Trains within one year of the original date of purchase. This warranty does not

cover damages caused by improper care, handling, or use. Transportation costs incurred by the

customer are not covered under this warranty.

Items sent for repair must be accompanied by a return authorization number, a description of the

problem, and the original sales receipt from an Authorized M.T.H. Train Merchant, which

gives the date of purchase. Call 410-381-2580, fax 410-423-0009, or e-mail the Service

Department at to obtain a return authorization number.

This warranty gives you specific legal rights, and you may have other rights that vary from state

to state.

Service Department

M.T.H. Electric Trains

7020 Columbia Gateway Drive

Columbia MD 21046-1532

www.mth-railking.com

[email protected]
