MTD Series 760 Guide de configuration

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-

covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).

If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law

(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester

for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,

Ohio 44136-0019.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

PRINTED IN U.S.A.

READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION

IMPORTANT

ILLUSTRATED PARTS

MANUAL

Transmatic Lawn Tractor — Models 760-779

11/30/2005

FORM NO. 769-01612A

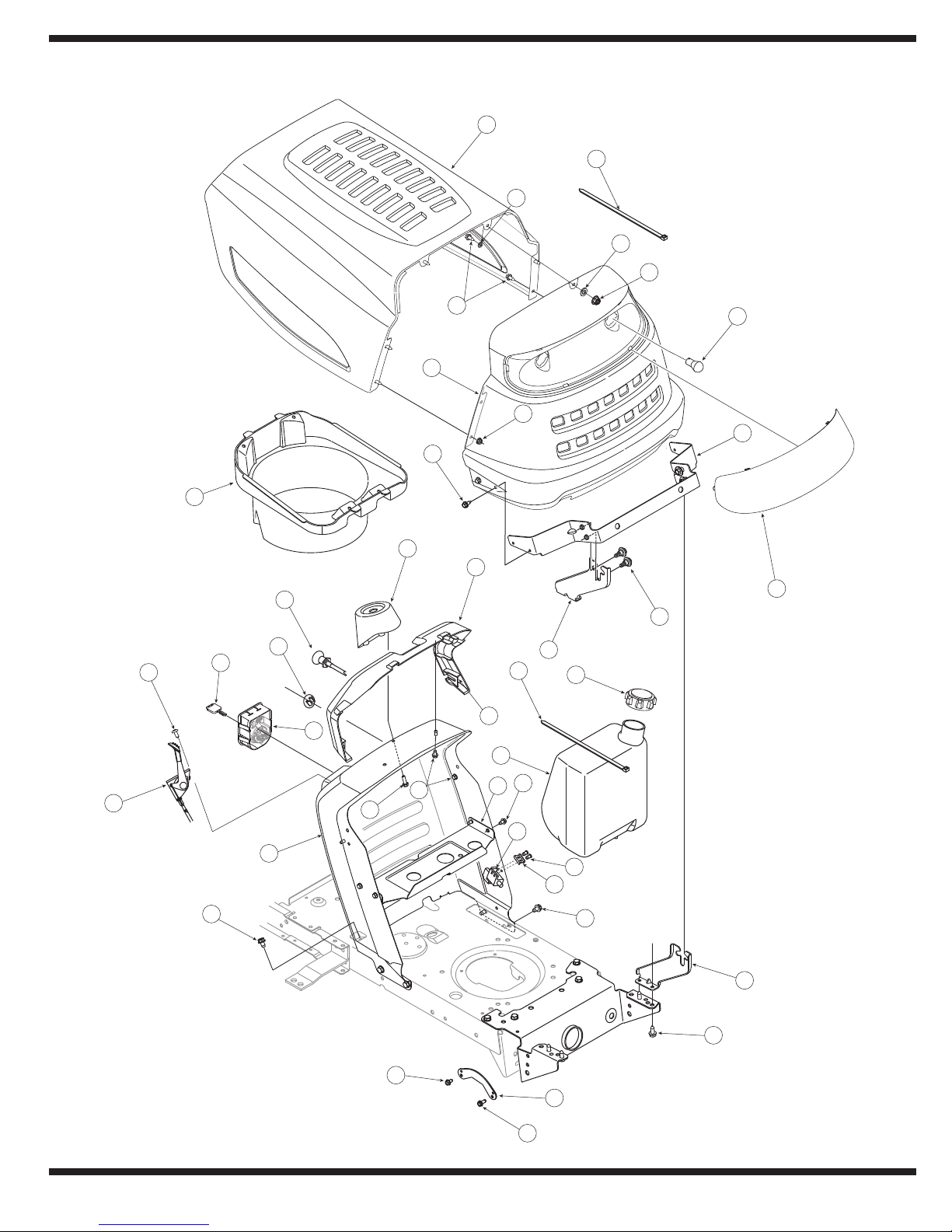

Models 761 & 771









�























































 

























Ref.

No.

Part No. Description

1 710-0599 Screw, 1/4-20, 0.500

2 710-0604A Screw, 5/16-18, 0.625

3 710-0751 Screw, 1/4-20, .620, Gr5

4 710-04483 Screw, 1/4-20, .500

5 712-0185 Nut, 1/4-20, Speed U-type

6 712-04064 Nut, Flange Lock, 1/4-20, Gr5

7 725-0963 Headlamp, 12V

8 736-0176 Washer, Flat, .265 x .938 x .120

9 731-04945 Support, Steering

10 731-04949 Lens

11 738-04091 Screw, Shoulder, .43 x.29, 5/16-18

12 783-04551 Hood

13 783-04552 Grille

14 783-04577 Pivot Bracket, LH

15 783-04578 Pivot Bracket, RH

16 783-04621 Pivot Bracket, Grille

17 725-04039† Switch

18 710-0895 Screw, 1/4-15, 0.750

19 17962† Switch Plate

20 728-04021† Pop Rivet

21 731-04947 Collar, Dash

22 725-0157 Cable Tie

Ref.

No.

Part No. Description

23 783-04892 Dash Assembly (RMC*)

783-04873 Dash Assembly (No RMC)

24 726-0230 Cable Tie, 34.75

25 751-0555B Fuel Tank, 1.5 gal.

26 751-0603 Fuel Tank Cap

27 725-04227A Module, Ignition Switch (RMC)

725-1741 Igntion, Switch (No RMC)

28 725-1744 Key

29 746-1085A Choke Control, 37.5”

30 731-05265 Plug

31 731-05147A Plenum (Single Cylinder Engine)

731-05165 Plenum (Twin Cylinder Engine)

32 746-04258 Throttle/Choke Control, 25”

(Single Cylinder Engine)

746-1086 Throttle Control, 39” (Twin

Cylinder Engine)

33 783-04584 Gas Tank Support Bracket

— 629-04151A Wire Harness (RMC)

— 725-04361 Wire Harness (No RMC)

34 783-05027 Front Pivot Support Bracket

35 710-1260A Screw, 5/16-18 x .750

NOTE: Tractor features vary by model. NOT all parts listed above and pictured on the previous page are standard

equipment.

* Reverse Caution Mode

† Models equipped with Reverse Caution Mode

Illustrated

Parts List

To order replacement

parts, call the Customer

Service Line at

1-800-800-7310,

or visit

www.mtdproducts.com.

Model 762 & 772

�





















































































�





NOTE: Tractor features vary by model. NOT all parts listed above and pictured on the previous page are standard

equipment.

Illustrated

Parts List

To order replacement

parts, call the Customer

Service Line at

1-800-800-7310,

or visit

www.mtdproducts.com.

* Reverse Caution Mode

† Models equipped with Reverse Caution Mode

Ref.

No.

Part No. Description

1 783-04979 Grille

2 710-0599 Screw, 1/4-20, 0.500

3 710-0642 Screw, 1/4-20, 0.750

4 712-0185 Nut, 1/4-20, Speed U-type

5 712-04063 Nut, Flange Lock, 5/16-18, GrF

6 712-04064 Nut, Flange Lock, 1/4-20, GrF

7 726-04012 Nut, Push-on, .25 Dia

8 726-0233 Push Nut, .25ID x .50OD

9 731-05012 Collar, Dash, 0-Style

10 731-1503A Lens

11 738-0952A Screw, Shldr, .375 x .125, 1/4-20

12 749-04220 Support Rod, Grill

13 783-04608 Hood

14 783-04892 Dash Assembly (RMC*)

783-04873 Dash Assembly (No RMC)

15 710-0604A Screw, 5/16-18, 0.625

16 710-0895 Screw, 1/4-15, 0.750

17 725-04039† Switch

18 17962† Switch Plate

19 731-04945 Support, Steering

20 746-04258 Throttle/Choke Control, 25” (Single

Cylinder Engine)

Ref.

No.

Part No. Description

746-1086 Throttle Control, 39” (Twin Cylinder

Engine)

21 725-0963 Headlamp, 12V

22 710-04483 Screw, 1/4-14, .500

23 726-0201 Speed Nut, .3125

24 710-3008 Screw, 5/16-18, .750

25 726-0230 Cable Tie, 34.75

26 751-0555B Fuel Tank, 1.5 gal.

27 751-0603 Fuel Tank Cap

28 725-04227A Module, Ignition Switch (RMC)

725-1741 Module, Ignition Switch (No RMC)

29 725-1744 Key

30 746-1085A Choke Control, 37.5”

31 731-05265 Choke Plug

32 783-04584 Gas Tank Support Bracket

33 725-0157 Cable Tie

34 728-0162 Rivet, Flat Head 1/4”

35 728-04021† Pop Rivet

36 736-3078 Flat Washer, .344 x 1.00 x .063

— 629-04151A Wire Harness (RMC)

— 725-04361 Wire Harness (No RMC)

Models 760-779

















































































Illustrated

Parts List

Ref.

No.

Part No. Description

1 710-1268 Screw, #10-16, .375

2 712-04063 Nut, Flange Lock, 5/16-18, GrF

3 712-3027 Nut, Flange Lock, 1/4-20

4 720-0309A Seat Adjuster Grip

5 736-0607 Lock Washer, 5/16

6 731-04074 Spacer

7 732-0499 Compression Spring, .41 x 1.5

8 710-04483 Screw, 1/4-20 x .500

9 736-0275 Wash, Flat, .344 x .688 x .065

10 736-3019 Wash, Flat, .531x 1.062 x.134

11 738-0137A Screw, Shlder, .340 x .285,1/4-20

12 783-04843 Lift Adjustment Bracket

13 738-0966 Screw, Shlder, .50 x .925, 3/8-16

14 783-1489B Mounting Bracket, Seat

15 783-0611 Seat Stop

16 783-0738B Seat Pivot Bracket

17 783-0739A Seat Adjustment Lever

18 783-0753 Seat Adjustment Selector

19 710-0227 Screw, #8-18 x .50

20 726-0279 Plate, Insulator

21 725-1303 Spring Switch, Outer

22 725-1439 Spring Switch, Inner

23 726-0278 Plate, Insulator Boss

24 723-04025 Foot Pad, Abrasive, RH

25 723-04026 Foot Pad, Abrasive, LH

26 720-04009 Knob, 3/8-16, .625

27 726-0201 Nut, Speed, .3125 Id

28 732-1184 Spring, Exten., .84 Dia x 4.6 Lg.

29 736-0101 Washer, Flat, .406 x 1.00 x .030

30 738-0296 Scr., Shlder, .437 x .268, 5/16-18

31 738-04012A Screw, Shlder, .625 x .175, 3/8-16

32 783-0209D Lift Bracket, Seat

33 783-04081A Pivot Bracket, Seat

34 757-04021A Seat, Low, Black

757-04020A Seat, Medium, Black

757-04038 Seat, Low, Yellow

35 710-04482 Screw, 3/8-16, .875

36 710-0599 Screw, 1/4-20, 0.500

37 710-0604A Screw, 5/16-18, 0.625

38 783-04587A Fender

39 731-04591A Cup Holder

To order replacement

parts, call the Customer

Service Line at

1-800-800-7310,

or visit

www.mtdproducts.com.

NOTE: Tractor features vary by model. NOT all parts listed above and pictured on the previous page are standard

equipment.

Models 760-779





















































































Illustrated

Parts List

Ref.

No.

Part No. Description

1 617-04024 Gear Assembly, Steering

2 710-0376 Screw, 5/16-18, 1.00, Gr5

3 710-0643 Screw, 5/16-18, 1.00, Gr5, Lock

4 710-1309 Screw, Mach, 5/16-18, 0.750

5 710-3180 Screw, 5/16-18, 1.75, Gr5

6 712-0240 Nut, Jam, 7/16-20, Gr2

7 712-0262 Nut, Jam Lock, 3/8-24, Gr2

8 712-04063 Nut, Flange Lock, 5/16-18, Grf

9 731-0484A Hub Cap

10 723-0448A Ball Joint, 7/16-20, Lock

11 736-0242 Washer, Bell, .340 x .872 x .060

12 783-04568 Front Hanger Bracket, Deck

13 738-04141 Scr., Shlder, .435 x .3485, 5/16-18

14 738-0919 Steering Shaft, 5/8 Spline x 21.86

15 741-04124 Bearing, Flange, Hex 5/8

16 741-0475 Plastic Bushing .380 ID

17 747-04298 Drag Link, Steering

18 748-0389 Cap, 1.25 x .16

19 748-04065 Steering, Block

20 748-04068 Spacer, .710 ID x .125 OD x .56

21 750-04418 Spacer, .322 ID x .625 OD x .21

22 783-04644 Stabilizer Plate, Gear Segment

23 638-04007 Axle Assembly, LH

24 638-04008 Axle Assembly, RH

25 683-0128B Pivot Bar

Ref.

No.

Part No. Description

26 710-0726 Screw, 5/16-12, 0.750

27 712-04065 Nut, Flange Lock, 3/8-16, GrF

28 714-04039 Pin, Cotter, 5/32, 1.25

29 714-0470 Pin, Cotter, 1/8 x 1.25

30 726-0341 Push Cap, 3/4

31 731-04057A End Cap, Pivot Bar (Standard)

731-1291A End Cap, Pivot Bar (w/ Fitting)

32 736-0316 Washer, Flat, .78 x 1.59 x .060

33 738-04128 Scr., Shlder, .500 x 2.380, 3/8-16

34 741-0660A Bearing, Flange, .760 x .941 x 1.0

35 747-04299A Tie Rod

36 783-04601B Bracket, Pivot

37 731-04057A Axle End Cap, Standard

38 631-04028 Steering Wheel, Standard Grip

631-04008 Steering Wheel, Soft Grip

39 731-04039 Cap, Steering Wheel (no logo)

731-04040 Cap, Steering Wheel (sprig logo)

731-04681 Cap, Steering Wheel (tine logo)

40 634-04229 Wheel Ass’y, Round Shoulder

734-0864 Tire Only, 15 x 6 x 6, Round Shld.

634-04086 Wheel Ass’y, Square Shoulder

734-1731 Tire Only, 15 x 6 x 6, Square Shld.

634-04081 Rim Assembly (Incl. bearings and

valve stem)

To order replacement

parts, call the Customer

Service Line at

1-800-800-7310,

or visit

www.mtdproducts.com.

NOTE: Tractor features vary by model. NOT all parts listed above and pictured on the previous page are standard

equipment.

Models 760-779







































 









































































































   

 

 



















IMPORTANT

For a proper working machine,

use Factory Approved Parts.

V-belts are designed to

engage and disengage safely.

A substitute (non OEM) V-belt

can be dangerous by not

disengaging completely.
