MTD 280r Manuel utilisateur
Item Part No. Description
1791-683378 Air Cleaner Cover Assembly
2791-612111 Air Cleaner Filter
3791-683380 Choke Lever Assembly
4791-180351 Mounting Bolt Assembly
5791-181512 Air Cleaner Base
6791-182204 Carburetor Assembly
7791-610675 Carburetor Gasket (10 pack)
8791-180221 Reed Plate Mounting Screw
9791-684451 Reed Assembly
10 791-684757 Complete Reed Plate Assembly
11 791-612115 Reed Plate Gasket
12 791-182775 Crankcase Service Assembly
13 791-147575 Muffler Mounting Bolt
14 791-181517 Mounting Screw Assembly
15 791-181522 Upper Heat Shield
16 791-181518 Lower Heat Shield
17 791-181521 Muffler Assembly (includes 13 & 18)
18 791-00027 Exhaust Gasket (10 pack)
19 753-04367 Piston and Rod Assembly
20 753-1206 Cylinder Assembly (includes 21 & 25)
21 791-182723 Cylinder Bolt
22 791-610311B Spark Plug
23 753-04125 Module Assembly
24 791-611063 Ground Tab
25 791-181519 Cylinder Gasket
Item Part No. Description
26 791-153520 Shroud Assembly (includes 27)
27 791-181861 Shroud Screw
28 791-182736 Flywheel Assembly
29 791-181525 Spacer
30 791-180930 Pulley Retainer Assembly
31 753-04232 Recoil Pulley Assembly
32 791-613102 Recoil Spring
33 791-181079 Pull Handle
34 791-613103 Rope
35 791-611061 Rope Guide
36 791-181585 Shroud Extension
37 791-181931 Starter Housing Assembly
38 791-181524 Crankshaft Extension
39 791-181345 Shroud Extension Screw
40 791-181862 Housing Screw
*753-1209 Piston Ring
*791-180602 O.E.M. Carburetor Repair Kit (Walbro)
*not shown
1
7
6
5
3
4
2
8
12
21
12
11
17
16
15
14
13
22
20
18
25
19
29
28
27
26
36
23
24
3435
33
30
32
31
37
38 40
39

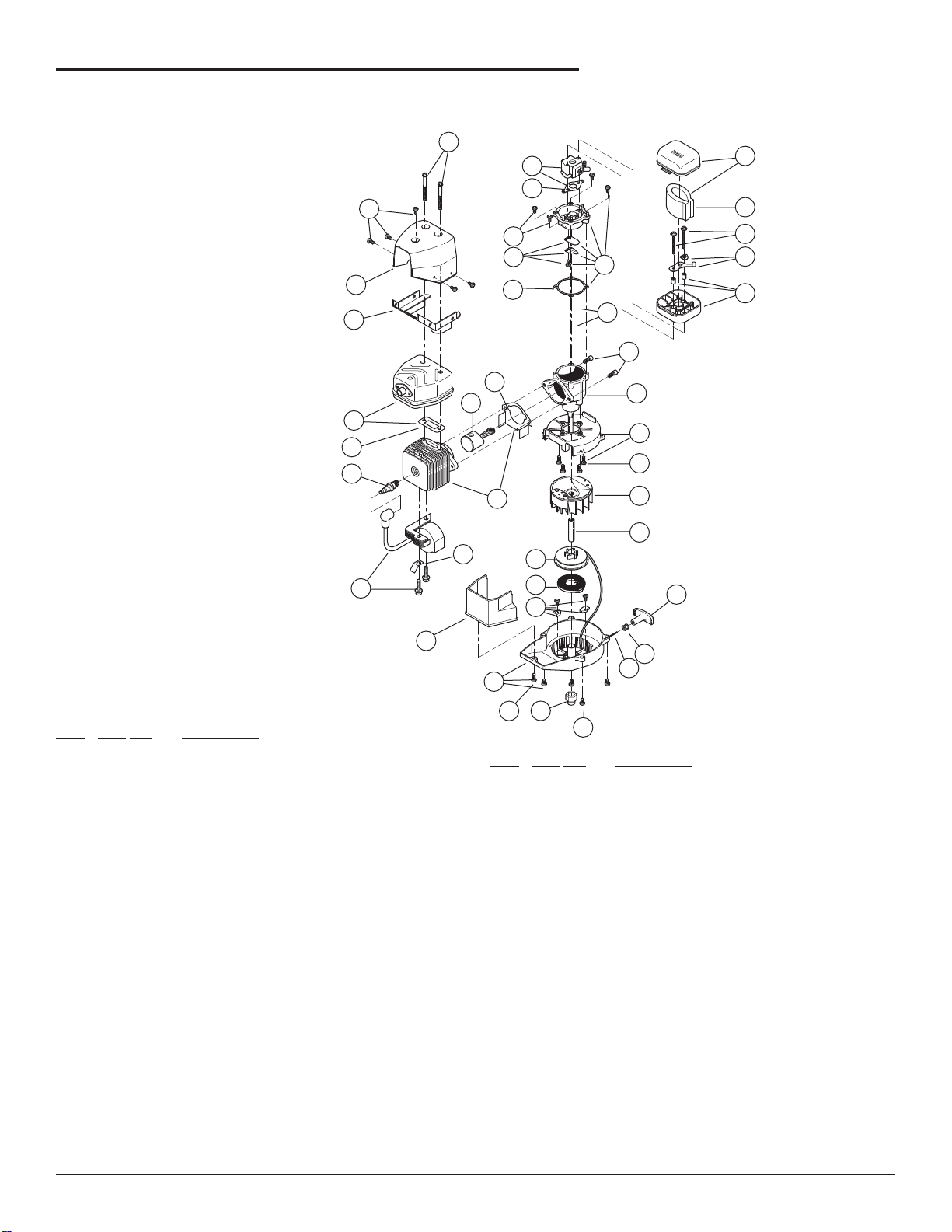

ENGINE PARTS - MODEL 280r
2-CYCLE GAS BLOWER
PPN 41BR280G034
Reissued 7/01
910
9
6
5
10
3
2
8
9
11
12
1
14
7
4
11
13
18
17
16
15
19
20
11
Item Part No. Description
1791-00036 Trigger Assembly
2791-683974B Primer Bulb and Hose Assembly
3791-181671 Primer Washer
4791-181168 Return Line
5791-182438 Fuel Cap Assembly
6791-147350 Complete Fuel Tank Assembly
(includes items 4, 5 and 7)
7791-147036 Fuel Line Assembly
8791-180484 R.H. Engine Cover
9791-180450 Switch and Lead Assembly
10 791-181513 Throttle Wire and Housing Assembly
11 791-147049 Mounting Screw
12 791-180485 L.H. Engine Cover
13 791-180058 Mounting Screw Assembly
14 791-180478 Upper Blower Housing
15 791-180469 Blower Tube W/Nozzle
16 791-180480 Blower Tube
17 791-180481 Clamp Assembly
18 791-180453 Impeller
19 791-181514 Mounting Bolt Assembly
20 791-180482 Lower Blower Housing W/Door
Optional Accessories
*791-682075B Shoulder Strap
*791-147543 Ryobi 2-Cycle Oil
*not shown
BLOWER PARTS - MODEL 280r
2-CYCLE GAS BLOWER
PPN 41BR280G034
Reissued 7/01
