MSI MS-9Z06 Manuel utilisateur
1 Manual Version: 1.0
MS-9Z06
HMI-C150H3CS4
Waterproof Panel PC
User Manual
2 Manual Version: 1.0
Index of Contents
0. BEFORE INSTALLATION.................................................................................................................................5
1. APPEARANCE ...................................................................................................................................................6
2. SYSTEM INSTALLATION.................................................................................................................................7
2.1 DIMENSIONS....................................................................................................................................................7
2.2 POWER CONTROL BUTTON............................................................................................................................8
3. I/O DEFINITION..................................................................................................................................................9
3.1. POWER CONNECTOR.....................................................................................................................................9
3.1.1 DC IN M/B Pin ......................................................................................................................................9
3.1.2 DC IN M12 Pin......................................................................................................................................9
3.1.3 AC IN Adapter Pin (90°)....................................................................................................................10
3.1.4 AC IN M12 Pin....................................................................................................................................10
3.2. LAN RJ45 CONNECTOR.............................................................................................................................11
3.2.1 LAN M/B Pin .......................................................................................................................................11
3.2.2 LAN M12 Pin.......................................................................................................................................11
3.3. USB 2.0 CONNECTOR.................................................................................................................................12
3.3.1 USB 2.0 M/B Pin ................................................................................................................................12
3.3.2 USB 2.0 M12 Pin................................................................................................................................12
3.4. SERIAL PORT...............................................................................................................................................13
3.4.1 Serial M/B Pin.....................................................................................................................................13
3.4.2 Serial M12 Pin....................................................................................................................................13
4. TROUBLESHOOTING.....................................................................................................................................14
5. SPECIFICATIONS............................................................................................................................................16
6. DRIVER INSTALLATION.................................................................................................................................17
6.1 INSTALL CD WITH 2EGALAXTOUCH DRIVER INSTRUCTIONS......................................................................17
6.2 INSTALLING TOUCH SCREEN CONTROLLER (OPTION)(HID_INSTALL_PACKAGE)....................................17
6.2.1 eGalax Touch Utility...........................................................................................................................23
6.3 INSTALLING TOUCH SCREEN CONTROLLER (OPTION)(EGALAXTOUCH)...................................................24
6.3.1 eGalax Touch Utility...........................................................................................................................30
3 Manual Version: 1.0
Attention
1. This manual contains important information for the proper setup and
maintenance of the product(s). Before setup and usage of the
product(s), please read through this manual thoroughly.
2. The specifications shall apply only to the product(s) in this manual.
3. The specifications may be modified without any notice in advance.
Please inquire with your supplier for latest specifications, drivers or
manuals.
4 Manual Version: 1.0
5 Manual Version: 1.0
0. Before Installation
When unpacking please check if you have the following items:
◆MS-9Z06(HMI-C150H3CS4) Machine
◆Accessory Package
◇Driver CD
◇Power Supply Kit (choose one of below)
DC IN (Power cord+M12 Adapter) x1
AC IN (M12 Power cord) x1
◇M12 LAN1 x1
◇M12 USB2.0 x2
◇M12 RS-232 x1 (COM1)
* If any items are missing or damaged, please contact us immediately.
* The contents of your package may vary depending on the model purchased.
6 Manual Version: 1.0
1. Appearance
Front View
Back View
Side View (L)
Side View (R)
M12 Connector Type
Stand-alone Circular Type
7 Manual Version: 1.0
2. System Installation
2.1 Dimensions
8 Manual Version: 1.0
2.2 Power Control Button
Button
Function
Power on/off
HDD LED
Power LED
Reset
Reset
Power on/off
9 Manual Version: 1.0
3. I/O Definition
3.1. Power Connector

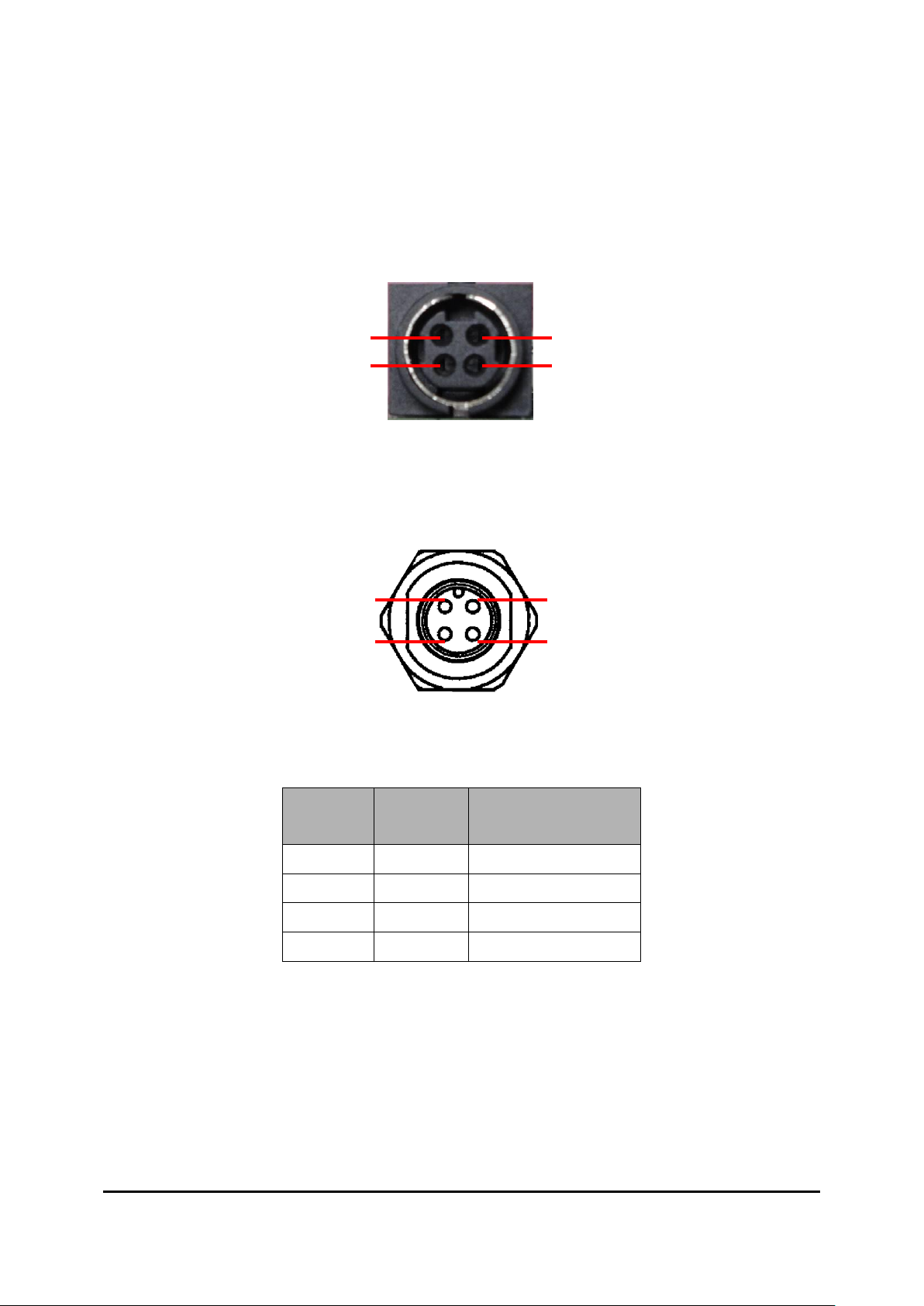

3.1.1 DC IN M/B Pin
3.1.2 DC IN M12 Pin
Pin Assign and Definition
M/B
Pin No.
M12
Pin No
Description
1
1
+12V DC
2
2
+12V DC
3
3
GND
4
4
GND
Pin 1
Pin 3
Pin 2
Pin 4
Pin 1
Pin 2
Pin 4
Pin 3
10 Manual Version: 1.0
3.1.3 AC IN Adapter Pin (90°)
3.1.4 AC IN M12 Pin
Pin Assign and Definition
M/B
Pin No.
M12
Pin No
Description
1
1
E
2
2
N
3
3
L
N
L
1
2
3
