MSI PRO Series Manuel utilisateur
PRO Series
LCD Monitor
PRO MP241X (3BA9)
User Guide
2Contents
Contents
Getting Started.............................................................................................................. 3
Package Contents................................................................................................... 3
Installing the Monitor Stand................................................................................... 4
Adjusting the Monitor ............................................................................................. 5
Monitor Overview.................................................................................................... 6
Connecting the Monitor to PC ................................................................................ 7
OSD Setup ..................................................................................................................... 8
OSD Keys ................................................................................................................ 8
OSD Setup Menus................................................................................................. 10
Specifications.............................................................................................................. 13
Preset Display Modes ................................................................................................ 15
Troubleshooting.......................................................................................................... 16
Safety Instructions...................................................................................................... 17
TÜV Rheinland Certification....................................................................................... 19
Regulatory Notices..................................................................................................... 20
Revision
V1.0, 2022/03
3
Getting Started
Getting Started
This chapter provides you with the information on hardware setup procedures. While
connecting devices, be careful in holding the devices and use a grounded wrist strap
to avoid static electricity.
Package Contents
Monitor PRO MP241X
Documentation
Quick Start Guide
Registration Card
Accessories
Stand
Stand Base
Power Adapter & Power Cord
Cables HDMI Cable (Optional)
⚠
Important
∙
Contact your place of purchase or local distributor if any of the items is damaged or
missing.
∙
Package contents may vary by country.
∙
The included power cord is exclusively for this monitor and should not be used with
other products.
4Getting Started
Installing the Monitor Stand
1. Leave the monitor in its protective foam packaging. Align and gently push the stand
bracket towards the monitor groove until it locks in place.
2. Align and gently push the base towards the stand until it locks in place.
3. Make sure the stand assembly is properly installed before setting the monitor
upright.
⚠
Important
∙
Place the monitor on a soft, protected surface to avoid scratching the display panel.
∙
Do not use any sharp objects on the panel.
1
2
5
Getting Started
Adjusting the Monitor
This monitor is designed to maximize your viewing comfort with its adjustment
capabilities.
⚠
Important
Avoid touching the display panel when adjusting the monitor.
-5° +15°
6Getting Started
Monitor Overview
45 6
1
2
3
1OSD Keys
2Power Button
3Kensington Lock
4HDMI Port
5D-Sub Port
6Power Jack
7
Getting Started
Connecting the Monitor to PC
1. Turn off your computer.
2. Connect the video cable from the monitor to your computer.
3. Assemble the monitor power adapter & power cord. (Figure A)
4. Connect the power adapter to the monitor power jack. (Figure B)
5. Plug the power cord into the electrical outlet. (Figure C)
6. Turn on the monitor. (Figure D)
7. Power on the computer and the monitor will auto detect the signal source.
A
B
C
D
8OSD Setup
OSD Setup
This chapter provides you with essential information on OSD Setup.
⚠
Important
All information is subject to change without prior notice.
OSD Keys

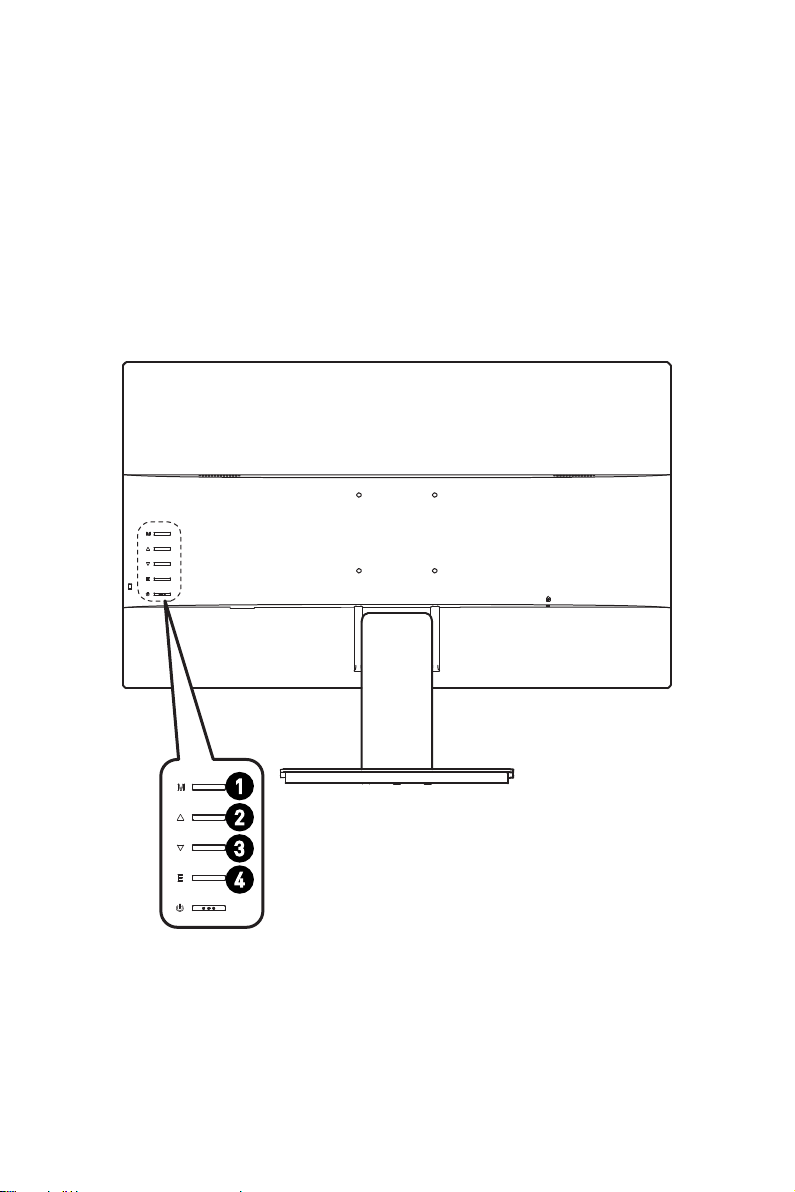

The monitor comes with a set of OSD Keys that help to control the On-Screen Display
(OSD) menu.
2
3
4
1
9
OSD Setup
OSD Keys Hot Key (When OSD is OFF) OSD Setup (When OSD is ON)
1
M
∙Activating the OSD Main Menu ∙Returning to the previous
menu
∙Exiting from the OSD Main
Menu
2
∙Used as the designated
shortcut hotkey
∙Used as the Up/Right button
to select function menus and
items
∙Allowing upward adjustment in
function values
3∙Used as the Down/Left button
to select function menus and
items
∙Allowing downward
adjustment in function values
4
E
∙Activating the auto
adjustment function that
automatically sets the
horizontal/vertical position,
clock and focus (for D-Sub
signals only)
∙Used as the Enter button to
enter function items
10 OSD Setup
OSD Setup Menus
Press the M key to launch the On-Screen Display (OSD) main menu and use the OSD
keys to tune the desired function to suit your personal preferences.
1st Level Menu 2nd/3rd Level Menu Description
Brightness 0-100 Adjusting display brightness
Contrast 0-100 Adjusting display contrast
DCR ON Activating dynamic contrast
OFF Deactivating dynamic contrast
Return Returning to the previous menu
Exit Exiting from this function menu
Mode Standard Normal work mode
Movie Movie mode
FPS FPS game mode
RTS RTS game mode
EyeSaver Eye protection mode
Return Returning to the previous menu
Exit Exiting from this function menu
Color Temp. Warm Warm color temperature
Cool Cold color temperature
User R (0-100) Fine-tuning of Red color temperature
G (0-100) Fine-tuning of Green color temperature
B (0-100) Fine-tuning of Blue color temperature
Return Returning to the previous menu
Exit Exiting from this function menu
