MSI MEGA BOOK S250 Manuel utilisateur
Notice
Please note that the setting diagrams or values in this guide are FOR
YOUR REFERENCE ONLY. The model you bought may be slightly
different from the illustrations and descriptions in this guide. If you are not
sure about these information, such as the computer specification and
equipment, please ask your local vendor for help.
Trademarks
•All trademarks are the properties of their respective owners.
•Microsoft is a registered trademark of Microsoft Corporation.
Windows®98/ME2000/XP are registered trademarks of Microsoft
Corporation.
•AMI® is a registered trademark of American Megatrends Inc.
•PCMCIAand CardBus are registered trademarks of the Personal
Computer Memory Card International Association.
Release History
Version Revision Note Date
1.0 First Release September 2004
G52-B1006X4
Table of Content
ENGLISH................................. 1
ﻰــــــــﺑﺮــــــﻋ ................................ 17
ITALIANO................................ 34
РУССКИЙ ............................... 49
ESPAÑOL................................ 66
TÜRKÇE.................................. 82
1
ENGLISH
2
Unpacking
First, unpack the shipping carton and check all items carefully. If any item
contained is damaged or missing, please contact your local dealer
immediately. Also, keep the box and packing materials in case you need
to ship the unit in the future.
The package should contain the following items:
One Notebook PC - MSI MEGABook S250.
One Recovery CD.
One Software CD containing the drivers and utilities.
One User’s Manual and one Quick Guide.
One Warranty Card.
Accessories:
High-capacity Li-ion battery pack.
AC adapter and power cord.
Phone cable/Phone jack (optional).
Notebook PC carry bag (optional).
3
Specification
Physical Characteristic
Dimension 303mm(L) x 225mm(D) x 26-28mm(H)
Weight 1.8 kg
CPU
Processor Type Socket 478 (478 pins)
Support Processor @
Launch
Intel Celeron M up to 1.6GHz, and Intel
Pentium M Dothan
L2 Cache On die/ 512K
Core Chips
North Bridge SiS® M661MX
South Bridge SiS® 963L
Memory
Technology DDR 226/333/400
Memory DDR SO-DIMM X 2 slot
128/256/512/1024MB DDR SDRAM
Maximum 2GB (1024MB DDR SO-DIMM X 2)
Power
AC Adapter 65W, 19 Volt
Battery Type I 4 cells (Li-lon)(18650)(2200mA)
Battery Type II (Optional) 8 cells (Li-lon)(18650)(4400mA)
Power Management Support ACPI 2.0a
4
Storage
HDD form factor 2.5”, 9.5mm(H), 30/40/60GB
IDE Controller Ultra DMAATA-100
Optical Device CD-ROM, CD-RW, DVD-ROM, Combo
I/O Port
Monitor(VGA) 15 pin Mini D-Sub x 1
USB x 3 (USB version 1.1/2.0)
IEEE 1394 x 1
Mic-in
Line-in x 1
Headphone Out
Line-out
SPDIF-out
x 1
RJ11 x 1
RJ45 x 1
Card Reader MMC/SD/MS (3 in 1)
Communication Port
56K Fax/MODEM Support I/F – AC97 S/W Modem, Wake
on Ring (S3 state supported) and PTT
Approval (FCC/CTR21/JATE)
LAN Realtek ICS1893 Controller(PHY)
Support Wake on LAN function
Support LAN Boot function
Wireless LAN 802.11b and 802.11g
5
PCMCIA
Controller RICOH 5C593
Slot Type II x 1
CardBus Support
Software & BIOS
Support OS Win XP Home and Professional edition
Fast Boot Support Yes (Win XP)
Display
LCD Type 12.1” WXGA, 1280x800 dpi
Setup Adjustment Adjustment controlled by K/B hot-keys
CRT Support 800x600, max, 32bit color
1024x768, max, 32bit color
1400x1050, max, 32bit color
1152x768, max, 32bit color
1280x1024, max, 32bit color
1600x1200, max, 32bit color
1920x1440, max, 32bit color
2048x1536, max, 32bit color
DualView Functitons System auto detect LCD or CRT.
Display by CRT-only if LCD is closed.
Display by LCD-only if CRT is closed.
Dual display available when both of
LCD and CRT are detected and
activated.
6
Product View
LCD Panel
Stereo Speaker
Quick Start Button
Power Button
Keyboard
Touchpad
Status LED
7
Battery Lock/Unlock Button 1
CD/DVD/CD-RW Drive
Battery Release Button 2
USB Port
Power Connector 3
SD/MMC/MS Card Reader
VGA Port 4
PC Card Slot
RJ-11 Connector 5
Cover Latch
RJ-45 Connector
USB Port
IEEE 1394 Port
Line-in
Line-out
1
2
3
4
5
8

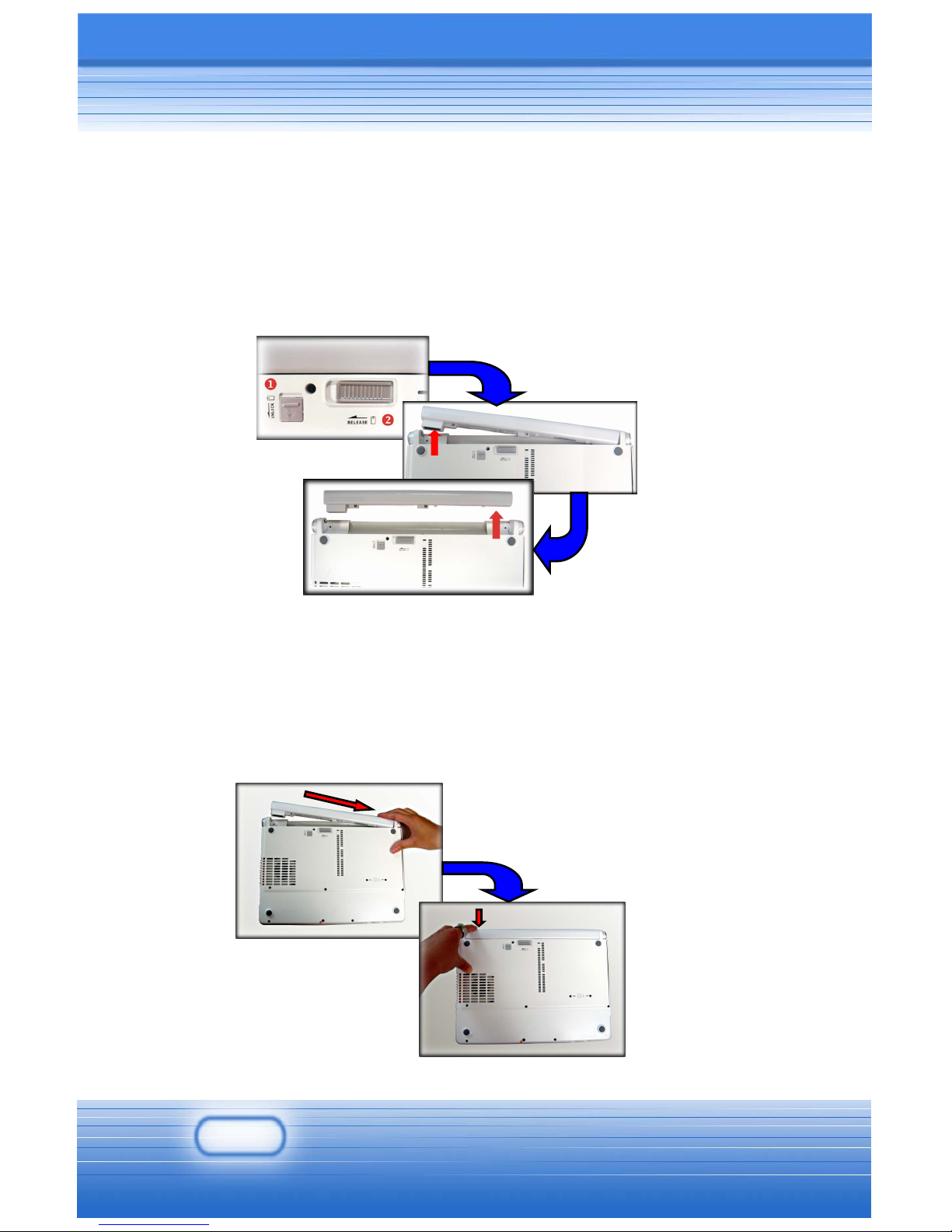

Releasing the Battery Pack
1. Check the Lock/Unlock button () is in unlocked status.
2. Push the Release Button ().
3. Slide the left side of the battery pack ().
4. Pull the right side of the battery pack ().
Replacing the Battery Pack
1. Insert the right side of battery pack into the compartment ().
2. Slide and press the battery pack into the right place, then press the left
side of battery pack into the battery chamber ().
3. Make sure the Lock/Unlock Button is in lock position.
