MSI MEGA 865 Manuel utilisateur

G52-B6287X1

Quick Installation Guide

MEGAIII Series

Trademarks

All trademarksusedinthismanualarethepropertyoftheirrespec-

tive owners.

AboutthisManual

Thismanualisdesignedtoprovidetheuseraquick reference for

barebonesetup.AsMEGAIII Seriesisshippedoutinabarebone,

weassumeyou needtheinformation regardinghowtoassembly

thesystem,suchasCPU, RAM,FDD, HDD..., etc.Basedon this

assumption,wemakethismanualofquick installationguide.Please

followthedescription stepbysteptoassemblythecomponents.If

you have anyquestion inassemblingthesystem,pleasecontact

yourdealerorourtechnicalsupport.

ThematerialinthisdocumentistheintellectualpropertyofMI-

CRO-STARINTERNATIONAL.We take everycareintheprepara-

tion ofthisdocument, butno guarantee isgivenastothecorrect-

ness ofitscontents.Ourproductsareundercontinualimprove-

mentand wereserve therighttomake changeswithoutnotice.

Revision History

Revision Revision HistoryDate

V1.0FirstReleaseDecember2004

iii

NOTE:Thismanualiswrittenjustforsystemassembly.Forcom-

pleteinformation aboutthesystem,pleaserefertotheuser’smanual

inCD.

CONTENTS

ENGLISH............................................................................1

DEUTSCH...........................................................................21

FRANÇAIS............................................................................41

ESPAÑOL..............................................................................61

..........................................................................................81

.....................................................................................101

？蔨いゅ......................................................................121

繁體中文......................................................................141

日本語..............................................................................161

SafetyInstructions

1.Alwaysreadthesafetyinstructionsfirst.

2.KeepthisUser’sManualforfuturereference.

3.Keepthisequipmentaway fromhumidity.

4.Lay thisequipmenton areliableflatsurface beforesettingit up.

5.Theopeningson theenclosureareforairconvection hence protects

theequipmentfromoverheating.DONOTCOVERTHEOPENINGS.

6.Make surethevoltage ofthepowersource and adjustproperly110/

230Vbeforeconnectingtheequipmenttothepowerinlet.

7.Place thepowercordsuchaway thatpeoplecannotstepon it. Donot

place anythingoverthepowercord.

8.AlwaysUnplugthePowerCordbeforeinsertinganyadd-on cardor

module.

9.All cautionsand warningson theequipmentshouldbenoted.

10.Neverpouranyliquidintotheopeningthatcoulddamage orcause

electricalshock.

11. If anyofthefollowingsituationsarises,gettheequipmentcheckedby

aservice personnel:

lThepowercordorplugisdamaged.

lLiquidhaspenetratedintotheequipment.

lTheequipmenthasbeenexposedtomoisture.

lTheequipmenthasnotworkwell oryou cannotgetit work

accordingtoUser’sManual.

lTheequipmenthasdroppedand damaged.

lTheequipmenthasobvioussignofbreakage.

12.DONOTLEAVETHISEQUIPMENTINANENVIRONMENT

UNCONDITIONED,STORAGETEMPERATUREABOVE600C(1400F),

ITMAYDAMAGETHEEQUIPMENT.

CAUTION: Dangerofexplosion if batteryisincorrectly

replaced.Replace onlywiththesameorequivalenttype

recommendedbythemanufacturer.

ENGLISH

Overview

Thisproductisshippedout asabarebone. Some compo-

nentsare equippedwhilesome are optional. See thefollowingfor

thestandardandoptional items:

Thismanual providesyouwiththeinformationof system

setup. Before assemblingyoursystem, pleasebepreparedforthe

installation toolsandappropriateitems.If you are not clear about

theitems, contact yourdealer fortheinformation.

InstallationFlowchart

Start Remove ChassisCover and DrivesCage

Install Memory Modules, HDD and Optical Drive

Install CPU &Cooler

Replace DrivesCage and ChassisCover

Mainboard, PowerSupply, Case, Cables, Cooler,

WirelessAntenna, RemoteControl, CardReader,

CD, Manual

Standard

Optional MEGAIII compatibleTVTunerCard

LeadTek TVTunerCard LR6613 (NTSC)

LeadTek TVTunerCardLR6611 (PAL)

CheckingtheItems

Beforestartingtheassembling, check theitemsyouneed.

SATAorIDE

HardDisk

Intel P4LGA775 Prescott CPU &Cooler(MS-6287)

CD-ROMDrive DDRDIMMModule

Attention!!!

Thechassisand devicesshownon theinstallation photos

are foryourreference only.Theactualproductsmay vary

inchassiscolor, frontbezel and other component.

AMDAthlon64 (K8)CPU &Cooler(MS-6276)

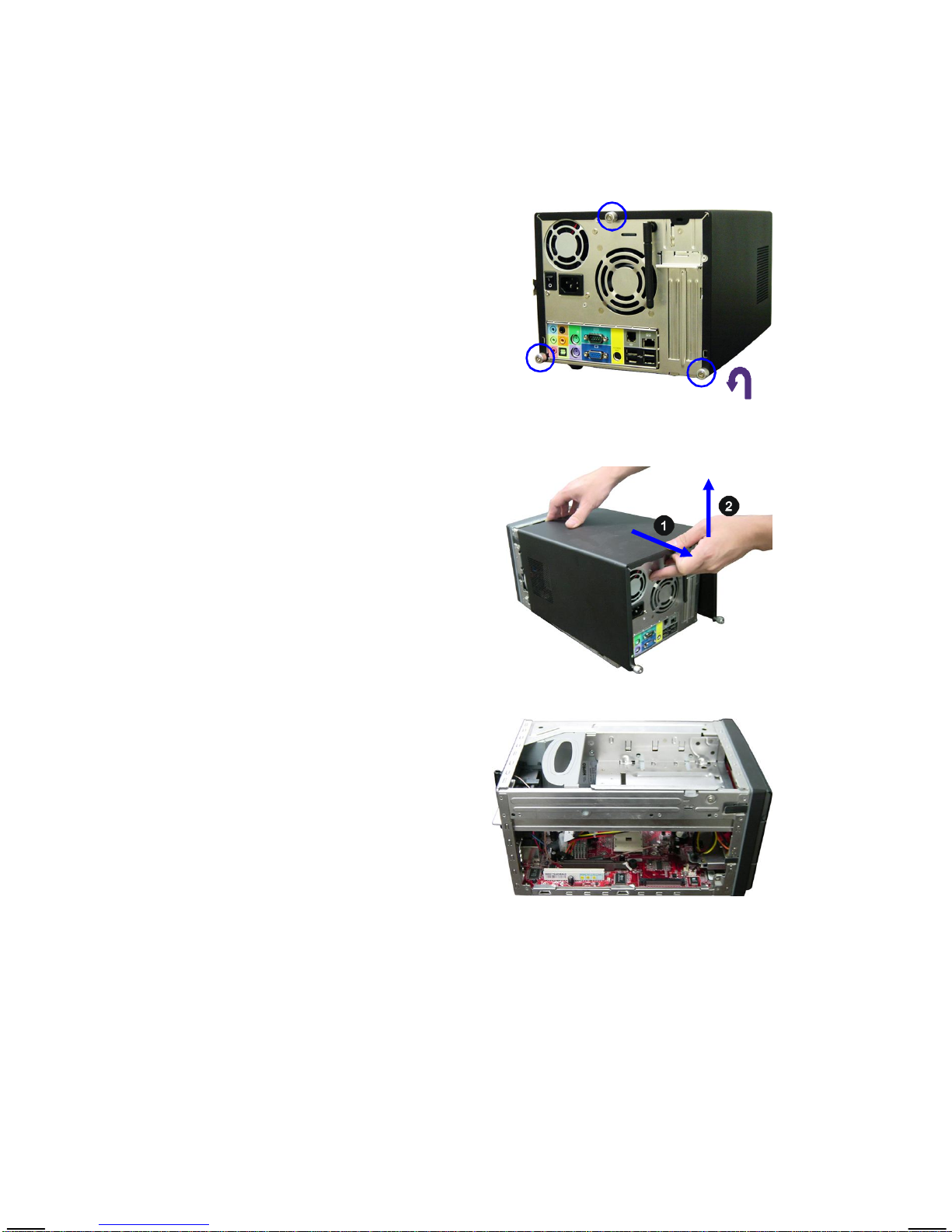

RemovingCover

Loosethethree thumbscrewson the

back panel.

Remove thechassiscover.

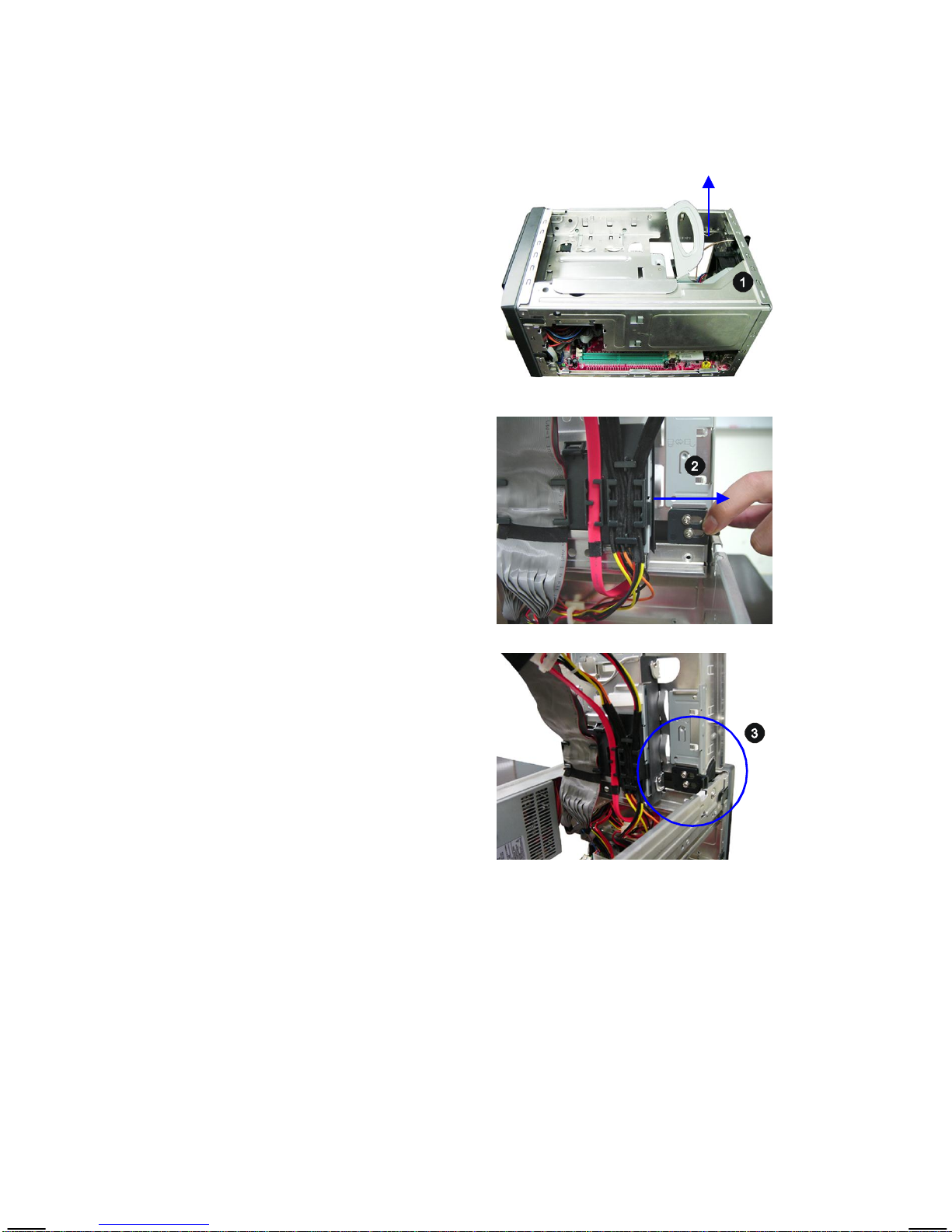

RemovingDrivesCage

Locatethedrivescage.Lift the

handleupwardand pullthedrives

cage toanupright position.

Push thelockingcliptotheright

sidetolock thedrivescage inan

uprightposition.

Releasethecabletie.

Pushtoremove theblack plastic

platefromthedrivescage.
