OPERATING INSTRUCTIONS AND OWNER’S MANUAL

READ INSTRUCTIONS CAREFULLY: Read

and follow all instructions. Place instructions in

a safe place for future reference. Do not allow

anyone who has not read these instructions to

assemble, light, adjust or operate the heater.

MODEL

1000ID, 2000ID

3000ID

1000ID, 2000ID

3000ID, 4000ID

08/08 #50120

INDIRECT FIRED

PORTABLE HEATER

HEATSTAR

BY ENERCO

MR. HEATER

If the information in this manual is not followed exactly, a ﬁre or explosion

may result causing property damage, personal injury or loss of life.

WARNING:

— Do not store or use gasoline or other ﬂammable vapors and liquids in the vicinity of this or any

other appliance.

— Service must be performed by a qualiﬁed service agency.

This is a vented portable heater. It uses air (oxygen) from the area in which it is used. Adequate

combustion air and ventilation must be provided. Refer to page 5.

ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual

WARNING:

FIRE, BURN, INHALATION, AND EXPLOSION HAZARD.

KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING MA

TERIALS, PAPER OR CARDBOARD, A SAFE DISTANCE

AWAY FROM THE HEATER AS RECOMMENDED BY THE

INSTRUCTIONS NEVER USE THE HEATER IN SPACES

WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE

COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE,

SOLVENTS, PAINT THINNER, DUST PARTICLES OR UN

KNOWN CHEMICALS.

WARNING:



ING THIS PRODUCT CONTAIN CARBON MONOXIDE,

A CHEMICAL KNOWN TO THE STATE OF CALIFORNIA

TO CAUSE CANCER AND BIRTH DEFECTS (OR OTHER

REPRODUCTIVE HARM).

GENERAL HAZARD WARNING:

FAILURE TO COMPLY WITH THE PRECAUTIONS AND

INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN

RESULT IN DEATH, SERIOUS BODILY INJURY AND

PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE,

EXPLOSION, BURN, ASPHYXIATION, CARBON MONOX

IDE POISONING, AND/OR ELECTRICAL SHOCK.

ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW

THE INSTRUCTIONS SHOULD USE OR SERVICE THIS

HEATER.

IF YOU NEED ASSISTANCE OR HEATER INFORMATION

SUCH AS AN INSTRUCTIONS MANUAL, LABELS, ETC.

CONTACT THE MANUFACTURER.

WARNING:

NOT FOR HOME OR RECREATIONAL VEHICLE USE

WARNING:

YOUR SAFETY IS IMPORTANT TO YOU AND TO OTHERS,

SO PLEASE READ THESE INSTRUCTIONS BEFORE YOU

OPERATE THIS HEATER.

The State of California requires the following warning:

CONTENTS

WARNINGS.................................................................................. 2

SPECIFICATIONS........................................................................... 3

OPERATION ................................................................................. 4

SAFETY DEVICES.......................................................................... 4

MAINTENANCE............................................................................ 5

VENTILATION............................................................................... 5

TROUBLESHOOTING .................................................................... 6

WIRING DIAGRAMS..................................................................... 7

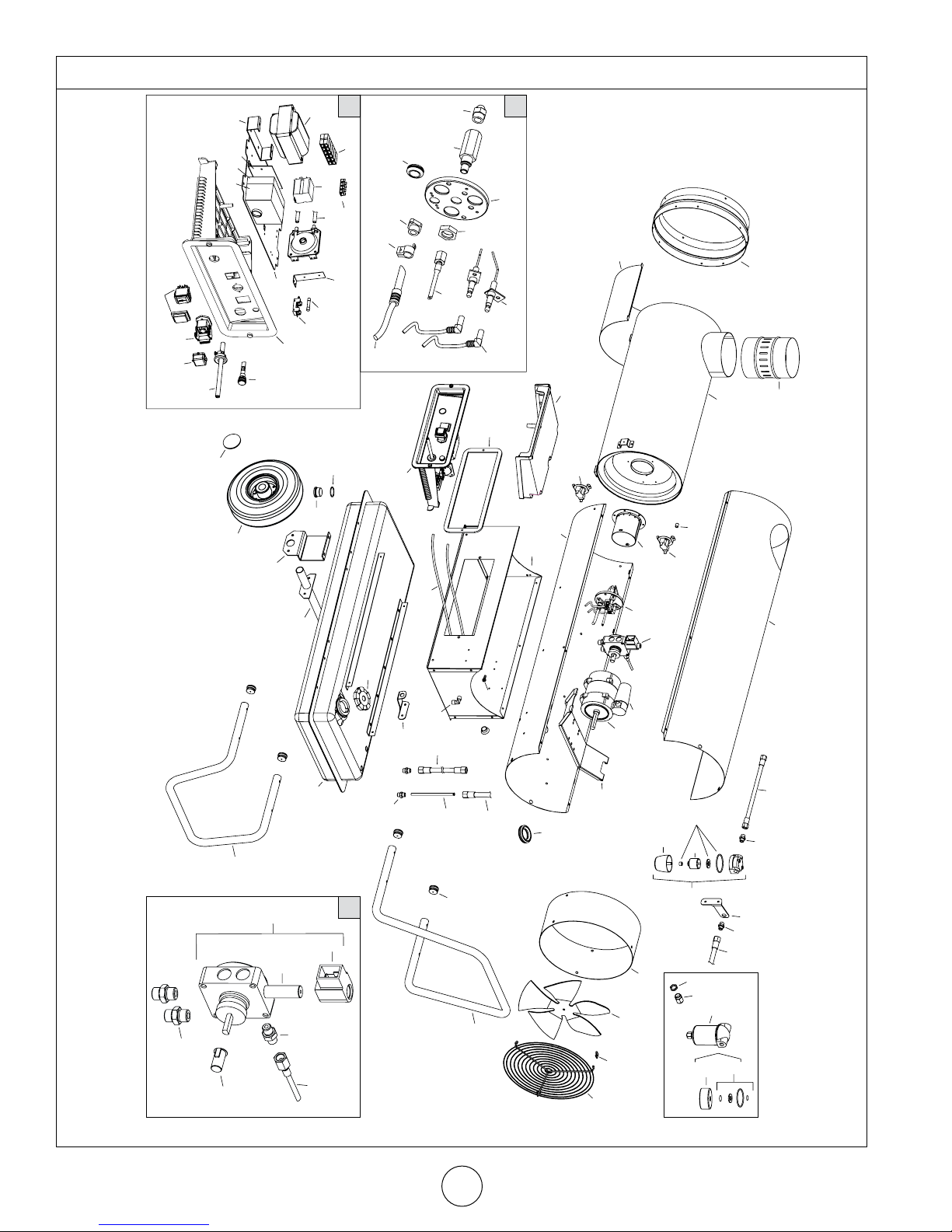

PARTS LIST..................................................................................11

WARNING:

READ THE INSTRUCTIONS GIVEN IN THIS

MANUAL BEFORE USING THE APPLIANCE.

 

FUELS.

 

IS CONNECTED MUST COMPLY WITH ALL SAFETY

REGULATIONS IN FORCE. A RESIDUAL CURRENT

CIRCUIT BREAKER MUST BE PROVIDED ON THE MAIN

DISTRIBUTION BOARD.

 

SERVICE OR MAINTENANCE.

 

USE. IT MUST NOT BE BENT, CRUSHED, OR ANYWAY

DAMAGED.

 

BY QUALIFIED PERSONNEL.

 

WITH WATERPROOF PLUG.

 

OF BURNS!

3Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Indirect Fired Portable Heater

TECHNICAL SPECIFICATIONS MH 1000ID

HS 1000ID

MH 2000ID

HS 2000ID

MH 3000ID

HS 3000ID HS 4000ID

Heat input [kBTU/h] 110 205 300 400

Air ﬂow [cfm] 880 1,530 2,500 2,760

Fuel Type 

Heat output [kBTU/h] 91.9 174.9 254.4 335.6

Fuel consumption [gal/h] 0.80 1.48 2.28 2.82

[lb/h] 5.53 10.35 15.07 20.07

Power supply

Phase 1 1 1 1

Voltage [V] 120 120 120 120

Frequency [Hz] 60 60 60 60

Electric consumption [W] 520 785 1.240 1.440

[A] 5.76 8.30 11.40 13.20

Nozzle [USgal/h]    

Pump pressure [psi] 167 P1: 137 P1: 160 P1: 203

P2: 239 P2: 350 P2: 348

Max static pressure [in WC] 0.5 0.5 0.5 0.5

Recommended max. temp. in the air

duct  250 250 250 250

Adjustment of combustion air ﬂap [in] a=0.32 

  A=1.02 A=1.50 B=1.14

Flue diameter [in] 5.9 5.9 5.9 5.9

Compulsory ﬂue draft [in WC] 0.05 0.05 0.05 0.05

Tank capacity [gal] 10.8 17.2 27.7 35.7

Dimensions, L x W x H [in] 49.3x20.0x30.5 56.5x23.2x37.60 68.5x27.6x37.7 66.3x27.6x45.6

Net Weight [lb] 94 176 264 330

IMPORTANT

Before using the heater, read and understand all instructions and

follow them carefully. The manufacturer is not responsible for

damages to goods or persons due to improper use of units.

GENERAL RECOMMENDATIONS



combustion send hot air and the combustion products into

the room, while those with indirect combustion are ﬁtted

with a ﬂue to take the fumes away through the chimney.

Always follow local ordinances and codes when using this

heater:



heater.



content.



materials (the minimum distance must be 6 ft.).





to the heater requirements. Direct combustion heaters

should only be used in well vented areas in order to avoid

carbon monoxide poisoning.



fumes (see “Ventilation” on page 5) and connected to an

electrical switchboard.



shall terminate in a vertical section at least two feet long

and sufﬁcient draft shall be created to assure safe and

proper operation of the heater.





heating oil.



children and animals away from it;



ventilator fan.



distribute warm air, with respect to the max. static pressure

declared (see “TECHNICAL SPECIFICATION” sheet).



ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual

Models X Y Z

ID1000 .079 in .118 in .256 in

ID2000 .158 in .098 in .158 in

ID3000 .158 in .098 in .158 in

ID4000 .158 in .098 in .158 in



the room where the heater is operated.



reason.





WARNING

 

 

 

 

 

OR VAPORS MAY BE PRESENT.

 

 

LATED IN THE CHAMBER.

 

HEATER.

 



The heater can only work automatically when a control device,

such as for example a thermostat or a timer, is connected to the

heater. Connection to the heater is made by removing the socket

cover(4) and inserting the thermostat plug.

To start the machine you must:

 );



When unit is started for the ﬁrst time or is started after the oil

tank has been totally emptied, the ﬂow of oil to the burner may

be impaired by air in the circuit. In this case the control box will

cut out the heater and it might be necessary to renew the starting

procedure once or twice by depressing the reset button (1).

Should the heater not start, check that oil tank

is full and depress reset button (1).

Should the heater still not work, please refer to chapter

“OBSERVED FAULTS, CAUSES AND REMEDIES”.

STOPPING THE HEATER

Set main switch (3) on “0” position or turn thermostat or other

control device on lowest setting.

The ﬂame goes out and the fan continues to work for approx.

90sec. cooling the combustion chamber.

SAFETY DEVICES

The unit is ﬁtted with an electronic ﬂame control box. In case of

malfunction this box will cut in and stop the heater, at the same

time the pilot lamp in the control box reset button (1) will light up.

Heaters are also equipped with an overheat thermostat safety

cutout which will stop the heater in case of overheating. This

thermostat will reset automatically but you will have to depress

button (1) on control box before being able to restart the heater.

TRANSPORT

WARNING

 

nate reason of overheating.

Before heater is moved it must be stopped and unplugged. Before

moving the heater wait till it has totally cooled off and make sure

oil tank cap is securely ﬁxed.

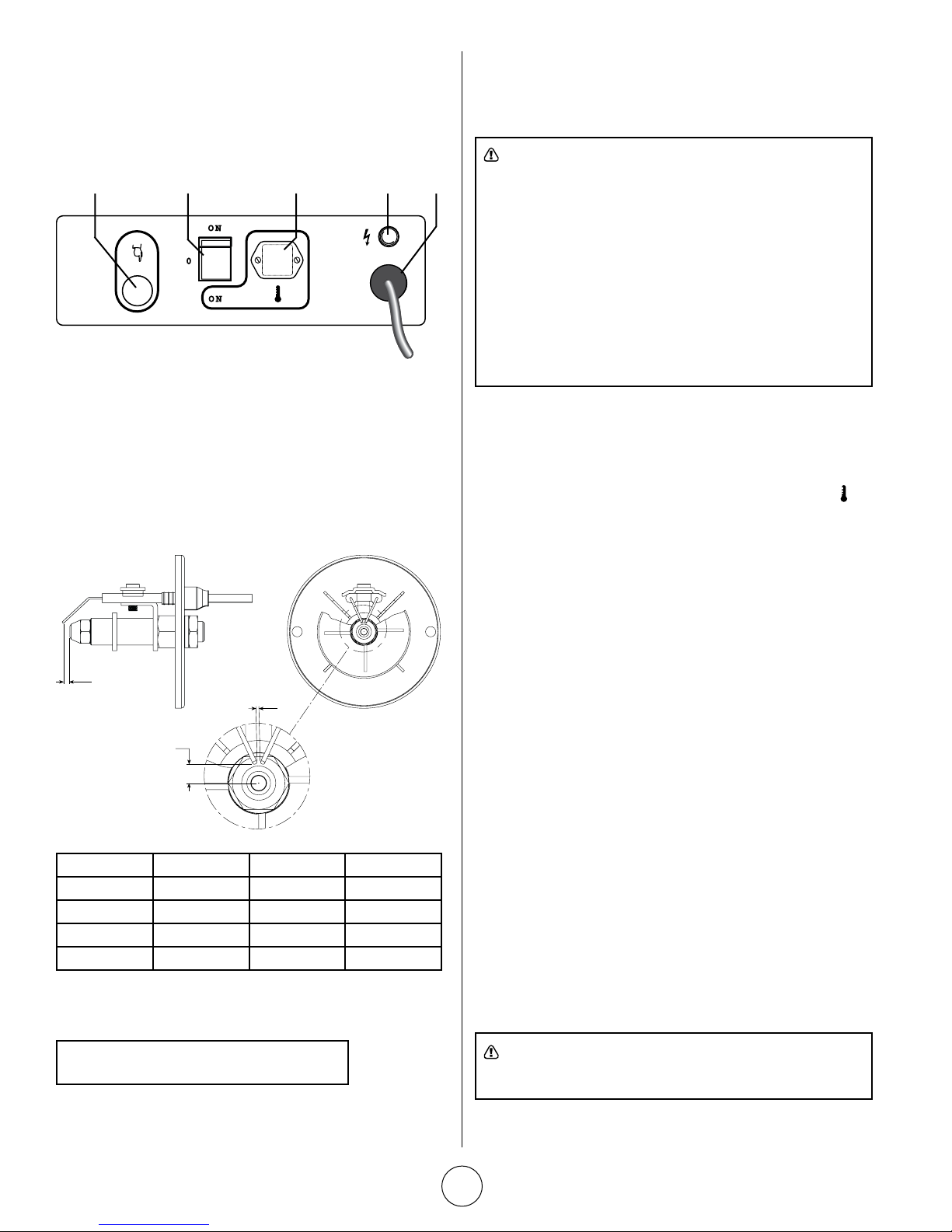

1 4

O N

3 2 5

1 RESET BUTTON WITH CONTROL LAMP

2 CONTROL LAMP

3 MAIN SWITCH

4 ROOM THERMOSTAT PLUG

5 POWER CORD

OPERATION

Before any attempt of starting the heater is made, check that

your electrical supply conforms to the data on the model plate.

Control Board

Gap of Electrodes

Clearances

The following minimum safety clearances from materials or objects

in the surroundings of the heater must be ensured:

Sides 2.5 ft. Air Inlet 2.5 ft.

Top 6 ft. Air outlet 12 ft.

5Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Indirect Fired Portable Heater

The hot air heaters with wheels must be wheeled. The suspended

version which has no wheels must be transported with adequate

machinery.

MAINTENANCE

Preventive and regular maintenance will ensure a long trouble free

life to your heater.

WARNING

 

Severe burns or electrical shock can occur.

Every 50 hours of operation: disassemble ﬁlter and wash with

clean oil, remove upper body parts and clean inside and ventilator

with compressed air, check correct attachment of H.T. connectors

to the electrodes and check H.T. cables, remove burner assembly,

clean and check electrode settings, adjust according to scheme

“GAP OF ELECTRODES”.

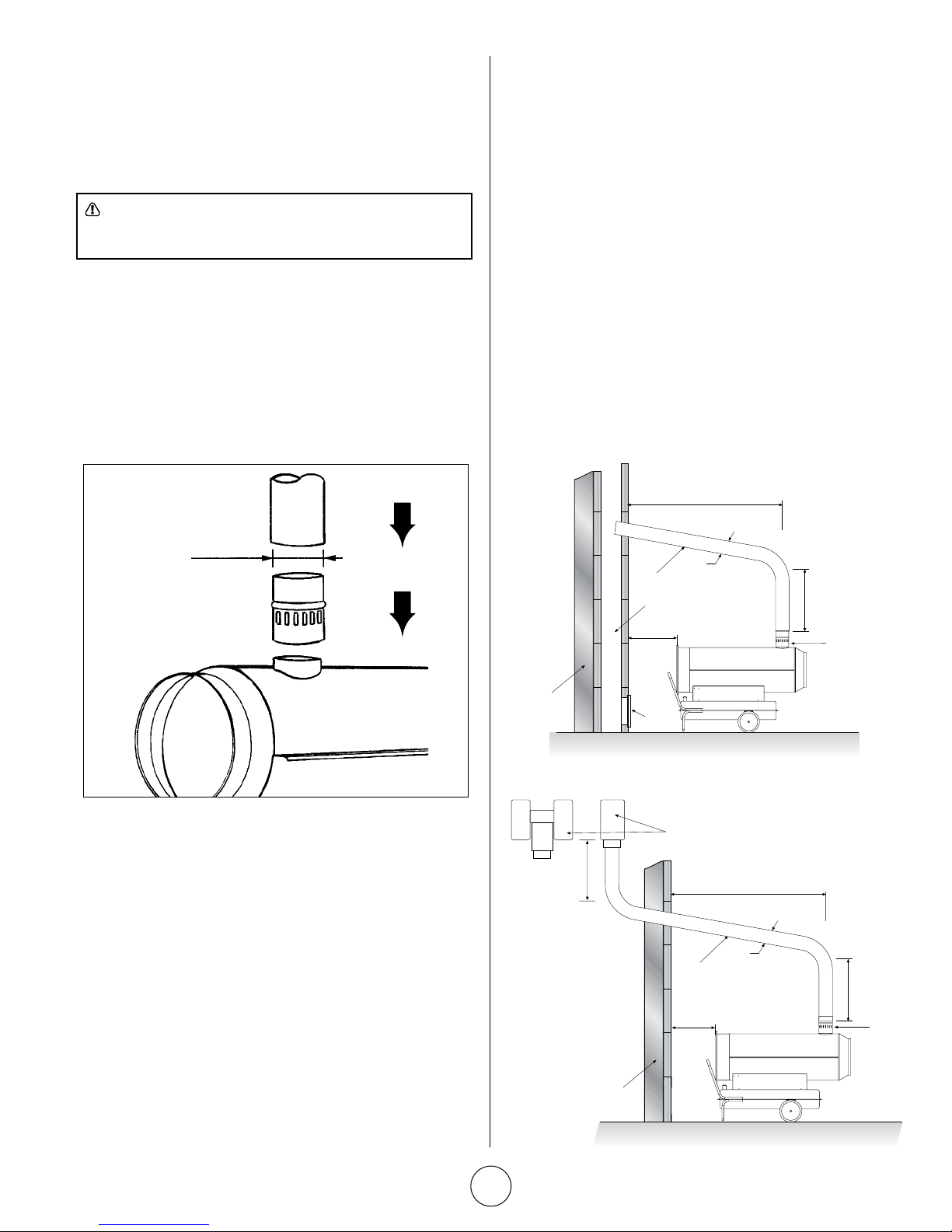

Flue Connections Diagram

VENTILATION

Description

A) Minimal 39”

B) Minimal 39”

C) The shortest

D) The same or bigger than the smokes outlet diameter of

heater

E) Minimal 1m

1) 

2) 

3) Chimney 8” x 8” of minimal inside measure

4) 

5) External seating wall

6) Chimney ending H shape

N.B. Above recommendation indicative only. Have your

installation checked by local authority.

6 “

ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual

TROUBLESHOOTING

TROUBLE CAUSE SOLUTION

Motor does not start, no ignition No electrical current Check mains (should be 120 V – 1~ – 60 Hz)

Check proper positioning and functioning of switch

Check fuse

Wrong setting of room ther

mostat or other control

Check correct setting of heater control. If thermostat, make

sure selected temperature is higher than room temperature

Thermostat or other control

defective

Replace control device

Electrical motor defective Replace electrical motor

Electrical motor bearings

defective

Replace electrical motor bearings

Burned out condenser Replace condenser

Motor starts, no ignition or cuts out Electric ignitor defective Check connection of H.V. Ieads to electrodes and transformer

Check electrodes setting (see scheme “GAP OF ELECTRODES”)

Check electrodes for cleanliness

Replace H.V. transformer

Flame control box defective Replace control box

Photocell defective Clean or replace photocell

Not enough or no fuel at all

at burner



Check fuel line system including fuel ﬁlter for possible leaks

Clean or replace oil nozzle

Solenoid defective Check electrical connection

Check thermostat LI

Clean or replace solenoid

Motor starts, heater emits smoke Not enough combustion air Make sure air inlet and outlet are free

Check setting of combustion air ﬂap

Clean burner disc

Too much combustion air Check setting of combustion air ﬂap

Fuel contaminated or con

tains water

Drain fuel in tank with clean fuel

Clean oil ﬁlter

Air leaks in fuel circuit Check the seals on the ducts and the diesel ﬁlter

Not enough fuel at burner Check pump pressure

Clean or replace fuel nozzle

Too much fuel at burner Check pump pressure

Replace nozzle

Heater does not stop Solenoid Replace solenoid coil or complete solenoid

If heater still not working properly, please revert to nearest authorized dealer.

7Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Indirect Fired Portable Heater

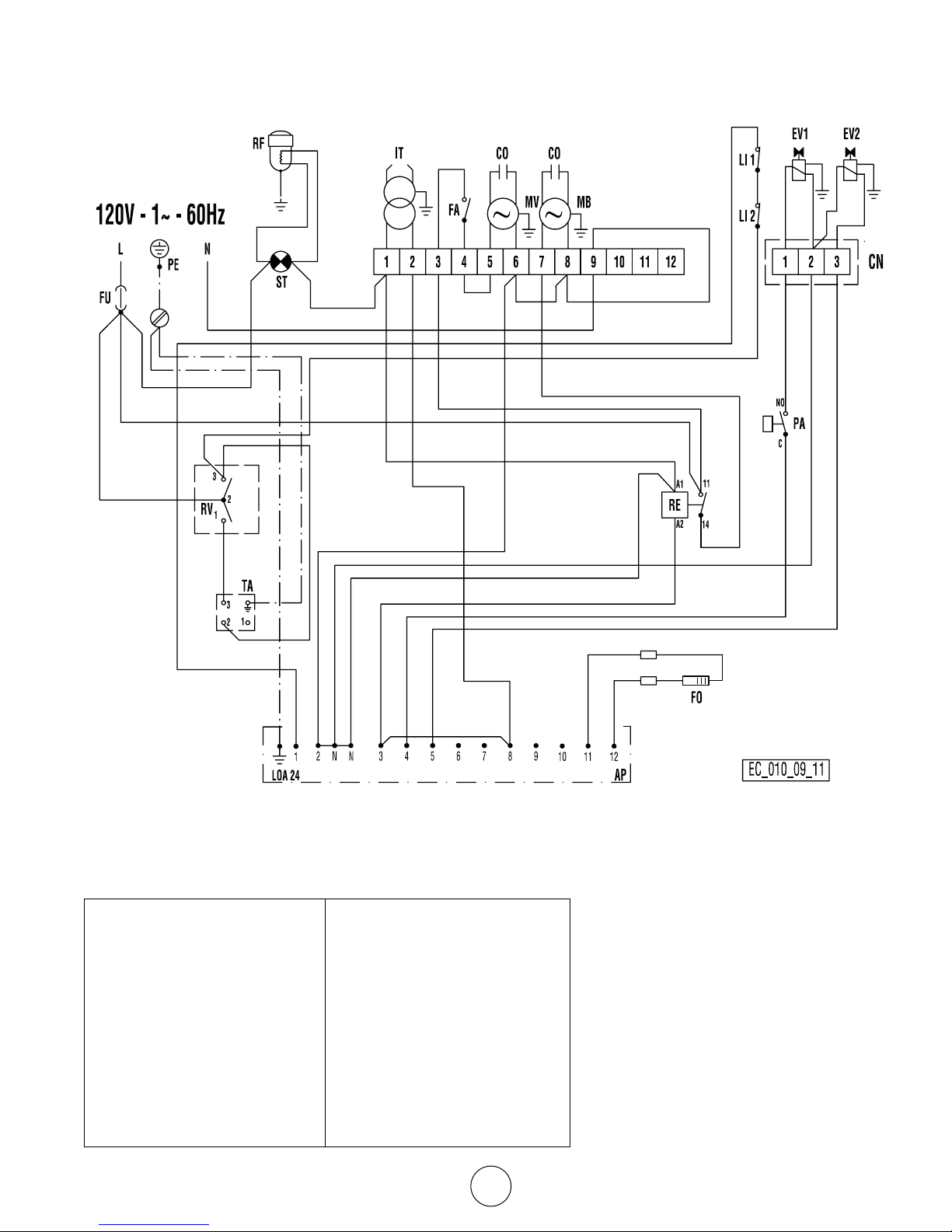

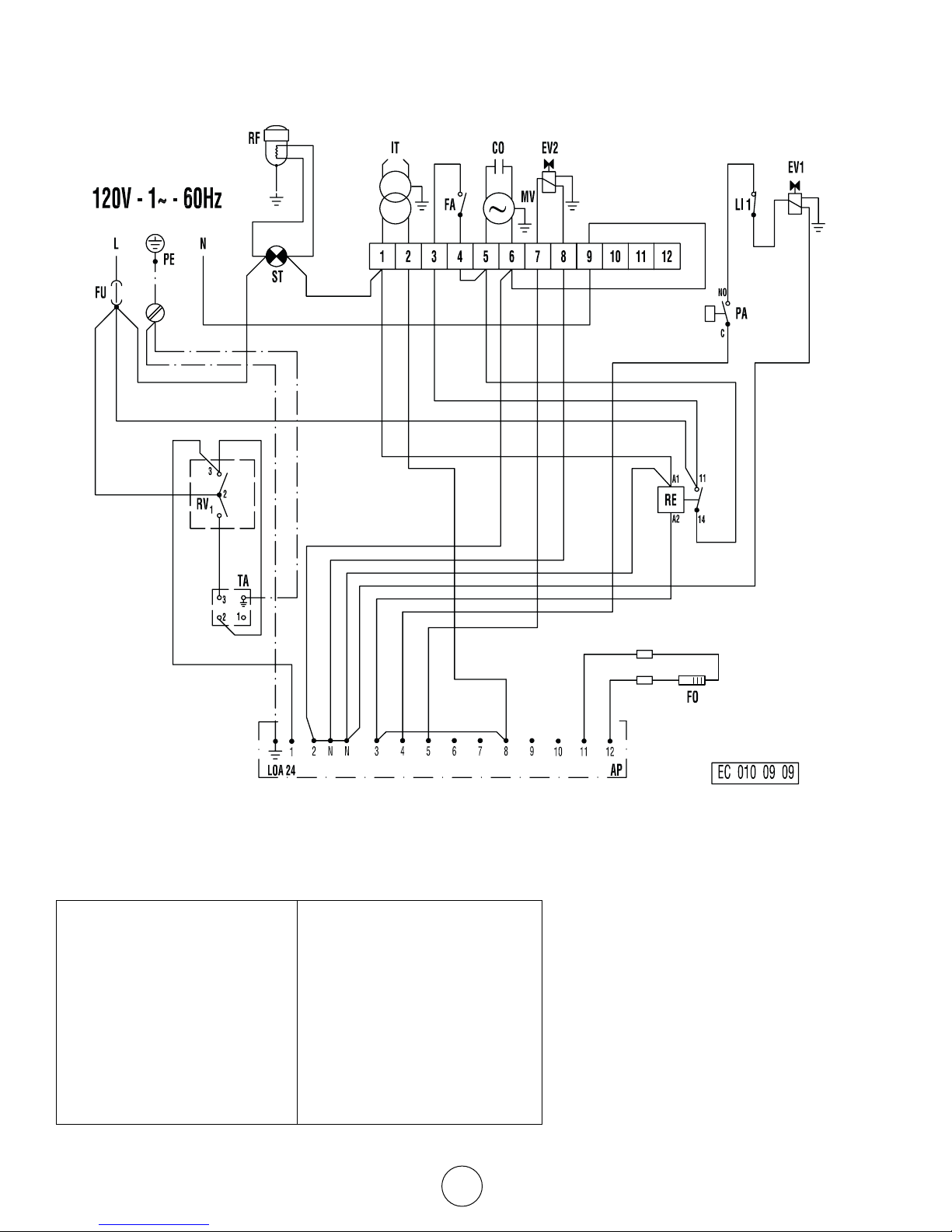

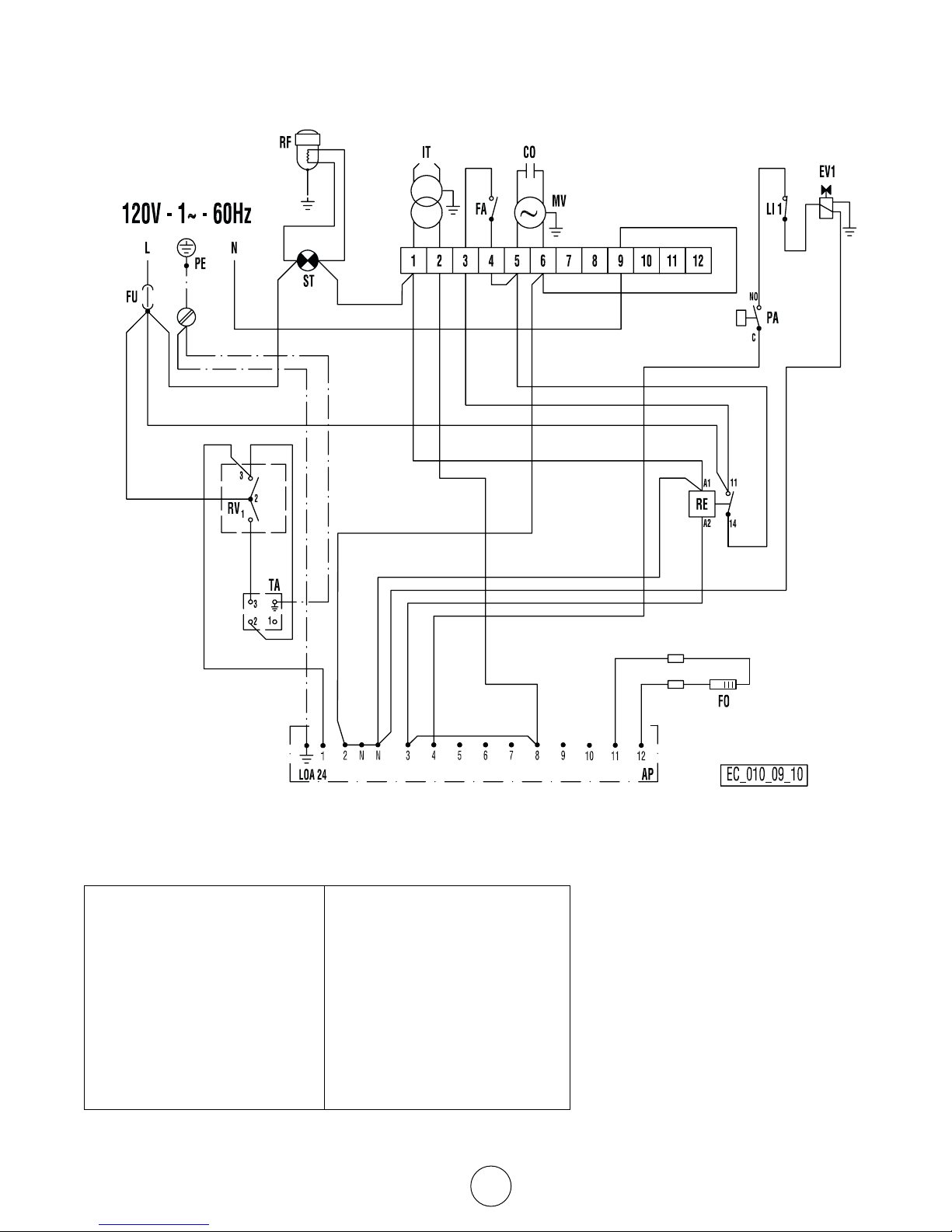

WIRING DIAGRAM

1000ID SERIES MODELS

FU Fuse

IT Transformer H.V.

LI1 Overheat Thermostat

EV1 

FO Photocell

CO Condenser

MV Fan Motor

ST Electric pilot

RV Control

TA Room Thermostat

RE Relays

AP Control Box

PA Air pressure control

RF Heater ﬁlter

FA Fan thermostat

PE Ground

DRAWING LEGEND

ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual

WIRING DIAGRAM

2000ID AND 3000ID SERIES MODELS

FU Fuse 20A

IT Transformer H.V.

LI1 Overheat Thermostat

 

 

FO Photocell

CO Condenser

MV Fan Motor

ST Electric pilot lamp

RV Control

TA Room Thermostat plug

RE Relay

AP Control Box

FA Fan thermostat

PA Air pressure control

RF Heated ﬁlter

PA Air pressure switch

PE Ground

DRAWING LEGEND

9Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Indirect Fired Portable Heater

WIRING DIAGRAM

4000ID SERIES MODELS

FU Fuse 20A

IT Transformer H.V.

LI1 Overheat Thermostat

 

 

FO Photocell

CO Condenser

MV Fan Motor

ST Electric pilot lamp

RV Control

TA Room Thermostat plug

RE Relay

AP Control Box

FA Fan thermostat

RF Heated ﬁlter

CN Connector

LI2 Overheat safety

thermostat

PE Ground

DRAWING LEGEND

ENERCO GROUP, INC. |Indirect Fired Portable Heater Operating Instructions and Owner’s Manual

63 68

72 26

47 46

17 15 18

87 88

78 77 85

Optional

1000ID Series Indirect-Fired Portable Heater

Autres manuels pour Mr. Heater 1000ID

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels MrHeater Chauffage

MrHeater

MrHeater MHVFRD10LP Instructions de montage

MrHeater

MrHeater MHS30t Instructions de montage

MrHeater

MrHeater MH170QFAVT Manuel utilisateur

MrHeater

MrHeater MHVFDF10RT Instructions de montage

MrHeater

MrHeater MH60QFAV Mode d'emploi

MrHeater

MrHeater Portable Buddy Manuel

MrHeater

MrHeater MH480FAET Instructions de montage

MrHeater

MrHeater PA170FAVT Instructions de montage

MrHeater

MrHeater MHVFDF10RT Instructions de montage

MrHeater

MrHeater Heatstar MH50KT Instructions de montage

MrHeater

MrHeater MH60CRFAV Instructions de montage

MrHeater

MrHeater MHVFRD20 NGBT Instructions de montage

MrHeater

MrHeater MH80CVX Instructions de montage

MrHeater

MrHeater MH50KR Instructions de montage

MrHeater

MrHeater MH15T Instructions de montage

MrHeater

MrHeater MHVFRD20NGBT Instructions de montage

MrHeater

MrHeater MHQ170FAVT Instructions de montage

MrHeater

MrHeater MH50KR Instructions de montage

MrHeater

MrHeater HS35LP Instructions de montage

MrHeater

MrHeater BIG Buddy MH18B Instructions de montage

MrHeater

MrHeater heatstar 4000DF Instructions de montage

MrHeater

MrHeater MH26TC Instructions de montage

MrHeater

MrHeater MR. HEATER MH80CV Manuel utilisateur

MrHeater

MrHeater Heatstar MH85FAV Instructions de montage

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
