INSTALLATION INSTRUCTIONS Model Audio XBK & Audio XWH
AudioX
PACKAGE CONTENTS:
1x AudioX [pair of speakers]
1x Installation Instructions
2x Templates
1x power cable
1x audio cable
SPEAKER RATINGS:
60 watt peak/25 watt RMS/8 ohm impedance/5” depth
Operating Temperature 0 °C – 60 °C (32 °F – 140 °F)
SUPPLY RATING:
100-240 VAC, 50/60 Hz, 1.0 A max.
1. Cut a 6 916” x 6 916” (167 mm x 167 mm) hole to mount each speaker.
The maximum distance between each speaker is 15 feet.
All audio wiring shall be installed in accordance with
National Electric Code and local electrical codes.
2. Connect power supply and audio cable to the primary AudioX
speaker and to wall outlet.
3. Connect to the speaker and test speakers before securing to ceiling.
4. Remove the front grill of the AudioX by gently rotating out any two
opposite brackets by hand as shown in the installed view and
pressing them down to pop the grill off. Return the brackets to the
original position before installing AudioX.
Failure to engage mounting brackets correctly or
improper installation may result in a falling object hazard.

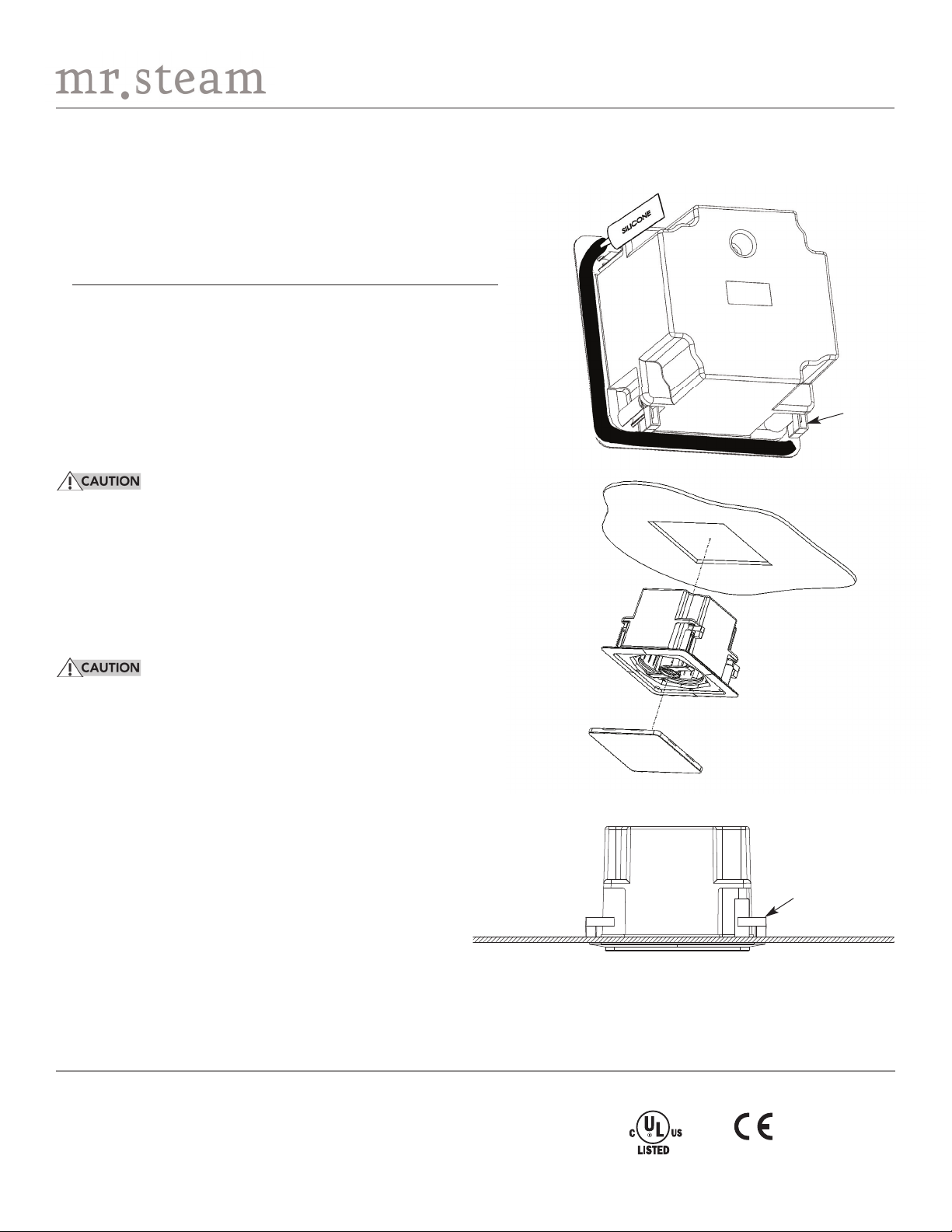

5. Apply a bead of silicone RTV (not supplied) around the edge of the
AudioX as shown in the diagram as required to obtain a watertight
seal.
6. Fit the AudioX into the speaker-mounting hole.
7. Secure the AudioX in place using the integral mounting brackets.
The mounting brackets will rotate out and tighten when
the 4 large screws are turned clockwise.
NOTE: DO NOT OVER TIGHTEN SCREWS.
8. Gently tug on speakers to ensure they are secure in the
ceiling.
9. Carefully replace the AudioX grills by pressing them in
place.
10. Let the silicone cure per manufacture's instructions
before using steam room.
Connecting to AudioX
1. On your iSteamX, go the system settings page and select bluetooth
2. Tap pair new device and look for MrSteam
3. When prompted, enter the default password: 1234
Ceiling
Speaker
Grill
Bracket shown
rotated out after
intallation
Bracket
11. Connect the secondary AudioX speaker to the
other end of the audio cable and repeat steps 4-10.
IMPORTANT: Do not place AudioX in contact with
direct water or steam emission.
2
INSTALLATION INSTRUCTIONS Model Audio XBK & Audio XWH
AudioX
ADAPTER 21V/3A

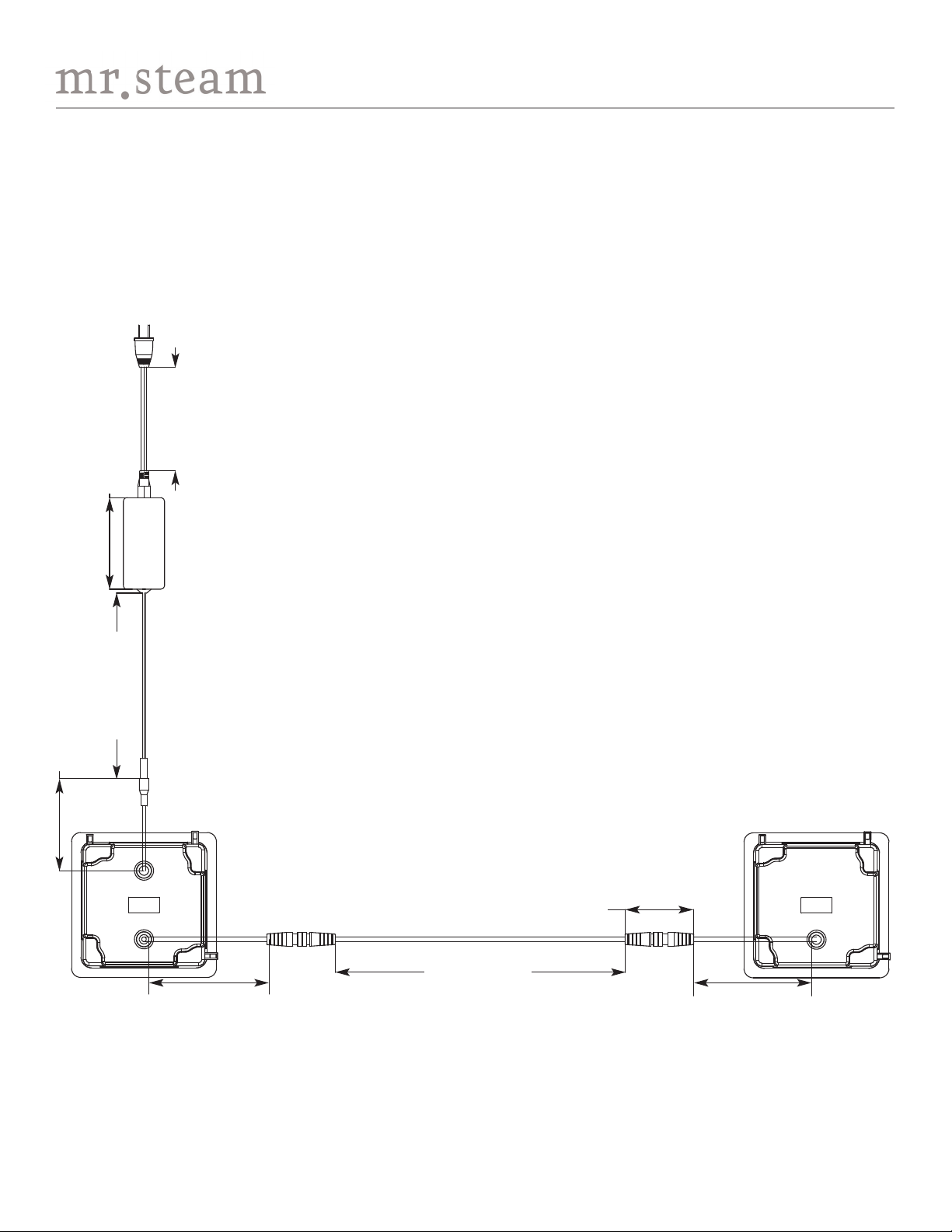

WIRING DIAGRAM
Active Ceiling Speaker Passive Ceiling Speaker
40in (1026mm)
4.5 in (120mm)
7.5 in (200mm)
4.5in (120mm)
36in (920mm )
3 in (88mm)
15 ft (4572mm)
7.5 in (200mm)
3
INSTALLATION INSTRUCTIONS Model Audio XBK & Audio XWH
AudioX
WARRANTY: To view or download the MrSteam Controls & Accessories Warranty and
register your product go to: blog.mrsteam.com/wr

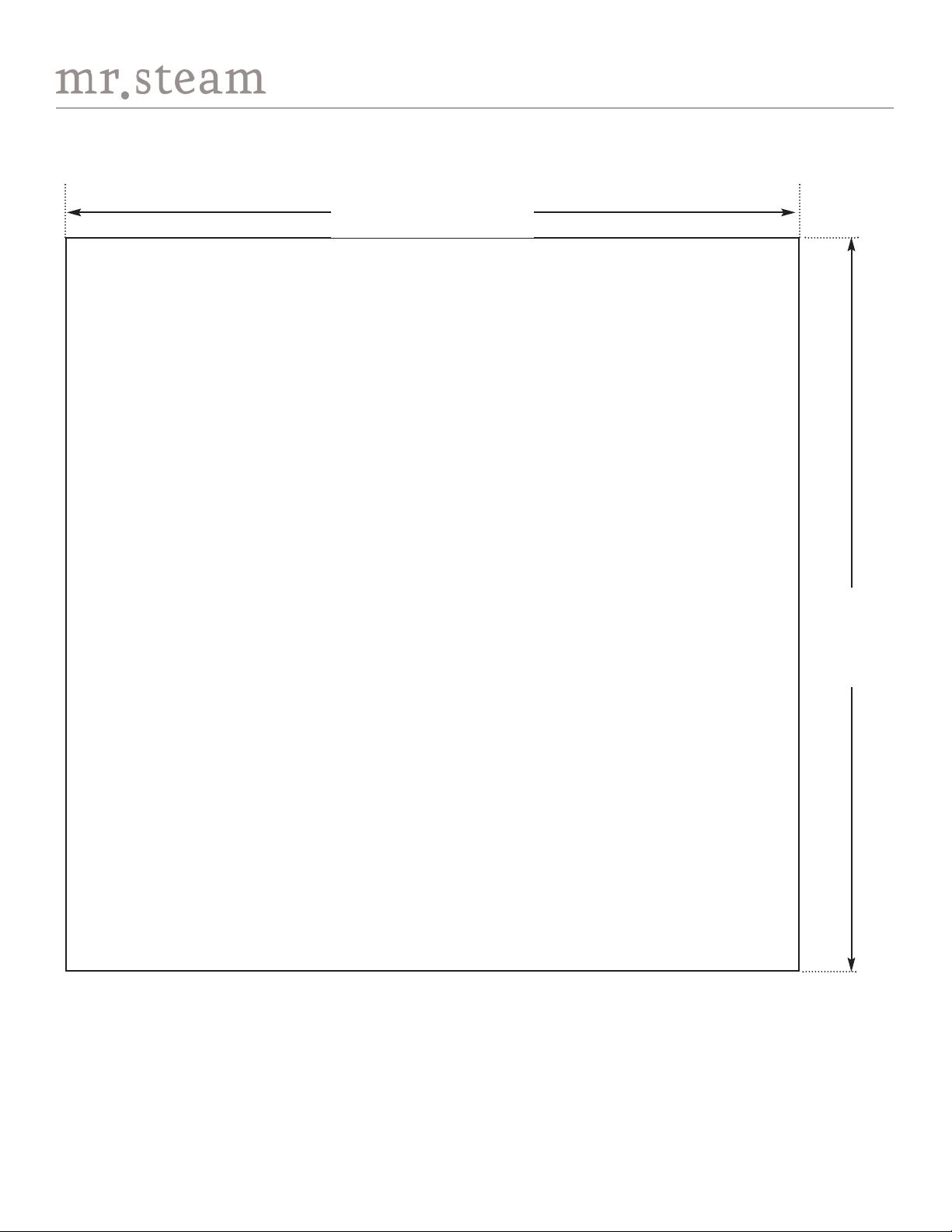

6 9/16 (167 mm)
6 9/16
(167 mm)
4
INSTALLATION INSTRUCTIONS Model Audio XBK & Audio XWH
AudioX
WARRANTY: To view or download the MrSteam Controls & Accessories Warranty and
register your product go to: blog.mrsteam.com/wr
6 9/16 (167 mm)
6 9/16
(167 mm)
mr
.steam®
Feel Good Inc.
®
www.mrsteam.com
Products, information and specifications are subject to change without notice.
Please call Technical Support at 1.800.76.STEAM (East Coast) or 1.800.72.STEAM (West Coast) for more information.
mr.steam®
I
43-20 34th Street, Long Island City, NY 11101 TEL: 1 800 76 STEAM I 9410 S. La Cienega Blvd. Inglewood CA 90301 TEL: 1 800 72 STEAM
2020
© MrSteam and des., A Lifetime of Pleasure, AirTempo, AromaFlo, AudioWizard, AutoFlush, AutoSteam, Butler Package, ChromaSteam, Clean Steam...Every Time, Club Therapy, CT Day Spa,
Digital 1, Express Steam, Feel Good Inc., From Bathroom to Spa, HomeWizard, iButler, iGenie, iSpa Package, iSteam, iTempo, iTempo/Plus, Linear Steamhead, Making Wellness a Way of Life,
Music Therapy, My Steam, SmartSizing, Spa Package, Steam Genie, Steam on Demand, Steam in a Box, Steam@Home, SteamStart, SteamTherapy, À-Ìi>, Tala, Tala Bath & Body, Tempo, The
Intelligent Steambath, Valet Package, and Virtual Spa System are registered trademarks of À-Ìi>. *1,£ä0581 Rev 3.24
WARNING Model Audio XBK & Audio XWH
AudioX
FCC Warning:
Any Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to
operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
ISED Warning:
This device contains license-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s license-
exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
L'émetteur/récepteur exempt de licence contenu dans le présent appareil
est conforme aux deux conditions suivantes:
1. L'appareil ne doit pas produire de brouillage;
2. L'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter. Cet émetteur ne doit pas être colocalisé
ou fonctionner en conjonction avec une autre antenne ou un autre
émetteur.
The device meets the exemption from the routine evaluation limits in
section 2.5 of RSS-102 and compliance with RSS-102 RF exposure, users
can obtain Canadian information on RF exposure and compliance. This
equipment should be installed and operated with a minimum distance of
20 centimeters between the radiator and your body.
Le dispositif rencontre l'exemption des limites courantes d'évaluation
dans la section 2.5 de RSS 102 etla conformité à l'exposition de RSS-102 rf,
utilisateurs peut obtenir l'information canadienne surl'exposition et la
conformité de rf.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même
