MPEG LA 4 ch MPEG-4 Manuel utilisateur

User

User’

’s Manual

s Manual

English _V0.95

Please read instructions thoroughly before operation and retain it for future reference.

154

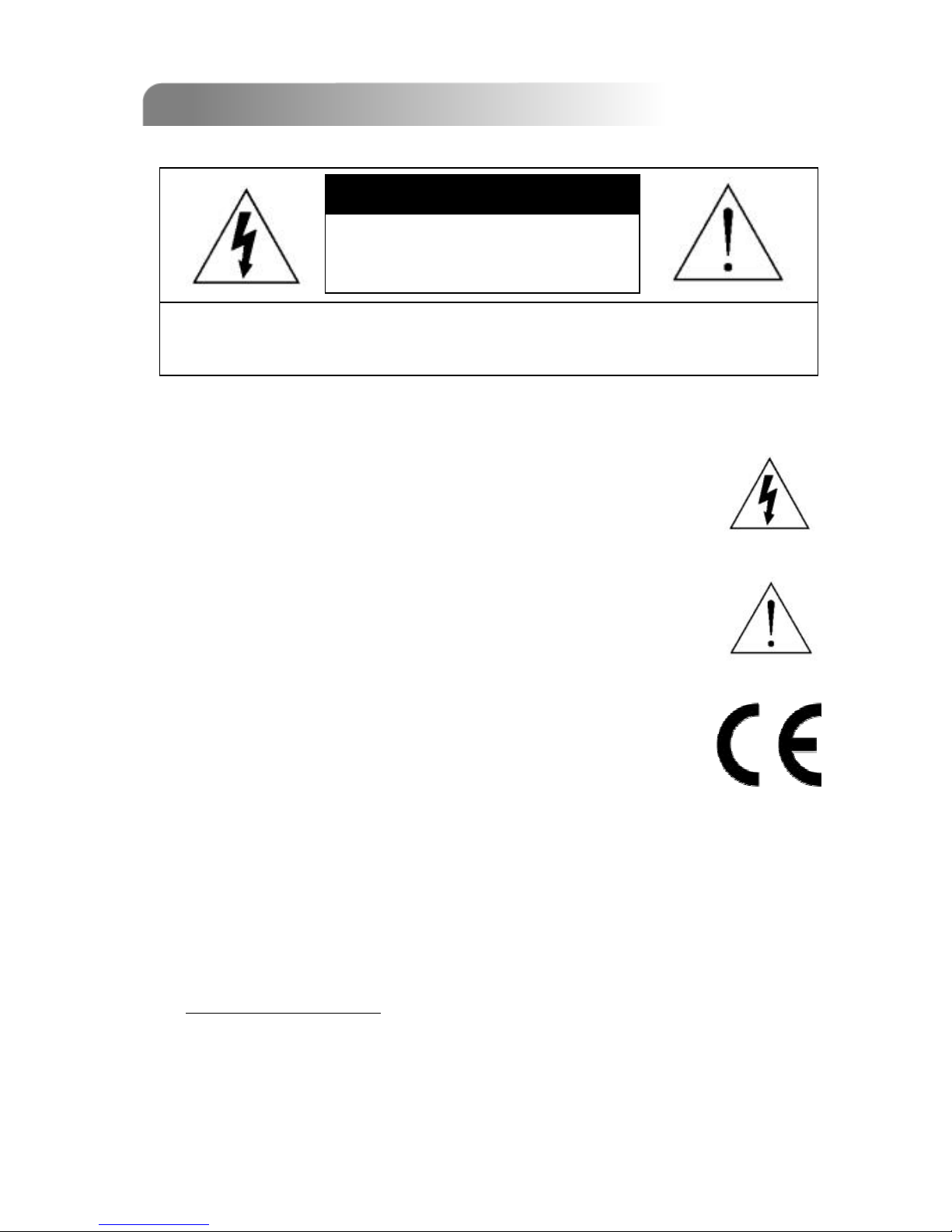

IMPORTANT SAFEGUARD

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

This exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying

the appliance.

CE Mark

This apparatus is manufactured to comply with the radio interference

requirements.

CAUTION:

To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.

Only operate this apparatus from the type of power source indicated on the label.

CAUTION

RISK OF ELECTRIC SHOCK

Note: Version: 1052-09-I4-04-AA-11; 0038

Note: Any changes of AP, please refer to your distributor.

Note: Any changes of this manual made to the actual product are subjects to no further notification.

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR

THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN

COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING

MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-

COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY

MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR

ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL

INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC.

SEE HTTP://WWW.MPEGLA.COM.

TABLE OF CONTENTS

PARTS AND FEATURES

1.1 FEATURES -------------------------------------------------------------------------------------------------------------------------

1.2 PACKAGE CONTENTS ---------------------------------------------------------------------------------------------------------

1.3 SPECIFICATION ------------------------------------------------------------------------------------------------------------------

1.4 FRONT PANEL --------------------------------------------------------------------------------------------------------------------

1.5 REAR PANEL ----------------------------------------------------------------------------------------------------------------------

GETTING STARTED

2.1 GETTING STARTED -------------------------------------------------------------------------------------------------------------

BASIC OPERATION

3.1 RECORDING -----------------------------------------------------------------------------------------------------------------------

3.2 PLAYBACK -------------------------------------------------------------------------------------------------------------------------

DETAILED MENU CONFIGURATION

4.1 MENU TREE ----------------------------------------------------------------------------------------------------------------------

4.2 MAIN MENU OPTIONS_ RECORD -----------------------------------------------------------------------------------------

4.3 MAIN MENU OPTIONS_ TIMER --------------------------------------------------------------------------------------------

4.4 MAIN MENU OPTIONS_ DATE ---------------------------------------------------------------------------------------------

4.5 MAIN MENU OPTIONS_ ADVANCE ---------------------------------------------------------------------------------------

4.6 ADVANCE MENU_ CAMERA ------------------------------------------------------------------------------------------------

4.7 ADVANCE MENU_ DETECTION -------------------------------------------------------------------------------------------

4.8 ADVANCE MENU_ DISPLAY ------------------------------------------------------------------------------------------------

4.9 ADVANCE MENU_ ALERT -----------------------------------------------------------------------------------------------------

4.10 ADVANCE MENU_ REMOTE ------------------------------------------------------------------------------------------------

4.11 ADVANCE MENU_ SYSTEM -------------------------------------------------------------------------------------------------

4.12 ADVANCE MENU_ NETWORK ---------------------------------------------------------------------------------------------

4.13 ADVANCE MENU_ BACKUP ------------------------------------------------------------------------------------------------

4.14 ADVANCE MENU_ HDD INFO ----------------------------------------------------------------------------------------------

4.15 ADVANCE MENU_ EVENT LOG -------------------------------------------------------------------------------------------

ADDITIONAL OPERATION

5.1 SEARCH -----------------------------------------------------------------------------------------------------------------------------

5.2 KEY LOCK --------------------------------------------------------------------------------------------------------------------------

5.3 SWITCH THE N/P SYSTEM ----------------------------------------------------------------------------------------------------

5.4 USB UPGRADE--------------------------------------------------------------------------------------------------------------------

5.5 LICENSED SOFTWARE AP----------------------------------------------------------------------------------------------------

AP BASIC OPERATION ---------------------------------------------------------------------------------------------------

AP ADVANCED SETTING -------------------------------------------------------------------------------------------------

Network ------------------------------------------------------------------------------------------------------------

DDNS ----------------------------------------------------------------------------------------------------------------

MAIL -----------------------------------------------------------------------------------------------------------------

FTP ------------------------------------------------------------------------------------------------------------------

DVR-CAMERA SETTING --------------------------------------------------------------------------------------

DEVICE -------------------------------------------------------------------------------------------------------------

DETECTION -------------------------------------------------------------------------------------------------------

NETWORK BACKUP & PLAYBACK -----------------------------------------------------------------------

SEARCH LIST ----------------------------------------------------------------------------------------------------

ALARM -------------------------------------------------------------------------------------------------------------

GENERAL ---------------------------------------------------------------------------------------------------------

ACCOUNT ---------------------------------------------------------------------------------------------------------

ONLINE USER INFO --------------------------------------------------------------------------------------------

FILE PATH ---------------------------------------------------------------------------------------------------------

5.6 CONNECT TO AP VIA IE BROWSER ---------------------------------------------------------------------------------------

TROUBLE SHOOTING

6.1 FAQ -----------------------------------------------------------------------------------------------------------------------------------

APPENDIX #1

APPENDIX #1 INSTALL THE HDD -----------------------------------------------------------------------------------------------------------

APPENDIX #2

APPENDIX #2 PIN CONFIGURATION -------------------------------------------------------------------------------------------------------

APPENDIX #

APPENDIX #3

3RS232 PROTOCOL ----------------------------------------------------------------------------------------------------------

APPENDIX #

APPENDIX #4

4RECORDING TIME TABLE -------------------------------------------------------------------------------------------------

APPENDIX #

APPENDIX #5

5COMPATIBLE USB BRAND ------------------------------------------------------------------------------------------------

APPENDIX #

APPENDIX #6

6COMPATIBLE HDD BRAND ------------------------------------------------------------------------------------------------

PARTS AND FEATURES

1.1 FEATURES

1.2 PACKAGE CONTENTS

MPEG4 DVR Technology

Compression format provides crystal clear image with real time performance

Multiplex

Allows live display, record, playback, backup, and network at the same time

Long

Long-

-Recording Hours:

Recording Hours:

500GB can record more than 18 days. (4CH, Frame Best Quality, 30IPS)

Backup Function:

Backup files with USB memory stick (For Model 1) and network remote recording & backup

Remote Surveillance:

Remote surveillance with licensed software AP and IE browser

Web surveillance supports 5 users simultaneously

Intelligent Motion Trigger Recording:

With advanced motion detection function, scheduled motion detection recording

(4 different adjustable factors for motion detection sensitivity) and convenient search function,

customized security environment is achieved

Alarm trigger recording will send alert with images to designated e-mail and FTP address

Supports pre-alarm recording (8MB)

Covert Recording:

A mask replaces the live image with a blank screen & the monitor shows nothing but recording is still on

A/V Support:

Supports 2 audio-in, 1 audio-out to record sounds (Model 1)

Supports 1 audio-in, 1 audio-out to record sounds (Model 2)

Supports VGA output to monitor (optional)

General:

Support multi-language OSD

System auto recovery after power reconnected

Support daylight saving function

Support manual / timer / motion / alarm / remote recording functions

Watermark function ensures authentication of recorded images

Support TCP/IP, PPPoE, DHCP and DDNS network connection

NOTE: Please check the package contents to make sure that you receive all accessories shown above.

Licensed Software AP

Adapter

(with two converters: EU & UK)

Accessories Pack Accessories Pack Manual & Quick Start

Digital Video Recorder

1.3 SPECIFICATION

Frame: MJPEG ; CIF: MPEG4

1 audio input,

1 audio output (Mono)

Network Remote Backup

N / A

Model 2Model 1

YesWatermark

Support USB 1.1/ 2.0 USB

memory stick

USB Interface

Support USB 1.1/ 2.0 USB

memory stick and network

remote backup

Backup Device

4 Channels. Composite video signal 1 Vp-p 75ΩBNCVideo Loop Out

Yes (8MB)Pre-alarm Recording

4 adjustable variables with precise calculation for motion detectionMotion Detect Sensitivity

16 ×12 grids per camera for all channelsMotion Detection Area

2 audio inputs,

1 audio output (Mono)

Audio I/O

120 IPS for NTSC / 100 IPS for PAL

Frame: 30, 15, 7, 3 IPS <NTSC> / 25, 12, 6, 3 IPS <PAL>

CIF: 120, 60, 30, 15 IPS <NTSC> / 100, 50, 25, 12 IPS <PAL>

Frame: 720 ×480 pixels with 30 IPS〈NTSC〉/

720 ×576 pixels with 25 IPS 〈PAL〉

CIF: 352 ×240 pixels with 120 IPS〈NTSC〉/

352 ×288 pixels with 100 IPS 〈PAL〉

Refresh Rate

IDE type, ATA66, supported HDD ＊1 , support HDD capacity over

400GB

Hard Disk Storage

Best, High, Normal, and BasicImage Quality Setting

Adjustable Recording Speed

Manual／Timer／Motion／AlarmRecording Mode

Quick clean up the “index system” of the recorded files.

250GB under 2 seconds

HDD Quick Cleaning

Maximum Recording Rate

Main Monitor Output: Composite video signal 1 Vp-p 75ΩBNC

Call Monitor Output: Composite video signal 1 Vp-p 75ΩBNC

Video Output

4 Channels. Composite video signal 1 Vp-p 75ΩBNCVideo Input

Frame: MPEG 4 ; CIF: MPEG4Video Compression Format

NTSC / PAL (switch able)Video System

Any changes made to the actual product are subjects to no further notification.

2X digital zoom (live mode)Digital Zoom

Motion JPEGWeb Transmitting

Compression Format

10/100 Base-T. Support remote control and live view via EthernetEthernet

Support licensed software AP, and IE browserWeb Interface

＜42 WPower Consumption

Specification Continued…

System auto recovery after power reconnectedSystem Recovery

Optional Peripheral

Dimensions (mm)

Operating Temperature

Power Source

Date Display Format

Video Adjustable

Camera Title

Video Loss Detection

Key Lock

Alarm I/O

Dwell Time

(Sequential Channel Switch)

PTZ control

Network Connection

Remote Alarm Notification

4 inputs, 1 output

343mm (W) ×59mm (H) ×223mm (D)

VGA connector

E-mail images, and images uploading to FTP site’s specific account

Support TCP/IP, PPPoE, DHCP and DDNS functions

10℃~ 40℃(50℉~104℉)

Support up to 6 letters

DC 19V

YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off

Hue／Color／Contrast／Brightness

Yes

Programmable with adjustable dwell time

Support PELCO-D protocol

1.4 FRONT PANEL

“LED LIGHT”:

HDD: HDD is reading or recording

HDD Full: HDD is full.

ALARM: Once the alarm is triggered

TIMER: When timer recording is turned on

PLAY: Under playing status

REC: Under recording status

“MENU”:

Press “MENU” button to enter main menu.

“ENTER”/“SET”:

Press “ENTER” button to confirm.

Press “SET” to change channel display position.

Press “▲▼◄►“ to select the channel which you like to change,

Press “＋”or“－” select the channel which You would like to show.

Press “ENTER” button to confirm.

“SEARCH ”:

Press “SEARCH” button to enter the search mode.

“SLOW ”:

Under playback mode, press “SLOW“ button to show slow playback.

“ZOOM ”:

Press “ZOOM” button to enlarge the picture of selected channel (under live mode).

“”/“－”:

Press “ “ button to show the 4 channel display mode.

Press “ －” button to change the setting in the menu.

“SEQ”/“＋”:

Press “SEQ” button to activate the call monitor function and press “SEQ” button

again to escape the call monitor mode.

Press “＋” button to change the setting in the menu.

“POWER”:

Press this button to turn on / off the DVR.

(Under recording mode, please stop record before turn off the DVR).

“CH1 ”“CH2 ”“CH3 ”“CH4 ”:

Press “1”“2”“3”“4” buttons to select the channel.

“REC”:

Press “REC” button to activate the manual recording.

“PLAY”:

Press “PLAY” button to playback the recorded files.

“UP / PAUSE , DOWN / STOP, LEFT / FAST REWIND, RIGHT / FAST FORWARD“:

Press “▲▼◄►“ to move the cursor up / down / left / right.

Under playback mode, press “ “ button to pause playback.

Under playback mode, press “ “ button to stop playback.

Under playback mode, press “ “ button to fast rewind.

Under playback mode, press “ “ button to fast forward.

“”:

Press these two buttons to select live or playback sounds of the 2 audio channels.

“”:

Press these two buttons at the same time to enter / exit the PTZ control mode.

Press “POWER” button on the DVR front panel to shutdown, and then press

“POWER” + “►“ to switch to PAL system.

(Press the buttons until the monitor show the video image of the DVR.)

Press “POWER” button on the DVR front panel to shutdown, and then press

“POWER” + “◄“ to switch to NTSC system.

(Press the buttons until the monitor show the video image of the DVR.)

Press “MENU” + “ENTER” buttons on the DVR front panel to key lock.

1.5 REAR PANEL

1) 75Ω/ HI:

When using Loop function, please switch to HI. When you don’t use Loop function, please

switch to 75Ω.

2) VIDEO INPUT (CHANNEL 1 - 4) :Connect to video source, such as camera.

LOOP (CHANNEL 1 - 4):Video output.

3) MONITOR:

Connect to Main monitor.

4) CALL MONITOR:

Connect to CALL monitor. Show the channel switch display. When the alarm is triggered, the

call monitor will show the image of the triggered channel for a period of time.

5) AUDIO IN (two audio-in for Model 1; one audio-in for Model 2) :

Connect to audio source, such as camera which equipped with audio function.

When users start the recording function, the audio input will be recorded.

6) AUDIO OUT :

Connect to monitor or speaker.

With 1 mono audio output from the same source.

7) D/V PORT (Digital Video Port):

Connect to VGA connector card.

8) EXTERNAL I/O PORT:

Connect to external device. Control external device or controlled remotely by external device

(alarm input, external alarm).

9) LAN:

Connect to Internet by LAN cable.

10) LINK / ACT LED light:

When the Internet is activated, the LED light will be on

11) POWER:

Connect to provided adapter.

12) USB (For Model 1):

Support firmware update and files backup.

DC 19V

75?

HI-IMPEDANCE

LOOP

EXTERNAL I/O

INPUT

LOOP LOOP LOOP

INPUT

LAN

ACT.

LINK

CALLMONITOR

IN OUT

USB

INPUT

VD /

8911

Take Model 1 as an example

2.1 GETTING STARTED

GETTING STARTED

NOTE:

Please refer to Appendix #1 for HDD installation

instructions.

NOTE:

Please refer to “Section 1.5 Rear Panel”

for connection.

NOTE:

Please refer to Appendix#2 for pin configurations

of the external I/O port .

Connecting all the devices to construct a surveillance.

1) Install HDD:

The HDD must be installed

before the DVR is turned on.

2) Connect cameras.

3) Connect monitors.

4) Connect the external devices.

5) Connect the AC power cord to power adapter and plug into an electrical outlet.

The standby LED would be on as red.

Press the “POWER” button. The power LED will be on as red.

It takes approximately 10 to 15 seconds to boot the system.

Channel Title

Available Capacity

of Internal HDD

System Time

Under HDD

Overwrite Mode

2006-MAR-13 [MON] 14:43 420GB

420GB

-OW

OW-

01 02

03 04

●●

●

Take Model 1 as an example

Table des matières

Autres manuels MPEG LA DVR

MPEG LA

MPEG LA 4CH Manuel utilisateur

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur
